KEY FEATURES

  • Pixel Pitch: 1.0mm
  • Brightness: 1,000 cd/m²
  • Refresh Rate: 1,920 Hz
  • Web Based Control S/W
  • TAA Compliant

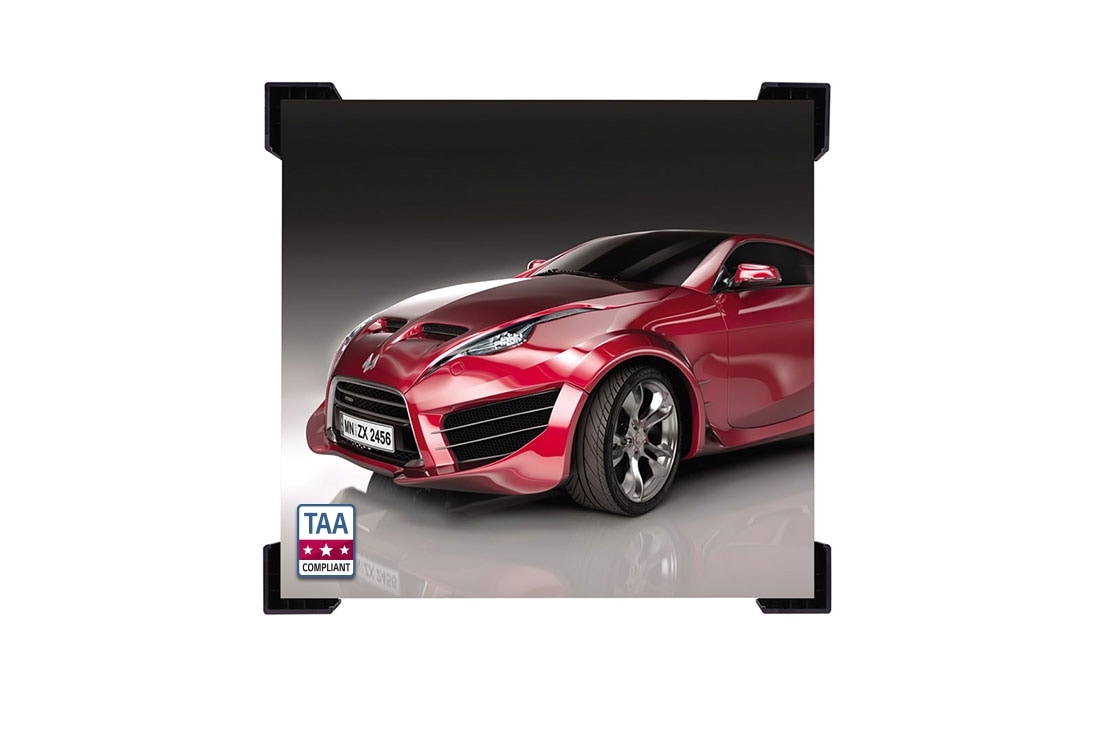

LAP Series

PHYSICAL PARAMETER

    • Pitch Name
    • P1.0
    • Pixel Pitch (mm)
    • 1.0
    • LED Type
    • SMD 3-in-1
    • Resolution (W x H, per Unit Case)
    • 384 x 360
    • Dimensions (W x H x D, per Module)
    • 192 x 180 x 16 mm
    • Dimensions (W x H x D, per Unit Case)
    • 384 x 360 x 77 mm
    • Weight (per Unit Case)
    • 5kg
    • Weight (per SQM)
    • 36 kg¹ ¹LED Unit Case (Except LED Controller)
    • IP Rating
    • N/A
    • Unit Frame Material
    • Die Casting Allumium
    • Unit Frame Color
    • Black
    • Curvature
    • N/A
    • Access
    • Rear

OPTICAL PARAMETER

    • Brightness (After Calibration)
    • 1,000nit
    • Contrast Ratio
    • 6,000:1
    • Viewing Angle (H x V)
    • 160 x 140
    • Bit Depth
    • 16bit
    • Brightness Uniformity
    • ≥ 97%
    • Color Uniformity
    • ±0.015Cx, Cy
    • Color Gamut
    • NTSC 100%, BT2020 94%
    • Color temperature - Default
    • 6,500K
    • Color temperature - Adjustable
    • 3,200 ~ 9,300K
    • Video Frame Rate
    • 50/60Hz

ELECTRICAL PARAMETER

    • Input Power Range
    • 100-240 V~, 50/60 Hz
    • Power consumption - Max/Typ (per Unit Case)
    • 170/85 W
    • Power consumption - Max/Typ (per SQM)
    • 1,230/615 W
    • Refresh rate
    • 1,920Hz
    • Redundancy
    • N/A

CONNECTIVITY

    • Video Inputs
    • HDMI In, DP In/Out, DVI, USB
    • Control
    • RJ45 In/Out, RS232C In/Out
    • Special Features
    • Temperature Sensor, Ambient Light Sensor, Current Sensor

OPERATION CONDITIONS

    • Working Temperature/Humidity
    • 0°C to 40°C at 10% to 80%
    • Storage Temperature/Humidity
    • -20°C to 60°C at 5% to 90%
    • LED Lifetime
    • 100,000hrs

CERTIFICATION

    • Safety
    • IEC 60950-1/EN 60950-1/UL 60950-1
    • EMC
    • FCC Class "A"/CE/KC
    • Environment
    • RoHS
