KEY FEATURES

  • 136" FHD 1.56 mm Pixel Pitch All-in-One
  • Manage with embedded controller and LG webOS
  • Easy installation and maintenance
  • Connect with Office Meeting Mode, Wireless Screen Sharing & Crestron Connect
  • Durable design with IP30 rating and Flame Spread Protection
  • Long lasting with lifetime up to 100,000 hours

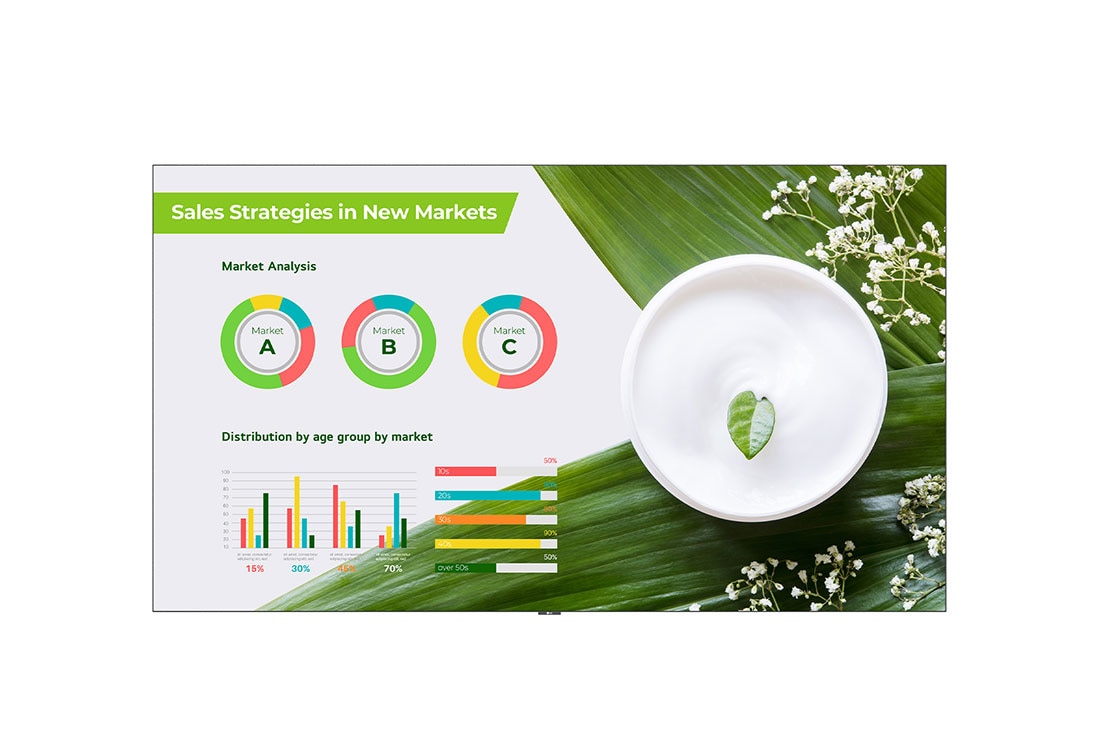

136" All-in-One Direct View LED with Built-in Speakers
$

All-in-One Direct View LED Display with webOS

*Images are simulated for illustration purposes only. Stand accessories differ by models, and need to be purchased separately.

All-in-One LED Screen with Built-in Speaker

 Experience the convenience of LG’s LED All-in-One LAPA series, featuring stunning 136-inch screen. This all-in-one package includes an embedded controller and built-in speaker, making setup a breeze. Dispelling the notion that LED displays are difficult and complex to install, it requires no controller connections or module configuration.
*Images are simulated for illustration purposes only.

Easy Installation

The installation process for the LED All-in-One is straightforward. First, secure the cabinets (three for the LAPA136). Next, attach each LED display module to the cabinets, and finally, plug in the power cable. This simple installation saves time and labor, allowing users to easily manage the LED screen.
* The image is illustrated as an example of LAPA136 model.
* Fixing screws or installing wall mount/accessories is needed additionally.

Simple Power Connection

The LAPA series operates with a double AC cable, simplifying power connections and ensuring a clean, tidy installation.
*Images are simulated for illustration purposes only.

Quick Maintenance

In case of a failure related to the LED module or the system board, it can be serviced from the front. The LED module can be easily detached using the provided magnetic tool and replaced quickly without cabling.
*Images are simulated for illustration purposes only.

Versatile Installation with Dedicated Accessories

The product comes with all the necessary components including the landscape wall mount and tools for installation. For added convenience, a dedicated stand is available as an option, allowing you to easily position the screen based on your installation needs. Additionally, the LAPA series can be seamlessly arranged side by side in a 1 × N configuration, accommodating up to 10 screens to suit your specific installation site and purpose.
*Images are simulated for illustration purposes only. Stand accessories vary by model and must be purchased separately.

Real-time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients’ businesses.
* The availability of LG ConnectedCare differs by region.

High Performance SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform offers an intuitive GUI and simple app development tools.
* The webOS Signage Developer site (https://webossignage.developer.lge.com) provides SDK tools and documentation for creating apps on LG Digital Signage. This is only open to partners.
Pause

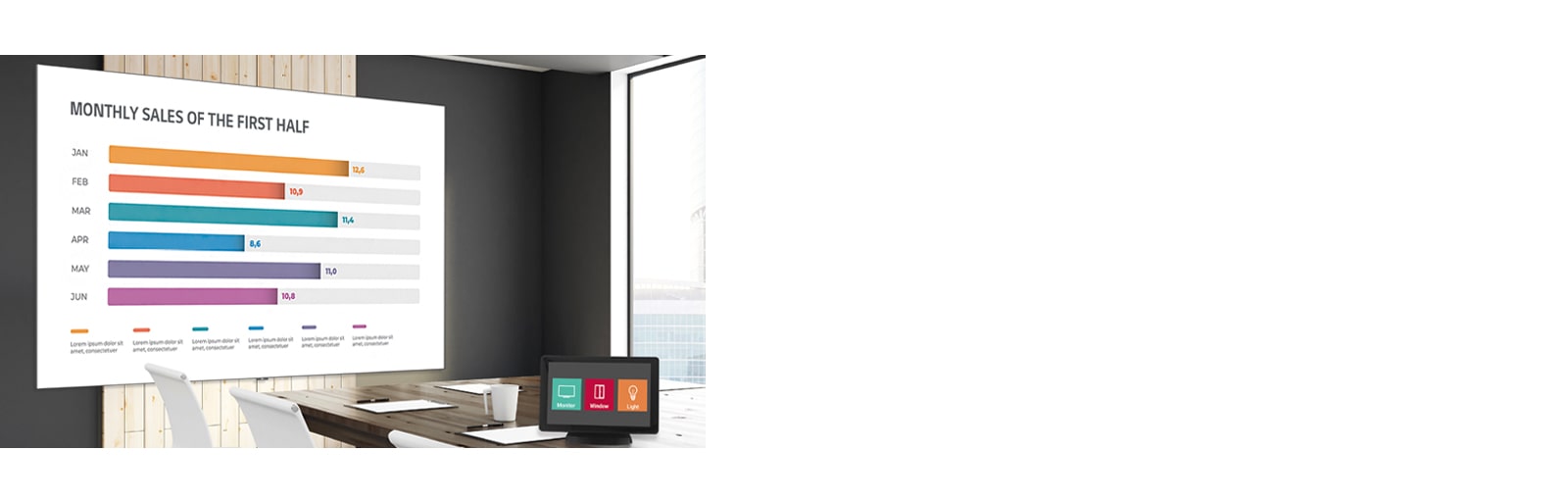

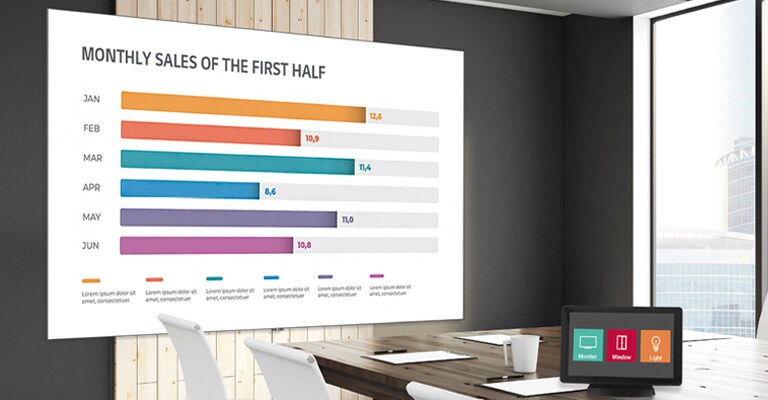

Compatible with AV Control Systems

The LAPA series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
*** Crestron Connected® needs to be purchased separately.

Office Meeting Mode

With Office Meeting Mode, easily configure meeting room details such as room number. It also includes convenient features like automatic input switching, a presentation timer, and adjustable settings such as auto-brightness and picture mode.

* Users can enable Office Meeting Mode at EZ Setting menu of the Signage.
*Images are simulated for illustration purposes only.
Pause

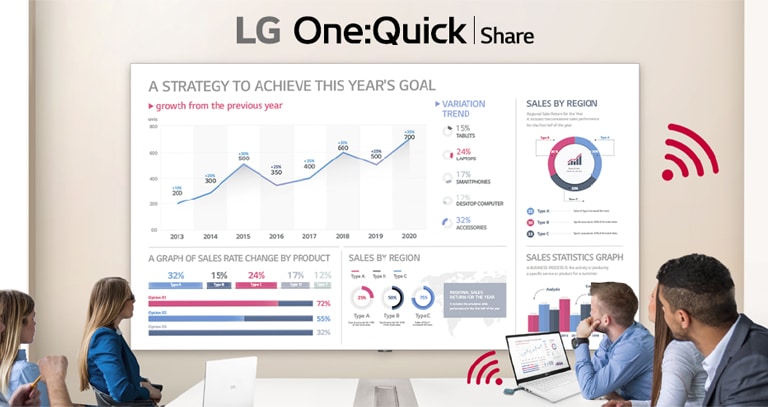

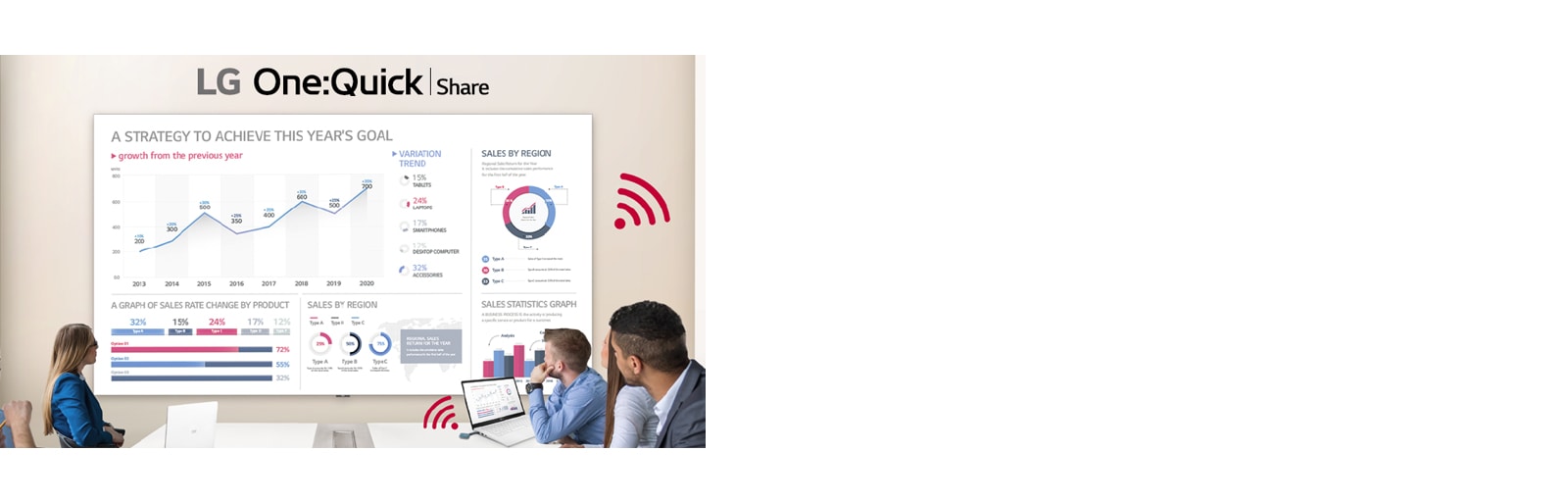

Wireless Screen Sharing

The LAPA series is compatible with LG One:Quick Share*, a wireless screen sharing solution. It helps to simply share one’s personal PC screen to the display with its button and embedded Wi-Fi**, and it can also adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control.

* LG One:Quick Share needs to be purchased separately.
** Users need to set up SoftAP enabled at Network Menu of the Signage.
*Images are simulated for illustration purposes only.

Flame Spread Protection

The LAPA series has satisfied the standards for the BS476 Part7 Class 1 rating, confirming its compliance with flame spread standards. Its excellent fire resistance can help improve safety at the installation site.

* The LAPA series was evaluated for spread of flame at 1.5 min and final spread of flame under BS476 Part7:1997 (R2016) procedures, verified by TUV SUDCertification and Testing (China) Co., Ltd. in December 2024, and satisfied Class 1 (165+25mm) standard requirements. (Technical Reprot No. 68.189.24.0712.01).
** Actual results or performance may vary depending on the use environment.

PHYSICAL PARAMETERS

    • Pitch Name
    • P1.56
    • Pixel Configuration
    • Single SMD
    • Pixel Pitch (mm)
    • 1.56
    • Module Resolution (W × H)
    • 192 × 108
    • Module Dimensions (W × H)
    • 11.8 x 6.6 in. / 300 × 168.75 mm
    • No. of Modules per Screen (W × H)
    • 10 × 10 (Total 100)
    • Screen Resolution (W × H)
    • 1,920 × 1,080
    • Screen Dimensions (W × H × D)
    • 118.3 x 54.8 x 2.3 in. / 3,005 × 1,692.5 × 59.5 mm
    • Screen Surface Area
    • 54.5 ft² / 5.06 m²
    • Screen Weight
    • 239.2 lbs. / 108.5 kg
    • Physical Pixel Density (pixels/m²)
    • 409,600
    • Flatness of Cabinet (mm)
    • ±0.15
    • Cabinet Material
    • Aluminum
    • Service Access
    • Front

OPTICAL SPECIFICATIONS

    • Typical Brightness After Calibration (nits)
    • Up to 500
    • Color Temperature (K)
    • 3,200-9,300
    • Visual Viewing Angle (H × V)
    • 150° × 150°
    • Brightness Uniformity
    • 98%
    • Color Uniformity
    • ±0.015Cx,Cy
    • Contrast Ratio
    • 3,000:1
    • Processing Depth (bit)
    • 16 (HDR10, HDR 10 Pro)

ELECTRICAL SPECIFICATIONS

    • Max Power Consumption (W)
    • 1,300
    • Avg. Power Consumption (W)
    • 650
    • Max Power Consumption (W/m2 )
    • 260
    • Max Heat Dissipation (BTU/h)
    • 4,436
    • Avg. Heat Dissipation (BTU/h)
    • 2,218
    • Max Heat Dissipation (BTU/h/m2 )
    • 888
    • Power Supply (Vac)
    • 100 to 240
    • Frame Rate (Hz)
    • 50 / 60
    • Refresh Rate (Hz)
    • 3,840

OPERATION SPECIFICATIONS

    • Lifetime (Half brightness)
    • Up to 100,000
    • Operating Temperature
    • 32°F to 104°F / 0°C to +40°C
    • Operating Humidity
    • 10-90%RH
    • IP Rating (Front / Rear)
    • IP30 / IP30

REGULATORY & CERTIFICATIONS

    • Certifications
    • CE, FCC, EMC Class A
    • Fire Protection
    • BS476 Part7 Class 1
    • Environmental
    • RoHS, REACH

Warranty & Other

    • Warranty
    • 3 Year Limited
    • Speaker
    • Built-in (9 W + 9 W)
    • Controller
    • Embedded (webOS)
    • Connectivity
    • HDMI (x3) with HDCP 2.2, DisplayPort with HDCP 2.2, USB, LAN, RS-232C In/Out, IR, Digital Audio Out (SPDIF Optical)
    • Wi-Fi / Bluetooth
    • Yes / No
    • Accessories
    • IR Remote (In-box)

Specification Sheet
