KEY FEATURES

  • 1.56 Pixel Pitch COB
  • 1,500 nits Brightness with 160° x 160° Viewing Angle
  • Curve Effect Available
  • Easy Installation and Maintenance
  • LG webOS™ Controller
  • Last up to 100,000 hours

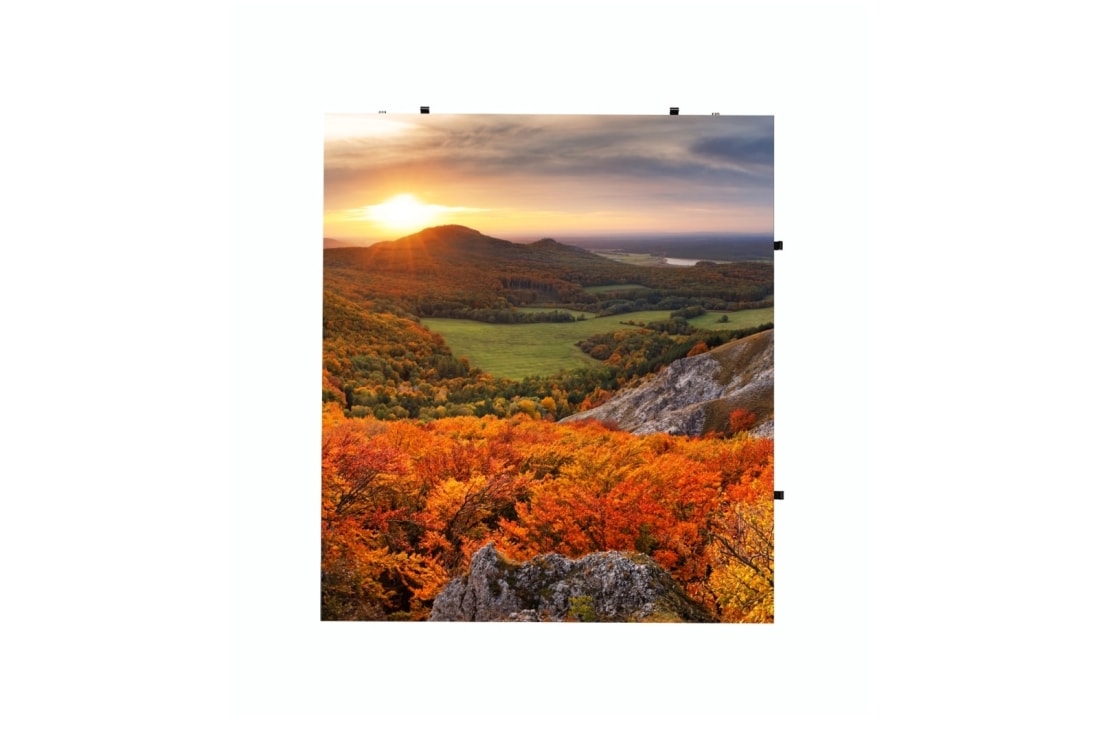

LBAF MAGNIT Studio Series MicroLED Wall with webOS™
$

Micro LED for
Virtual Production

*All images in this page are for illustrative purposes only.

Easy Installation & Maintenance

The module is easily removed, as it features rear service access that does not require any tools. Positioning pins and magnets assist in panel adjustment resulting in a smooth screen assembly.

Curve Effect Option

The angle adapter system and fast lock are designed to fascilitate easy installation for curved display. The system allows for adjustment of up to 10 degrees in concave area while providing a secure mechanical connection.

Stacking & Hanging System Available

Instillation options vary by stacking or hanging, using optional accessories such as single or double beams for customization to the studio environment.

Black Immersion, Dynamic Details

By removing a package surrounding R, G, B LED chips and applying LG’s own Full Black Coating technology, the LBAF series delivers deeper black than the conventional package LED signage*. This not only enhances color vividness, but also makes the details hidden in the shadows visible, providing audiences a sense of immersion.

* Based on LG's conventional LED Signage

Realistic Color Expression

Carefully selected LED chips create a narrowed wavelength, which provide LBAF series uniform colors across the screen. Furthermore, the enhanced Gamut Transfer technology supports realistic color expression.

Wide Color Viewing Angle

The structure of LBAF series minimizes color distortion according to the viewing angle. In other words, the original color can be appreciated from multiple angles, captivating various onlookers when installed in a large spaces.

Broadcast Quality Available

With HDR capability and low latency video processing, LBAF supports broadcast-quality, providing sharp and smooth playback.

V-Sync

The flow of black lines can be prevented by adjusting the LED display’s V-Sync to match the frequency between the camera and LED. This can reduce a rolling shutter effect while the camera is shooting.

Phase Shift

The Phase Shift feature makes LED screen adjustments fluid. Screen output timing can be adjusted manually to remove double imaging.

Detailed Analysis of Video Signals

The LBAF series analyzes video input of Y’, Y’-Cb, and Y’Cr and shows Waveform and Vector Scope on LED tiles. False Color, Waveform, and Vector Scope for more video details or adjustments can be read on a display.

Color Gamut Adjustment

The RGB color gamut can be manually adjusted to match colors between LED tiles and camera to achieve desired hues.

Gamma Adjustment

Gamma adjustment can be made manually from 0 to 1023 to calibrate RGB and fix errors.

Custom 3D-LUT

With LED displays supporting customized 3D-LUT, users can achieve desired color.

HDR Manual Adjustment

Although HDR metadata is not transferred from recorded video, realistic tone-mapping can be made with this HDR manual adjustment feature.

Compatibility with
LG Software Solutions

When connected with LG's CBAF system controller, the LBAF series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, streamlining business operations.
*The availability of the 'LG ConnectedCare' service differs by region, and is purchased separately. Contact an LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
*Actual GUI may vary in different webOS versions.
*LG Software solutions purchased separately.

PHYSICAL PARAMETERS

    • Pixel Configuration
    • COB
    • Pixel Pitch
    • 1.56 mm
    • Module Resolution (W × H)
    • 96 × 108
    • Module Dimensions (W × H)
    • 5.9 x 6.6 in. / 150 × 168.75 mm
    • Weight per Module
    • 0.33 lbs. / 0.15 kg
    • No. of Modules per Cabinet (W × H)
    • 4 × 4
    • Cabinet Resolution (W × H)
    • 384 × 432
    • Cabinet Dimensions (W x H x D)
    • 23.6 x 26.6 x 3.1 in. / 600 × 675 × 79.8 mm
    • Cabinet Surface Area
    • 4.4 ft² / 0.405 m²
    • Weight per Cabinet
    • 34.2 lbs. / 15.5 kg
    • Weight per Square Meter
    • 7.8 lbs/ft² / 38.3 kg/m²
    • Physical Pixel Density (pixels/m²)
    • 409,600
    • Flatness of Cabinet
    • ±0.15 mm
    • Cabinet Material
    • Die Casting Magnesium Alloy
    • Service Access
    • Rear

OPTICAL SPECIFICATIONS

    • Max. Brightness After Calibration
    • 1,500 nits
    • Color Temperature
    • 3,200 - 9,300 K
    • Visual Viewing Angle (H × V)
    • 160° × 160°
    • Brightness Uniformity
    • ≥ 95%
    • Color Uniformity
    • ±0.015Cx,Cy
    • Contrast Ratio
    • 100,000 : 1 (Max.)
    • Processing Depth
    • 16 bit (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

    • Power Consumption per Cabinet
    • 210 W (Max) / 175 W (Avg)
    • Max Power Consumption per Unit Area
    • 519 W/m²
    • Heat Dissipation per Cabinet
    • 729 BTU/hr (Max) / 599 BTU/hr (Avg)
    • Max Heat Dissipation per Unit Area
    • 1,775 BTU/hr/m²
    • Power Supply
    • 100 to 240 Vac
    • Frame Rate
    • 96 / 100 / 120 Hz
    • Refresh Rate
    • 7,680 Hz

OPERATION SPECIFICATIONS

    • Lifetime (Half brightness)
    • Up to 100,000 Hours
    • Operating Temperature
    • 32°F to +104°F / 0°C to +40°C
    • Operating Humidity
    • 10-80%RH

CERTIFICATIONS

    • Certification
    • CE / FCC / ETL

ENVIRONMENT

    • Environment
    • RoHS/REACH

webOS Controller

    • webOS Controller
    • CBAF-0151

90 DEGREE CORNER CUT

    • 90 Degree corner cut
    • No
