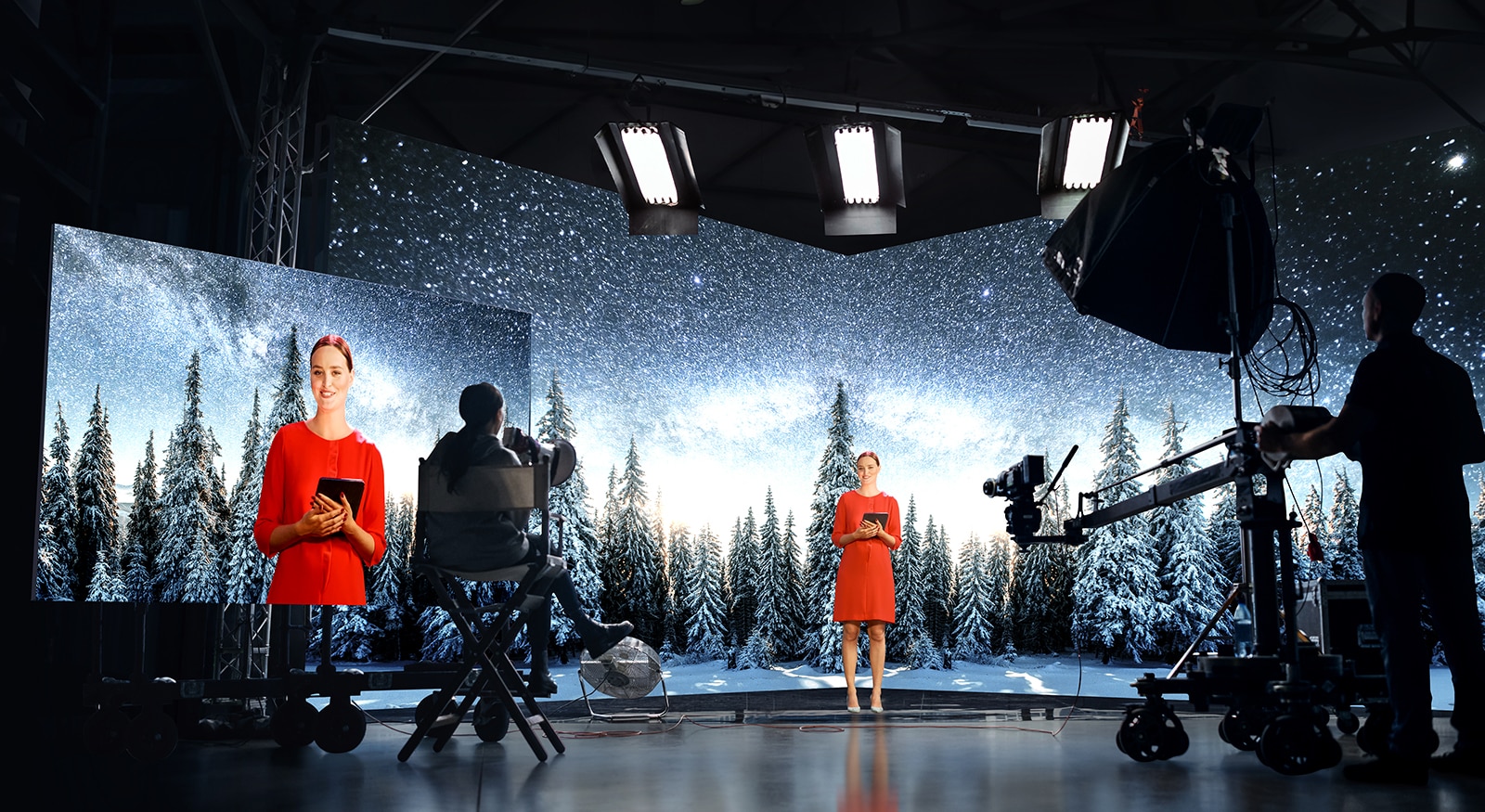

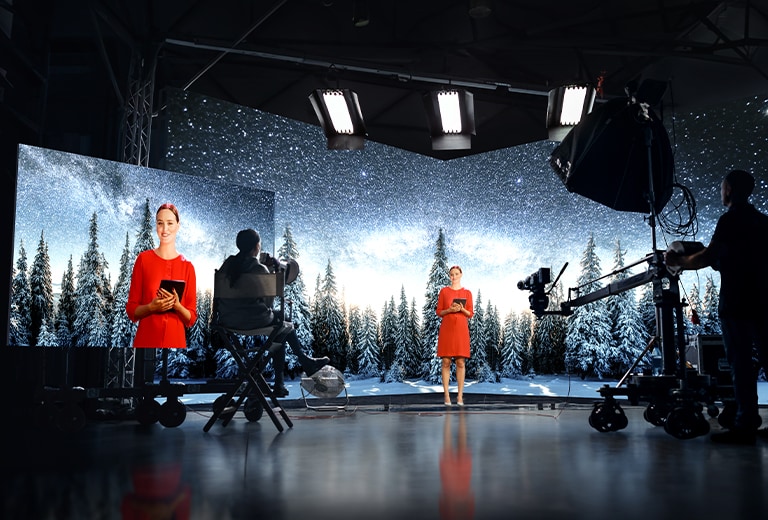

Micro LED for
Virtual Production
*Image simulation for illustration purposes only.
Powerful UI/UX with Megapixel VR Helios Controller
With the MVR controller, MAGNIT Studio Series now has the capability to utilize powerful UX and UI functionalities. Real-Time Mapping and MultiUser Control, Superior Color Control, Hyper-Speed Seam Correction using a game controller, and Monitoring and Diagnostics through connected diagnostics are all available.
*MVR Controller needs to be purchased separately

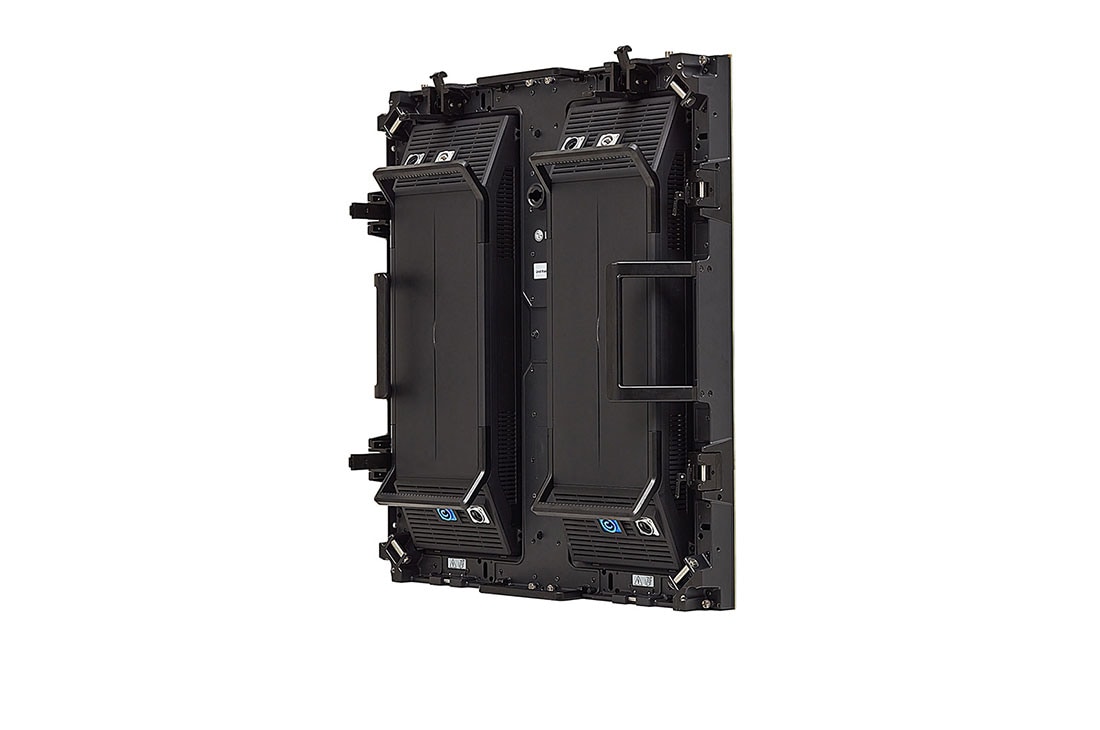

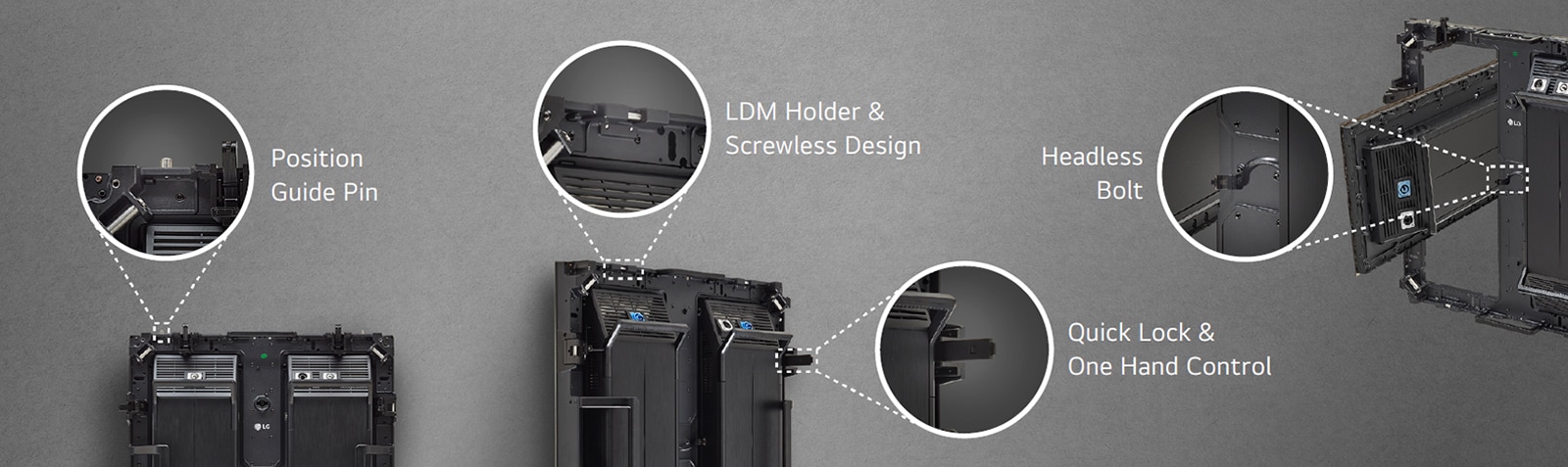

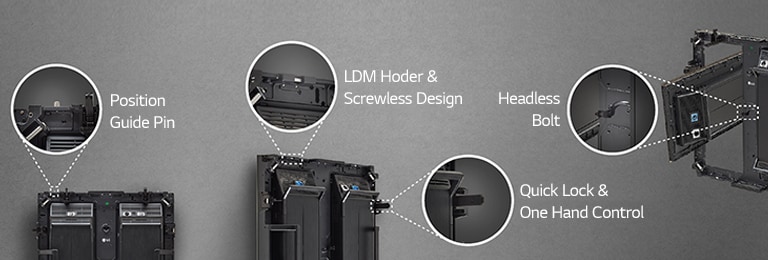

Easy Installation & Maintenance
The module can be easily removed with even bare hands, as it features rear service access that does not require any tools. Additionally, the positioning pins and magnets help perform easy panel adjustments, resulting in a smooth screen assembly.

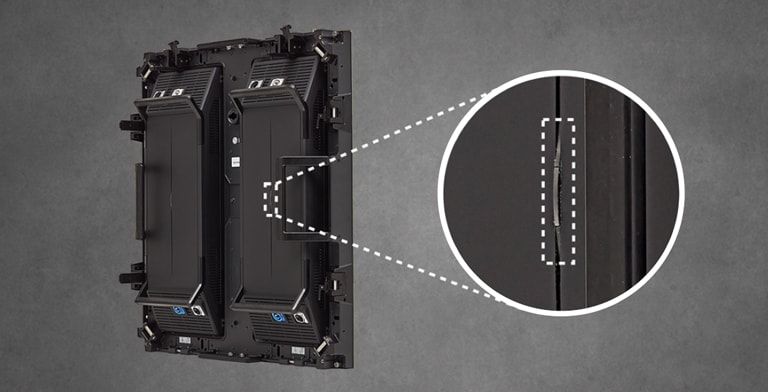

LED Indicator to Check Status
LED Indicator provides convenience to users to check LBAG status with various meanings of colors.

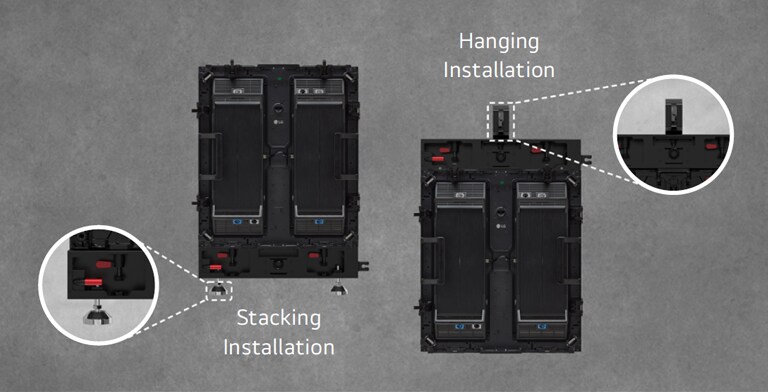

Stacking & Hanging System Available
Installation options vary by stacking or hanging, using optional accessories such as single or double beams for customization to the studio environment.

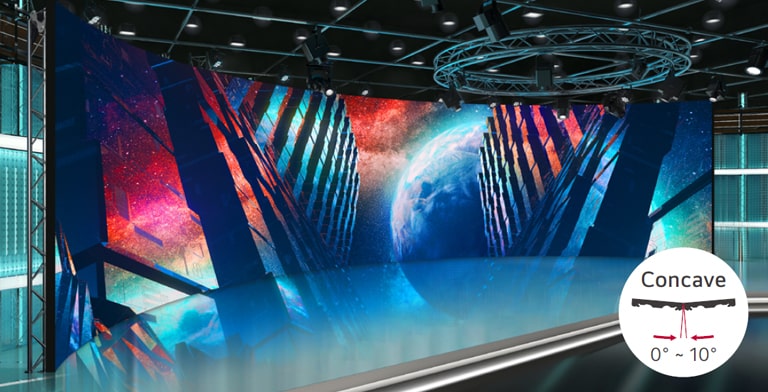

Curve Effect Available
The angle adapter system and fast lock are designed to fascilitate easy installation for curved display. The system allows for adjustment of up to 10 degrees in concave area while providing a secure mechanical connection.
*Image simulation for illustration purposes only.
Broadcast Quality Available
With HDR and low latency video processing, the MAGNIT Studio Series supports high quality video with accurate and smooth playback.

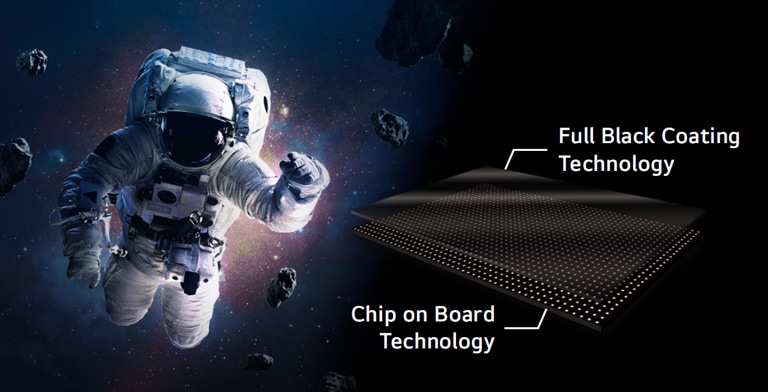

True Black with Ultra-high Contrast
By removing the package surrounding the RGB Micro LED chips and applying LG’s own Full Black Coating technology, the LBAG series delivers true black that is enhanced by its ultra-high 100,000:1 contrast ratio. This not only enhances color vividness, but also makes the details which were hidden in the shadows appear, providing audiences a sense of immersion.
* Based on LG's conventional LED Signage
* Based on LG's conventional LED Signage
View Colors as Intended
MAGNIT's carefully-selected micro LED chip has a narrowed wavelength that allows it to show uniform colors across the screen. Furthermore, the enhanced Gamut Transfer technology supports it to describe colors close to the original color, which is essential for places where exact color representation is demanding.

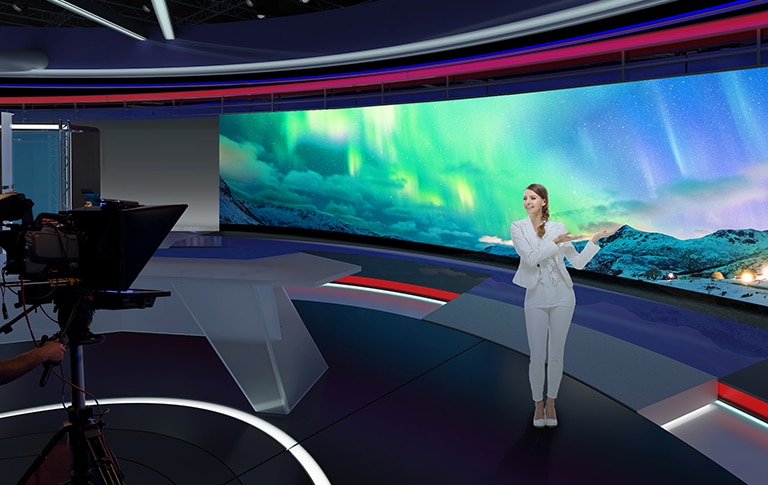

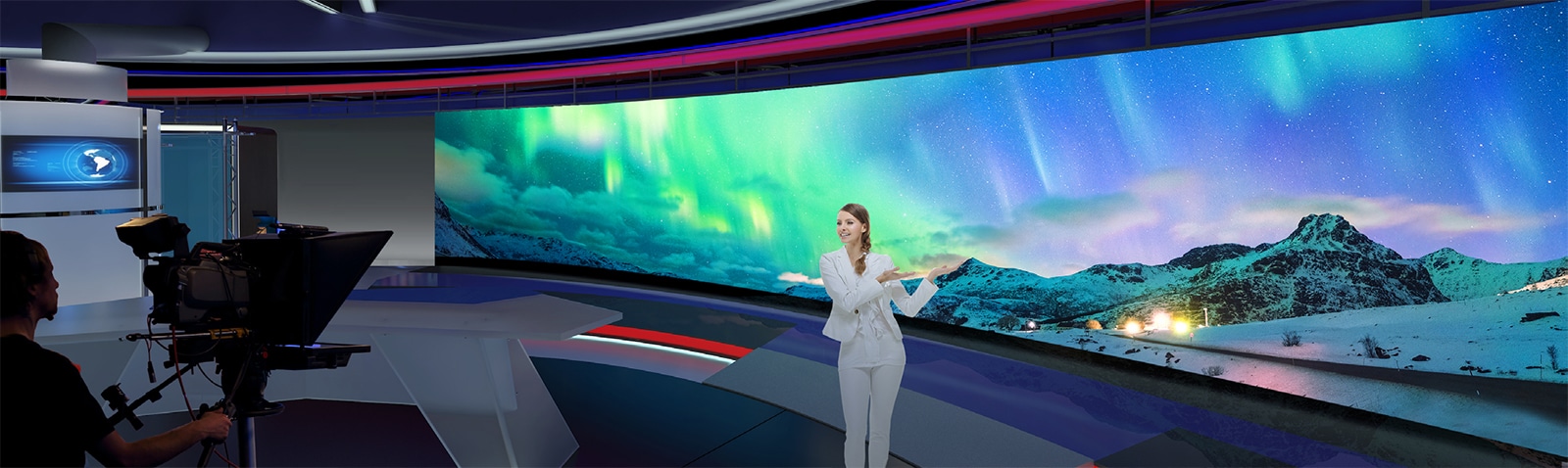

Wide Color Viewing Angle
The structure of LBAG series minimizes color distortion according to the viewing angle. In other words, the original color can be appreciated from multiple angles, captivating various onlookers when installed in a large spaces.
PHYSICAL PARAMETERS
-
- Pixel Configuration
- COB
- Pixel Pitch (mm)
- 1.56
-
- Module Resolution (W × H)
- 96 × 108
- Module Dimensions (W × H, in / mm)
- 5.9 x 6.6 / 150 × 168.75
-
- Weight per Module (lb / kg)
- 0.3 / 0.15
- No. of Modules per Cabinet (W × H)
- 4 × 4
-
- Cabinet Resolution (W × H)
- 384 × 432
- Cabinet Dimensions (W × H × D, in. / mm)
- 23.6 x 26.6 x 4.9 / 600 × 675 × 125
-
- Cabinet Surface Area (ft² / m²)
- 4.4 / 0.405
- Weight per Cabinet (Ibs. / kg)
- 16.0
-
- Weight per Square Meter (Ibs./ft² / kg/m²)
- 7.9 / 39.5
- Physical Pixel Density (pixels/m²)
- 409,600
-
- Flatness of Cabinet (mm)
- ±0.5
- Cabinet Material
- Die Casting Magnesium Alloy
-
- Service Access
- Rear
OPTICAL SPECIFICATIONS
-
- Max. Brightness (After Calibration, nits)
- 1,500 (Max.)
- Color Temperature (K)
- 2,000-10,000 / Default 6,504
-
- Visual Viewing Angle (H × V)
- 160 × 160
- Brightness Uniformity
- ≥ 95%
-
- Color Uniformity
- ±0.02 Cx, Cy
- Contrast Ratio
- 100,000: 1 (Max.)
-
- Processing Depth (bit)
- 22 (Internal Processing (HDR10))
ELECTRICAL SPECIFICATIONS
-
- Power Consumption (W/Cabinet, Max.)
- 220
- Power Consumption (W/Cabinet, Avg.)
- 175
-
- Power Consumption (W/m², Max.)
- 543
- Heat Dissipation (BTU/h/Cabinet, Max.)
- 751
-
- Heat Dissipation (BTU/h/Cabinet, Avg.)
- 597
- Heat Dissipation (BTU/h/m², Max.)
- 1,853
-
- Power Supply (Vac)
- 100 to 240
- Frame Rate (Hz)
- 23.98 / 24 / 25 / 29.97 / 30 / 48 / 50 / 59.94 / 60 / 72 / 90 / 96 / 100 / 120
-
- Refresh Rate (Hz)
- 7,680
OPERATION SPECIFICATIONS
-
- Lifetime (Half brightness)
- Up to 100,000 Hours
- Operating Temperature (°F / °C)
- 32 to 104 / 0 to 40
-
- Operating Humidity
- 10-80%RH
- IP Rating Front / Rear
- N/A
Standard
-
- Certification
- IEC 62368-1, EMC Class A
SPECIFICATIONS
-
- Environment
- RoHS/REACH
- Controller
- Megapixel VR Helios
-
- Warranty
- 3 Year Limited
- Cabinet
- LSAP, LBAG
-
- Input
- HDMI 2.0, HDCP 2.2, DP 1.4 (HBR3), SDI (4 × 12G-SDI), OPS (ST2110)
- Output
- Optic (To LED Screen) (8 × 10G)
-
- Video Processing
- Brightness Adjustment, Chroma Adjustment, Improved Grayscale at Low Brightness, Scaling, HDR (PQ, HLG, Custom), EDID Custom
Max Output Range
-
- Loading Capacity
- 8,192 × 4,320 @ 60 Hz
- Output Resolution
- 35.3 Million Pixels
Control
-
- LAN
- Yes
- GenLock
- Yes (In)
