P1.5 P1.2 P1.8 P2.5
Inquiry to Buy
Add to Wishlist
EXTENDEDCARE PLANS

KEY FEATURES

  • 1.25 mm Fine Pitch Single SMD
  • Front Service Access for Easy Install & Maintance
  • 600 nits Brightness
  • IP50 Rating Front and Rear
  • Compatible with CVBA Controller
  • Lifetime up to 100,000 hours

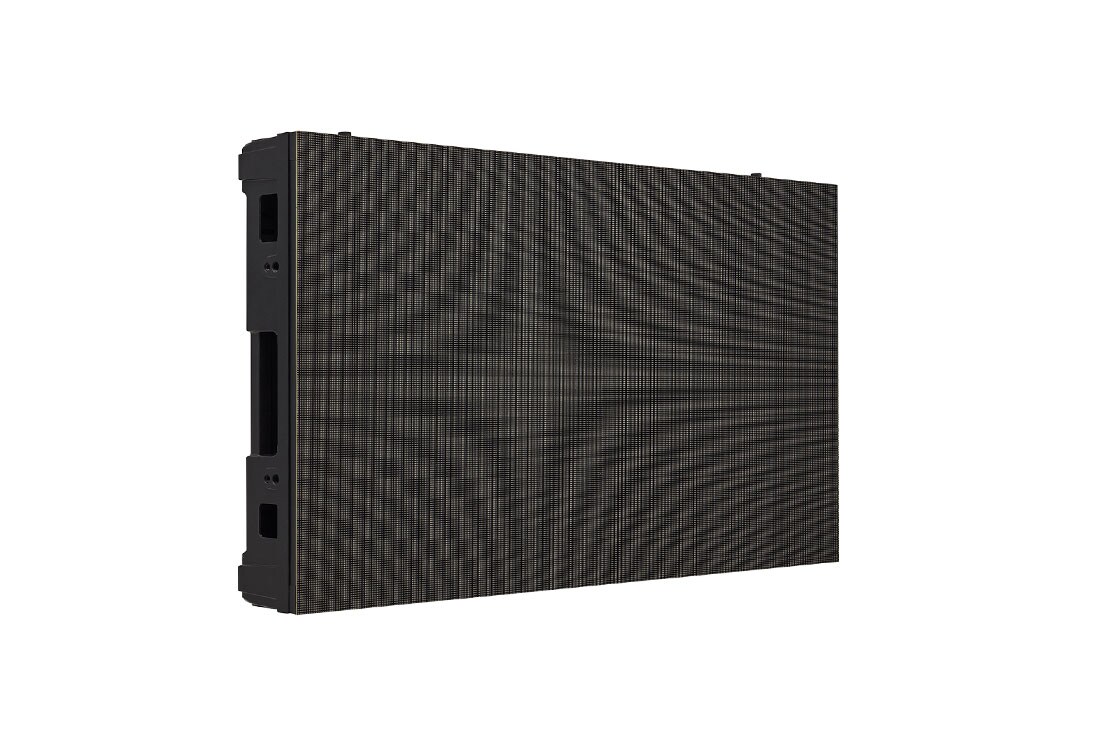

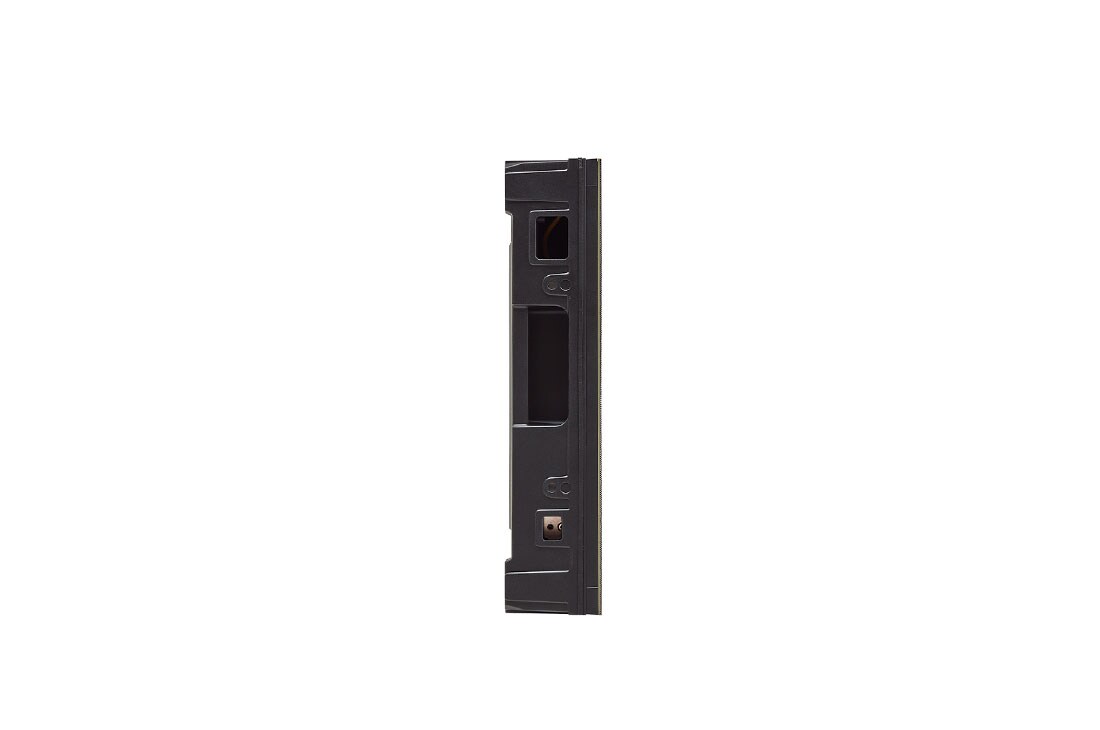

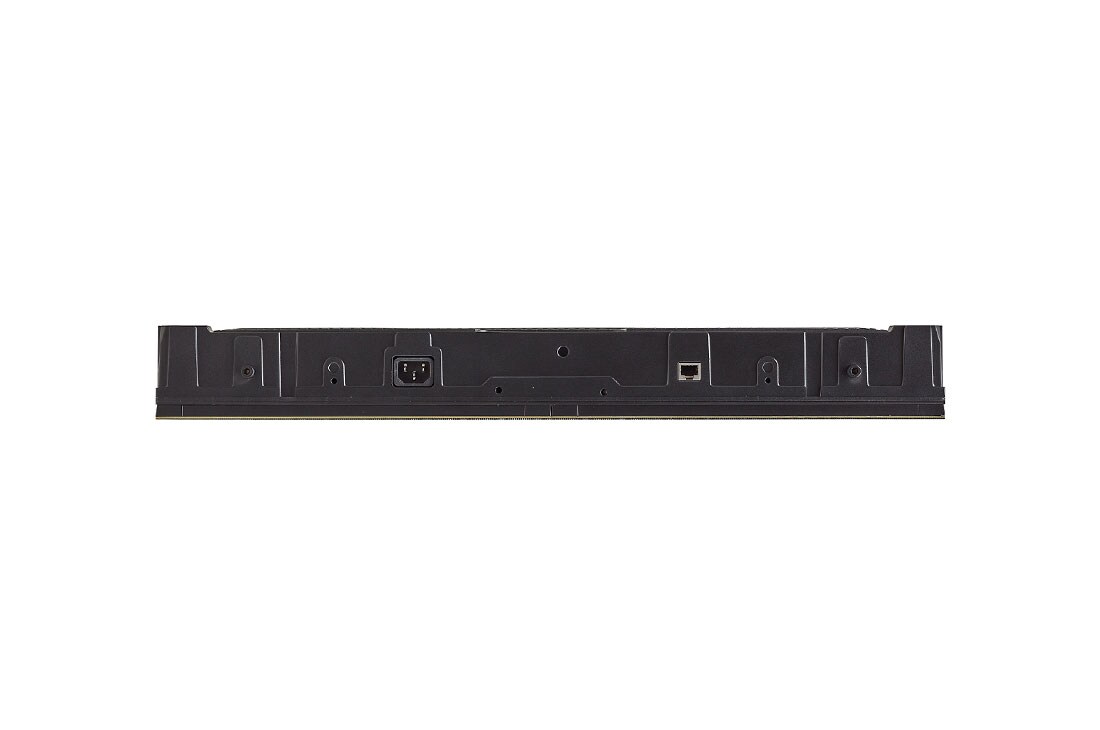

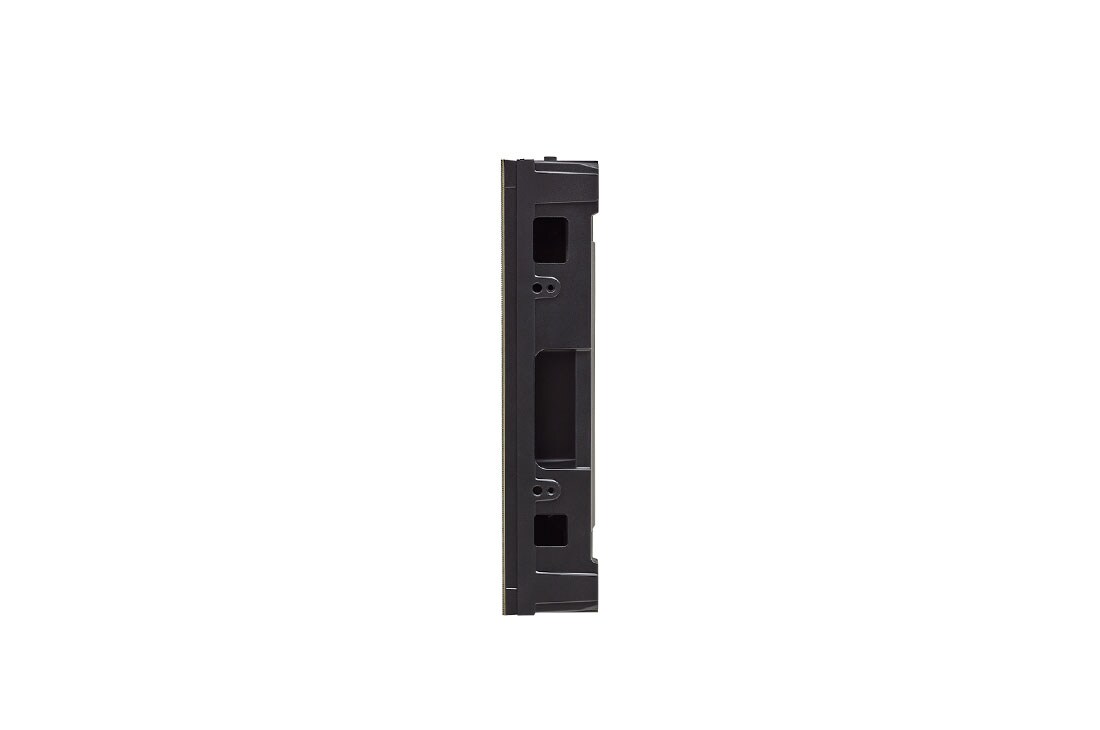

1.25 mm LSBE Series Fine Pitch Direct View LED with 90° Corner, IP50 Front/Rear, & LG Software Compatible
$

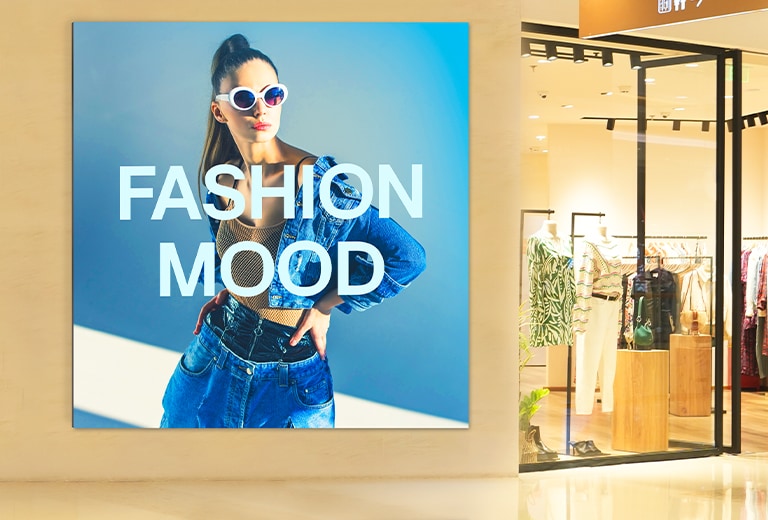

LSBE Fine Pitch Indoor Direct View LED Series

*Image simulation for illustration purposes only.

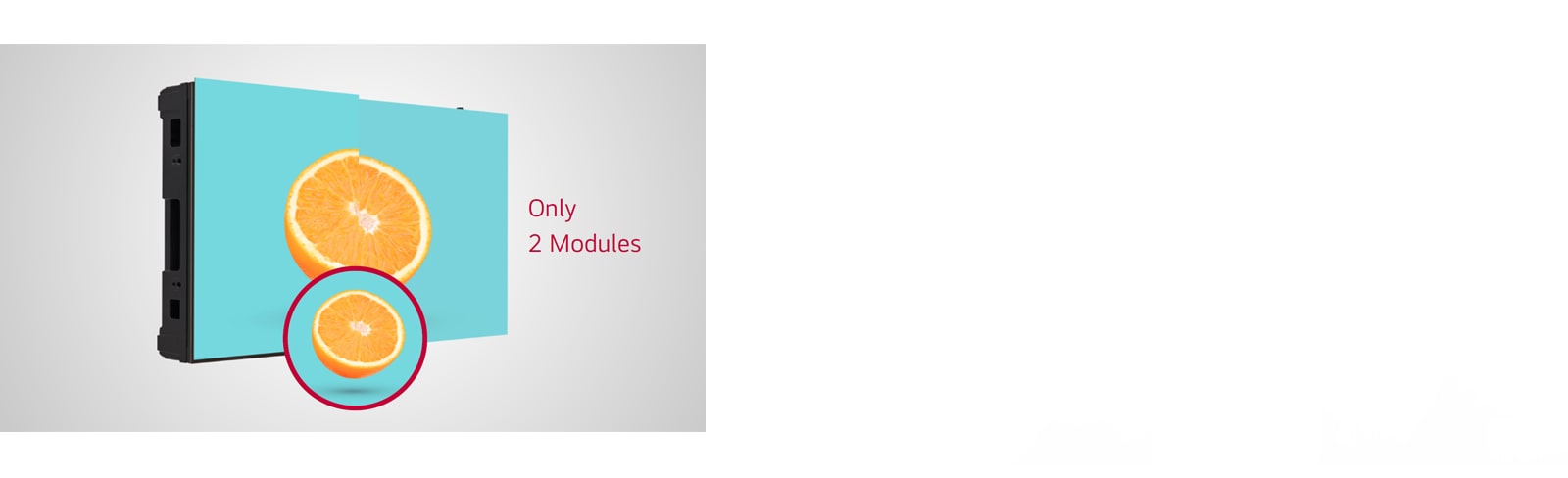

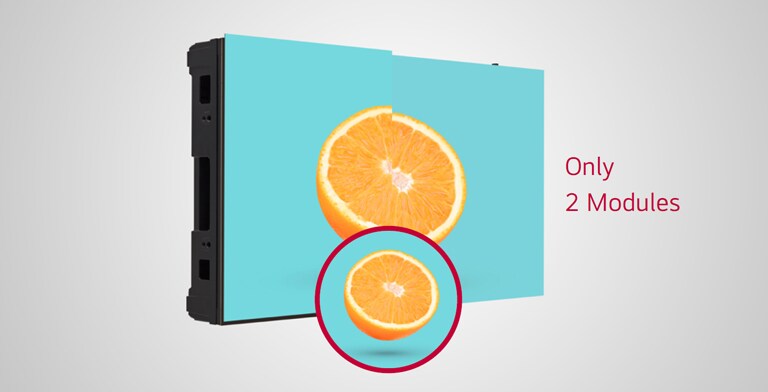

Improved Design and Easy Maintenance

LSBE utilizes two modules to form a single cabinet, which helps minimize the gaps between modules compared to cabinets composed of multiple modules resulting in a smoother screen with fewer visible gaps. This helps with easy maintenance.
*Image simulation for illustration purposes only.

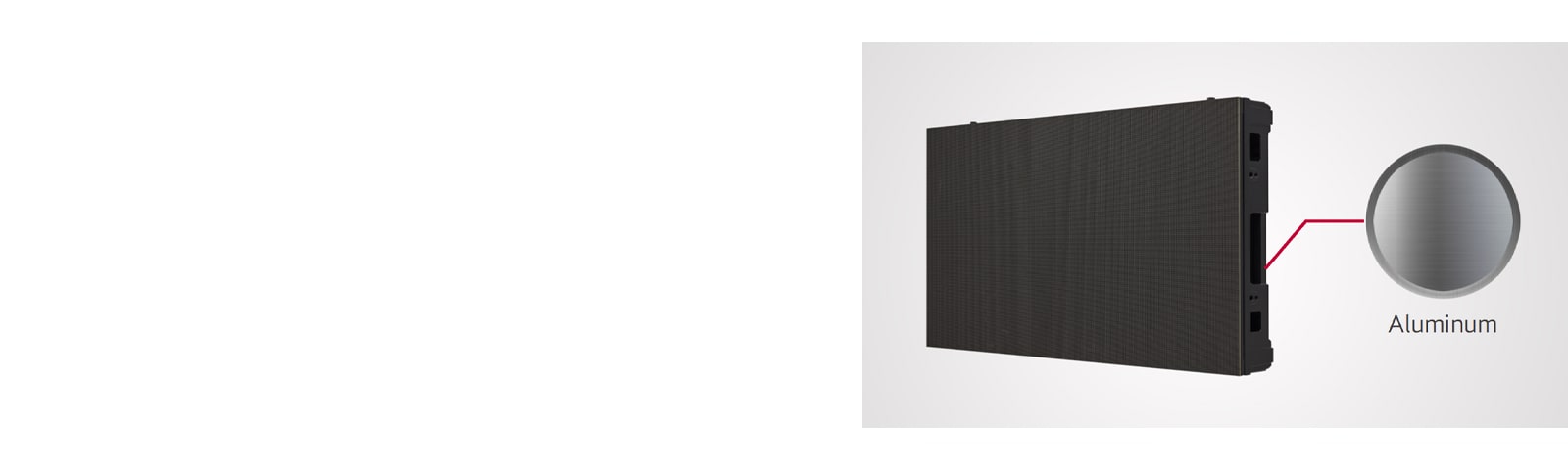

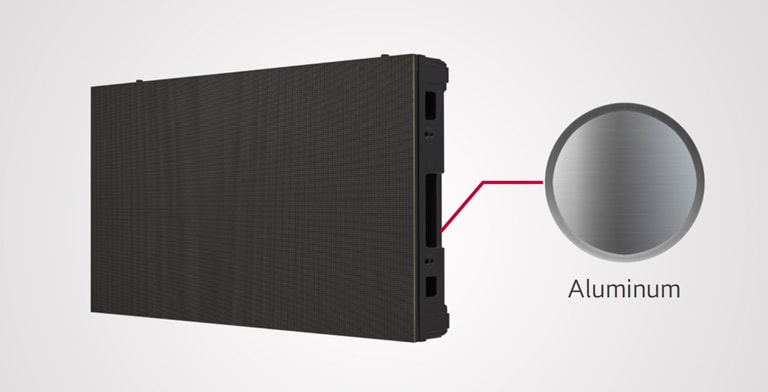

Durable Frame Design

LSBE incorporates an aluminum cabinet that enhances durability, and its high-strength frame allows for stable operation.

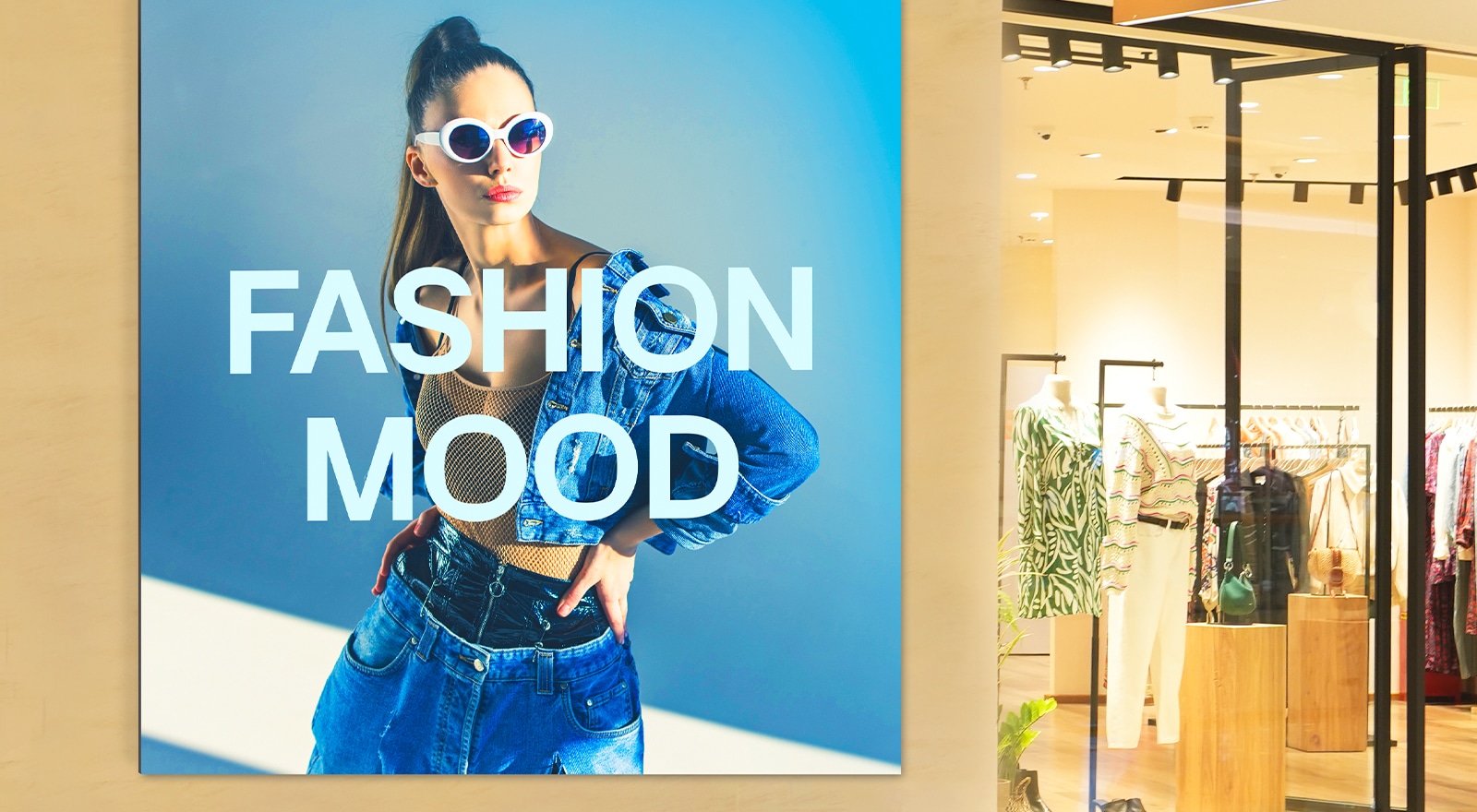

Brightness

With a brightness of 600 nits, it clearly delivers content and attracts public attention, making it great for indoor visibility.
*Image simulation for illustration purposes only.

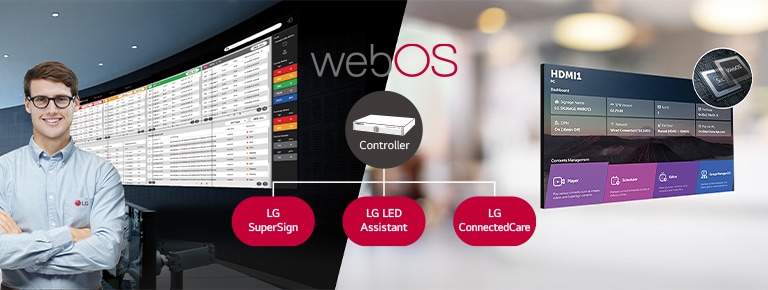

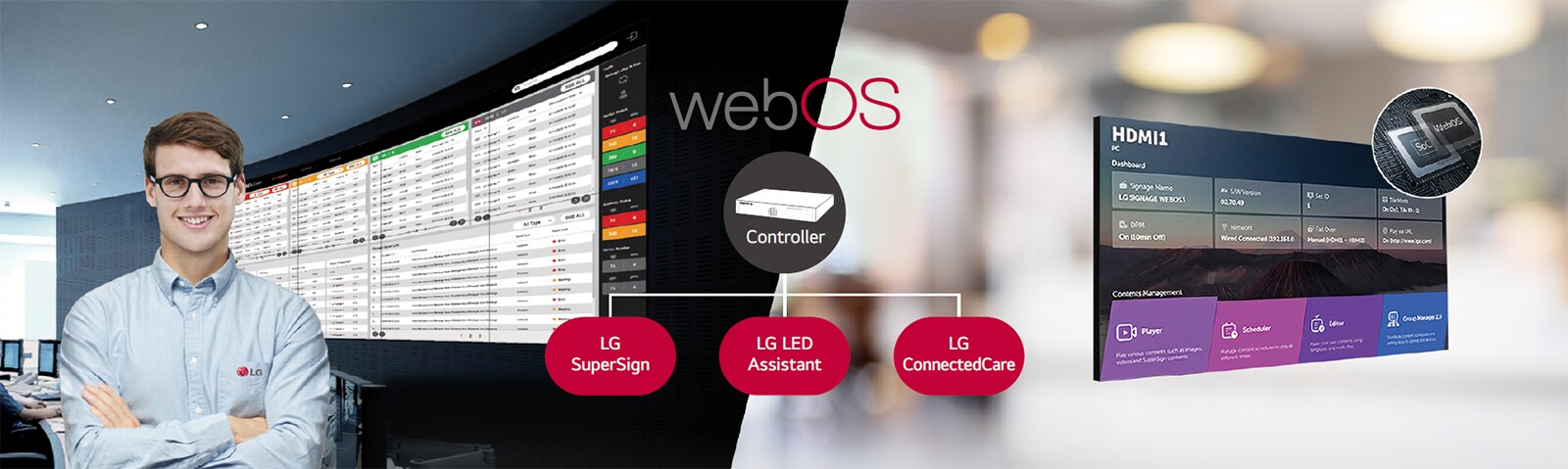

Compatibility with LG Software Solutions

When connected with LG's CVBA system controller, the LSBE series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
*Actual GUI may vary in different webOS versions.
*LG Software solutions needs to be purchased separately.

PHYSICAL PARAMETERS

    • Pixel Configuration
    • Single SMD
    • Pixel Pitch (mm)
    • 1.25
    • Module Resolution (W × H)
    • 240 × 270
    • Module Dimensions (W × H)
    • 11.8 x 13.3 x 0.5 in. 300 × 337.5 × 13 mm
    • Weight per Module (Ibs. / kg)
    • 2.1 / 0.95
    • No. of Modules per Cabinet (W × H)
    • 2x1 (LSBE) / 4x2 (LSBF)
    • Cabinet Resolution (W × H)
    • 480x270 (LSBE) / 960×540 (LSBF)
    • Cabinet Dimensions (W × H × D)
    • 23.6 x 13.3 x 2.8 in. / 600 × 337.5 × 72 mm (LSBE) 47.2 x 26.6 x 2.8 in. / 1,200 × 675 × 72 mm (LSBF)
    • Cabinet Surface Area (㎡)
    • 0.2 (LSBE) / 0.81 (LSBF)
    • Weight per Cabinet (kg/Cabinet)
    • 6.5 (LSBE) / 23 (LSBF)
    • Weight per Square Meter (kg/㎡)
    • 32 (LSBE) / 28 (LSBF)
    • Physical Pixel Density (pixels/m²)
    • 640,000
    • Flatness of Cabinet (mm)
    • ±0.3
    • Cabinet Material
    • Die-cast Aluminum
    • Service Access
    • Front

OPTICAL SPECIFICATIONS

    • Max. Brightness (After Calibration, nits)
    • 600
    • Color Temperature (K)
    • 3,200 - 9,300
    • Visual Viewing Angle (H × V)
    • 160° × 150°
    • Brightness Uniformity
    • 97%
    • Color Uniformity
    • ±0.003 Cx, Cy
    • Contrast Ratio
    • 5,000:1
    • Processing Depth (bit)
    • 14

ELECTRICAL SPECIFICATIONS

    • Power Consumption (W/Cabinet, Max.)
    • 117 (LSBE) / 445 (LSBF)
    • Power Consumption (W/Cabinet, Avg.)
    • 51 (LSBE) / 206 (LSBF)
    • Power Consumption (W/m², Max.)
    • 580
    • Heat Dissipation (BTU/h/Cabinet, Max.)
    • 400 (LSBE) / 1,518 (LSBF)
    • Heat Dissipation (BTU/h/Cabinet, Avg.)
    • 174 (LSBE) / 703 (LSBF)
    • Heat Dissipation (BTU/h/m², Max.)
    • 1,980
    • Power Supply (Vac)
    • 100 to 240
    • Frame Rate (Hz)
    • 50 / 60
    • Refresh Rate (Hz)
    • 3,840

OPERATION SPECIFICATIONS

    • Operating Temperature
    • -4°F to +104°F -20°C to +40°C
    • Operating Humidity
    • 10-80%RH
    • IP Rating Front / Rear
    • IP50 / IP50

REGULATORY & CERTIFICATIONS

    • Regulatory
    • CE, FCC, cTUVus, CB, KC, CCC, Class C
    • Certification (Fire Protection)
    • EN 13501-1

Max Output Range

    • Loading Capacity
    • 3,840 × 2,160 @ 60 Hz
    • Output Resolution
    • 8.2944 Million Pixels

Control

    • LAN
    • Yes
    • RS-232C
    • Yes (LOOP)
    • Remote Control
    • Yes

Sensor

    • Temperature (Embeded Sonsor)
    • Yes

Video Processing

    • Video Processing
    • Brightness Adjustment, Chroma Adjustment, Improved Grayscale at Low Brightness, Scaling, HDR10 Pro

Application

    • Application
    • SuperSign CMS, webOS API, LG ConnectedCare1), Configuration SW (LED Assistant)

MECHANICAL

    • Size (W × H × D)
    • 17.4 x 12.1 x 2.5 in. 443 × 307.5 x 63 mm
    • Weight (Head)
    • 10.8 lbs. / 4.9 kg

SPECIFICATIONS

    • Environment
    • RoHS, REACH
    • Controller
    • CVBA
    • 90 Degree Corner Cut
    • Yes (LSBE) / No (LSBF)
    • Warranty
    • 3 Year Limited
    • Cabinet
    • LSBE012-GD, LSBE015-GD, LSBE018-GD, LSBE025-GD LSBF012-GD, LSBF015-GD, LSBF018-GD, LSBF025-GD
    • Input
    • HDMI 2.0, HDCP 2.2, DP 1.2 / HDCP 1.3, OPS
    • Output
    • Ethernet (To LED Screen (16-channel))

Specification Sheet
