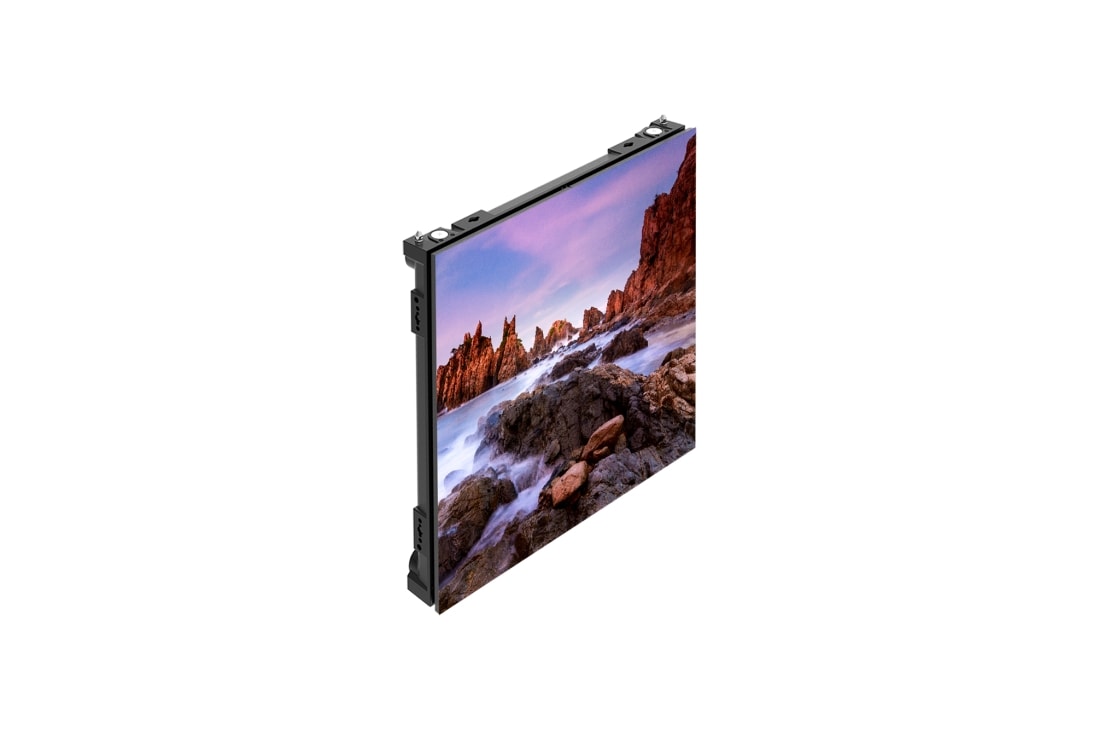

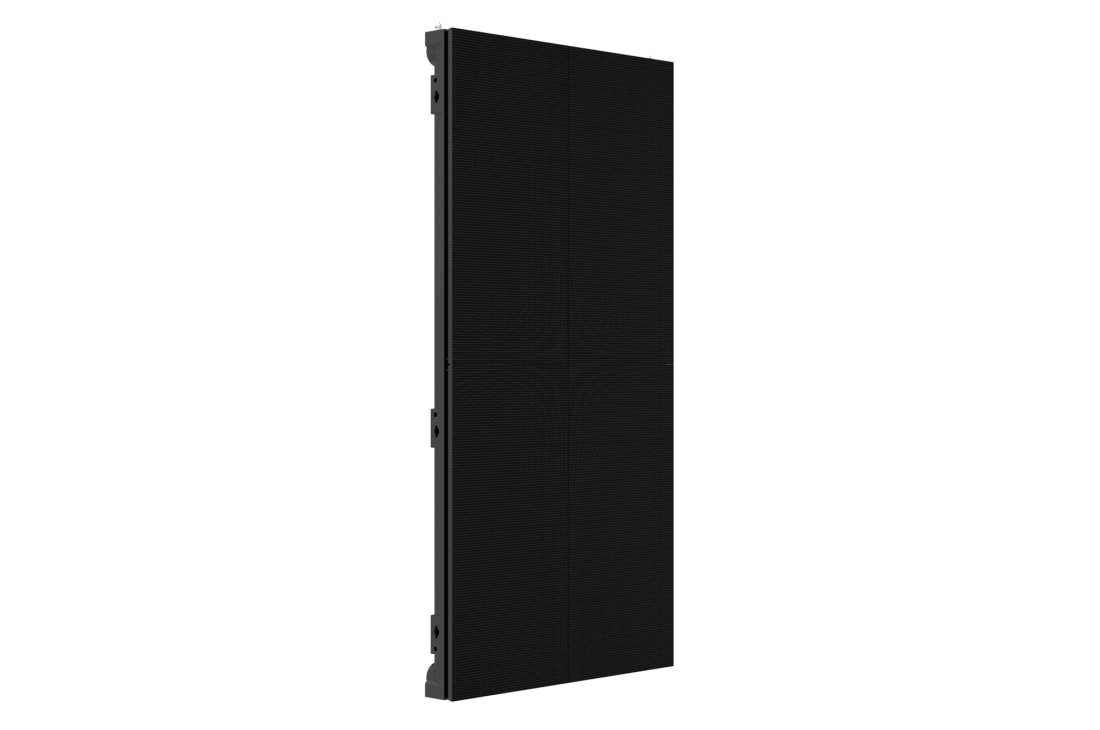

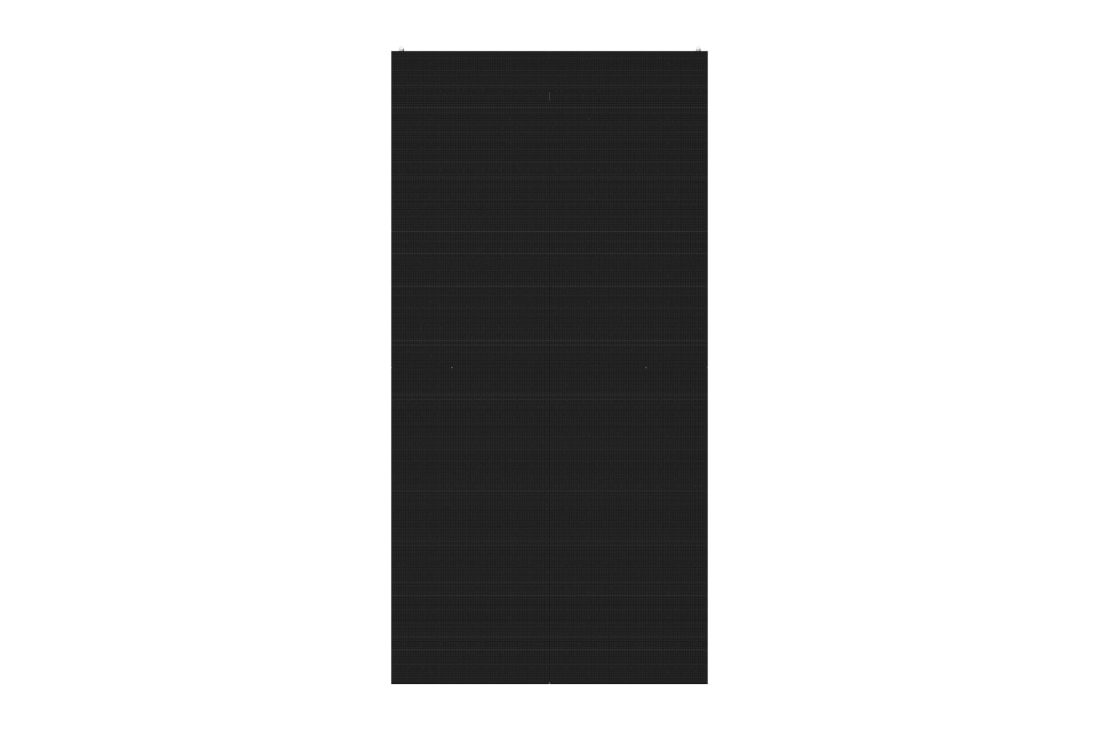

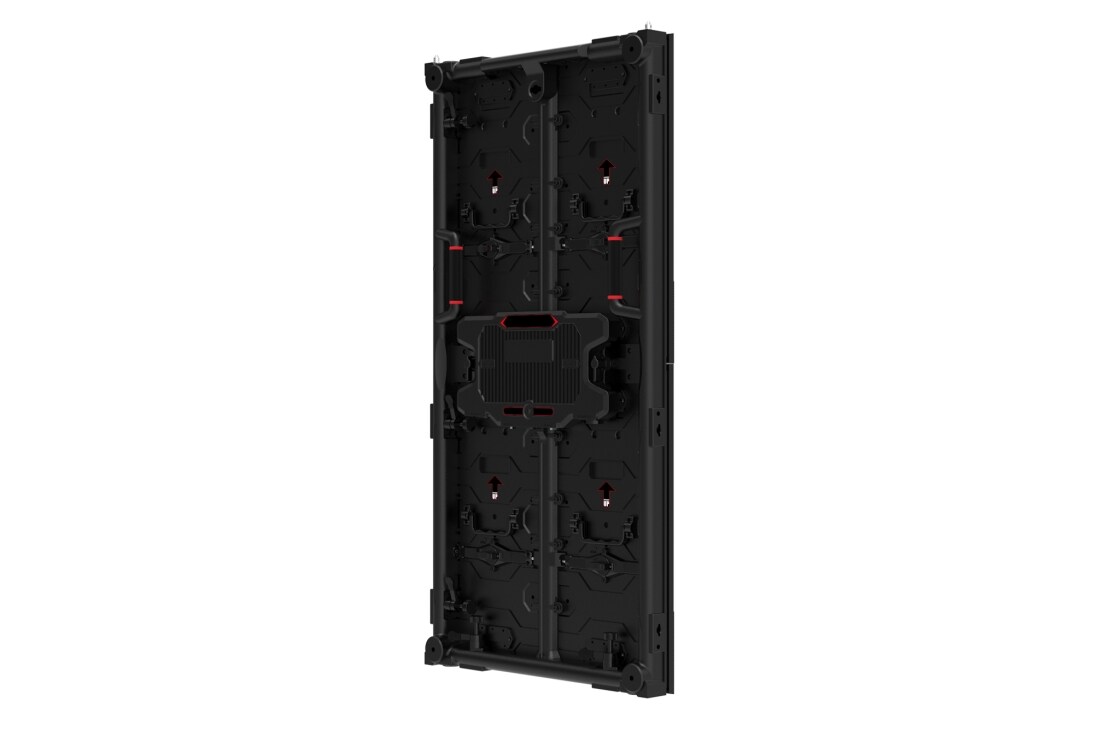

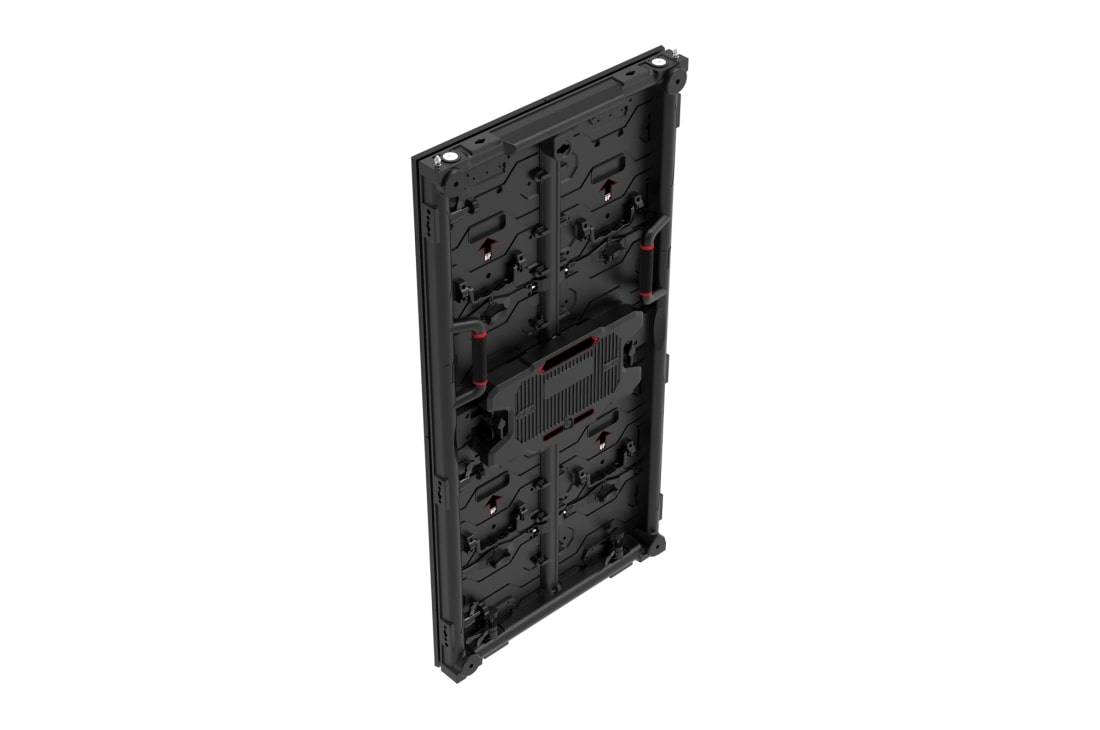

3.91 mm Versatile Series Indoor LED with 1,000 nits Brightness, Two Cabinet Options, 90° Corner Option, IP30 rated, Easy to Install & Maintain
$

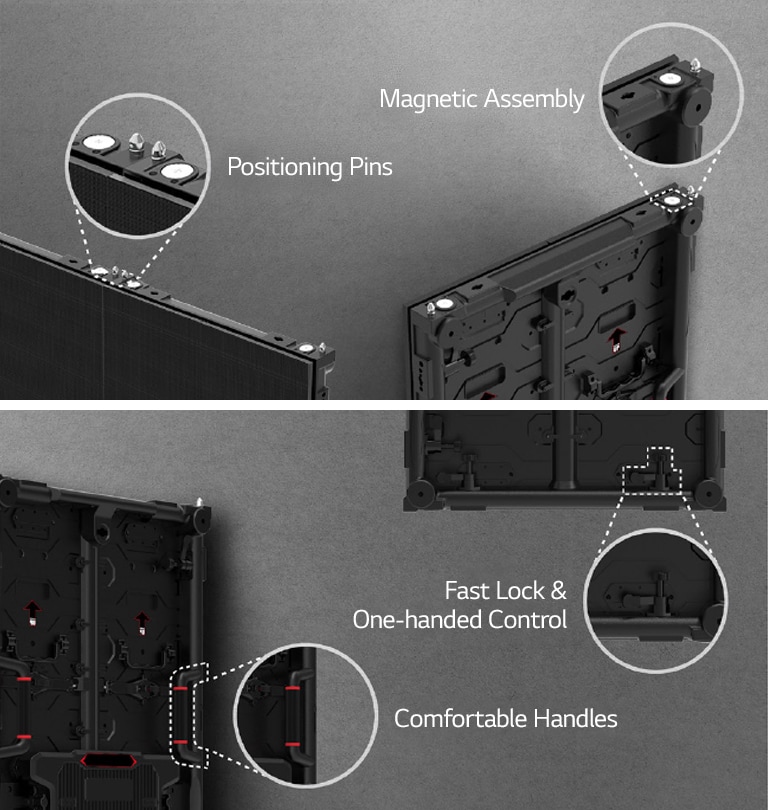

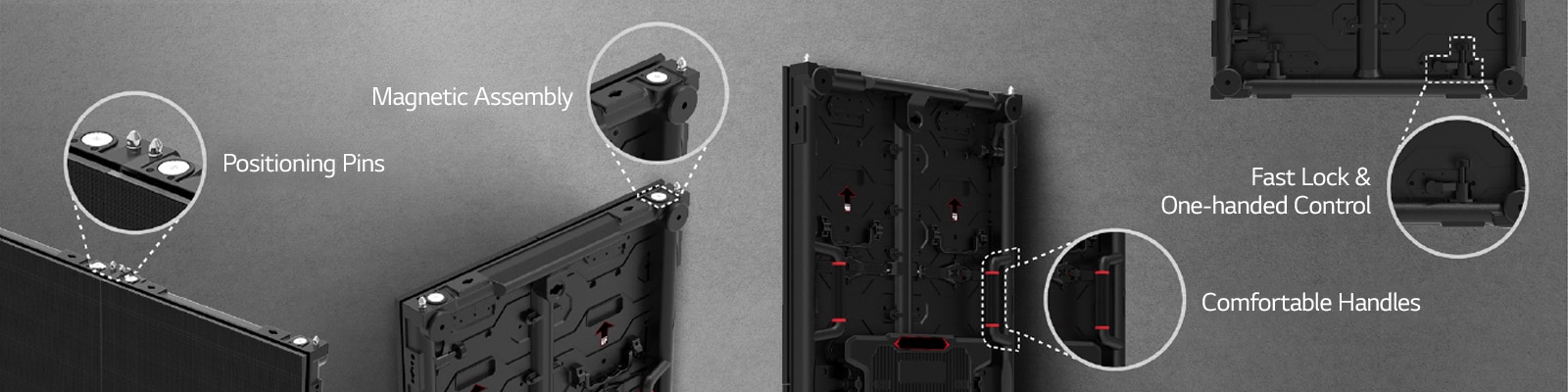

Fast Installation
Various factors including magnets on the top and bottom, positioning pins, handles and fast locks
help installers easily set up and dismantle the LED screens without additional tools.
help installers easily set up and dismantle the LED screens without additional tools.

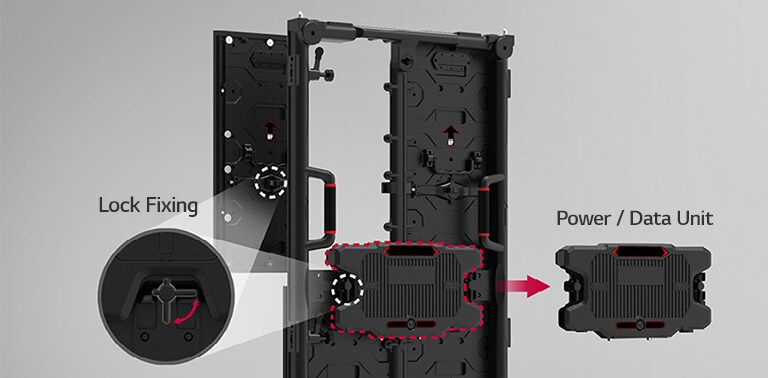

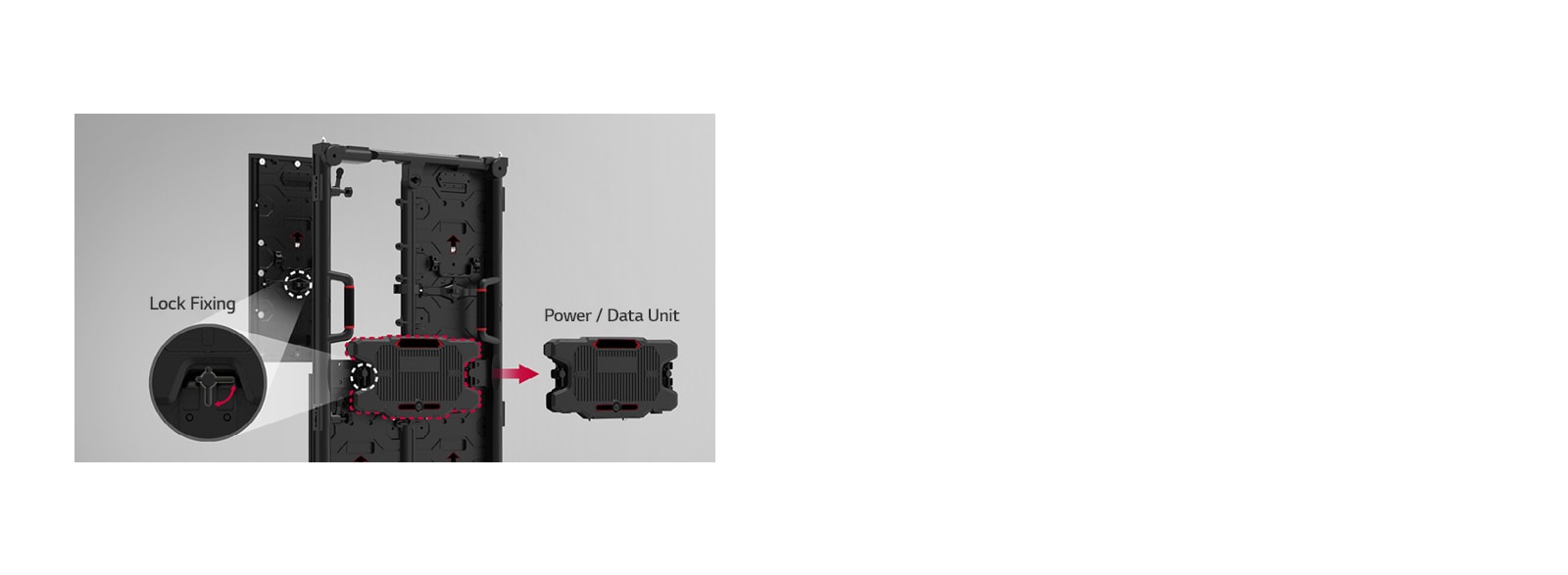

Easy Maintenance
The LSCA series applied a simple Lock Fixing method which
requires no additional tools, making it easier to replace
LED modules or power/data units. It saves cost and time for maintenance.
requires no additional tools, making it easier to replace
LED modules or power/data units. It saves cost and time for maintenance.
*Image for illustration only. Actual product parts may differ slightly.

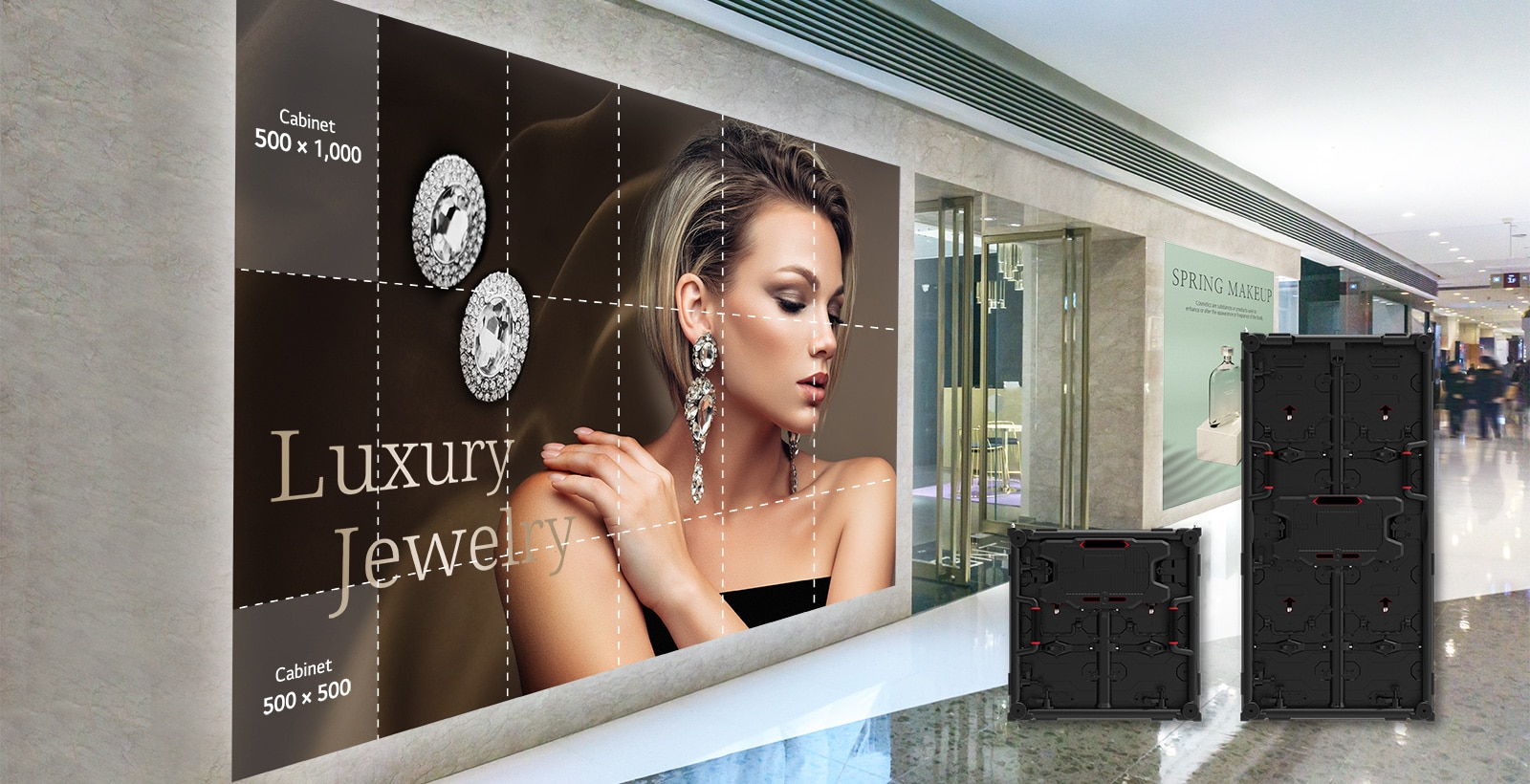

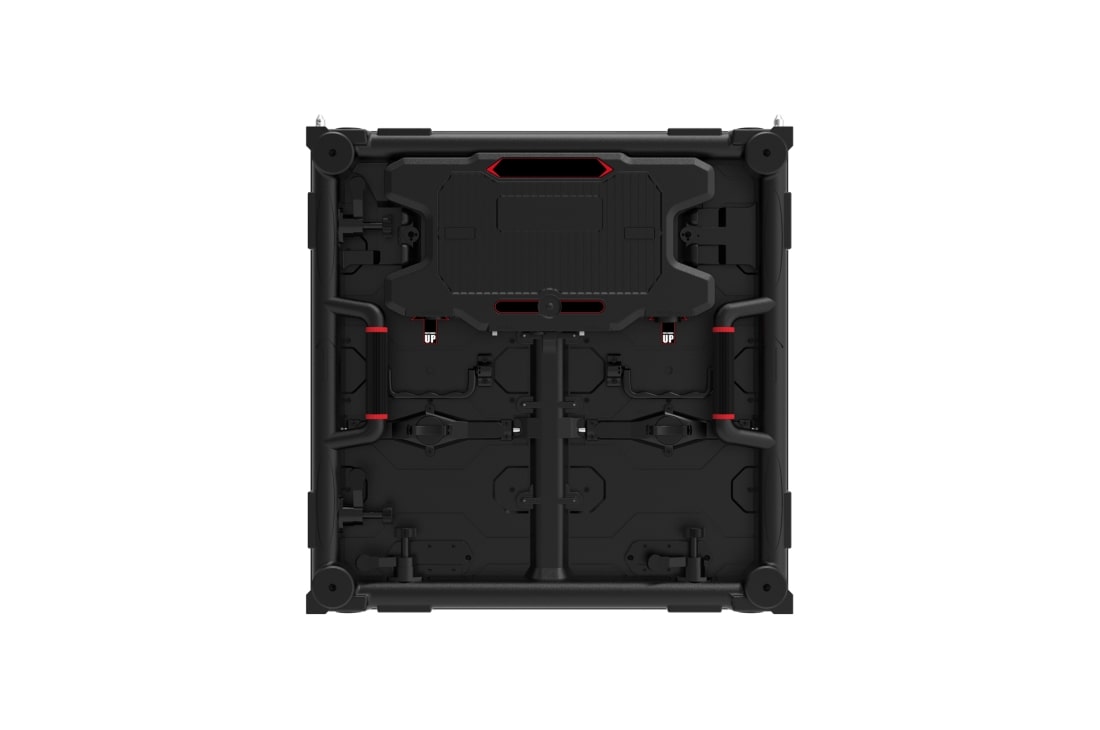

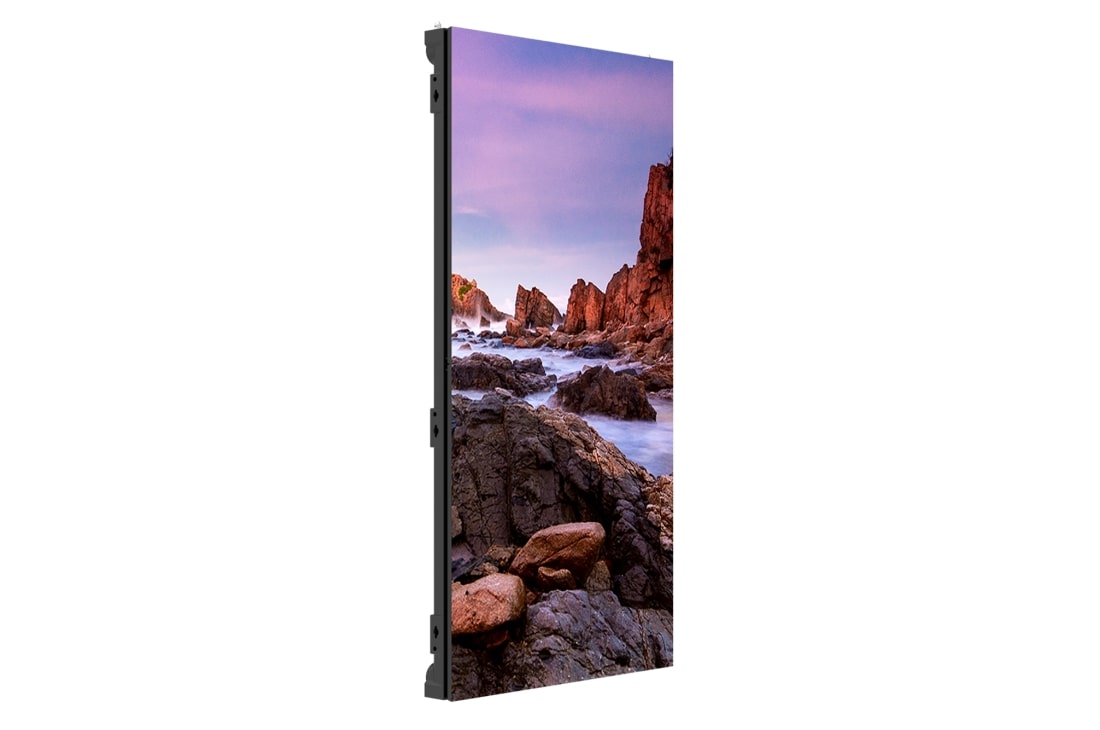

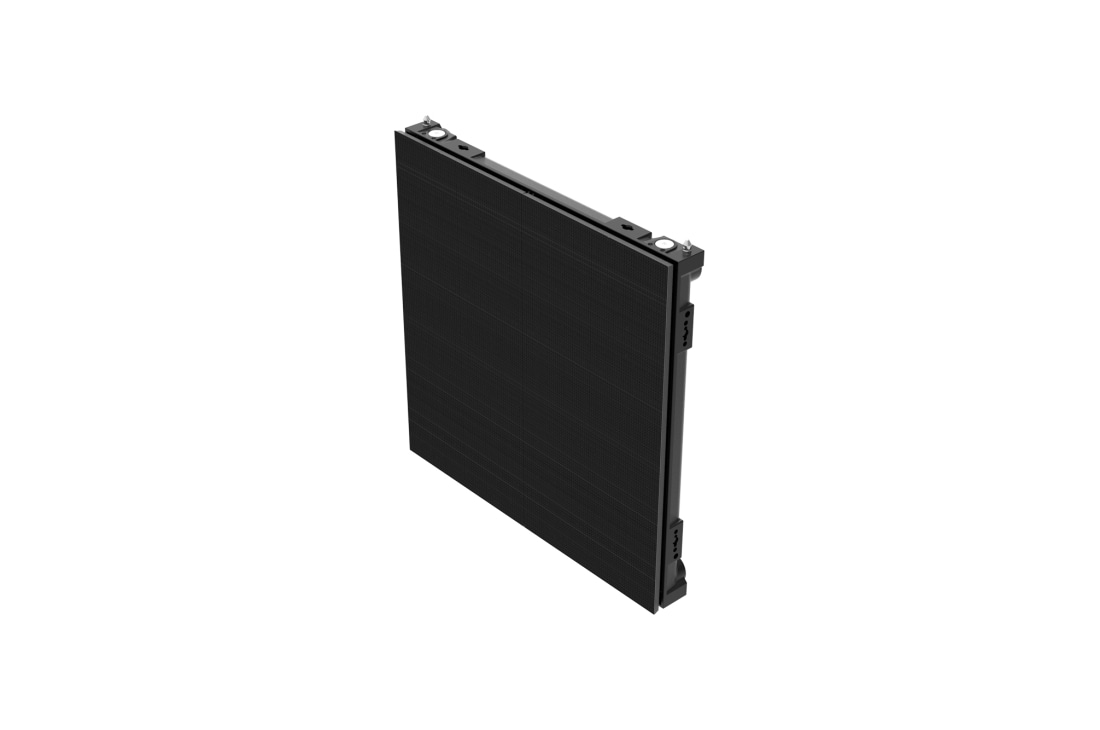

Two Cabinet Options
The LSCA series offers two sizes of cabinets, enabling a screen size configuration that fit with the customer's needs.
*Image for illustration purposes only.

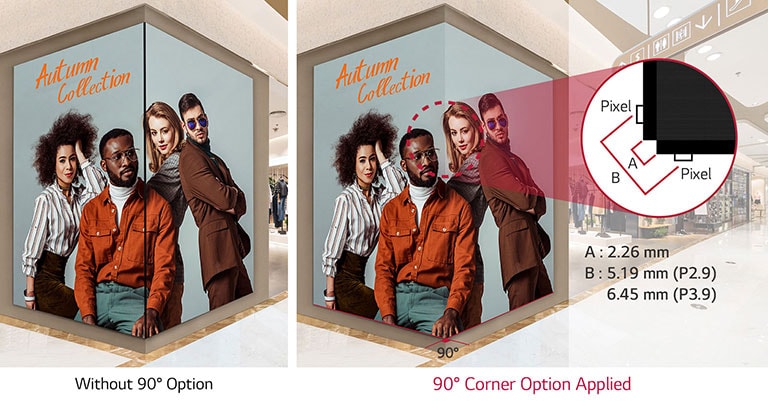

90° Corner Design Available
If you add a 90° corner option, the LSCA series can deliver flawless content even when installed on right-angled structures.
*Image for illustration purposes only.

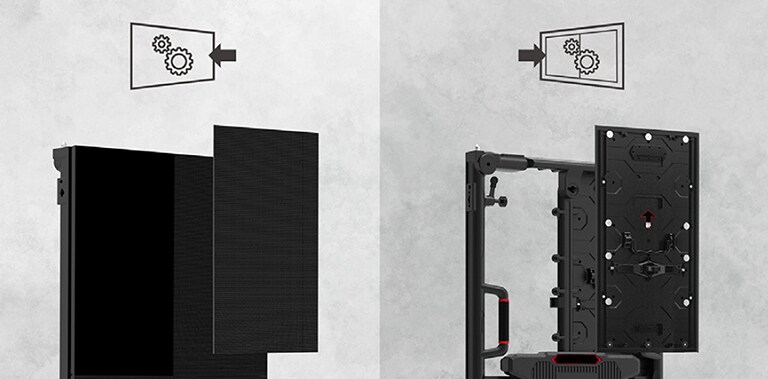

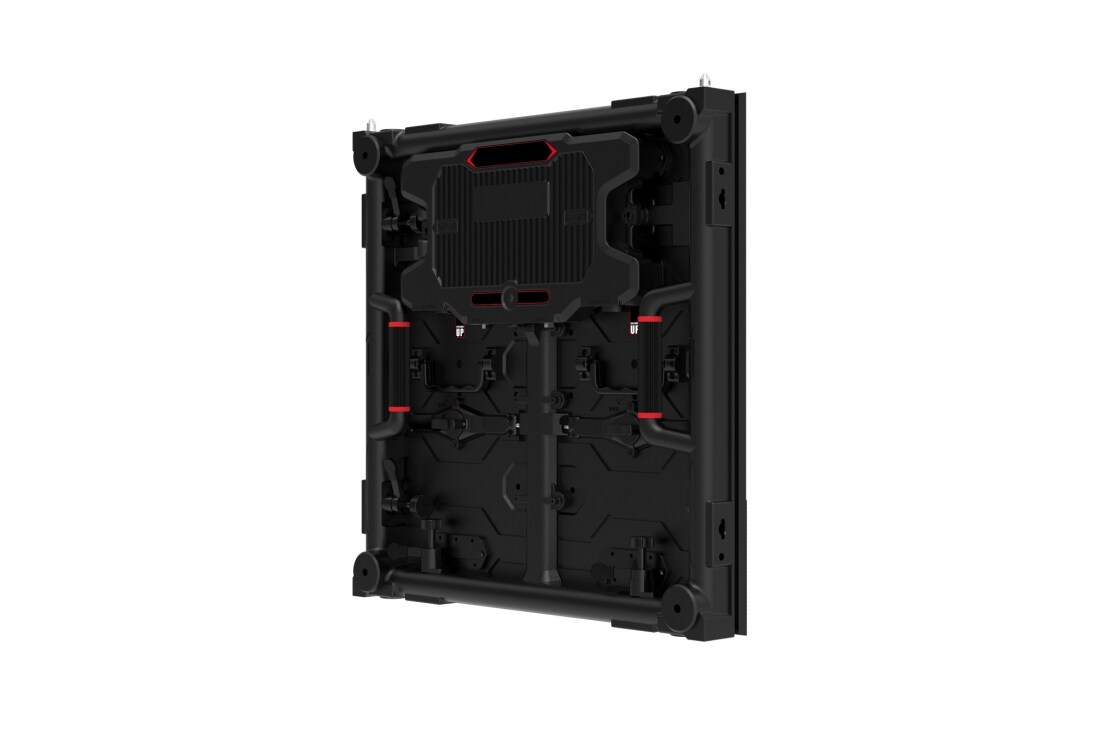

Front or Rear Serviceability
The product offers either front access or rear access,
allowing customers to choose installation options
according to their environment and minimizes limitations in installation and maintenance.
allowing customers to choose installation options
according to their environment and minimizes limitations in installation and maintenance.
PHYSICAL PARAMETER
-
- Pixel Configuration
- 3 in 1 SMD
- Pixel Pitch
- 3.91 mm
-
- Module Resolution (W x H)
- 64 × 128
- Module Dimensions (W x H)
- 9.84 x 19.7 in 250 x 500 mm
-
- Weight per Module
- 2.87 lbs / 1.3 kg
- LED Package Manufacturer
- KL+Cu
-
- No. of Modules per Unit Case (W x H)
- 2 x 2
- Unit Case Resolution (W x H)
- 128 x 256
-
- Unit Case Dimensions (W x H x D)
- 19.7 x 39.7 x 2.6 in 500 x 1000 x 65.6 mm
- Unit Case Surface Area
- 5.4 ft2 / 0.5 m2
-
- Weight per Unit Case
- 26.5 lbs / 12 kg
- Weight per Unit Area
- 4.9 lbs/ft2 / 24 kg/m2
-
- Physical Pixel Density
- 6,088 pixels/ft2 65,536 pixels/m2
- Flatness of Unit Case
- ±0.3 mm
-
- Unit Case material
- Die-casting Magnesium
- Service Access
- Front or Rear (select one only)
OPTICAL SPECIFICATIONS
-
- Max Brightness (After Calibration)
- 1000 nits
- Color Temperature
- 3500 ~ 9000 K
-
- Visual Viewing Angle (Horizontal)
- 160°
- Visual Viewing Angle (Vertical)
- 160°
-
- Brightness Uniformity
- 97%
- Color Uniformity
- ±0.003CxCy
-
- Contrast Ratio
- 7,000 : 1
- Processing Depth
- 14 bit
ELECTRICAL SPECIFICATIONS
-
- Max Power Consumption (W)
- 270 W
- Avg Power Consumption (W)
- 90 W
-
- Max Power Consumption per Unit Area
- 540 W/m2
- Max Power Consumption
- 921 BTU/hr
-
- Average Power Consumption
- 307 BTU/hr
- Max Power Consumption per Unit Area
- 1,842 BTU/m2
-
- Power Supply
- 100 to 240 Vac
- Frame Rate
- 50/60 Hz
-
- Refresh Rate
- 3840Hz
OPERATION SPECIFICATIONS
-
- LED Lifetime (Half brightness)
- 100,000 hrs
- Operating Temperature
- 14°F to 113°F -10°C to +45°C
-
- Operating Humidity
- 0 to 80% RH
- IP Rating Front
- IP30
-
- IP Rating Rear
- IP30
Warranty & Other
-
- Warranty
- 3 Year Limited
- Controller
- LCIN006
-
- 90 degree corner cut
- Yes
- FCC (Regulatory)
- Yes
-
- CE (Regulatory)
- Yes
- RoHS (Environmental)
- Yes
