The Art of Essence
LG SIGNATURE stays true to the essence,
delivering a new sense of life for the most discerning individual.
delivering a new sense of life for the most discerning individual.

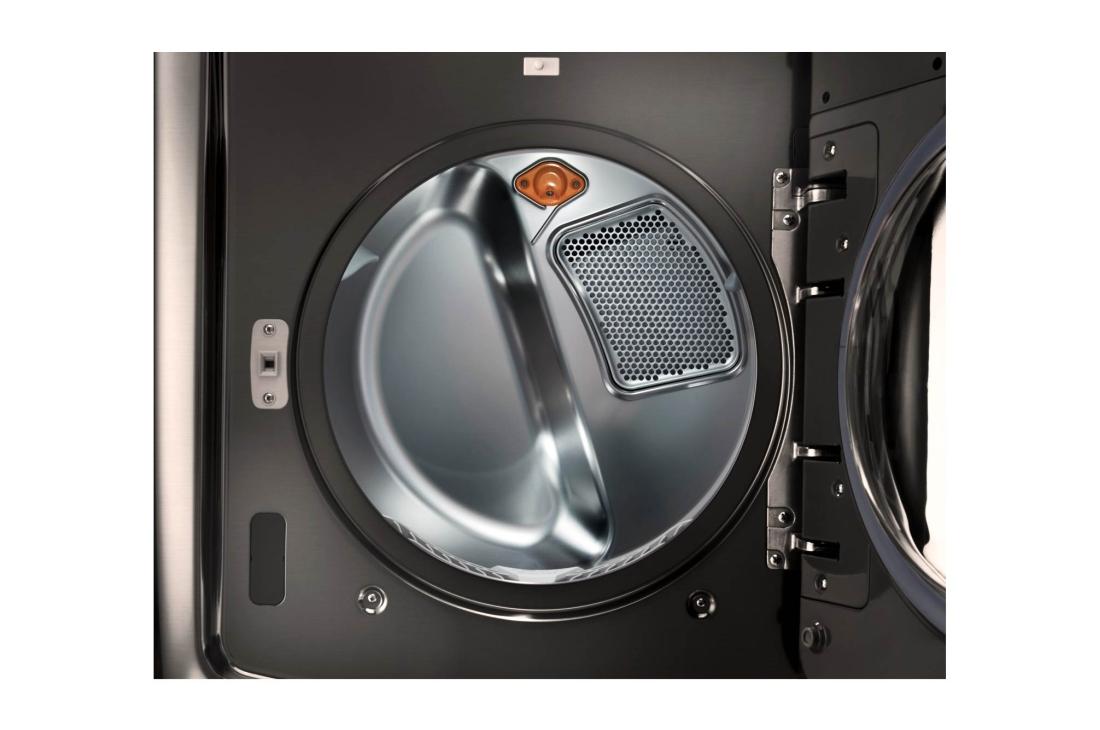

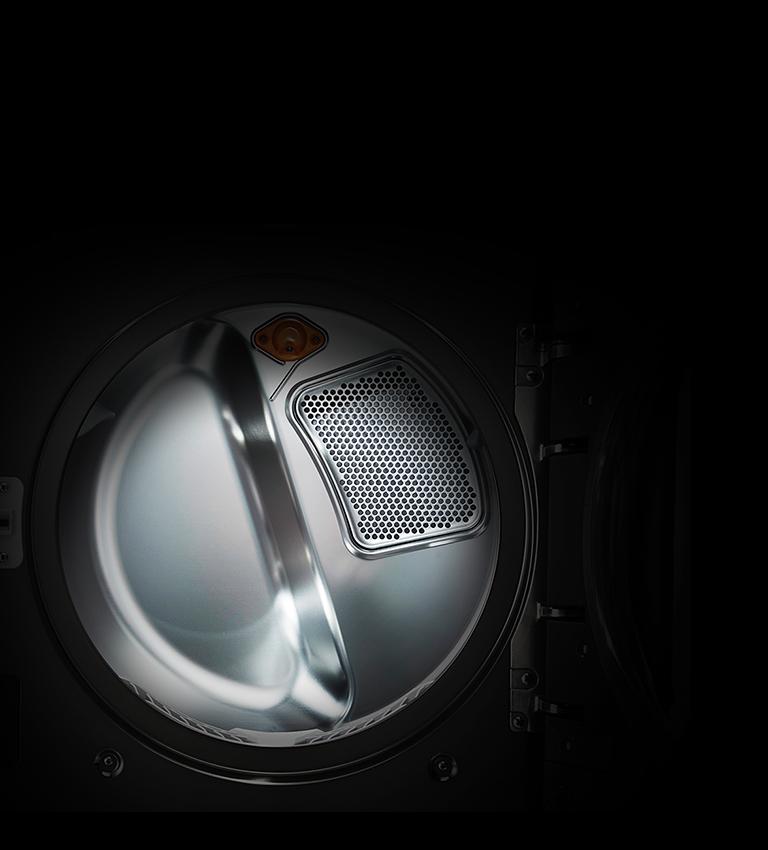

More Room to Dry
With 9.0 cu ft of mega capacity, you can fit a full set of king size bedding in a single load.

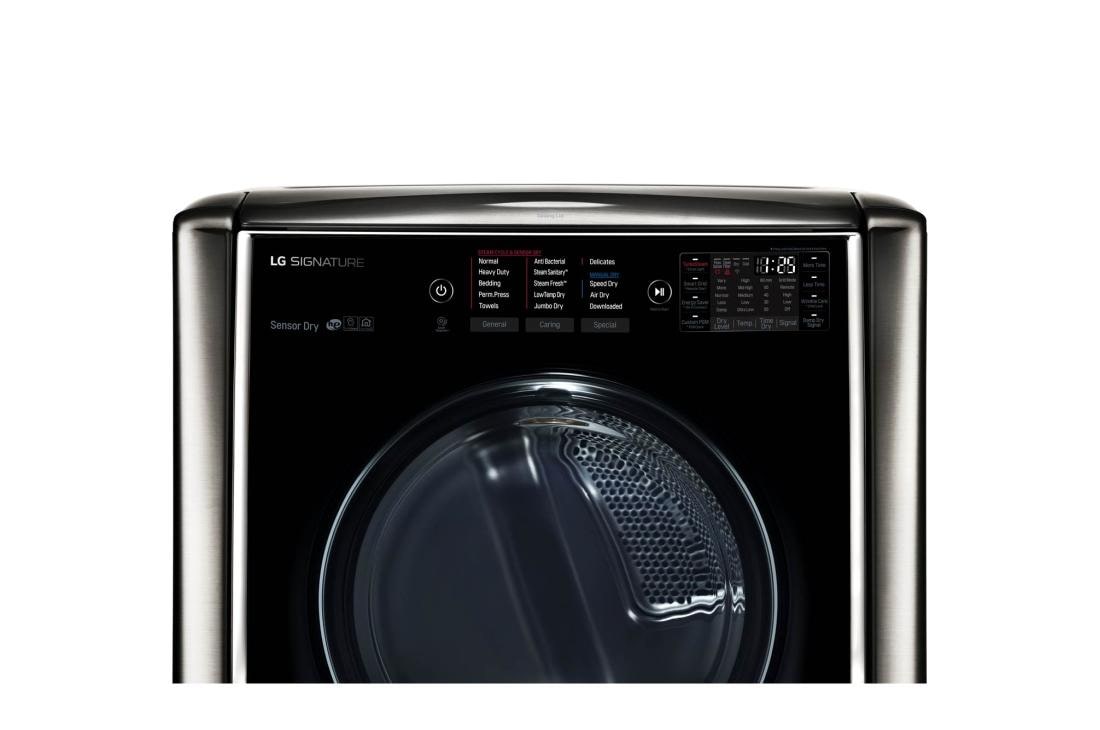

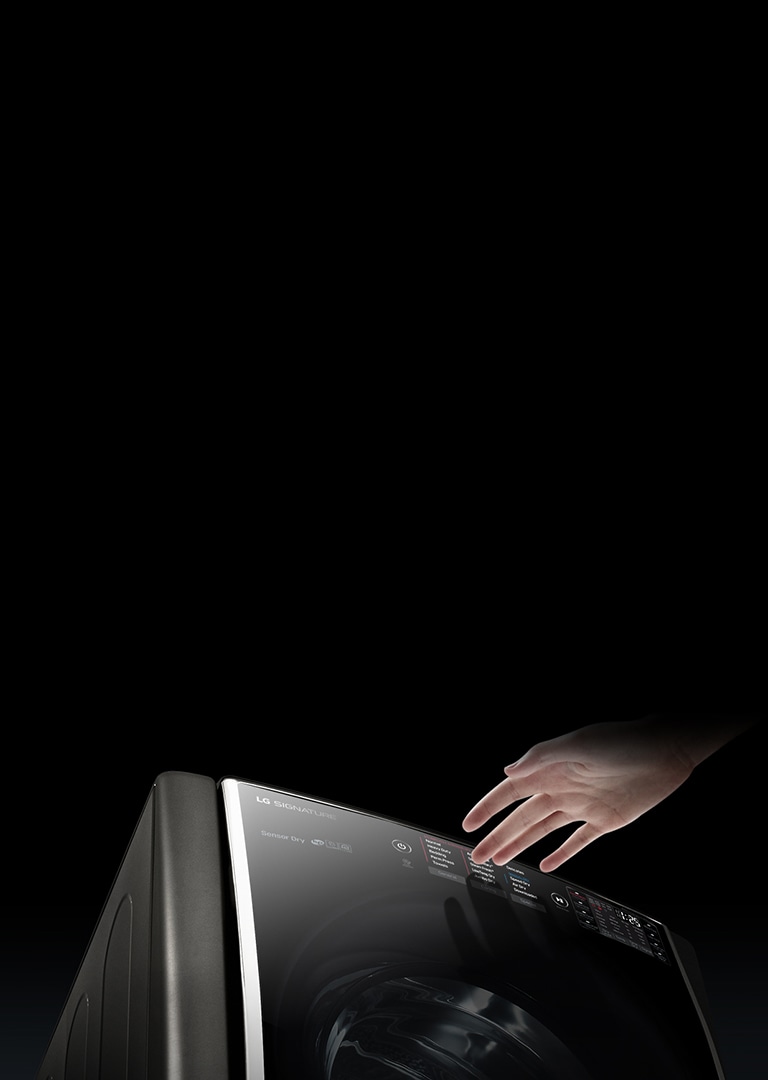

Full Touch On-Door Control Panel
Electronic control panel is seamlessly and completely integrated into the door for a distinct style plus intuitive functionality.

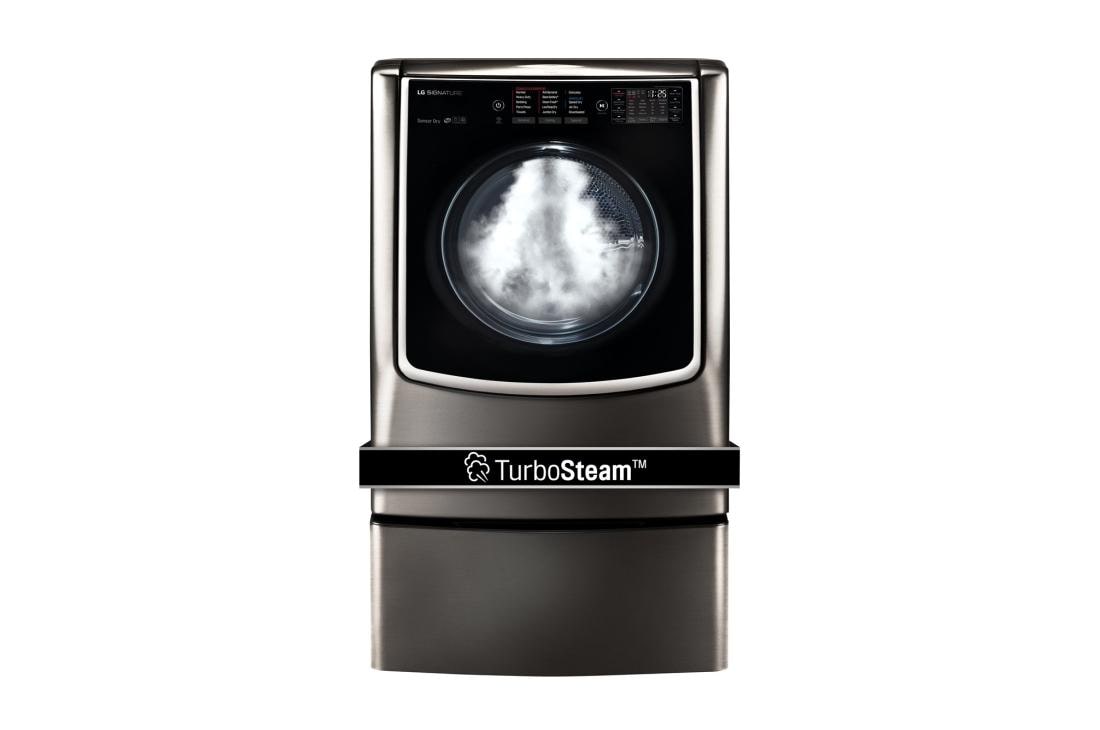

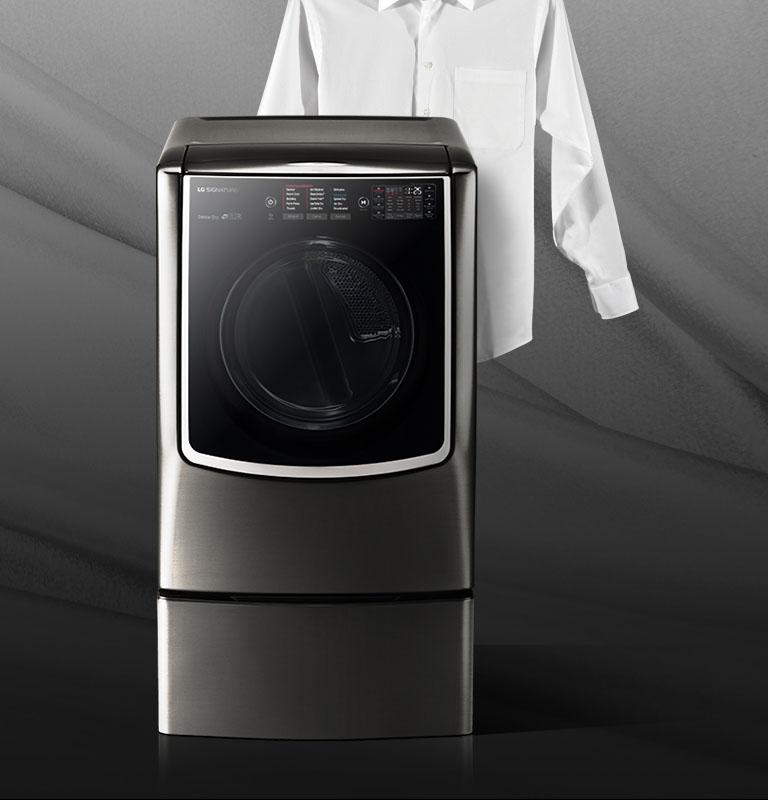

Kink in Your Wardrobe
Plans?
Toss the shirt in the dryer, turn on TurboSteam™ and in just 10 minutes your shirt is back in tip-top shape. Also helps refresh fabrics and reduce wrinkles in half the time of other steam settings.

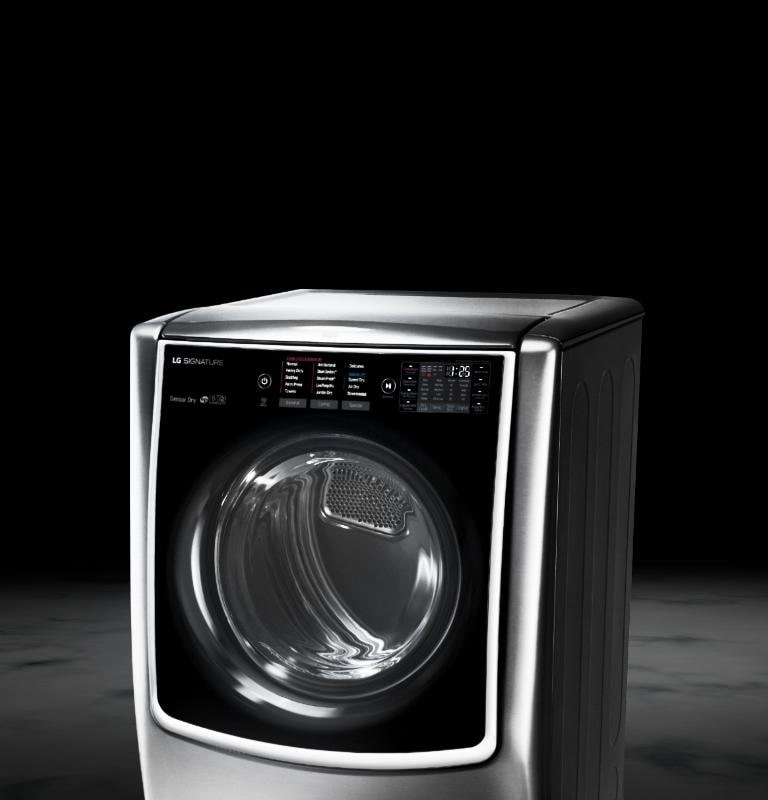

Unleash the Potential of Laundry Innovation
Bask in the luxury of convenience with LG SmartThinQ® technology that provides remote management of key features.

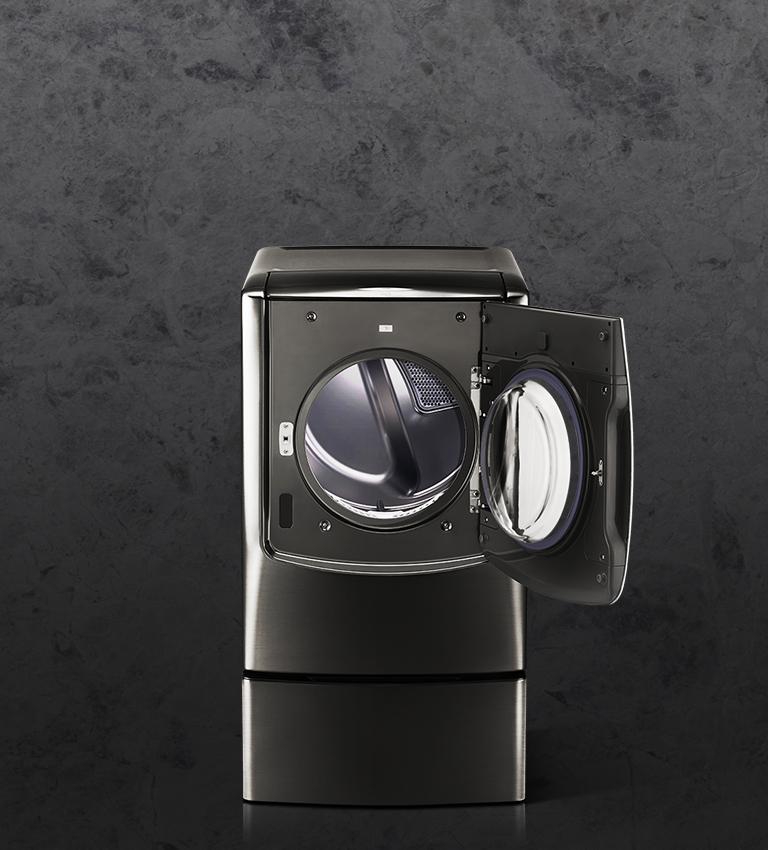

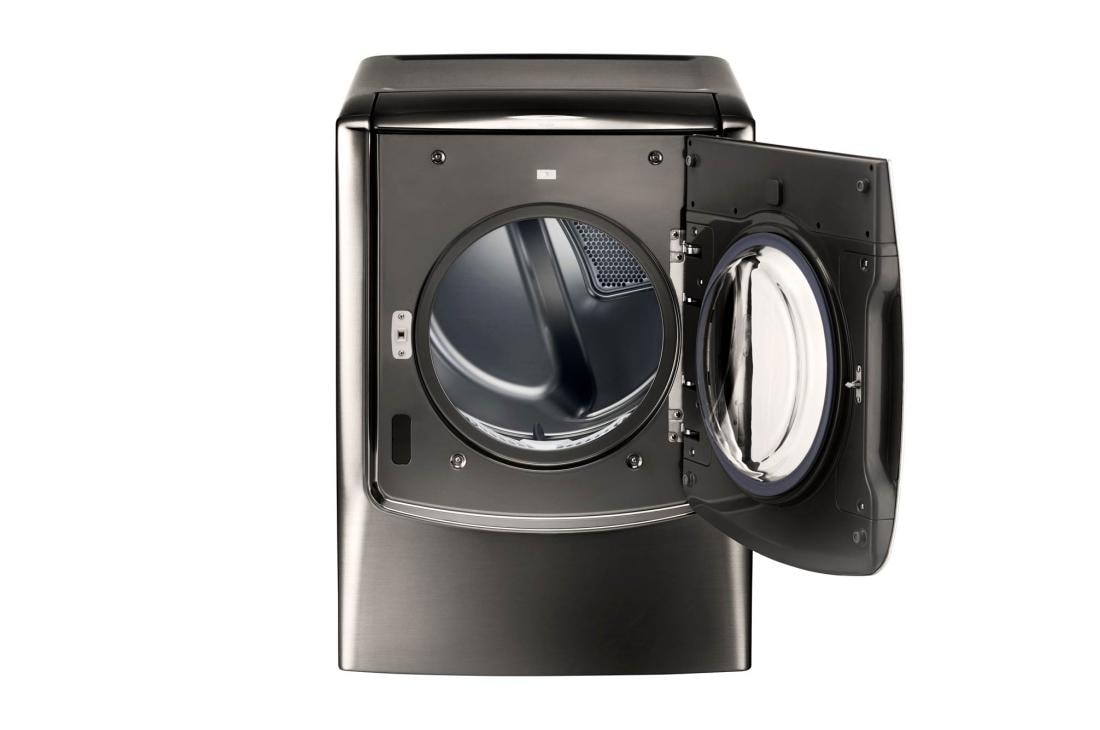

Ergonomic Angled Door
Designed for easier loading, the ergonomic, angled door not only means less bending and reaching, it’s also the secret behind the stylish, contoured front.
ACCESSORIES(SOLD SEPARATELY)
-
- Pedestal
- WDP5K
- Pedestal (WxHxD)
- 29" x 14 1/8" x 29 2/5"
APPEARANCE
-
- Design Look
- Front Control
- On-Door Electronic Control Panel with LED Display
- Yes
-
- Touch Buttons
- Yes
MATERIALS AND FINISHES
-
- Available Colors
- Black Stainless Steel (K)
- NeveRust™ Stainless Steel Drum
- Yes
-
- Cabinet
- Painted Steel
- Control Panel
- Plastic (Door Assembly)
-
- Door / Rim
- Glass/Chrome
- Door Cover
- Dark Blue Tinted Square Cover
-
- Tub Rear
- Yes
CAPACITY
-
- Capacity
- 9.0 cu. ft.
CONVENIENCE FEATURES
-
- 3 Minute Installation Check
- Yes
- Drum Light
- Yes
-
- End of Cycle Signal
- Yes
- FlowSense™ Duct Clogging Sensor
- Yes
-
- Leveling Legs
- 4 Adjustable Legs
- LoDecibel™ Quiet Operation
- Yes
-
- Remaining Time Display/Status Indicator(s)
- Yes
- Reversible Door
- Yes
-
- Venting Option
- 4 Way Venting
DIMENSIONS/CLEARANCES/WEIGHTS
-
- Carton (WxHxD)
- 31 5/16" x 44 15/16" x 35 5/8"
- Weight (Product/Carton)
- 157.4lbs / 177.2lbs
-
- Product (WxHxD)
- 29" x 40 7/8" x 33 3/8"
- Weight (Product)
- 157.4lbs
-
- Depth with Door Open
- 56"
DRYER PROGRAMS
-
- Drying Levels
- Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
- Manual Dry Times
- 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
-
- Temperature Settings
- High, Medium High, Medium, Low, Ultra Low
- No. of Programs
- 14
-
- Programs (Manual Dry)
- Speed Dry, Air Dry
- Programs (Sensor Dry)
- Cotton/Normal, Perm. Press/Casual, Towels, Delicates, Heavy Duty, TurboSteam™, Steamanitary™, Bedding, LowTemp Dry, Anti-Bacterial, Jumbo Dry, Download/ Super Dry
-
- No. of Options
- 13
- Options
- More Time, Less Time, Custom Program, PGM Save, Damp Dry Signal, Wrinkle Care, Child Lock, Wi-Fi Connect, Drum Light, Energy Saver, TurboSteam™, Smart Grid, Remote Start
POWER SOURCE
-
- BTU
- 20,000
- Electrical Requirements/Type
- 240V 30 Amps
-
- Ratings
- CSA Listed
SMARTTHINQ® TECHNOLOGY
-
- Energy Monitoring
- Yes
- SmartDiagnosis™
- Yes (v 3.0)
-
- Remote Control
- Yes
- Home Chat
- Yes
-
- Black Box
- Yes
SUMMARY
-
- Dryer Type
- Electric
- Series
- LG SIGNATURE
-
- SmartThinQ®
- Yes
- Wi-Fi Enabled
- Yes
WARRANTY/UPC
-
- Limited Warranty
- 1 Year Parts and Labor
- UPC
- 48231017046
