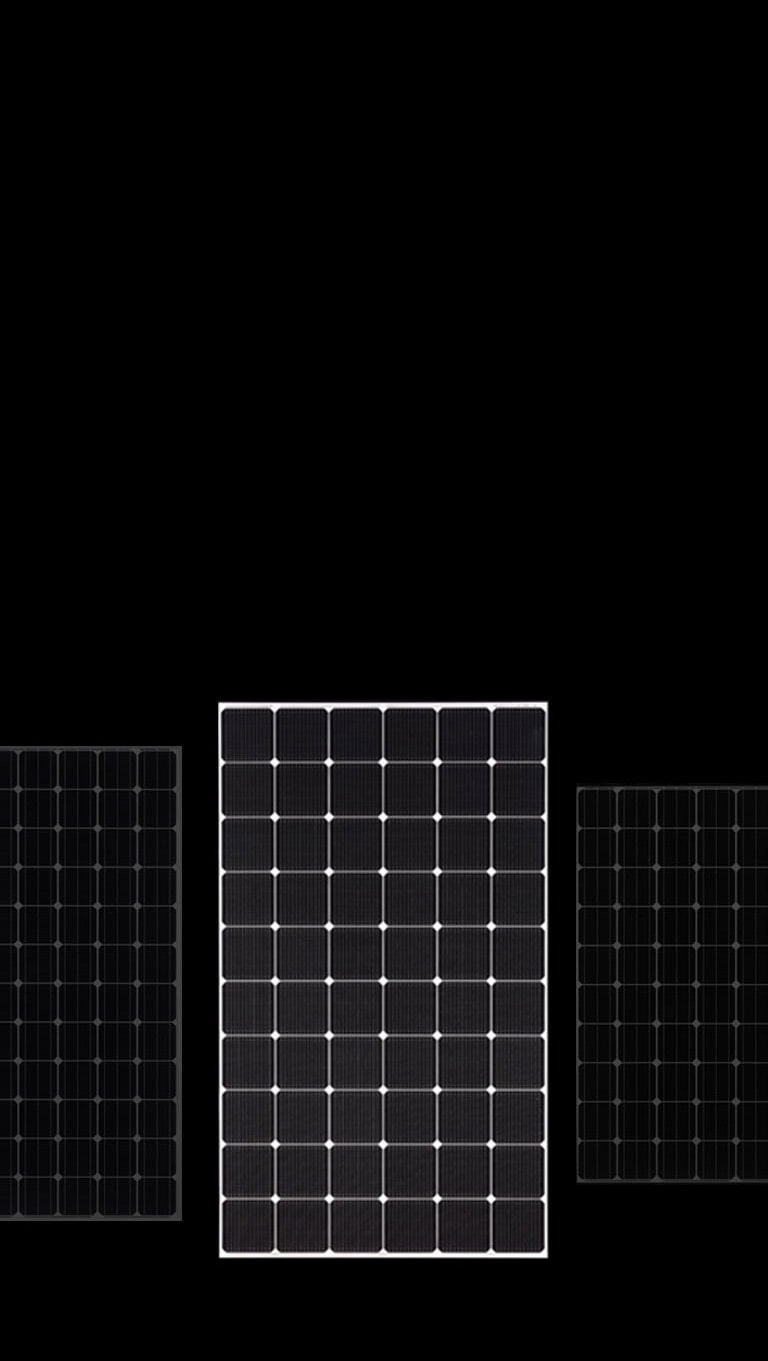

LG NeON® 2

The LG NeON® 2 features Cello Technology™, which replaces 3 busbars with 12 thin wires to enhance power output and reliability.
See LG NeON® 2 products
Pause

Newly Developed Cello Technology™

LG has introduced newly developed "Cello Technology™" (Cell connection with Electrically Low loss, Low stress and Optical absorption enhancement), which increases power output and improves appearance.

Extremely Low LID Cells

The boron (B) and oxygen (O) pairs within most p-type cells eliminate electrons that were created to generate energy. But inside the LG NeON® 2, there are almost no B-O pairs. This is why LG NeON® 2 has almost no LID*.

*LID: Light Induced Degradation

Double-sided Cell Structure

LG NeON® 2 cells produce energy from both the front and back. By absorbing light from even the backside, the cells increase efficiency. This makes LG NeON® 2 cells more efficient than conventional cells in the mornings and evenings, when the angle of light is lower.

Cello Technology™ Less Power Generation Loss

The LG NeON® 2 reduces down performance due to micro-cracks or finger electrode erosion by blocking the electrical path, due to the strategic layout of wires.

Improved Light Absorption

Cello Technology™ improves the absorption of light with circular-shaped wires that scatter light more effectively.

Higher Efficiency Installation Savings

Compared to a conventional multi module with 72 cells, LG NeON® 2 achieves higher power output with 60 cells, making it easy to manage space when installing large-scale systems. Also, with lower Voc than a 72-cell module, LG NeON® 2 requires fewer strings, leading to lower costs.

Enhanced Physical Durability

With its newly reinforced frame design, LG NeON® 2 modules are designed to endure a front load up to 6000 Pa, and a rear load up to 5400 Pa. Each module can handle a full ton of snow-load or withstand 208-mile-per-hour winds. In comparison, Hurricane Katrina (2005. Aug) produced a maximum wind speed of 175 mph.

Advantage: The IRR Comparison

* The comparison between the IRR (Internal Rate of Return) was calculated internally at LG to compare the relative return rate between different modules. Therefore, this return rate is not guaranteed. Further, the rate may differ according to the area and date of the analysis.

Enhanced Performance Warranty

The LG NeON® 2 is backed by a 25-year product warranty and an enhanced performance warranty. After 25 years, the modules are guaranteed to produce at least 86％ of their original power output.

Advantage: Space-efficient Panel

LG NeON® 2 reduces the space needed for installation due to its high module efficiency. The size and efficiency of the modules lets installers consider objects that cause shaded areas, such as trees or a chimney, resulting in optimal system design.

LG NeON® 2 maximizes solar power system capacity, producing more electricity and increasing economic benefits.

High Performance When Sunlight is Weaker

LG NeON® 2 performs well even on cloudy days, due to low energy reduction in weak sunlight.

High Efficiency Cell Structure

High Performance at Weak Sunlight

*Relative performance compared with the performance at 1000W/m

Improved Temperature Coefficient

LG NeON® 2 has improved the temperature coefficient to -0.37 from -0.41;
the actual output can be increased to max. 3 during daylight.
*Based on PV Syst simulation

High Performance Maximizes Output Power

© Copyright 2024 ©LG Electronics USA, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Corp. All other trademarks are the property of their respective owners. Prices, promotions, and availability may vary by dealer. The information contained herein is subject to change without notice. All screen images are simulated.

LG Solar is currently one of the leading solar manufacturers providing world-class, highly-efficient and affordable solar panels. Start saving on electricity bills in the long run with an LG Solar system. By choosing LG’s long-lasting, energy-efficient and sustainable solar panels, you can receive higher financial and environmental benefits for your business and other stakeholders.

High-quality solar products are reliable, backed by great warranty programs and have longer lifecycles. For the latest solar panel models, LG is now providing 25-year warranty. This shows LG’s confidence in developing highly efficient, durable and outstanding products.

LG's new module, NeON® 2, adopts Cello technology. Cello technology replaces three busbars with 12 thin wires to enhance power output and reliability. NeON® 2 demonstrates LG's efforts to increase value beyond efficiency. It features an enhanced 25-year warranty, durability, performance under real-world conditions, and a design suitable for roofs. LG NeON® 2 has been exceeding the expectation of many – and has been recognized as the best-selling solar module in the market.

LG NeON® R, on the other hand, is a very powerful 60-cell panel module that is equipped with the most advanced energy generation technology – and features a sleek, unique back-contact design, LG takes pride in producing aesthetically pleasing, state-of-the-art solar products. Discover the groundbreaking features of LG NeON® R, including its high power output, high durability, stylish roof design and improved temperature coefficient.
LG Solar has been offering superior solar products in recent years. The trusted LG brand provides innovative products and has built a reputation on quality and reliability like no other brand.
