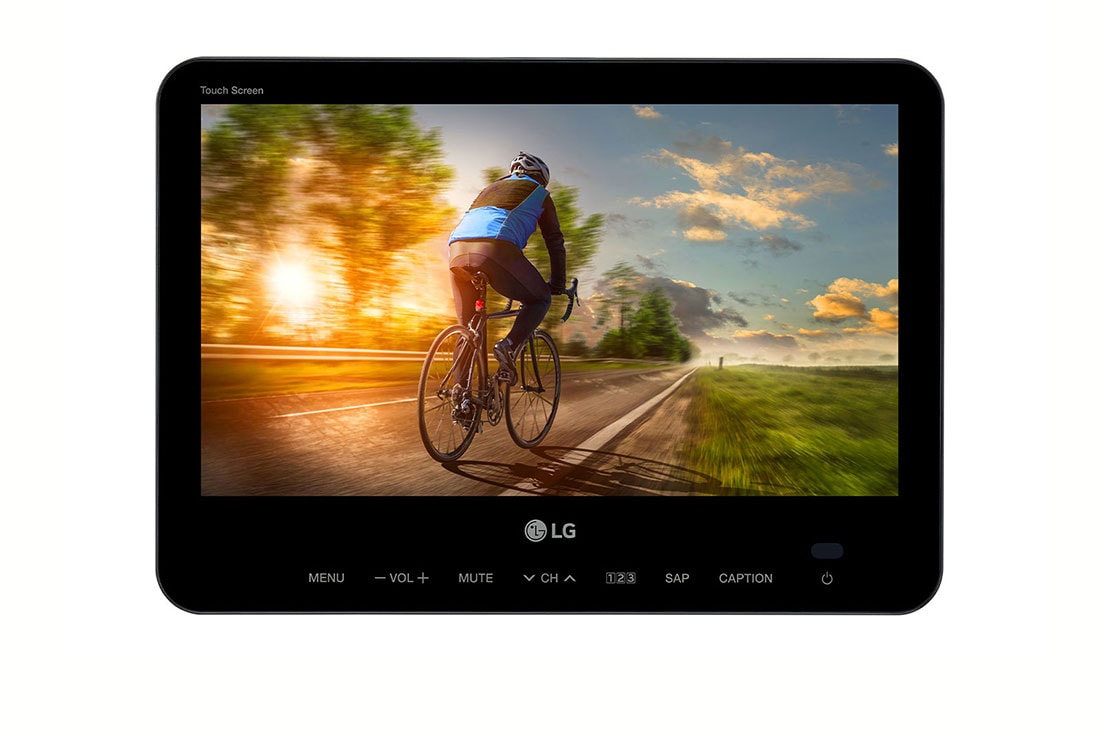

Smart Touch Screen TV for Personal Enjoyment
*Images are simulated for illustration purposes only.
LG webOS™ 22
15-inch Touch Display
Explore the latest webOS™ 22 of the 15-inch full HD TV with touchscreen support. It allows users to simply play TV shows and enjoy various apps while exercising.
*Images are simulated for illustration purposes only.
Various Apps for Entertainment
The LN766F has a built-in web browser and when connected to the Internet features games apps to keep users entertained.
Screen Share
15LN66F comes with Screen Share which allows fitness users to connect their smartphones and share their screens.
*Images are simulated for illustration purposes only.
Reliable Content Playback with Pro:Idiom®
Digital Rights Management (DRM) technology provides access to premium content to help rapid and broad deployment of HDTV and other high-value digital content.
*Images are simulated for illustration purposes only.
Easy and Customized Service with Pro:Centric® Solution
With LG's Pro:Centric® Direct*, operating content and remote control for multiple LN766F TVs become very convenient. Also fitness club owners can easily develop their own apps based on the SDK (HTML5).
*Pro:Centric Direct requires a dedicated server. (Sold separately). Images are simulated for illustration purposes only.
SPECIFICATIONS
-
- Category
- Pro:Centric Smart
- Smart Feature
- webOS 22, Web Browser, Pre-loaded App, SoftAP, Wi-Fi (802.11ac), Screen Share (Miracast), Smart Share, Bluetooth Audio Playback, HDMI-ARC (HDMI 2), Motion Eye Care, NTP Sync Timer
-
- Hospitality Feature
- Welcome Screen (Splash Image), Insert Image, Instant ON
- Management Feature
- SNMP, HTNG-CEC (1.4), Multi-code IR, Anti-theft System (Kensington Lock)
-
- Accessories
- RF Jumper
- Warranty
- 3 Year Limited
DESIGN
-
- Stand Type
- No Stand
- Front Color
- Black
DISPLAY
-
- Inch
- 15.6”
- Resolution
- 1,920 x 1,080 (FHD)
AUDIO
-
- Speaker (Sound Output)
- 2 W + 2 W
- Speaker System
- 2.0 ch
-
- LG Sound Sync
- Bluetooth Wireless
BROADCASTING SYSTEM
-
- Digital (Terrestrial, Cable, Satellite)
- ATSC / Clear QAM
- Analog (NTSC / SECAM / PAL)
- NTSC
-
- Global IPTV Support
- Yes
HOSPITALITY SOLUTION
-
- Solution Type
- Pro:Centric (Smart, Direct, V)
- DRM
- Yes
JACK INTERFACE
-
- Set Rear
- USB 2.0
- Set Bottom
- HDMI In, Headphone Out, Antenna/Cable In (Tuner), RJ45 (Ethernet), MPI Port (RJ12 Jack), External IR In, DC In Jack, PoC (Power over Coax)
DIMENSIONS
-
- VESA Compatible
- 75 x 75 mm
- Dimensions (W x H x D)
- 15.4 x 11.0 x 1.8 in. 391.4 x 278.6 x 46.1 mm
-
- Dimensions (W x H x D) with Top Mount
- 15.4 x 11.0 x 3.2 in. 391.4 x 278.6 x 82.4 mm
- Weight without Stand
- 6.4 lbs. / 2.9 kg
-
- Shipping Weight without Stand
- 8.6 lbs. / 3.9 kg
POWER
-
- Optional DC Power Supply (AM-PW18BA)
- Input: VAC 100 to 240, 50/60Hz Output: 19 VDC, 3.42A
- Max Power Consumption
- 35 W
-
- PoC (Power over Coax)
- VAC 20-34, Typ. 28 VAC VDC 22-48, Typ. 24 VDC
- Standby Power Consumption
- Adapter: Less than 0.5 W PoC: Less than 0.5 W
Regulatory & Certifications
-
- Certifications / EMC
- UL / FCC
