Discontinued
32LG505H

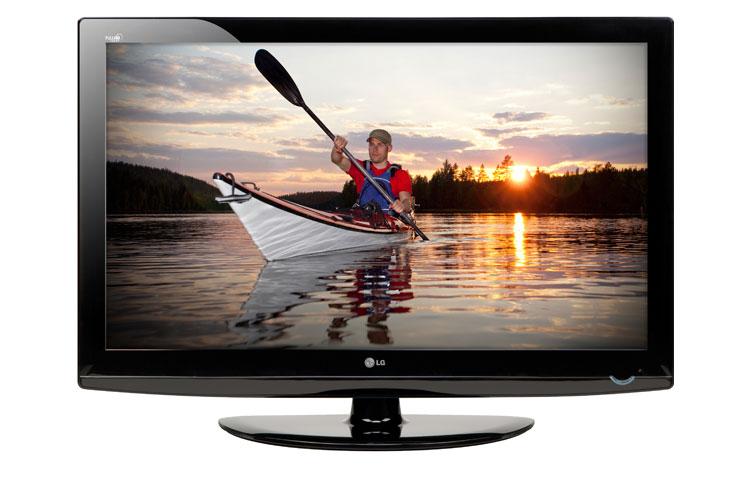

32'' class (31.5'' measured diagonally) LCD Widescreen HDTV with HD-PPV Capability
/
1/1
32" class (31.5" measured diagonally) LCD Widescreen HDTV with HD-PPV Capability
PANEL
-
- Native Display Resolution
- 1366 × 768
- Maximum Computer Resolution (RGB)
- XGA (1024×768)
-
- Lamp Life
- 60,000 hours (approx.)
- LCD Panel Type
- 32"
-
- Dynamic Contrast Ratio
- 20,000:1
- Display Area
- 31.5" diagonal
-
- Contrast Ratio
- 1,200:1 (with AI)
- Brightness
- 500 cd/m2 typ.
-
- Viewing Angle (HxV)
- 170° (Min) x 178° (Typ.)
- Response Time
- < 8ms
VIDEO
-
- XD Engine
- Yes (Auto, Manual, Contrast, Color, NR, MPEG NR)
- 3:2 Pull Down Cinema Correction
- Yes
-
- ATSC/NTSC/QAM Clear Tuner
- Built-in
- All Format Converter
- 1080i/720p/480p/480i~768p
-
- Aspect Ratio Adjustment
- 7 Modes
- Blue/Black Stretcher
- Yes
-
- Color Temperature
- Cool, Normal, Warm
- Comb Filter
- 3D Digital
-
- DCTI (Digital Color TransientImprover)
- Yes
- DLTI (Digital Luminance Transient Improver)
- Yes
-
- Decoder Formats
- MPEG-2/MPEG-4 H.264 (full HD real time decoding, AC-3 decoding)
- EZ Picture Selection Mode
- 5 Modes (daylight, normal, nighttime, user1, user2)
-
- Enhanced Video
- Yes
AUDIO
-
- Dolby Digital Decoder
- Yes
- EZ Sound/Sound Selection Mode
- 6 Modes (normal, stadium, news, music, theater, user)
-
- EZ SoundRite (Auto Volume Limiter)
- Yes
- Audio Power
- 20W (10W x 2)
-
- Mono/Stereo/SAP
- Yes
- Mute
- Yes
-
- Speaker System Details
- 2 Way 4 Speaker
- 3D Echo Sound System
- Yes
-
- Bass/Treble/Balance
- Yes
SPECIAL FEATURES
-
- Auto/Manual Programming
- Yes
- Calibration Mode
- Yes
-
- Channel Labeling
- Yes
- Closed Captions (Customizable)
- Yes
-
- Commercial Installation Menu
- Yes
- Discrete IR Codes
- Yes
-
- EZ Menus (High Performance Interface)
- Yes
- Favorite Channel
- Yes
-
- Flashback (Previous Channel)
- Yes
- Function Menu
- Yes
-
- Integrated Pro:Idiom
- Yes
- Optional Cloning Programmer Remote
- LT2002
-
- Parental Control w/V-Chip
- Yes
- Picture in Picture/Split Screen
- Yes (1 tuner)
-
- RJP Plug & Play Support
- Yes
- Remote, Universal w/batteries
- Yes
-
- Sleep Timer, On/Off Timer
- Yes
- TVLink Protocol
- Yes
-
- Trilingual Menus
- English/Spanish/French
- Manual Clock
- Yes
INPUTS/OUTPUTS
-
- HDMI V1.3
- Inputs 2
- MPI™ (RJ11) Slot Interface
- 1
-
- PC Audio In (RGB/DVI with adaptor)
- 1
- RF In
- 1 (ATSC/NTSC)
-
- RGB In (PC/DTV Input)
- 1 (XGA Max. Resolution)
- RJ45 for RJP Interface
- 1
-
- RS-232C Input (Service Only)
- 1
- Remote Control Out (IR)
- 1
-
- S-Video In
- 1 Rear/1 Side
- Speaker Out
- 1 (8 ohm symbol, Mono)
-
- Digital Audio Out (Optical)
- 1
- Composite Video & Audio L/R In
- 1 Rear/1 Side
-
- Component HD/DVD & Audio L/R In
- 1 (Y, Pb, Pr) -480i/p, 720p, 1080i
CABINET
-
- VESA Standard Mount Interface
- 200mm x 100mm, (M4 screw)
- Weight with Packaging
- 38.58 lbs
-
- Weight with Stand
- 31.09 lbs
- Weight without Stand
- 27.78 lbs
-
- Cabinet Style
- Table Top (with Invisible Speakers)
- Color
- Matte Black
-
- Dimensions with Stand (W×H×D)
- 32.0" x 23.6" x 9.0"
- Dimensions without Stand (W×H×D)
- 32.0" x 21.3" x 4.4"
-
- Packaging (W×H×D)
- 39.0" × 26.2"× 7.6"
- Power Cord Length
- 9 ft.
-
- Security Screws
- Yes (attaches stand to neck)
- Stand to Desk Mountable
- Yes
-
- Table Stand Included
- ±90°
POWER
-
- EcoSmart (Access features through installer menu) Dynamic Power Savings
- Yes
- EcoSmart (Access features through installer menu) Intelligent Sensor
- Yes
-
- EcoSmart (Access features through installer menu) Static Power Savings
- Yes
- Optional Cloner remote
- LT2002
-
- Power Consumption (typ.) with Power Saving Modes Disabled
- 125W
REQUIRED LISTINGS
-
- RoHS Compliant
- Yes
- UL, c-UL, NOM, FCC
- Yes
SERVICE/LIMITED WARRANTY
-
- Limited Warranty (Parts/Labor)
- 2 Years
UPC
-
- 32LG505H
- 7 19192 17568 6
