32ML5K-B

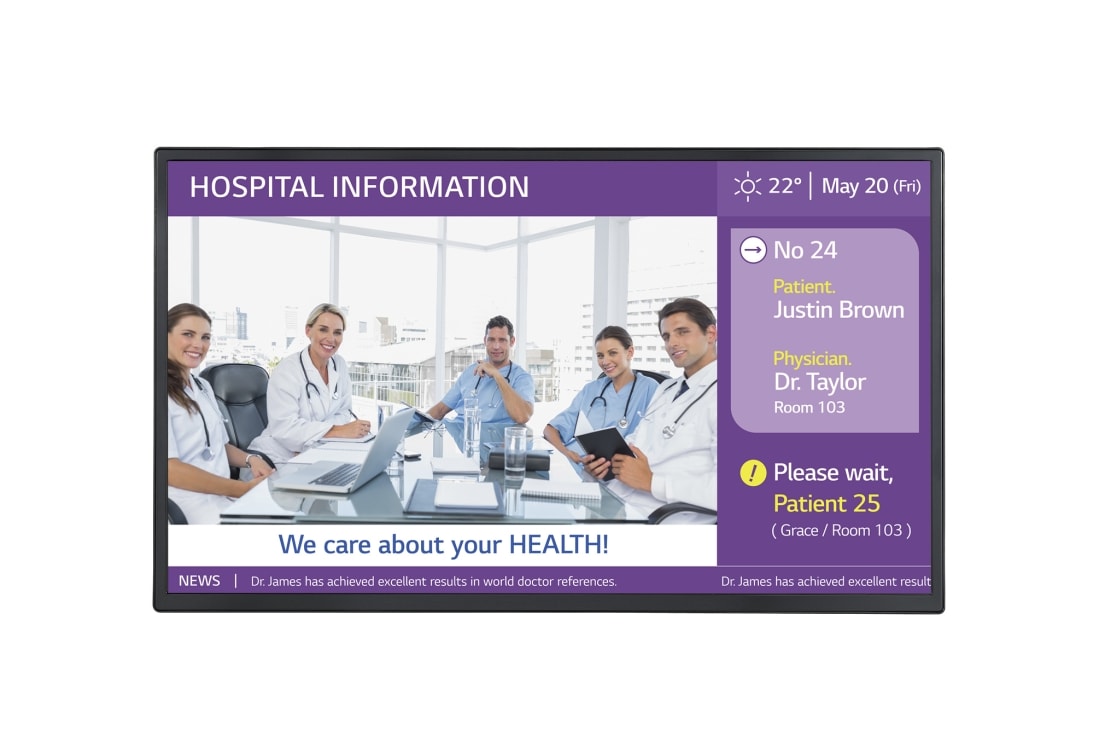

32'' ML5K Series FHD Healthcare Digital Signage
$950.00
In Stock
/
- 400 nit Brightness and 1% Haze Surface Treatment for Clear Viewing Indoors
- FHD Resolution (1920x1080) Creates Crisps, Clear Images for Dr. & Patients
1/7
32" ML5K Series FHD Healthcare Digital Signage
$
950.00
Standard Signage for Hospitals
*43 inch
*All images in this web page are for illustrative purposes only.
*All images in this web page are for illustrative purposes only.
Appropriate Display Brightness
With recommended brightness for indoor display, the ML5K series clearly delivers content and attracts public attention, making it the most suitable display for marketing in hospital, meeting rooms, airports, retail, shopping malls, etc.
*Actual images available may differ from the example images shown.
*43ML5K has 500 nit and 32ML5K has 400 nit.
*43ML5K has 500 nit and 32ML5K has 400 nit.
High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Conformal Coating
In various places the ML5K series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting ML5K series from salt, dust, iron powder, humidity, etc.
*Actual images (signage display) available may differ from the example images shown.
Compatible with AV Control System
The ML5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
*Network based control.
PoE++ Mode
Install 32ML5K easily without AC power plugs and sockets. PoE++ (Power over Ethernet) mode is available on 32ML5K, which brings an integrated network and power connection via RJ45, without using an electrical outlet.
*32ML5K only
*PSE (Power Sourcing Equipment) required when using PoE++ Mode
*PSE Equipment is not included.
*AC Power mode : 400 nit, PoE++ Mode : 200 nit
*PSE (Power Sourcing Equipment) required when using PoE++ Mode
*PSE Equipment is not included.
*AC Power mode : 400 nit, PoE++ Mode : 200 nit
PANEL
-
- Diagonal
- 32"
- Panel Technology
- IPS
-
- Back Light Type
- Direct
- Aspect Ratio
- 16:9
-
- Native Resolution
- 1920 x 1080 (FHD)
- Refresh Rate
- 60 Hz
-
- Brightness (Typ.)
- AC Mode 400 nits (Typ.) - PoE Mode 200 nits (Typ.)
- Contrast Ratio
- 1200:1
-
- Dynamic CR
- 1,000,000:1
- Color Gamut
- BT709 95%
-
- Viewing Angle(H x V)
- 178° x 178°
- Color Depth
- 8 bit, 16.7 Million Colors
-
- Response Time (G to G)
- 9ms
- Surface Treatment(Haze)
- Haze 1%
-
- Life time
- Up to 50,000 Hrs
- Operation Hours (Hours/Day)
- 24/7
-
- Portrait / Landscape
- Yes / Yes
CONNECTIVITY
-
- HDMI IN
- Yes (x2) HDMI1 / HDMI2: HDCP 2.2/1.4
- DP In
- No
-
- DVI-D In
- No
- Audio In
- No
-
- RS232C In
- Yes (x1), 4-pin 3.5 mm Jack
CONNECTIVITY
-
- RJ45 (LAN)
- Yes (x1), Includes PoE++
CONNECTIVITY
-
- IR In
- Yes (x1)
CONNECTIVITY
-
- USB in
- USB2.0 Type A(1)
CONNECTIVITY
-
- HDMI Out
- No
- Audio Out
- Yes (x1)
-
- RS232C OUT
- Yes (x1), 4-pin 3.5 mm Jack
MECHANICAL
-
- Bezel Color
- Black
- Bezel Width
- T/R/L: 13.0 mm, B: 18.0 mm
-
- Weight (Head)
- 12.6 lbs. / 5.7 kg
- Packed Weight
- 16.3 lbs. / 7.4 kg
-
- Monitor Dimensions (W x H x D)
- 28.7 x 16.9 x 2.2 in. (729.4 x 428.9 x 55.5 mm)
- Carton Dimensions (W x H x D)
- 31.9 x 20.1 x 5.2 in.(810.0 x 510.0 x 132.0 mm)
-
- Handle
- No
- Tilt (Face Down)
- No
-
- VESATM Standard Mount Interface
- 200 x 200
HARDWARE FEATURES
-
- Internal Memory (eMMC)
- 16 GB
- Wi-Fi (Built-in)
- Yes
-
- Temperature Sensor
- Yes
- Auto Brightness sensor
- Yes
-
- Local Key Operation
- Yes
- Speaker (Built-in)
- Yes (3W x 2)
SOFTWARE FEATURES
-
- OS Version
- webOS 6.0
- Local Contents Scheduling
- Yes
-
- Group Manager
- Yes
- USB Plug & Play
- Yes
-
- Fail over
- Yes
- Booting Logo Image
- Yes
-
- No Signal Image
- Yes
- RS232C Sync
- Yes
-
- Local Network Sync
- Yes
- PIP
- No
-
- PBP
- No
- Screen Share
- Yes
-
- Video Tag
- Yes (x4)
- Play via URL
- Yes
-
- Screen Rotation
- Yes
- External Input Rotation
- Yes
-
- Gapless Playback
- Yes
- Tile Mode Setting
- Yes (15 x 15 Max)
-
- Data Cloning
- Yes
- SNMP
- Yes
-
- ISM Method
- Yes
- Auto Set ID
- Yes
-
- Status Mailing
- Yes
- Control Manager
- Yes
-
- Crestron Inside
- Yes
- Smart Energy Saving
- Yes
-
- PM Modes (e.g., Network Ready)
- Yes
- Wake on LAN
- Yes
-
- Beacon
- Yes
- HDMI-CEC
- Yes
-
- SI Server Setting
- Yes
- webRTC
- Yes
-
- Pro:Idiom
- Yes
OPERATION CONDITIONS
-
- Operation Temperature
- 32 °F to 104 °F / 0 °C to 40 °C
- Operation Humidity
- 10 % to 80 %
ELECTRICAL
-
- Power Supply
- 120 Vac, 50/60 Hz or PoE++: 41.1-57 V
- Power Type
- Built-In Power / PoE++
-
- Power Consumption (Typ.)
- 55 W
- Power Consumption (Max.)
- 75 W
-
- Power Consumption (British Thermal Unit)
- 188 BTU/Hr (Typ.) / 256BTU/Hr (Max.)
- Power Consumption (Smart Energy Saving)
- 38.5 W
-
- Power Consumption (DPM)
- 1 W
- Power Consumption (Power Off)
- 1 W
-
- PoE Type
- PoE++ : Type3 802.3bt
- PoE Power Class
- Class 6
REGULATORY & CERTIFICATIONS
-
- Safety
- NRTL
- EMC
- FCC Class "A"
-
- Energy Star
- Yes
- UL Listed for Hospitals
- UL62368-1
OPS Compatibility
-
- OPS Type Compatible
- No
- OPS Power Built-in
- No
LG SOFTWARE COMPATIBILITY
-
- SuperSign WB
- Yes
- SuperSign Control / Control+
- Yes / Yes
-
- SuperSign CMS
- Yes
- Mobile CMS
- Yes
-
- Connected Care
- Yes
Languages
-
- Onscreen Display
- English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Polski, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
Warranty & Other
-
- Warranty
- 2 Year Limited
- UPC
- 195174044278
-
- Basic Accessories
- Remote Control including battery (x2), Power Cord, QSG, Regulation Book, Phone to RS-232C Adapter
