Discontinued
55UX340H

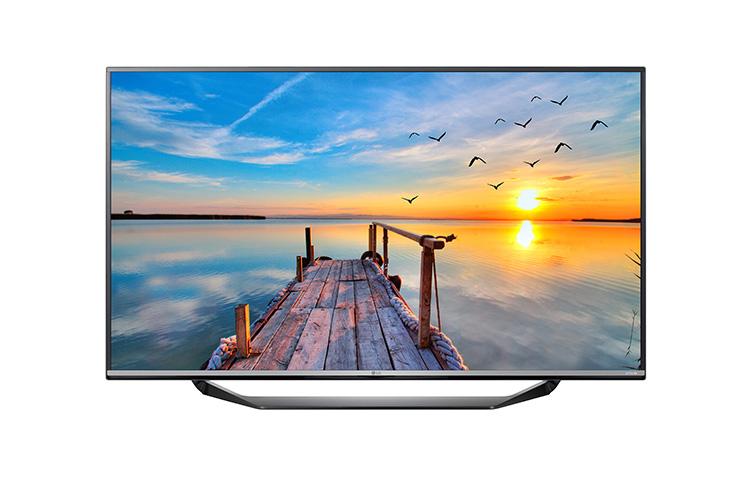

55” class (54.64'' diagonal) UX340H Ultra High Definition Commercial Lite TV
/
1/1
55” class (54.64" diagonal) UX340H Ultra High Definition Commercial Lite TV
CABINET
-
- Bezel Color
- Silver/Black
- VESA™ Compatible
- 300mm x 300mm
-
- WxHxD (with stand)
- 48.8"x30.6"x10.3"
- WxHxD (w/o stand)
- 48.8"x28.4"x2.2"
-
- Weight (Without Stand)
- 39.24 lbs
- Weight (Carton)
- 52.47 lbs
-
- Carton (W x H x D)
- 52.4"x31.9"x6"
- Weight (With Stand)
- 43.43 lbs
-
- Bezel Width On (L/R, U, B) (mm)
- 11.7mm, 11.4mm, 15mm
- Bezel Width Off (L/R, U, B) (mm)
- 9.4mm, 8.9mm, 12.5mm
PANEL
-
- Backlight Type
- Edge
- Resolution
- 3840 x 2160 (UHD)
-
- Frame Rate
- 120Hz
- Dynamic Contrast Ratio
- 1,000,000:1
-
- Response Time
- 9ms(G to G)
- Viewing Angle(HxV)
- 178° x 178°
-
- Panel Size
- 55” Class (54.64” diagonal)
- Contrast Ratio
- 1200:1
POWER
-
- Voltage, Hz
- 100V - 240V, 50/60 Hz
- Stand-by
- <0.5W
BROADCASTING SYSTEM
-
- Analog
- NTSC
- Digital
- ATSC/QAM/VSB
INTERFACE (Side)
-
- USB
- 1
- HDMI In
- 1
FEATURES
-
- Self Diagnosis
- Yes
- HDMI-CEC
- Yes (without ARC)
-
- HTNG-CEC
- Yes
- Lock Mode
- Yes
-
- RJP Interface
- Yes (RS232C,HDMI)
- RJP Compatibility
- Yes
-
- USB
- USB 2.0
- USB Auto Play back
- Yes
-
- Moving Picture Playback
- Divx HD (SD/HD/Plus HD)
- Audio Codec
- MP3, AC3, MPEG, AAC,HEAAC, CDDA, LPCM
-
- Multi IR Code
- Yes
- Motion Eye Care
- Yes
-
- USB Cloning
- Yes
- Auto Off / Auto Sleep
- Yes
-
- Menu
- Public Display Mode
- Welcome Screen
- Yes (Splash Image)
Video
-
- Aspect Ratio
- 6 modes ( 16:9, Just scan,Set by program, 4:3,Zoom,Cinema zoom1)
- Triple XD Engine
- Yes
-
- Dynamic Color Enhancer
- Yes
- Real Cinema 24p
- Yes (3:3 pull down)
-
- Tru 4K Upscaler
- Yes (HDMI)
Audio
-
- Clear Voice
- Yes
- Sound Mode
- 6 Modes (Standard, News, Music, Cinema, Sport, Game)
-
- Speaker System
- 2.0 ch
- Audio Output
- 10W + 10W
-
- Optical Sound Sync
- Yes
- Sound Optimizer
- 3 modes (Normal, Wall-Mount Type, Stand Type)
INTERFACE (REAR)
-
- RF In
- 1
- AV In
- 1 (Sharing with Component in)
-
- Digital Audio Out
- 1 (Optical)
- External Speaker Out
- 1 (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type (GRD,L+,R+), 1W with 8Ω))
-
- PC Audio Input
- 1 (Sharing with Component Audio)
- HDMI In
- 1
-
- Component In
- 1 (Y, Pb,Pr) + Audio (L/R)
- RGB In
- 1 (D-sub 15pin)
-
- RS232 In
- Control and Service, IR pass through
ACCESSORIES
-
- Manual/ESG
- Simple Manual
- Cable
- Power Cord (5'.08", 90 degree angle connector)
OTHER
-
- UPC
- 7 19192 91803 0
- Warranty
- 2-Year Limited Warranty Parts/Labor/Backlight/Extended warranty options are also available
