RJP-201M

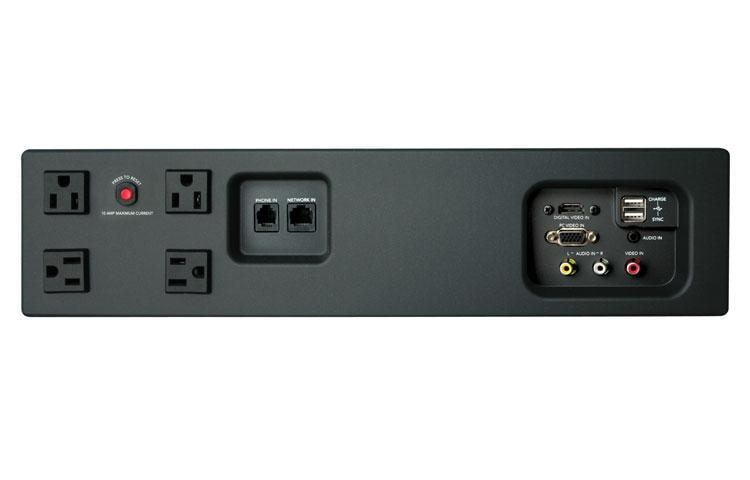

Auto-Sensing Remote Jack Pack - Full-Featured
/
1/1
Auto-Sensing Remote Jack Pack - Full-Featured
REMOTE JACK PACK
-
- Shipping Weight
- 3.31 Ibs
- Recommended hole cutout
- 16.031" (16 & 1/32")W x 3.562" (3 & 9/16") H
-
- Unit Dimensions (W×H×D)
- 16.49” x 4.08” x 2.18”
- UPC Code
- 7 19192 90182 7
-
- Type of Installation
- Vertical DrawerMount (desk back splash)
- Carton Dimensions (W×H×D)
- 18.9” x 4.7” x 13.9”
-
- Color
- Black
- Unit Weight
- 2.54 Ibs
OUTPUT
-
- Audio In L-R
- Left - Right Audio Jacks Max: 1.6 V RMS (1 KHz)@ 600 ohms Typ: 250mV RMS @ 600 ohms
- Network In
- LAN Jack (8-Pin RJ-45)
-
- USB Out
- USB “A” type Male Plug
- Control & Aux
- Control Jack (8-Pin RJ-45) iPod Audio/Video Dock In (14-Pin Wafer)
-
- Digital Video Out
- Digital Video Connector (HDMI)
- Phone Out
- Phone Jack (6-Pin RJ-11)
ENVIRONMENTAL PARAMETERS
-
- Humidity
- 10% to 90% Non-condensing
- Operating Temperature
- 0° to 40° Degrees Celsius (32° to 104° Degrees Fahrenheit)
-
- Cooling Free Air Convection
- Free Air Convection
- Storage Temperature
- -20° to 85° Degrees Celsius (-4° to 185° Degrees Fahrenheit)
END-USER DEVICE INPUTS
-
- Network In
- LAN Jack (8-Pin RJ-45)
- Audio In L-R
- Left - Right Audio Jacks (Nom In: 250mV RMS @ 22K ohms) Overload In: 1.6V RMS Max
-
- USB In
- USB Connector, Charge(5V,0.5A), Data(5m) (“A”- type female)
- Digital Video In
- Digital Video Connector
-
- Audio In
- 3.5 mm Stereo Audio Jack
- AC Outlets x 4
- AC 120V 60Hz (Maximum 7 Amps. total combined current allowed for AC outlets)
-
- Phone In
- Phone Jack (6-Pin RJ-11)
- Video In
- Composite Video Jack, 1 Vpp, 75 ohms
-
- PC Video In
- 15-pin RGB PC Monitor Connector
REGULATORY
-
- UL, FCC
- Class B, Digital Video Device
Misc. Hardware
-
- 5-Retainer Clips, L-Shaped (4-Required)
- Yes
- 5-Machine Screws w/SerratedWashers (4-Required)
- Yes
-
- Optional IDS-20G
- Coming soon
SUPPLIED ACCESSORIES LIST
-
- Separate Cables-Phone Cable (6-Pin RJ-11)
- Yes
- Separate Cables-Network Cable (8-Pin RJ-45)
- Yes
-
- SUPPLIED ACCESSORIES LIST
- Cable Assembly Note: All cables 12 feet (approx.) in length for RJP-201M Mixed Signal Cable Assembly (approx. 12.9 ft)
- Attached Cord
- AC Power Cord, 120V 60Hz
SERVICE/LIMITED WARRANTY
-
- Warranty (Parts/Labor)
- 1 Year
