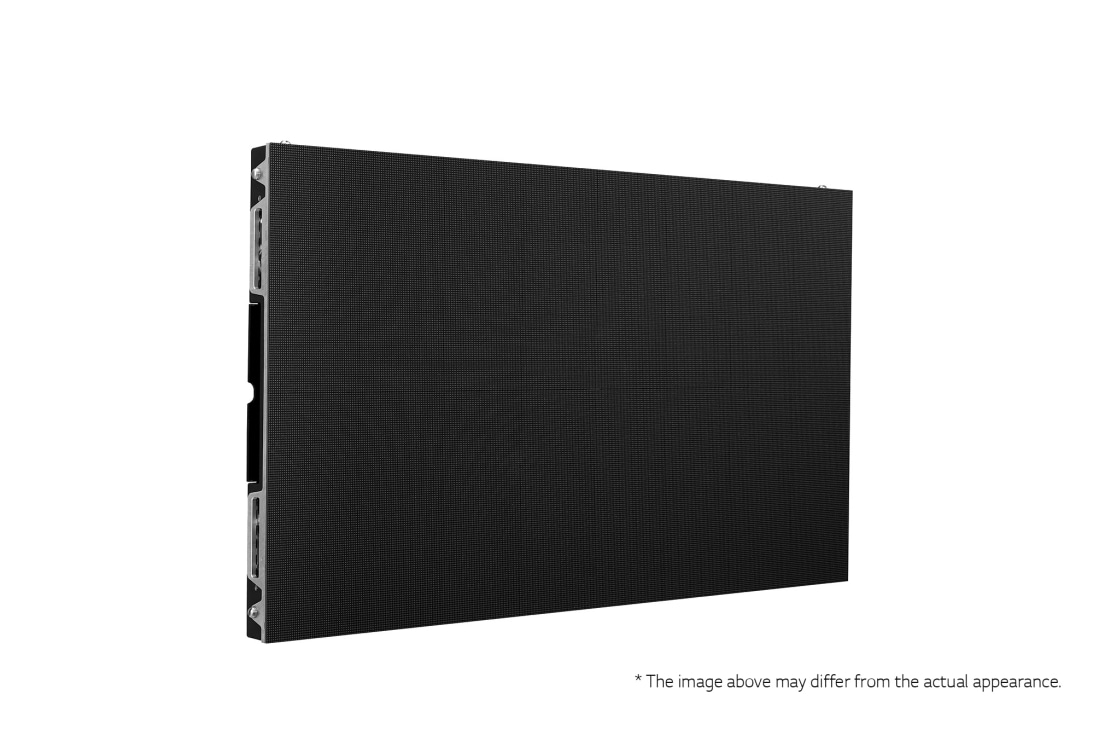

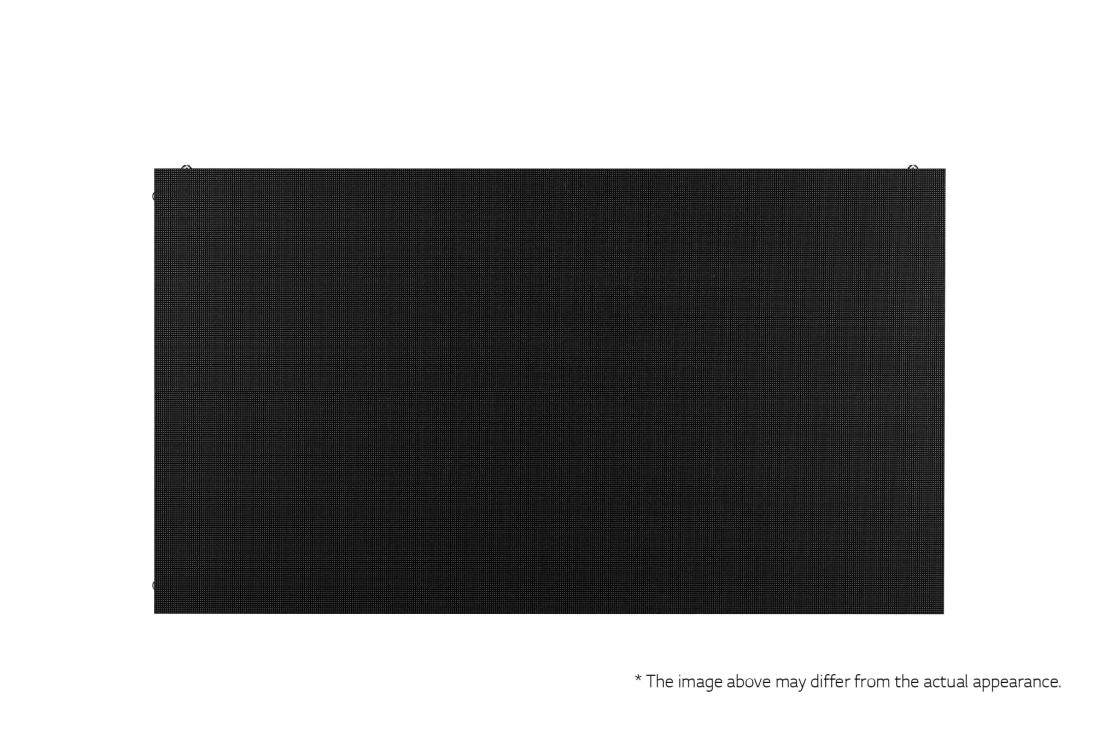

1.5mm LSCB Series Ultra Slim LED Digital Signage with 800nits Brightness, 16:9 Aspect, Front Access & 90° Corner Option
$
Committed to Sustainability
LG Recognized as MSAP Leader
LG’s environmental practices have earned us the title of Leader in the MindClick Sustainability Assessment Program 22-23.
MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices.
LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.
MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices.
LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.
LG Ultra Slim LED Signage

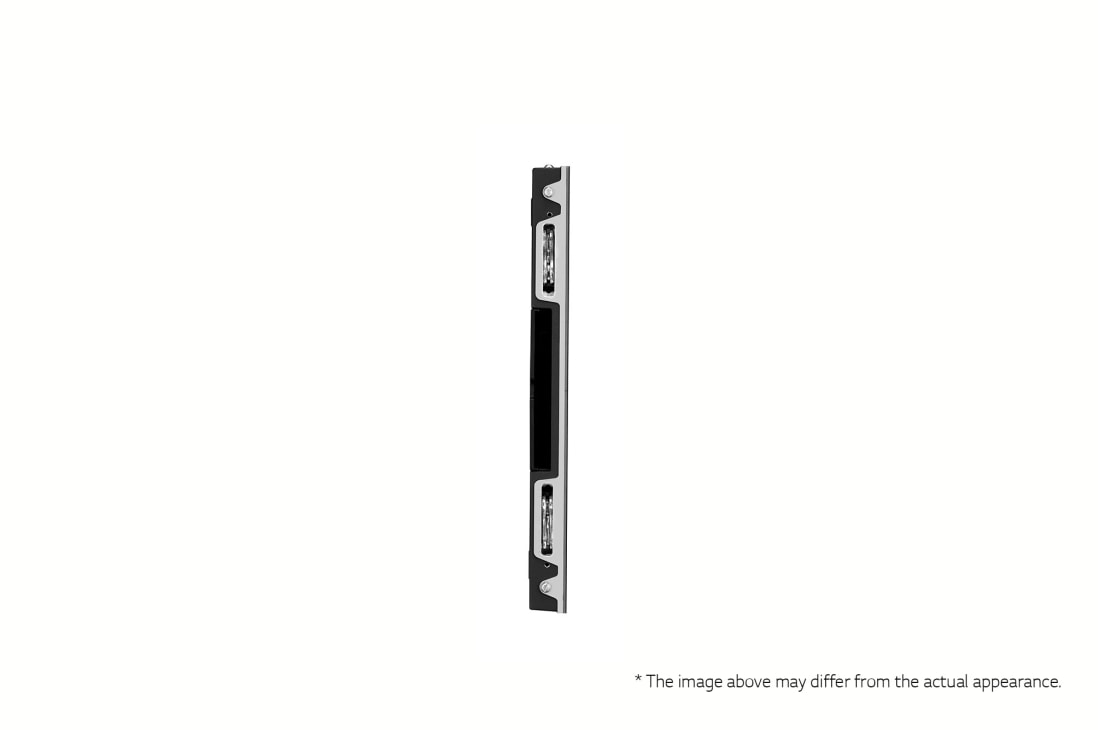

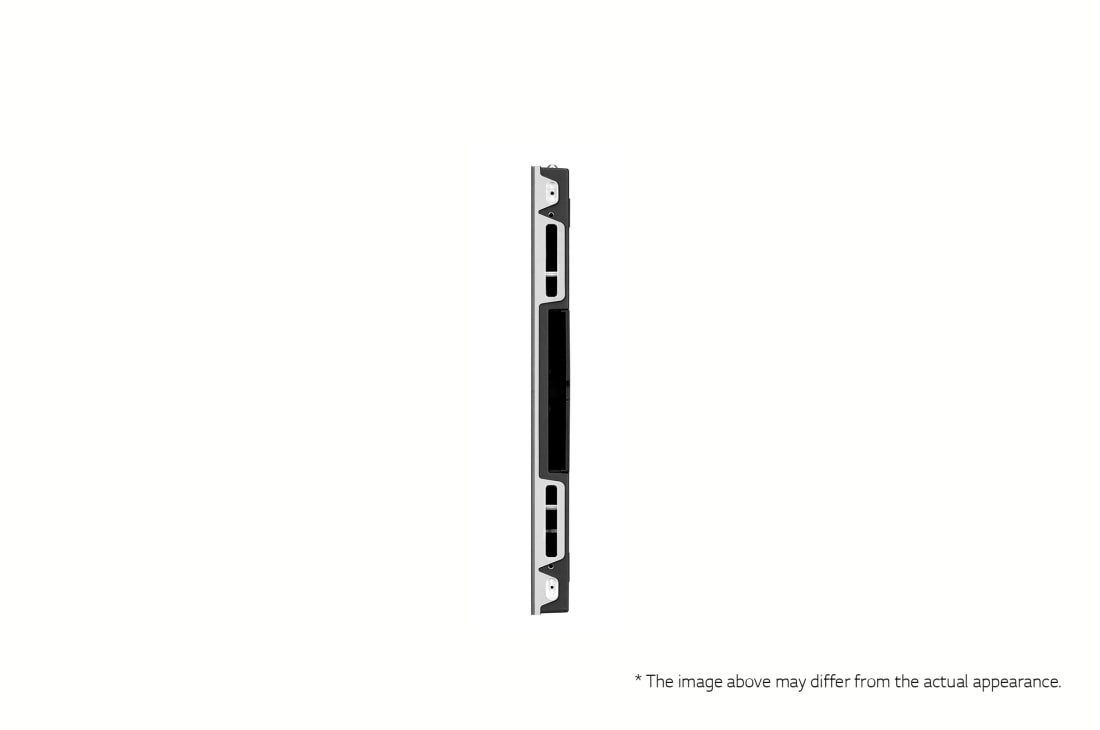

Ultra Slim Depth
The LSCB Series has an ultra-slim design with an edge thickness of only 37.5mm (1.47”). This makes it great for virtually any venue.
Easy Installation
The LSCB series can be easily installed and managed from the front side for easy operation. Thanks to this feature, no additional space for maintenance behind the product is required. Its LED modules can also be simply attached or detached with a magnetic tool.
16:9 FHD/UHD Configuration
Each cabinet uses a 16:9 aspect ratio, the same most commonly used in displays for FHD and UHD content. This allows you to keep using existing content with virtually no additional cost and time for editing.

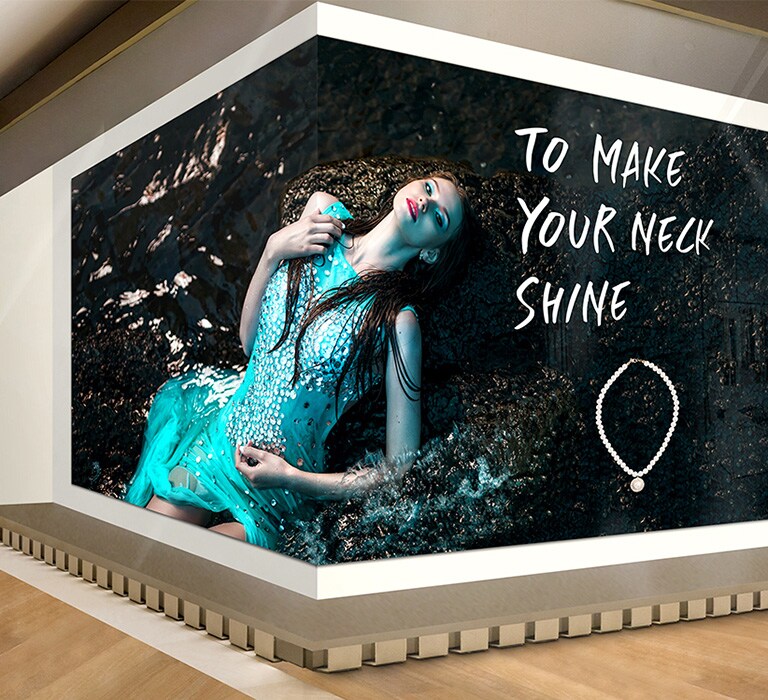

90° Corner Design Available
With the 90° corner option, the LSCB series creates fluid imagery around corners.
*Image for illustration purposes only.

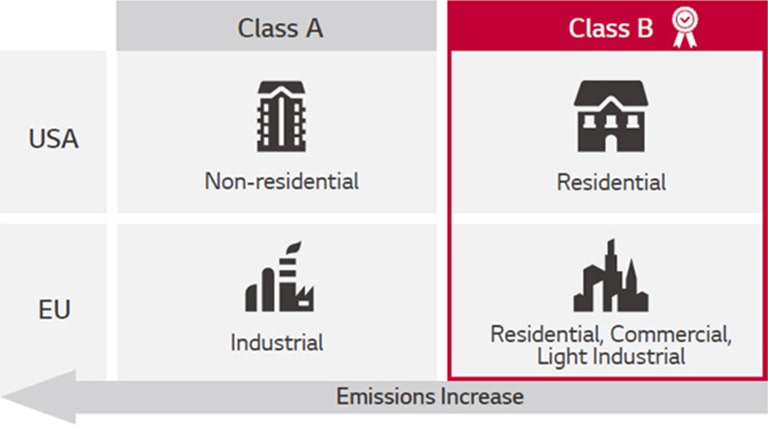

EMC Class B Certified
The LSCB series LED is EMC Class B certification. This means it produces low amount of electromagnetic wave making it safer for the environment and people.
PHYSICAL PARAMETERS
-
- Pixel Configuration
- 3 in 1 SMD
- Pixel Pitch (mm)
- 1.56
-
- Module Resolution (W x H)
- 192 x 108
- Module Dimensions (W x H, mm)
- 300 x 168.75
-
- Weight per Module (kg)
- 0.40
- No. of Modules per Cabinet (W x H)
- 2 x 2
-
- Cabinet Resolution (W x H)
- 384 x 216
- Cabinet Dimensions (W x H x D, mm)
- 600 x 337.5 x 35 mm
-
- Cabinet Surface Area (m²)
- 0.203
- Weight per Cabinet (kg / cabinet)
- 5.2
-
- Weight per Square Meter (kg / m²)
- 25.7
- Physical Pixel Density (pixels / m²)
- 409,600
-
- Flatness of Cabinet (mm)
- ± 0.1
- Cabinet Material
- Die Casting Aluminum Alloy
-
- Service Access
- Front
OPTICAL SPECIFICATIONS
-
- Min. Brightness
- 600 nit
- Color Temperature
- 6,500
-
- Visual Viewing Angle (H x V)
- 160 x 160
- Brightness Uniformity
- 97%
-
- Color Uniformity
- ± 0.003 Cx,Cy
- Contrast Ratio
- 5,000
-
- Processing Depth (bit)
- 14
ELECTRICAL SPECIFICATIONS
-
- Power Consumption (W/Cabinet, Max.)
- 150
- Power Consumption (W/Cabinet, Avg.)
- 50
-
- Power Consumption (W/m², Max.)
- 890
- Power Consumption (BTU/Cabinet, Max.)
- 512
-
- Power Consumption (BTU/Cabinet, Avg.)
- 171
- Power Consumption (BTU/m², Max.)
- 3,037
-
- Power Supply (V)
- 100 to 240
- Frame Rate (Hz)
- 50 / 60
-
- Refresh Rate (Hz)
- 3,840
OPERATION SPECIFICATIONS
-
- Lifetime (Duration of Half Brightness in Hrs)
- 100,000
- Operating Temperature
- -10 °C to +45 °C
-
- Operating Humidity
- 0 - 80 % RH
- IP Rating Front
- IP30
-
- IP Rating Rear
- IP30
CERTIFICATION
-
- Certification
- CE, FCC, ETL, EMC Class B, BS 476 Part 7 Class 1, in progress
ENVIRONMENT
-
- Environment
- RoHS, REACH in progress
