KEY FEATURES

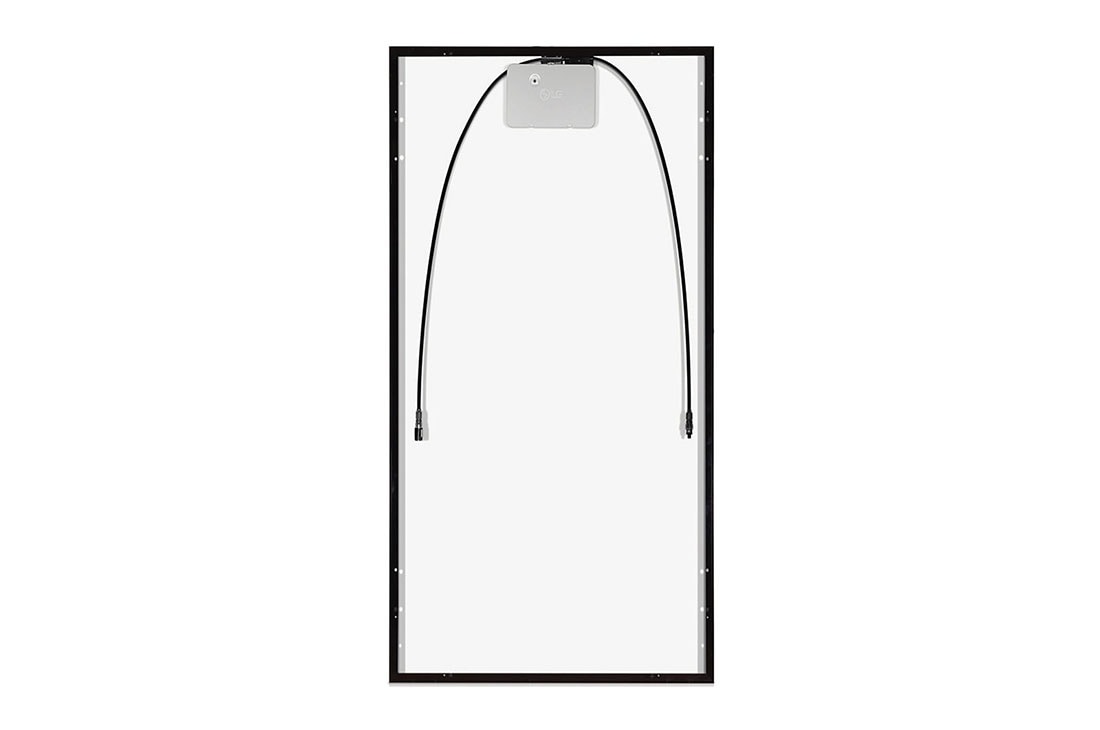

  • Built-in Microinverter System
  • Top-level Output (DC 360W, AC 320W)
  • Conversion Efficiency 97% (based on CEC standards)
  • Sleek Modern Design
  • 25 Year Limited Warranty
  • Compatible with future LG HEMS Ecosystem

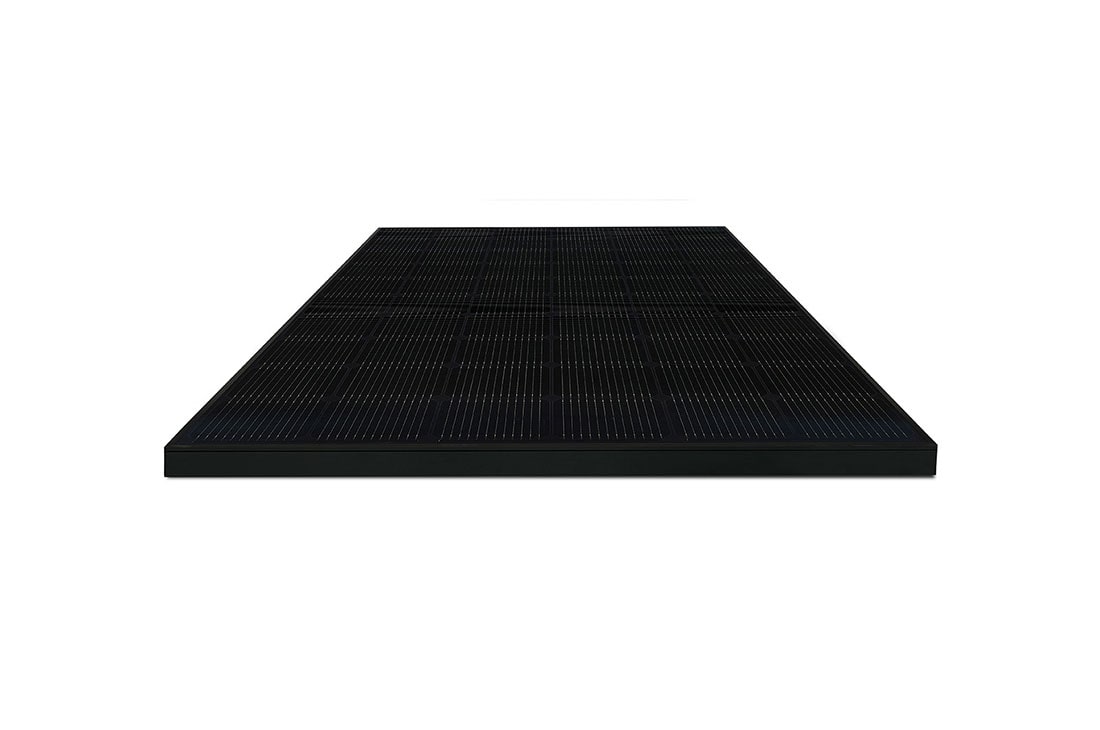

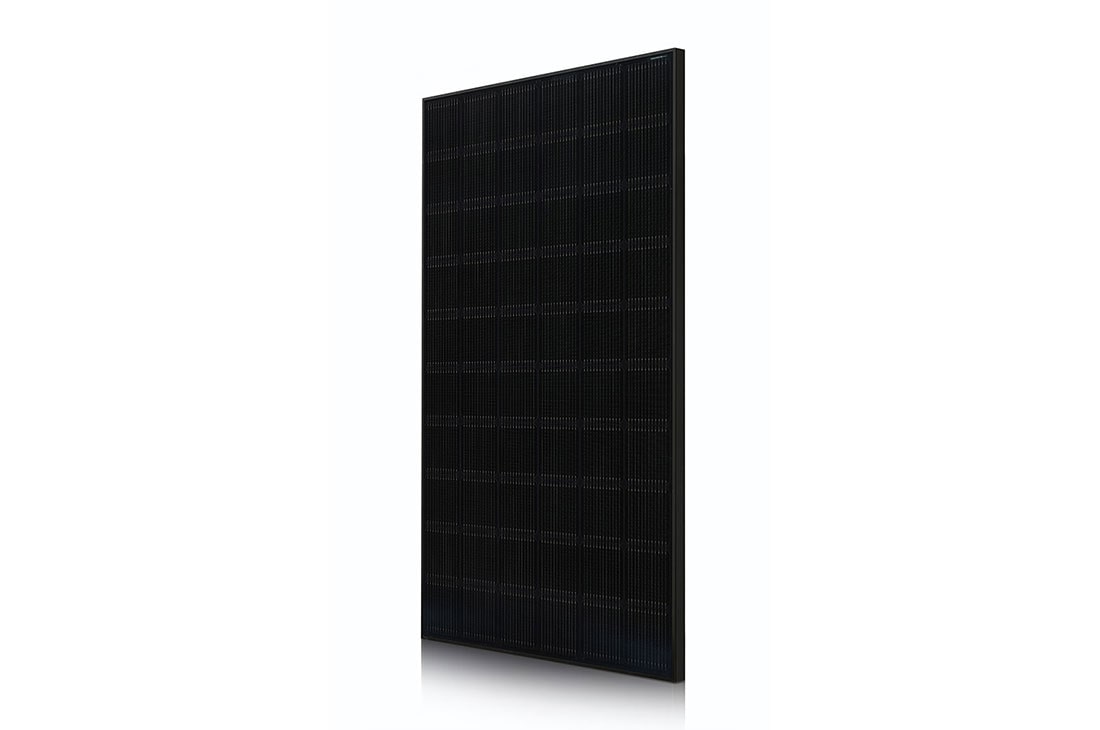

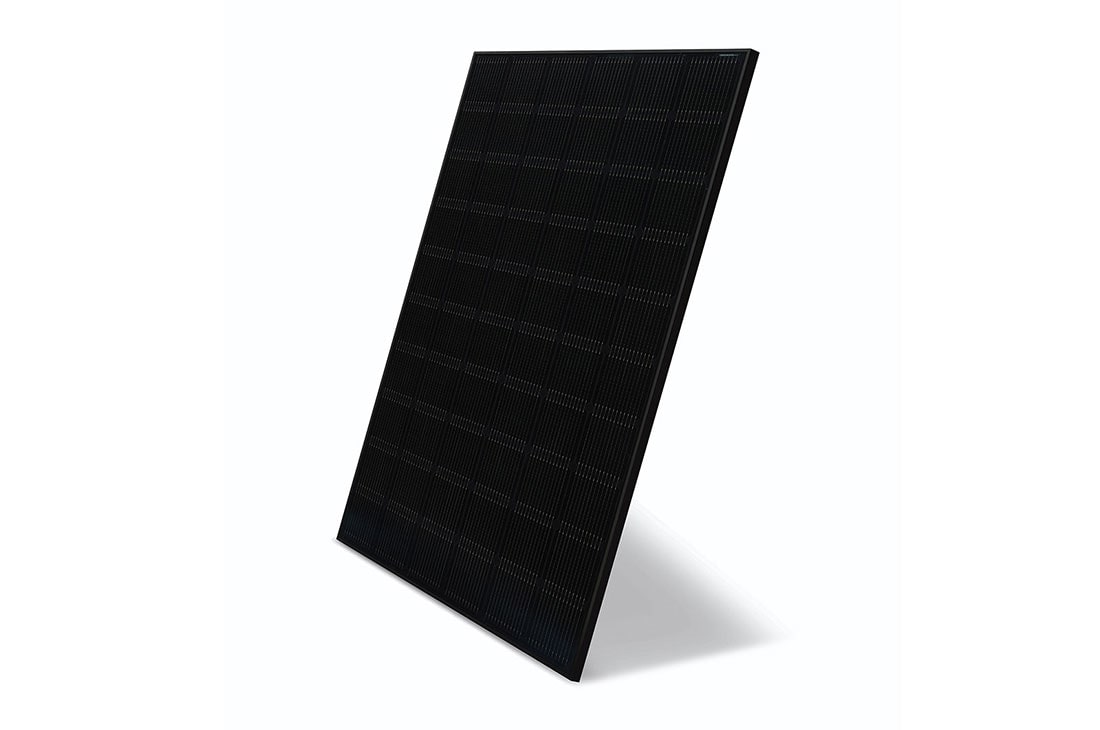

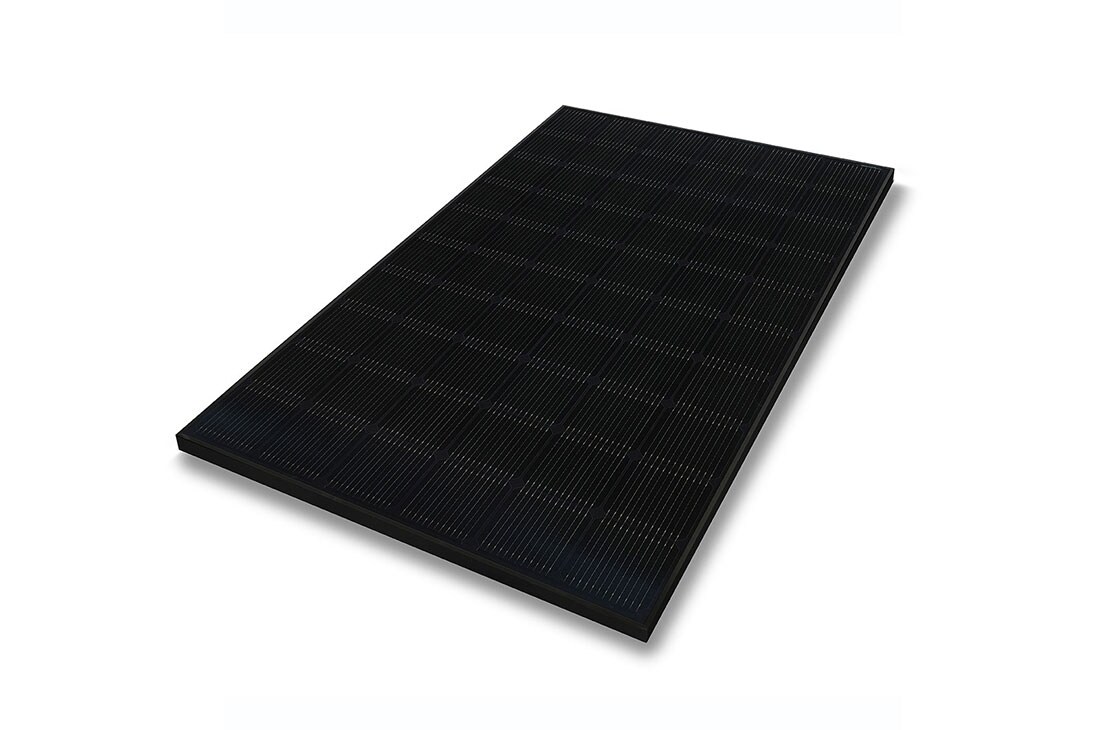

375W High Efficiency LG NeON® 2 ACe Solar Panel with Built-in Microinverter, 60 Cells (6 x 10), Module Efficiency: 19.9%
$

  • High Output and Efficiency

    The LG NeON 2 ACe series has been designed for high-power output making it efficient even in limited space.

  • 25 Year Limited Warranty

    The NeON 2 ACe series offers a 25-year limited warranty for performance, product and labor. At 25 years, the modules are guaranteed to produce at least 90.6% of their labeled power output.

  • Roof Aesthetics

    LG NeON® 2 has been designed with aesthetics in mind using thinner wires that appear all black at a distance.

  • Flexible Array Design

    The LG NeON 2 ACe provides flexibility in array design, with simple accessories and cable connections.

  • Excellent Performance on Hot Days

    The LG NeON 2 ACe series performs well on hot days due to a low temperature coefficient.

  • Easy Monitoring

    LG NeON 2 Ace connects quickly and easily to the Internet. Registering the modules onto the system is a simple process.

General Data

    • Cell Properties (Material/Type)
    • TBD
    • Cell Maker
    • TBD
    • Cell Configuration
    • TBD
    • Cells
    • 60 Cells (6 x 10)
    • Cell Vendor
    • LG
    • Cell Type
    • Monocrystalline/N-type
    • Cell Dimensions
    • 161.7 x 161.7 mm/6 inches
    • Number of Busbars
    • 12EA
    • Module Dimensions (L x W x H)
    • TBD
    • Dimensions (L x W x H)
    • 1,740mm x 1,042mm x 40mm
    • Weight
    • 20.2kg
    • Glass (Material)
    • TBD
    • Backsheet (Color)
    • TBD
    • Frame (Material)
    • TBD
    • Junction Box (Protection Degree)
    • TBD
    • Cables (Length)
    • TBD
    • Connector (Type/Maker)
    • TBD
    • Mechanical Test Load*
    • 5,400Pa (Front)/4,000Pa (Rear)
    • Cooling
    • Natural Convection - No Fans
    • Enclosure Environmental Rating
    • Outdoor - NEMA 250 type 6 (Micro Inverter)
    • Operating Ambient Temperature
    • -40 ~ +65°C (-40 ~+149°F )
    • Storage Temperature
    • -40 ~+65°C
    • Glass
    • 2.8mm/Tempered Glass with High Transmission Anti-Reflective Coating
    • Frame
    • Anodized Aluminium
    • *Mechanical Test Load
    • 5,400pa/4,000pa based on IEC 61215 - 2:2016 (Test Load = Design Load x Safety Factor (x1.5))
    • Inverter Model (Grid Support Utility Interactive)
    • LM320UE-A2

Certifications and Warranty

    • Certifications
    • ISO 9001, ISO 14001, ISO 50001, OHSAS 18001 UL1741, IEEE1547, UL1741SA (FCC Part 15 Class B)
    • Salt Mist Corrosion Test
    • TBD
    • Ammonia Corrosion Test
    • TBD
    • Module Fire Performance
    • Type 1
    • Fire Rating
    • TBD
    • Solar Module Product Warranty
    • 25 Year Limited
    • Solar Module Output Warranty
    • TBD
    • Micro Inverter Warranty
    • 25 Year Limited
    • Output Warranty of Pmax (DC) (Measurement Tolerance 3%)
    • Linear Warranty* Please contact customer support for full warranty details.
    • *
    • Improved: 1st year %, from 2-24th year: %/year down, % at year 25

DC Temperature Characteristics

    • NMOT
    • 44˚C ± 3
    • Pmax
    • -0.35
    • Voc
    • -0.26
    • Isc
    • 0.03
    • *NOCT
    • (Nominal Operating Cell Temperature): Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s
    • *
    • NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m2, Ambient temperature 20°C, Wind speed 1 m/s, Spectrum AM 1.5

AC CABLE PROPERTIES

    • Standard
    • TBD
    • Rated Voltage/Current
    • TBD
    • Wire Size Range
    • TBD
    • Cable Length (only cable length)
    • TBD
    • Protection Degree
    • TBD
    • Diameter range of cable
    • TBD

AC ELECTRICAL PROPERTIES

    • Power
    • TBD
    • Voltage (Rated Output) [V]
    • TBD
    • Current (Rated Output) [A]
    • TBD
    • Max. Continuous Output Power (VA)
    • 320
    • Nominal Voltage / Range (V)
    • 240/211 ~ 264 ; 208/183 ~ 229
    • Nominal Output Current (A)
    • 1.33 ; 1.54
    • Cable Length (only cable length) (mm)
    • Cable 1 : 1,200 ; Cable 2 : 1,100
    • Number of Maximum AC Modules
    • 12 ; 10
    • Nominal Frequency / Range (Hz)
    • 60.0/59.3~60.5
    • Frequency (Extended) Hz
    • TBD
    • Power Factor / Adjustable
    • 1/0.8 leading…0.8 lagging
    • Max. Branch Circuit Over Current Protection (A)
    • 20
    • Max Units Per 20A Branch Circuit
    • 240V: 12, 208V: 10
    • CEC Weighted Efficiency (%)
    • 97.0 ; 96.5

ELECTRICAL PROPERTIES(NOCT*)

    • Model
    • TBD
    • Maximum Power (Pmax) [W]
    • TBD
    • MPP Voltage (Vmpp) [V]
    • TBD
    • MPP Current (Impp) [A]
    • TBD
    • Open Circuit Voltage (Voc) [V]
    • TBD
    • Short Circuit Current (Isc) [A]
    • TBD

DC ELECTRICAL PROPERTIES(STC*)

    • Model
    • TBD
    • Maximum Power (Pmax)**
    • 375
    • MPP Voltage (Vmpp) [V]
    • TBD
    • MPP Current (Impp) [A]
    • TBD
    • Open Circuit Voltage (Voc, +/-5%) [V]
    • TBD
    • Short Circuit Current (Isc, +/-5%) [A]
    • TBD
    • Module Efficiency
    • 20.4%
    • Power Tolerance (%)
    • 0 ~ +3
    • *STC (Standard Test Condition)
    • Irradiance 1000 W/㎡, Cell temperature 25 ℃, AM 1.5 , Measure tolerance of Pmax : ±3%
    • **Measurement Tolerance of Pmax:
    • 3%

Operating Conditions

    • Operating Temperature [°C]
    • TBD
    • Maximum System Voltage [V]
    • TBD
    • Maximum Series Fuse Rating [A]
    • TBD
    • Mechanical Test Load (Front) [Pa/psf]
    • TBD
    • Mechanical Test Load (Rear) [Pa/psf]
    • TBD
    • *
    • Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa/5,400 Pa based on IEC 61215 : 2005

Packaging Configuration

    • Number of Modules per Pallet [EA]
    • 25
    • Number of Modules per 40ft HQ Container [EA]
    • 650
    • Number of Modules per 53ft Container [EA]
    • 850
    • Packaging Box Dimensions (L x W x H) [mm]
    • 1,790 x 1,120 x 1,213
    • Packaging Box Dimensions (L x W x H) [in]
    • TBD
    • Packaging Box Gross Weight [kg]
    • 538
    • Packaging Box Gross Weight [lb]
    • TBD
