KEY FEATURES

  • 25 Year Limited Warranty
  • Improved temperature coefficient
  • Near zero light-induced degradation
  • Clean, Aesthetically-Pleasing Roof Design
  • Durable design

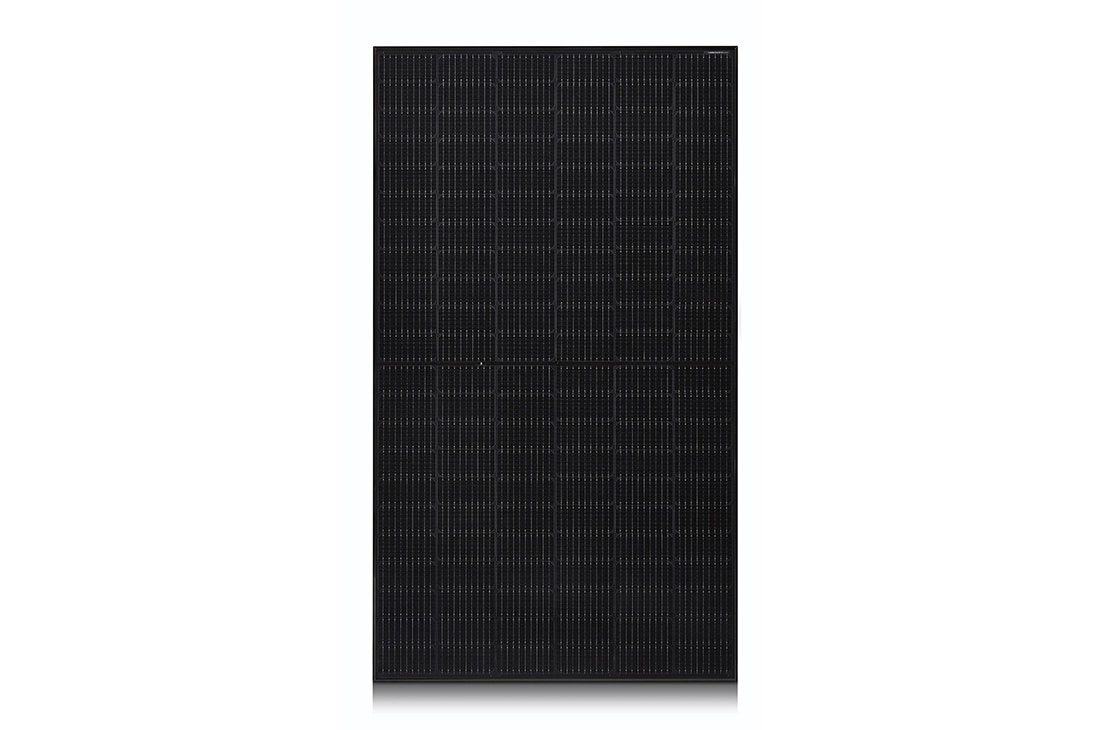

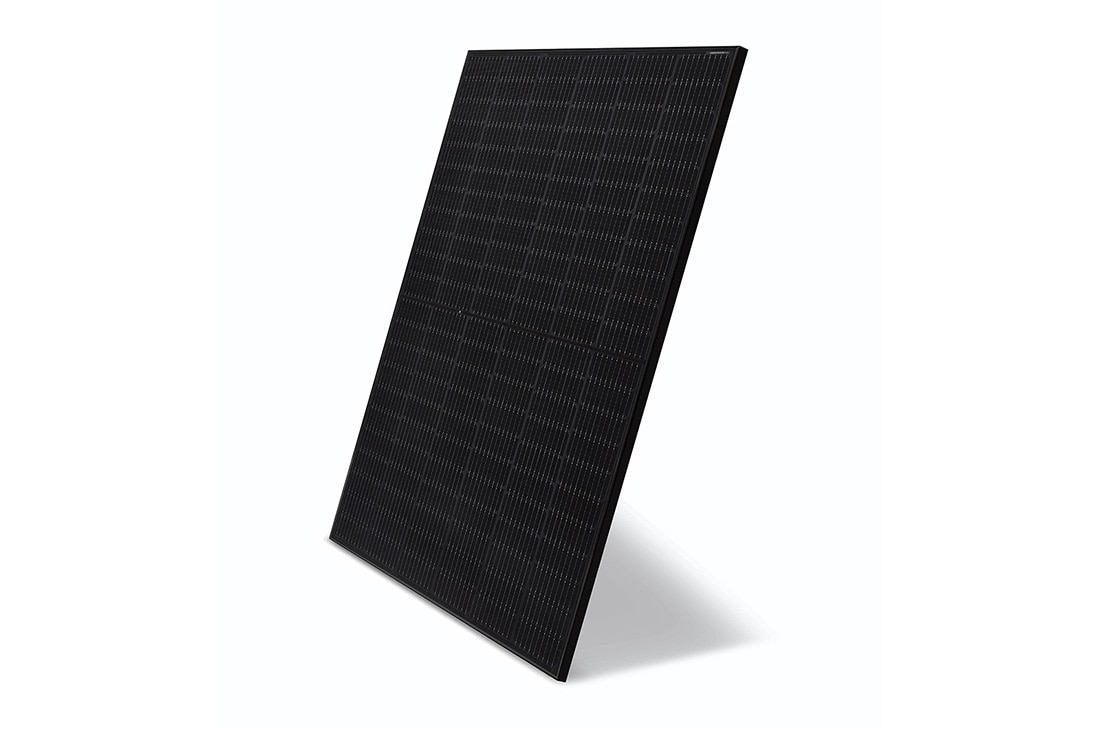

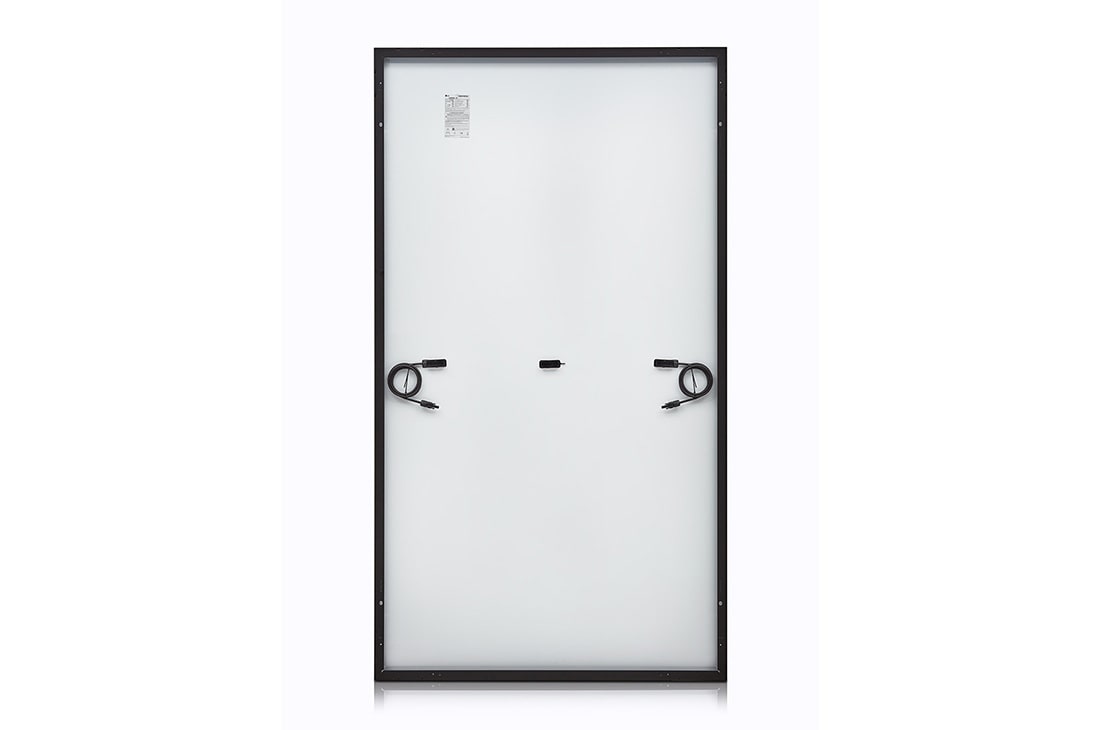

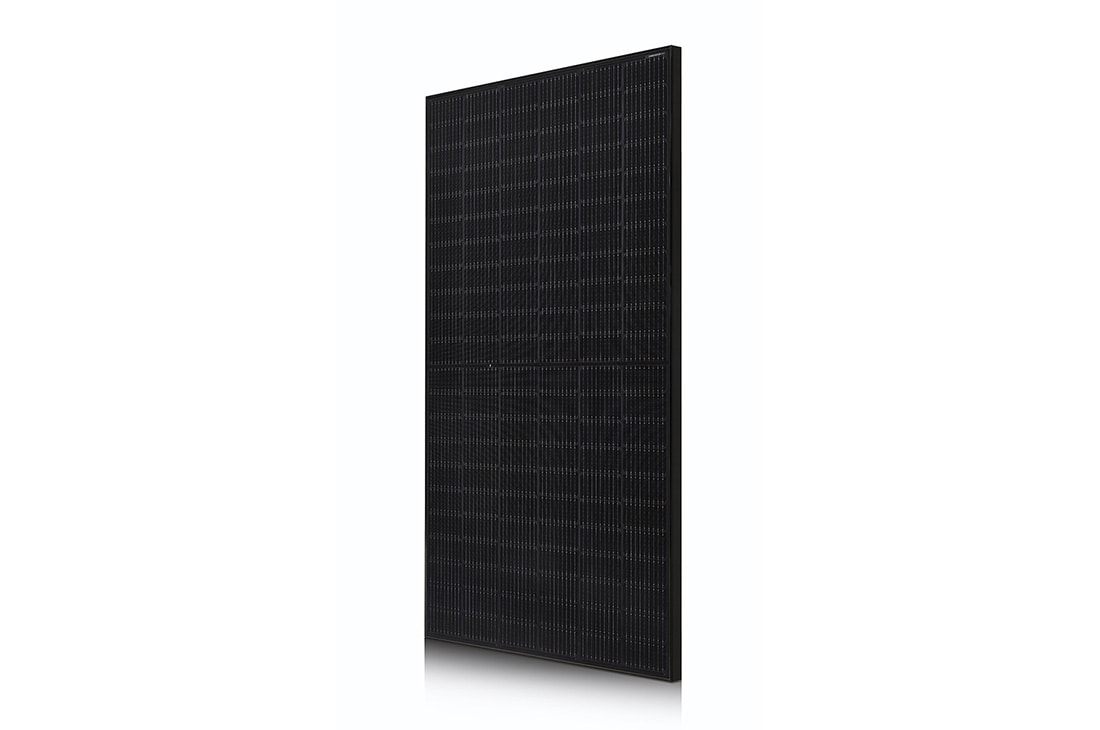

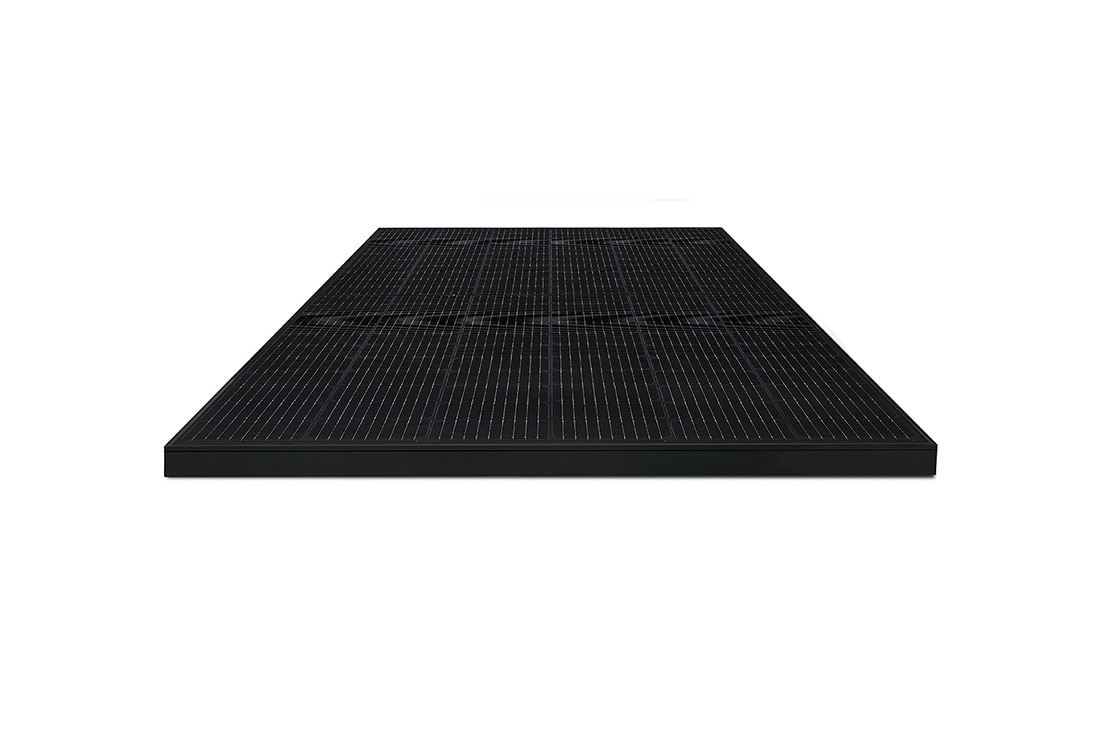

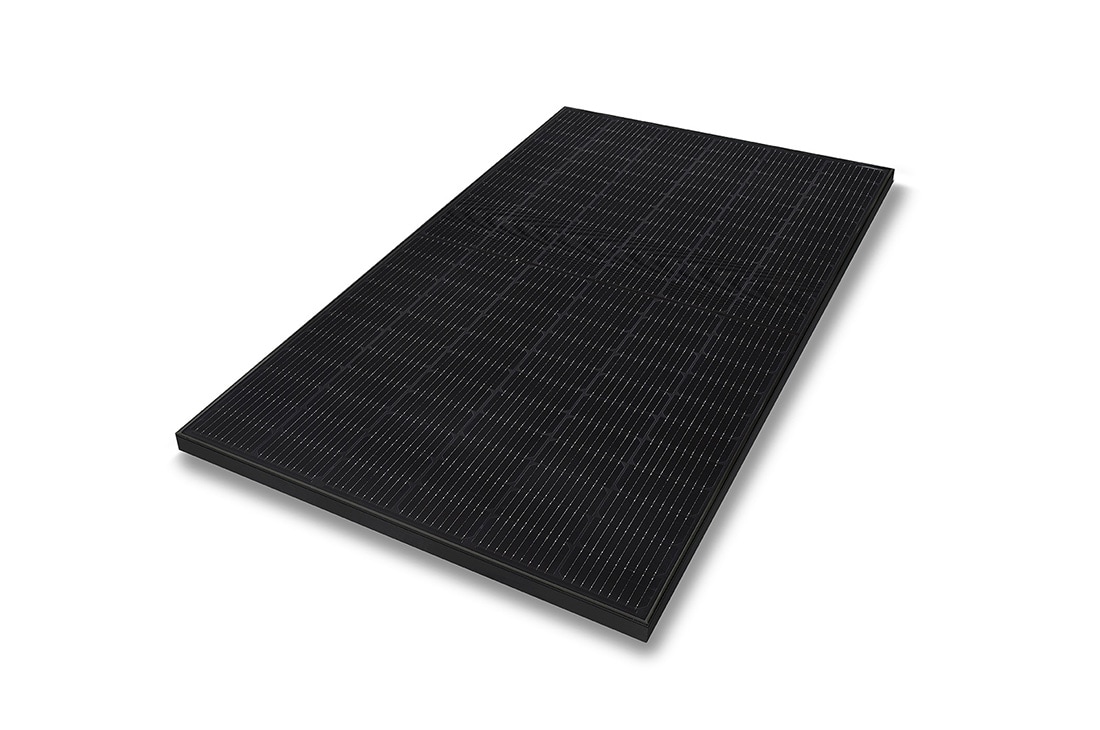

405W High Efficiency LG NeON® H+ Black Residential Solar Panel with 132 Cells (6 x 22), Module Efficiency: 20.7%, Connector Type: MC4
$

  • Enhanced Performance Warranty

    LG NeON® H has an enhanced performance warranty. After 25 years, LG NeON® H is guaranteed at least 90.6% of initial performance.

  • 25-Year Limited Product Warranty

    The NeON® H is covered by a 25-year limited product warranty.

  • Solid Performance on Hot Days

    LG NeON® H performs well on hot days due to its low temperature coefficient.

  • BOS (Balance Of System) Saving

    LG NeON® H can reduce the total number of strings due to its high module efficiency resulting in a more cost effective and efficient solar power system.

General Data

    • Cell Properties (Material/Type)
    • Monocrystalline/N-type
    • Cell Maker
    • LG
    • Cell Configuration
    • 132 Cells (6 x 22)
    • Number of Busbars
    • 9EA
    • Module Dimensions (L x W x H)
    • 1,880 x 1,042 x 40 mm
    • Weight
    • 19.7kg
    • Glass (Material)
    • Tempered Glass with AR Coating
    • Backsheet (Color)
    • Black
    • Frame (Material)
    • Anodized Aluminium
    • Junction Box (Protection Degree)
    • IP68 with 3 Bypass Diodes
    • Cables (Length)
    • 1,400mm x 2EA
    • Connector (Type/Maker)
    • MC4/MC

Certifications and Warranty

    • Certifications
    • IEC 61215-1/-1-1/-2:2016, IEC 61730-1/2:2016, UL 61730, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001
    • Salt Mist Corrosion Test
    • IEC 61701:2012 Severity 6
    • Ammonia Corrosion Test
    • IEC 62716:2013
    • Module Fire Performance
    • Type 2 (UL 61730)
    • Fire Rating
    • Class C (UL 790)
    • Solar Module Product Warranty
    • 25 Years
    • Solar Module Output Warranty
    • Linear Warranty*
    • *
    • 1) First years : 98.5%, 2) After 1st year : -0.33%/year, 3) 90.6% for 25 years

Temperature Characteristics

    • NMOT* [°C]
    • 42 ± 3
    • Pmax [%/°C]
    • -0.33
    • Voc [%/°C]
    • -0.26
    • Isc [%/°C]
    • 0.04
    • *
    • NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m2, Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5

Electrical Properties (NMOT)

    • Maximum Power (Pmax) [W]
    • 306
    • MPP Voltage (Vmpp) [V]
    • 35.4
    • MPP Current (Impp) [A]
    • 8.64
    • Open Circuit Voltage (Voc) [V]
    • 42.7
    • Short Circuit Current (Isc) [A]
    • 9.02

Electrical Properties (STC*)

    • Maximum Power (Pmax) [W]
    • 405
    • MPP Voltage (Vmpp) [V]
    • 37.6
    • MPP Current (Impp) [A]
    • 10.78
    • Open Circuit Voltage (Voc, 5%) [V]
    • 45.3
    • Short Circuit Current (Isc, 5%) [A]
    • 11.20
    • Module Efficiency [%]
    • 20.7
    • Power Tolerance [%]
    • 0 ~ +3
    • *
    • STC (Standard Test Condition):Irradiance 1,000W/m², Cell temperature 25℃, AM 1.5, Measure tolerance of Pmax : ±3%

Operating Conditions

    • Operating Temperature [°C]
    • -40 ~+85
    • Maximum System Voltage [V]
    • 1,000
    • Maximum Series Fuse Rating [A]
    • 20
    • Mechanical Test Load (Front) [Pa/psf]
    • 5,400
    • Mechanical Test Load (Rear) [Pa/psf]
    • 4,000
    • *
    • Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa/5,400 Pa based on IEC 61215 : 2005

Packaging Configuration

    • Number of Modules per Pallet [EA]
    • 25
    • Number of Modules per 40ft HQ Container [EA]
    • 600
    • Number of Modules per 53' HQ Container [EA]
    • TBD
    • Packaging Box Dimensions (L x W x H) [mm]
    • 1,960 x 1,120 x 1,221
    • Packaging Box Dimensions (L x W x H) [in]
    • TBD
    • Packaging Box Gross Weight [kg]
    • 530
    • Packaging Box Gross Weight [lb]
    • TBD

Specification Sheet
