KEY FEATURES

  • 25 Year Limited Warranty
  • High Power Output
  • Durable design
  • Enhanced performance on sunny days
  • Streamlined, Uniform Roof Aesthetic

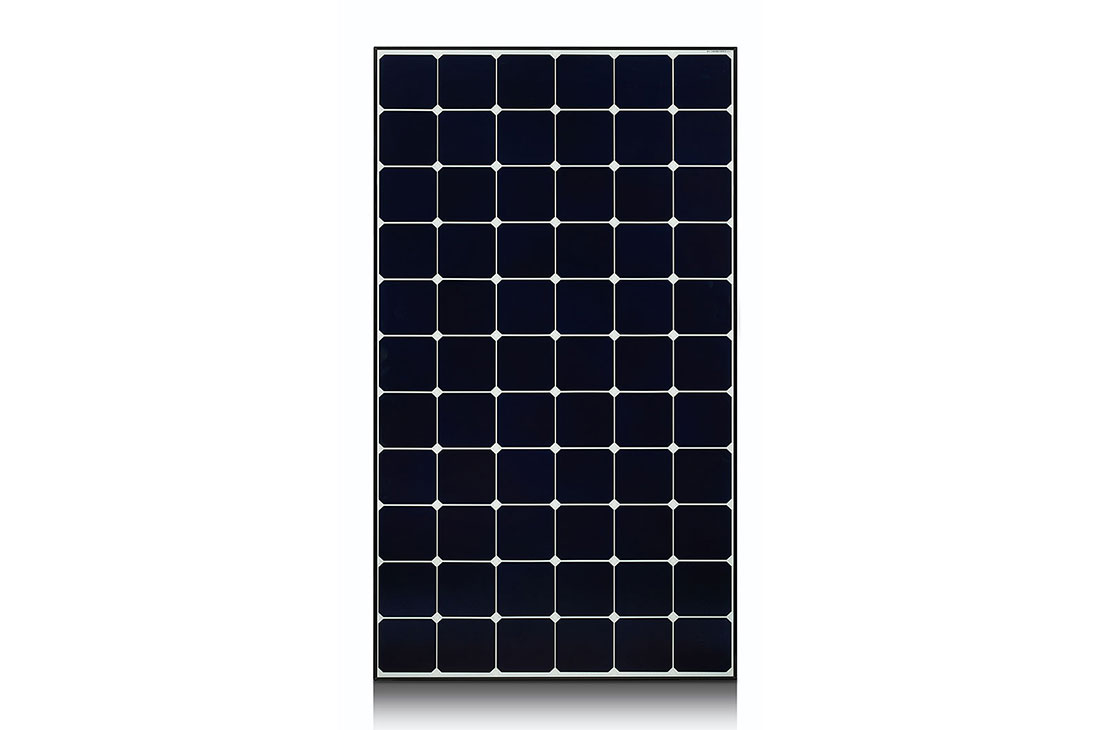

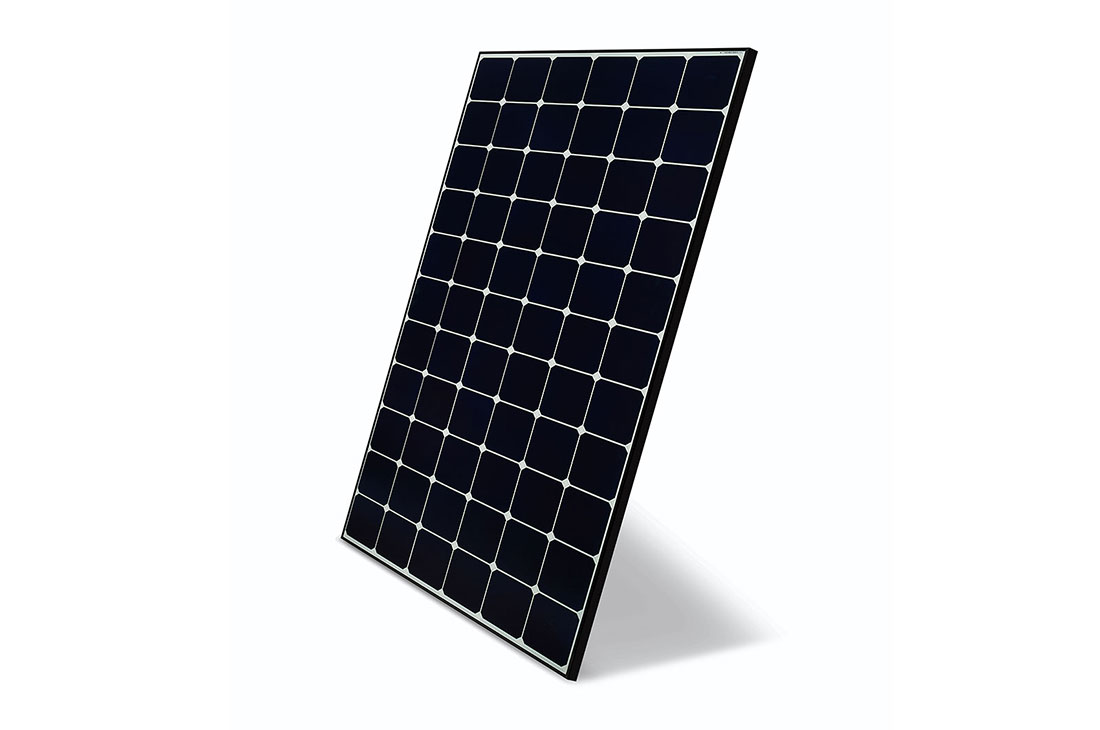

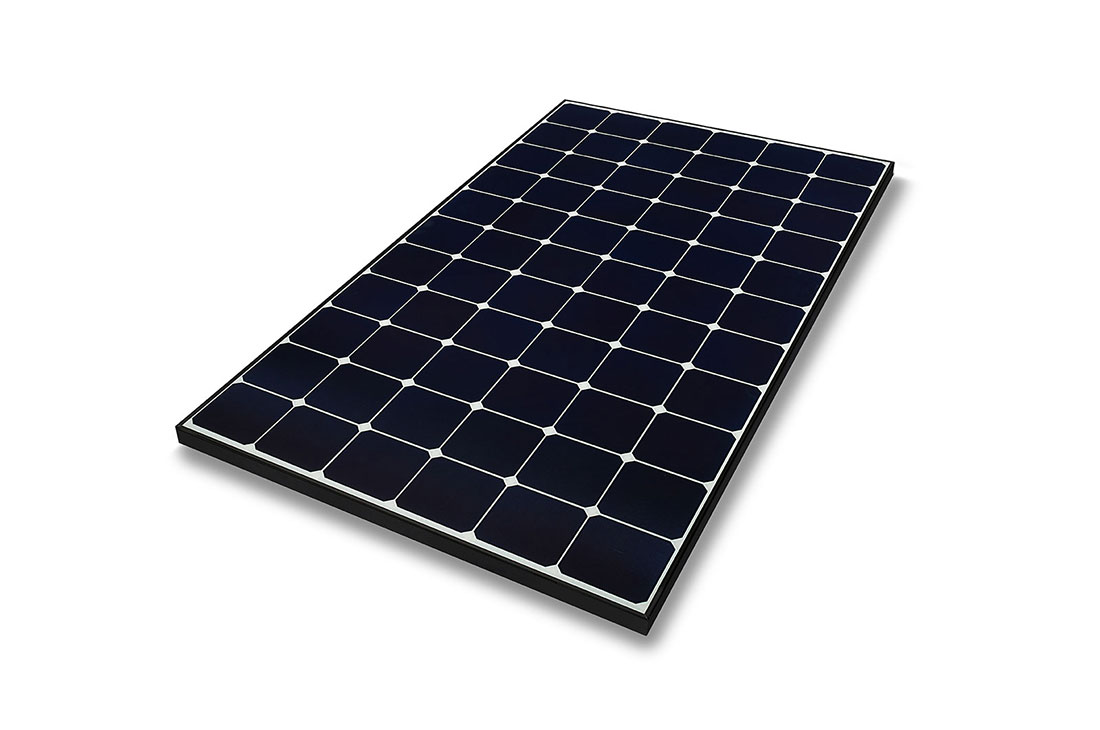

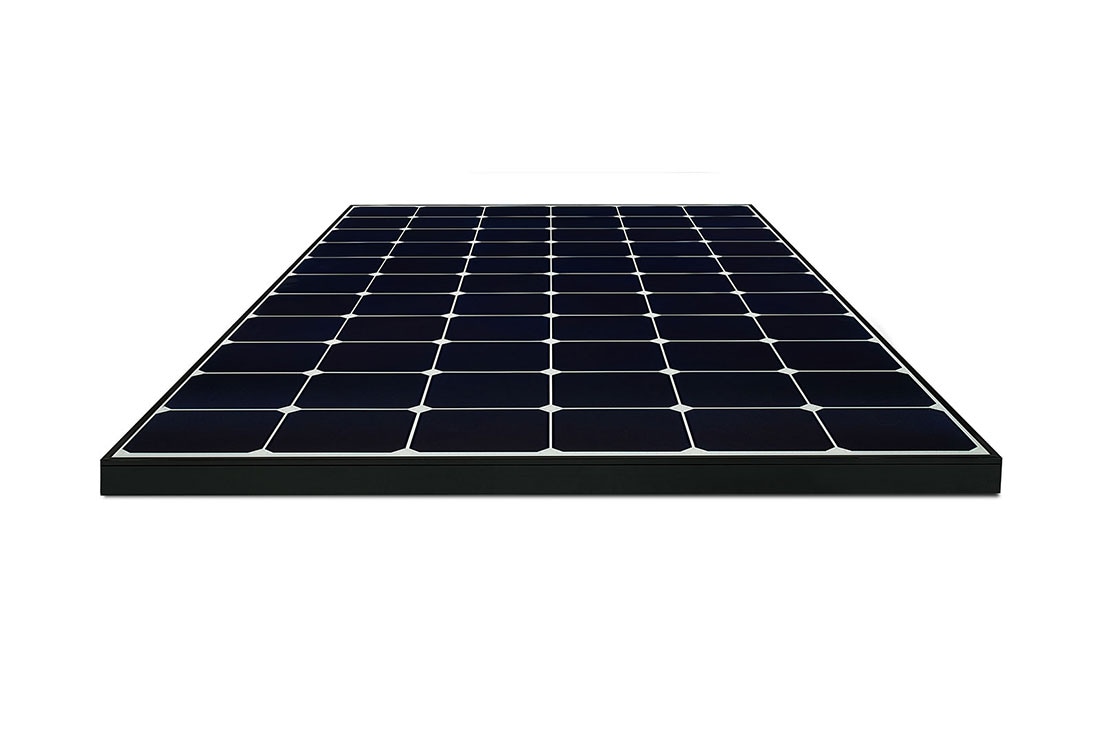

440W High Efficiency LG NeON® R Solar Panel with 66 Cells (6 x 11), Module Efficiency: 22.1%, Connector Type: MC4
$
  • High Output and Efficiency

    The LG NeON® R series has been designed for high-power output making it efficient even in limited space.

  • 25-Year Warranty

    The NeON® R series offers a 25-year limited warranty for performance, product and labor. At 25 years, the modules are guaranteed to produce at least 92.5% of their labeled power output.

  • Roof Aesthetics

    The LG NeON® R series has been designed with aesthetics in mind; with no electrodes on the front, the modules have a sleek, modern appearance.

  • Excellent Performance on Hot Day

    The LG NeON® R series performs well on hot
    days due to a low temperature coefficient.

General Data

    • Cell Properties (Material/Type)
    • Monocrystalline/N-type
    • Cell Maker
    • LG
    • Cell Configuration
    • 66 Cells (6 x 11)
    • Number of Busbars
    • TBD
    • Module Dimensions (L x W x H)
    • 1,910mm x 1,042mm x 40mm
    • Weight
    • 20.5kg
    • Glass (Thickness/Material)
    • 2.8mm/Tempered Glass with AR Coating

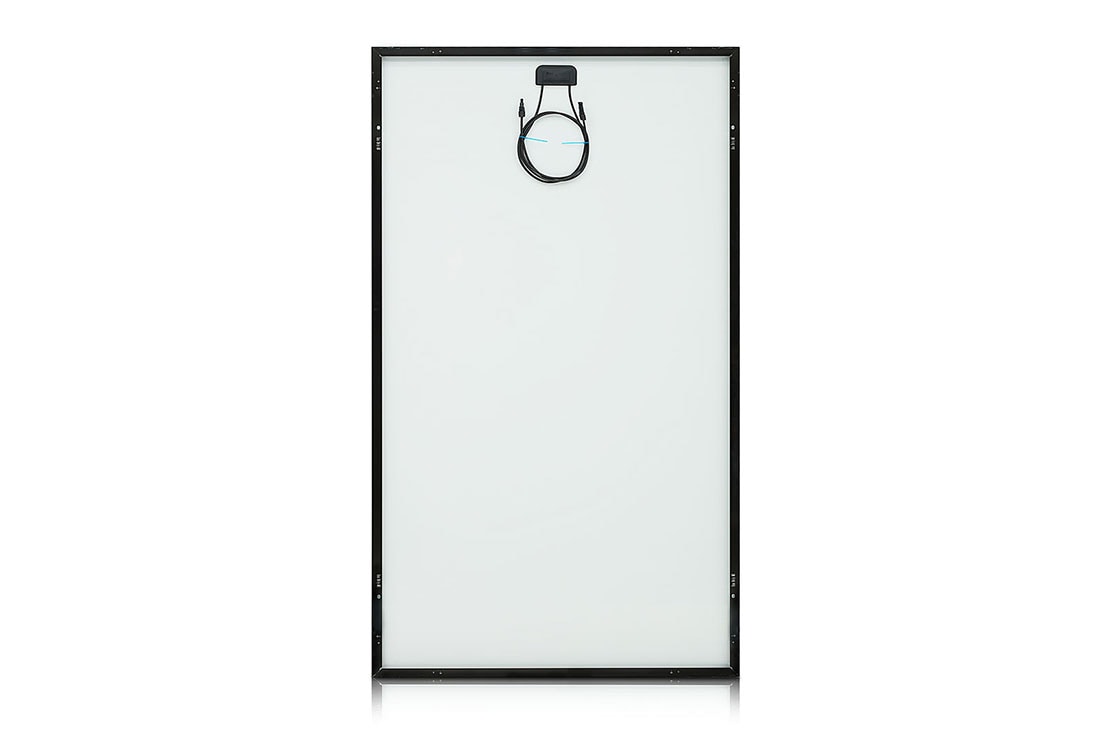

    • Backsheet (Color)
    • White
    • Frame (Material)
    • Anodized Aluminium
    • Junction Box (Protection Degree)
    • IP68 with 3 Bypass Diodes
    • Cables (Length)
    • 1,250mm x 2EA
    • Connector (Type/Maker)
    • MC 4/MC

Certifications and Warranty

    • Certifications
    • IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, UL 61730, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001
    • Salt Mist Corrosion Test
    • IEC 61701:2012 Severity 6
    • Ammonia Corrosion Test
    • IEC 62716:2013
    • Module Fire Performance
    • Type 1
    • Fire Rating
    • Class C (UL 790)
    • Product Warranty
    • 25 Year Limited
    • Output Warranty of Pmax
    • Linear Warranty*
    • *
    • Improved: 1st year 98.5%, from 2-24th year: -0.25%/year down, 92.5% at year 25
    • **
    • Full warranty details can be found below.

Temperature Characteristics

    • NMOT* [°C]
    • 44 ± 3
    • Pmax [%/°C]
    • -0.29
    • Voc [%/°C]
    • -0.24
    • Isc [%/°C]
    • 0.04
    • *
    • NMOT(Nominal Module Operating Temperature) : Irradiance 800 W/m2, Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5

Electrical Properties (NMOT)

    • Model
    • TBD
    • Maximum Power (Pmax) [W]
    • 334
    • MPP Voltage (Vmpp) [V]
    • 39.1
    • MPP Current (Impp) [A]
    • 8.53
    • Open Circuit Voltage (Voc) [V]
    • 46.0
    • Short Circuit Current (Isc) [A]
    • 9.03

Electrical Properties (STC*)

    • Model
    • TBD
    • Maximum Power (Pmax) [W]
    • 440
    • MPP Voltage (Vmpp) [V]
    • 41.4
    • MPP Current (Impp) [A]
    • 10.64
    • Open Circuit Voltage (Voc, 5%) [V]
    • 48.2
    • Short Circuit Current (Isc, 5%) [A]
    • 11.20
    • Module Efficiency [%]
    • 22.1
    • Power Tolerance [%]
    • 0 ~ +3
    • *
    • STC (Standard Test Condition): Irradiance 1000 W/m², Cell Temperature 25 °C, AM 1.5, Measure Tolerance ± 3%

Operating Conditions

    • Operating Temperature [°C]
    • -40 ~+85
    • Maximum System Voltage [V]
    • 1,000
    • Maximum Series Fuse Rating [A]
    • 20
    • Mechanical Test Load (Front) [Pa/psf]
    • 5,400/113
    • Mechanical Test Load (Rear) [Pa/psf]
    • 4,000/83.5
    • *
    • 5,400pa/4,000pa based on IEC 61215 - 2:2016 (Test Load = Design Load x Safety Factor (x1.5))

Packaging Configuration

    • Number of Modules per Pallet [EA]
    • 25
    • Number of Modules per 40ft HQ Container [EA]
    • 600
    • Number of Modules per 53’ Container [EA]
    • 800
    • Packaging Box Dimensions (L x W x H) [mm]
    • 1,960 x 1,120 x 1,221
    • Packaging Box Dimensions (L x W x H) [in]
    • TBD
    • Packaging Box Gross Weight [kg]
    • 549
    • Packaging Box Gross Weight [lb]
    • TBD

Limited Warranty

Specification Sheet
