KEY FEATURES

  • Perfect Black
  • Stunning Color and Contrast
  • Wide Viewing Angles
  • Crisp, Clear Motion

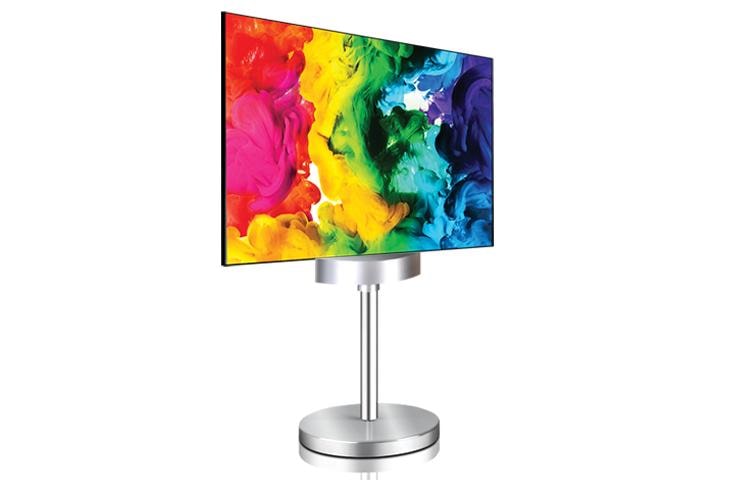

55” class (54.6” measured diagonal) Dual-View Flat OLED Signage – 55EH5C

PANEL

    • Screen Size
    • 55"
    • Native Resolution
    • 1,920 x 1,080 (FHD)
    • Contrast Ratio
    • 100,000 : 1
    • Panel Technology
    • OLED
    • Response Time
    • 1 ms (G to G), 8 ms (MPRT)
    • Brightness
    • 100/400 cd/m2 (APL 100 % / 25 %) * Average Picture Level
    • Aspect Ratio
    • Viewing Angle (H x V)
    • 178 x 178
    • Surface Treatment
    • Hard coating (2H), Anti-reflection treatment of the front polarizer (Reflectance Typ.1.0%)
    • Orientation
    • Portrait & Landscape
    • Lifetime (Min.)
    • 20,000 hrs
    • Operation Hours
    • 18 hrs / 7 days (moving video only)

STANDARD CERTIFICATION

    • Safety
    • UL / cUL / CB / TUV / KC
    • EMC
    • FCC Class "A" / CE / KCC
    • ErP / Energy Star
    • Yes / NA

CONNECTIVITY

    • Input
    • HDMI (1+1), DP (1+1), DVI-D (1+1)
    • Output
    • Audio (1+1)
    • External Control
    • RS232C (1+1), RJ45 (1+1), IR Receiver, USB 2.0 (2), USB 3.0 (2)

ENVIRONMENTAL CONDITIONS

    • Operating Temperature Range
    • 32° F to 104° F
    • Operation Humidity
    • 10 % to 80 %

POWER

    • Power Type
    • Built-in Power
    • DPM
    • 3 W
    • Power Off
    • 0.5 W
    • Typ.
    • 375 W

ACCESSORIES

    • Basic
    • Remote Controller (included 2ea batteries), Power Cord, QSG, Mini HDMI Cable (3M x 2ea, for connection between head and signage box), Power Hanness Cable (3M x 2ea, for connection between head and signage box), Regulation Book, Phone to RS232C Gender, Jack Cover, Signage Box Mounting Bracket
    • Optional
    • OPS Kit (KT-OPSA), Fixed Ceiling Mount Kit (ACC-CF-EH5C), Rotational Ceiling Mount Kit (ACC-CR-EH5C), Wall Mount Kit (ACC-W-EH5C), Stand Kit 1 (ACC-S-EH5C), Stand Kit 2 (ACC-S1-EH5C), Signage Box Cover (ACC-C-EH5C)

PHYSICAL SPECIFICATIONS

    • Bezel Color
    • Silver
    • Packed Weight
    • 80.5 lbs
    • Bezel Width
    • 2, 2, 2, 2 mm (U, B, L, R *Off-bezel)
    • Dimensions (Carton) (W x H x D)
    • 53" x 38.9" x 10.6" (Inner)
    • Dimensions (W x H x D)
    • Head : 48.3" x 27.7" x 0.3" (Edge depth : 0.36") Signage Box : 18.5" x 15.9" x 3"
    • Weight
    • Head : 46.3 lbs / Signage Box : 17.6 lbs

SOFTWARE COMPATIBILITY

    • SuperSign W-Lite
    • Yes
    • SuperSign C
    • Yes

MEDIA PLAYER COMPATIBILITY

    • External Media Player Attachable
    • Yes
    • OPS Type Compatible
    • Yes

SPECIAL FEATURES

    • Yes
    • Temperature Sensor, Cooling FAN, Source Selection, DPM Select, Energy Saving, Motion Eyecare, Power Indicatior On/Off, File Play with USB, Internal Memory (8 GB), Wi-Fi Dongle Ready, USB Cloning, Contents Scheduling, Local time auto setting, Fail over, Mirroring, SoftAP, BEACON

OTHER

    • UPC
    • TBD
    • Warranty
    • 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available
