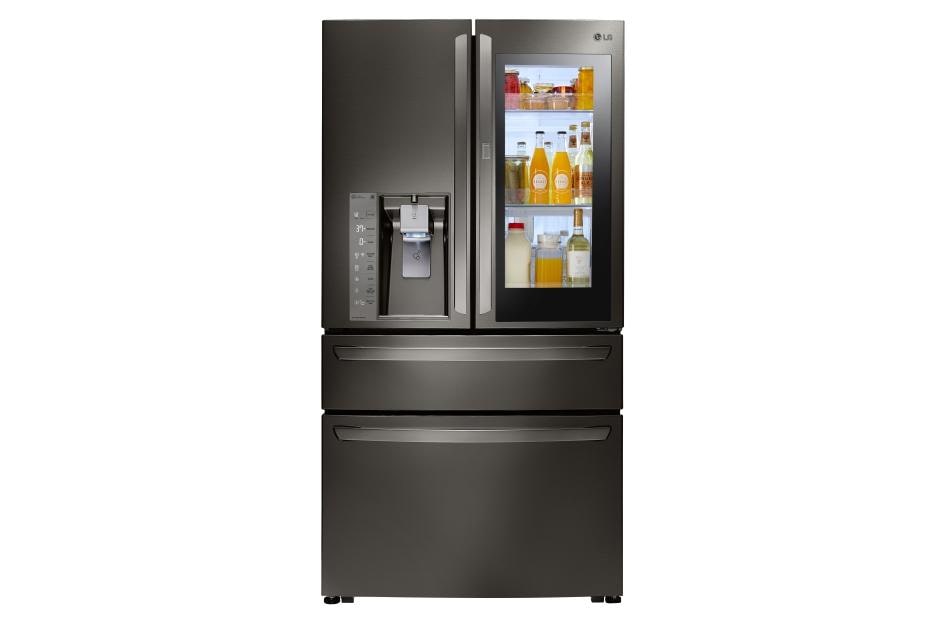

LMXC23796D

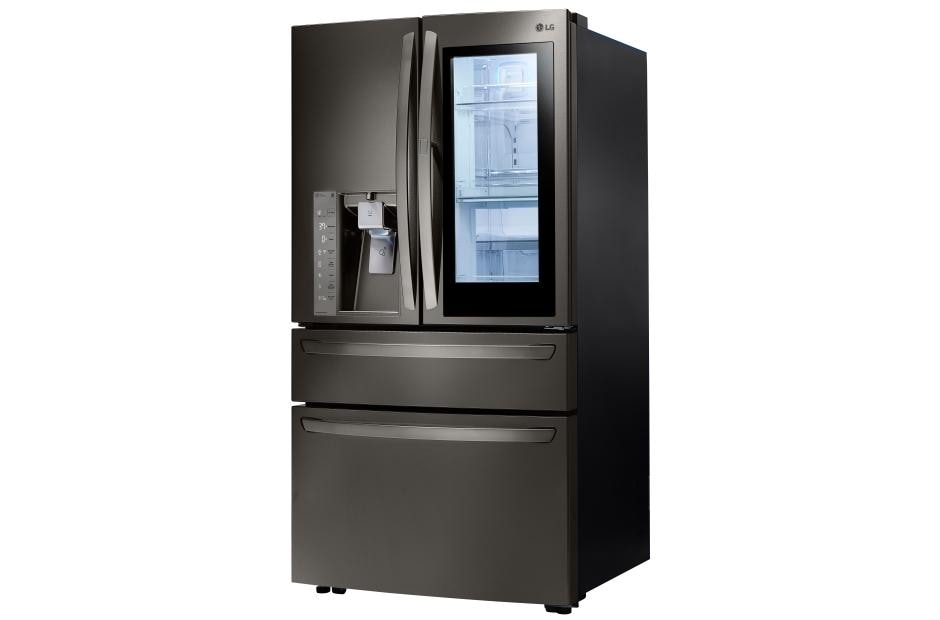

23 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator
/
Black Stainless Steel
1/11
23 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator
$
4,499.99
Raid the Fridge Without Losing Your Cool

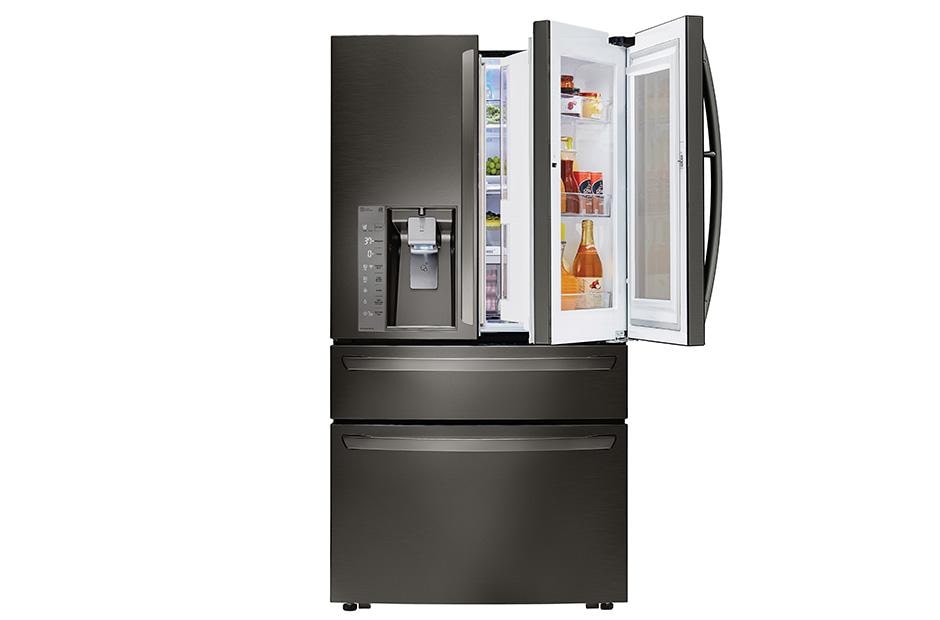

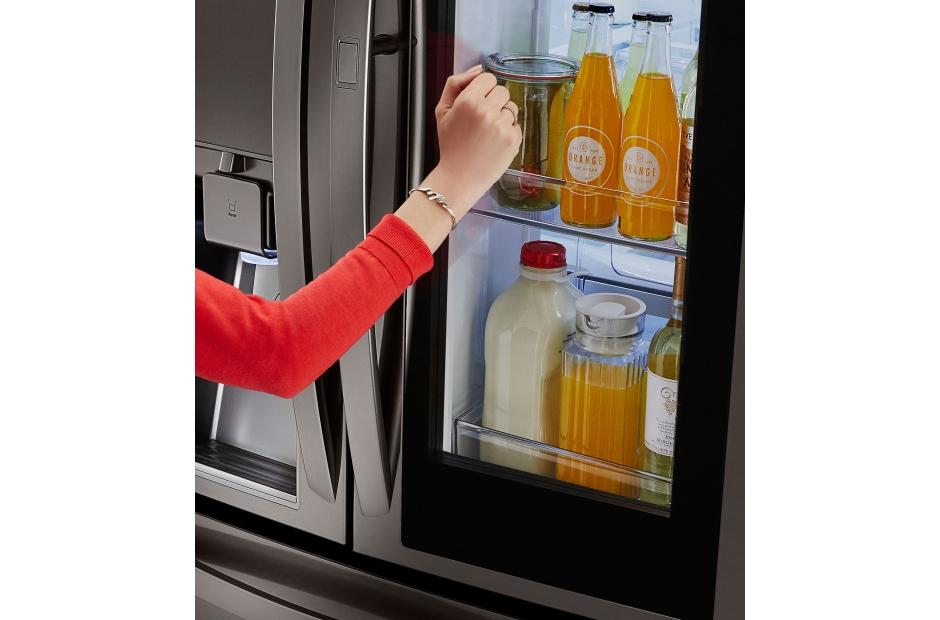

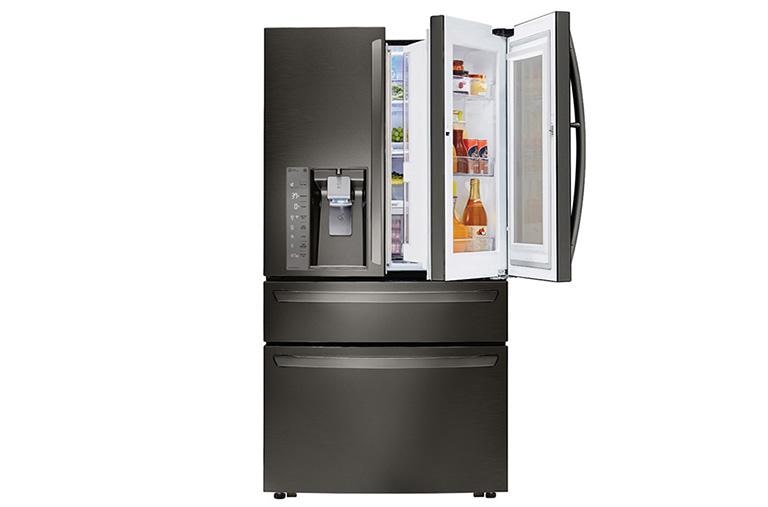

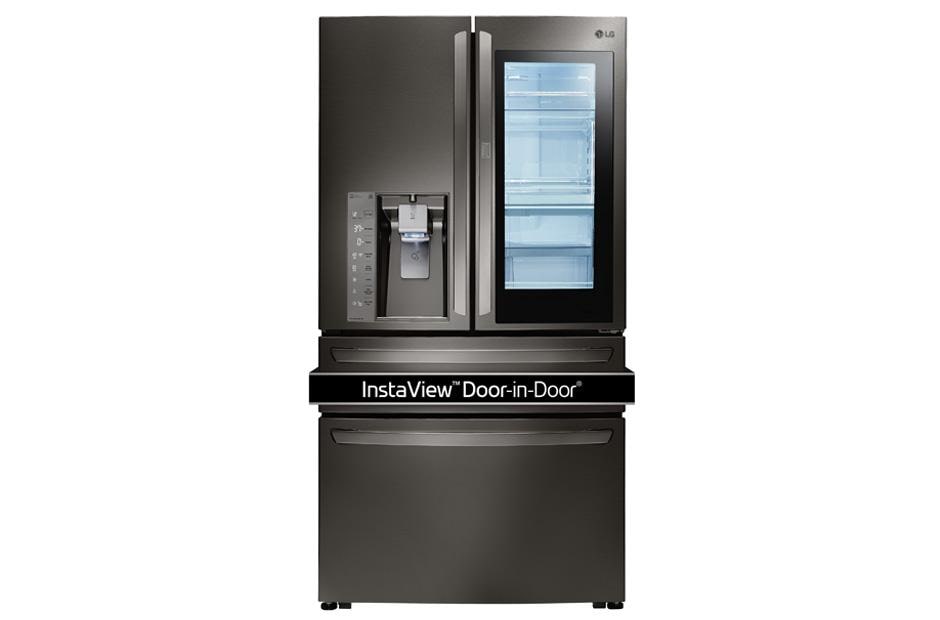

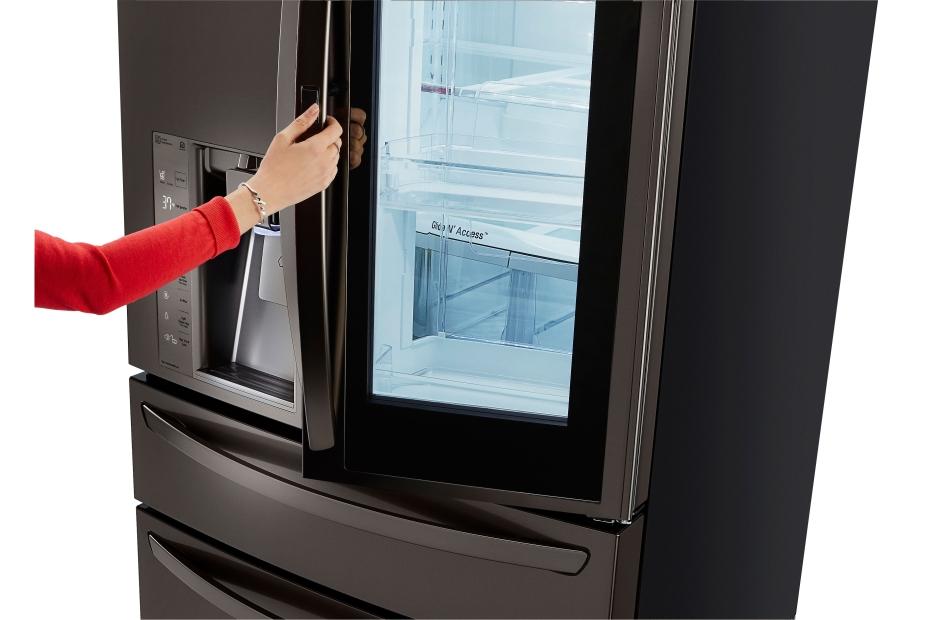

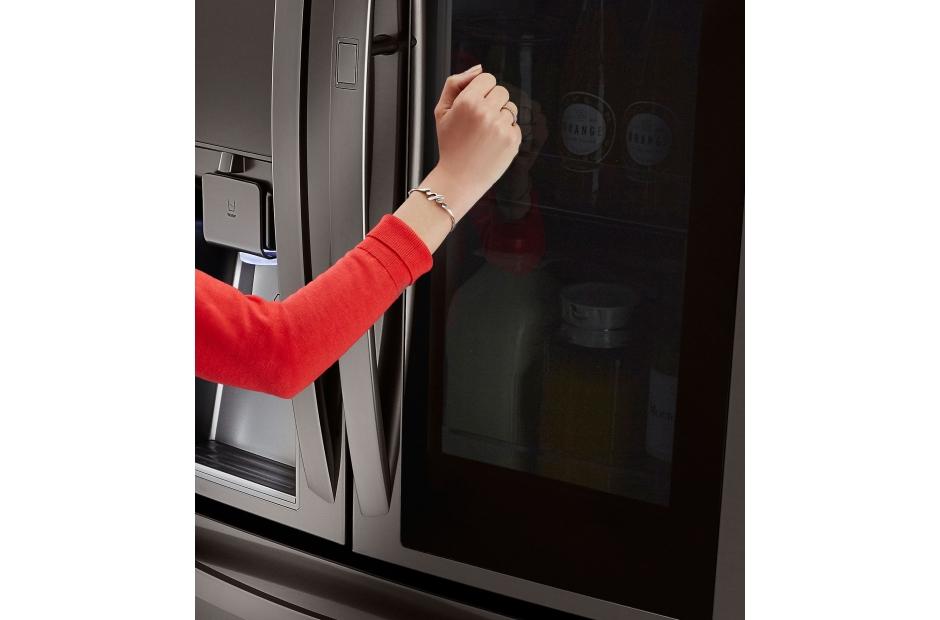

InstaView™ Door-in-Door® refrigerators have a sleek glass panel that allows you to see inside the easy access door without letting the cold air out. Simply knock twice on the glass to illuminate the contents within.
Think you’ll run out of ice? Think Again.
From making extra ice for tonight’s dinner party to getting smartphone notifications when the door is left open, use the LG SmartThinQ® app to control key features and get important notifications from any-where. It even works with the Google Assistant and Amazon Alexa, so you can operate smart features with your voice.

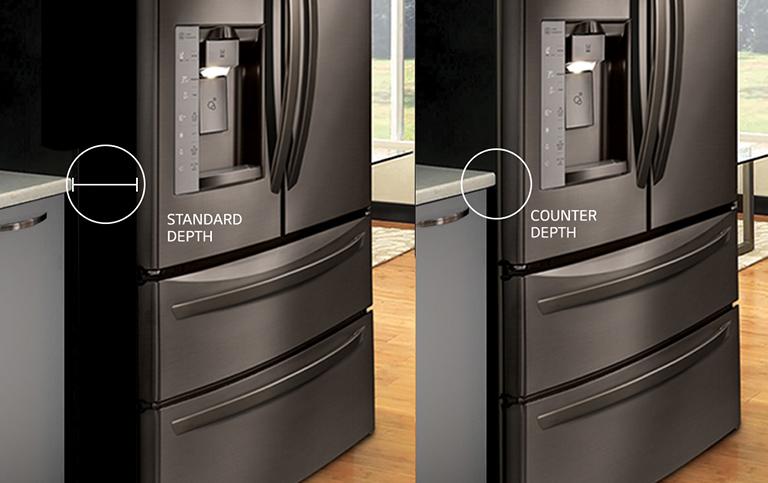

What Is Counter-Depth?
LG counter-depth refrigerators align with countertops and cabinetry for a uniform profile, creating a sophisticated built-in look without the high-end price tag.
The Look You Love Without the Fuss.
Now you can have all of the things you love about stainless, without the need for special cleaners or constant attention. LG’s PrintProof™ fingerprint and smudge resistant finish easily wipes clean with a soft, dry cloth for a distinctive kitchen that handles real-life in style.
Qualifications
SUMMARY
-
- Ice & Water Dispenser
- Yes
- Door Type
- French 4-Door
-
- Counter Depth (in.)
- Yes
- Refrigerator Type
- InstaView™ Door-in-Door®
-
- SmartThinQ®
- Yes
- ADA Compliant
- Yes
-
- wi-fi Enabled
- Yes
FEATURES
-
- Smart Cooling Plus System
- Yes
- Multi Air Flow Cooling
- Yes
-
- Temperature Sensors
- 8
- Fresh Air Filter
- Yes
-
- Dual Evaporator
- Yes
- Ice & Water Dispenser
- Yes
-
- Dispenser Type
- Integrated Tall Ice & Water Dispenser®
- Ice System
- Slim SpacePlus®
-
- Linear Compressor
- Yes
- Display Type
- Smooth Touch Control (White LED)
-
- Daily Ice Production
- 3.5 lbs / 3.8 (IcePlus™)
- Ice Storage Capacity
- 3.0 lbs
-
- Door-In-Door® with ColdSaver™ Panel
- Yes (w/ Glass Panel)
- ENERGY STAR® Qualified
- Yes (697 kWh/Year)

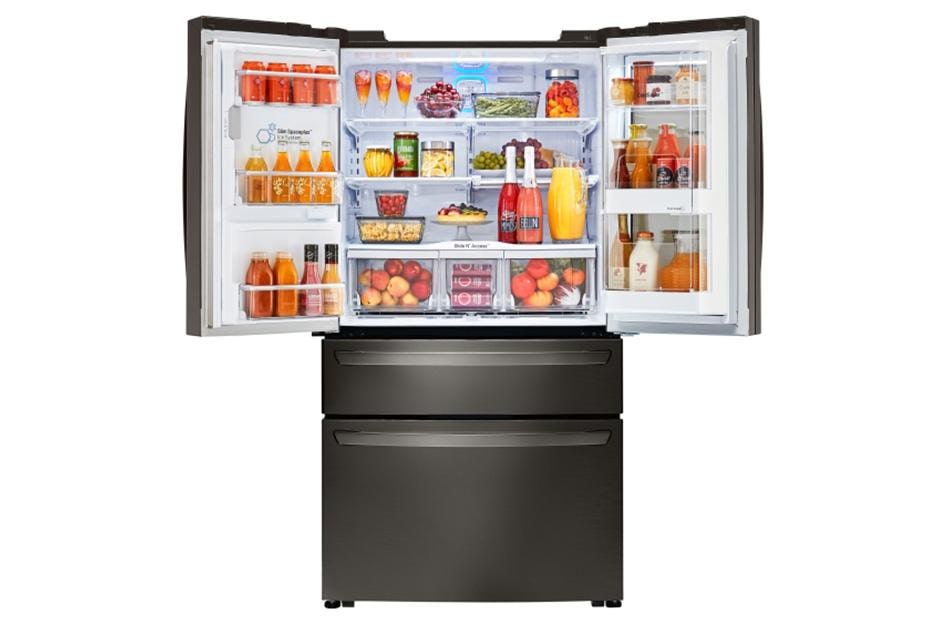

REFRIGERATOR
-
- Folding Shelf
- Yes
- No. of Shelves
- 4 Split (3 Fixed/1 Folding)
-
- Cantilevered Shelves
- Yes
- Shelf Construction
- Spill Protector™ Tempered Glass
-
- Crisper Bins
- 2 Humidity Crispers/1 Bonus Drawer
- Refrigerator Light
- Premium LED (Ceiling and Side)
-
- Dairy Corner/Bin
- Yes
- Door Bin Construction
- Clear , Opaque, Silver Deco
-
- EasyReach™ Bins
- Yes
FREEZER
-
- Drawers
- 3-Tier Organization®
- DuraBase™ Solid Drawer Base
- Yes
-
- Divider
- Yes
- Freezer Light
- Premium LED
-
- Door Type
- Pull Drawer
- Handle
- SmartPull® Freezer Handle
DIMENSIONS/CLEARANCES/WEIGHT
-
- Depth with Handles
- 32 1/8"
- Depth without Handles
- 29 5/8"
-
- Depth without Door
- 24 3/4"
- Depth (Total with Door Open)
- 44"
-
- Height to Top of Case
- 68 7/8"
- Height to Top of Door Hinge
- 70 1/4"
-
- Width
- 35 3/4"
- Width (Door Open 90˚ with Handle)
- 45"
-
- Width (Door Open 90˚ without Handle)
- 40"
- Installation Clearance
- Sides 1/8", Top 1", Back 2"
-
- Weight (Unit/Carton)
- 371 lbs / 404 lbs.
- Carton Dimensions (WxHxD)
- 38" x 73" x 33"
WARRANTY
-
- Limited Warranty
- 1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only)
- UPC
- 048231787703
MATERIALS & FINISHES
-
- Handle
- Matching Commercial Handles
- Available Colors
- Black Stainless Steel (D)
-
- Hidden Hinges
- Yes
- Surface
- Coated Metal
-
- Back
- Flush & Metal Cover Over Mechanical Parts
- Contour Door
- Yes
CAPACITY
-
- Refrigerator
- 13.30 cu. ft.
- Freezer
- 6.40 cu. ft.
-
- Total
- 22.5 cu. ft.
- CustomChill® Drawer
- 2.80 cu. ft.
CONVENIENCE
-
- Temperature Controls
- Electronic/Digital
- Door Alarm
- Yes
-
- LoDecibel™ Quiet Operation
- Yes
- SmartDiagnosis™
- Yes
-
- Auto Closing Door Hinge
- Yes
- Child Lock
- Yes
