KEY FEATURES

  • 23 cu. ft. Capacity
  • InstaView™ Door-in-Door®
  • Counter-Depth
  • PrintProof
  • Door Cooling+
  • Smart Cooling

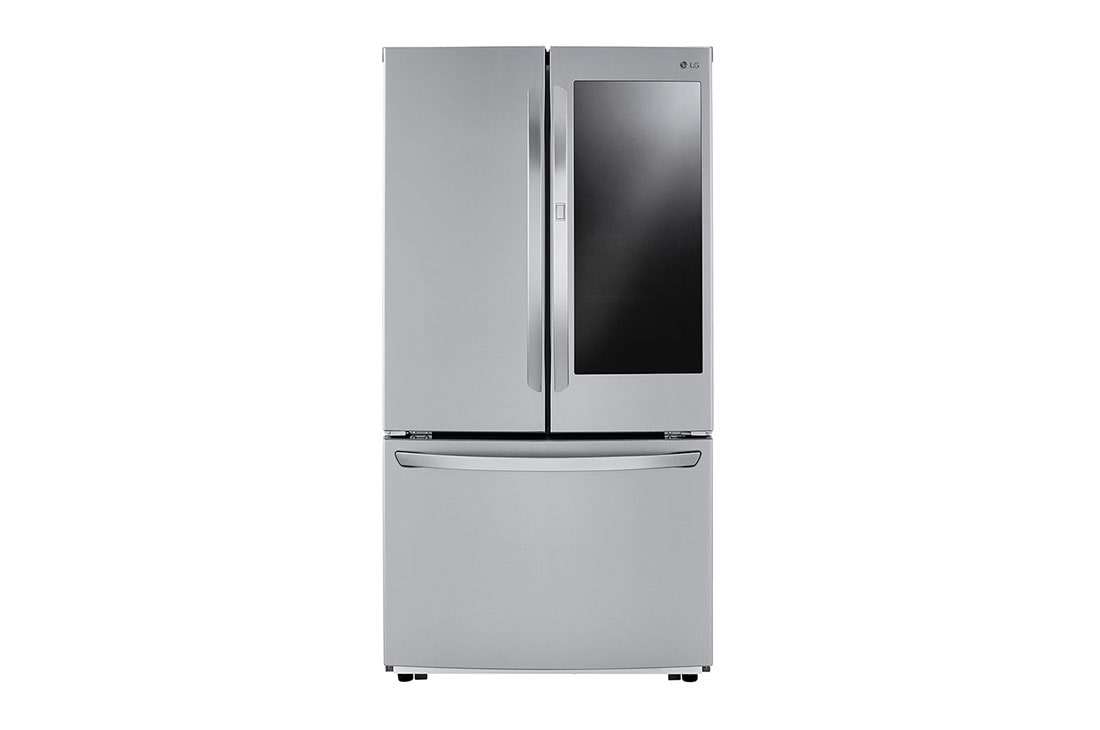

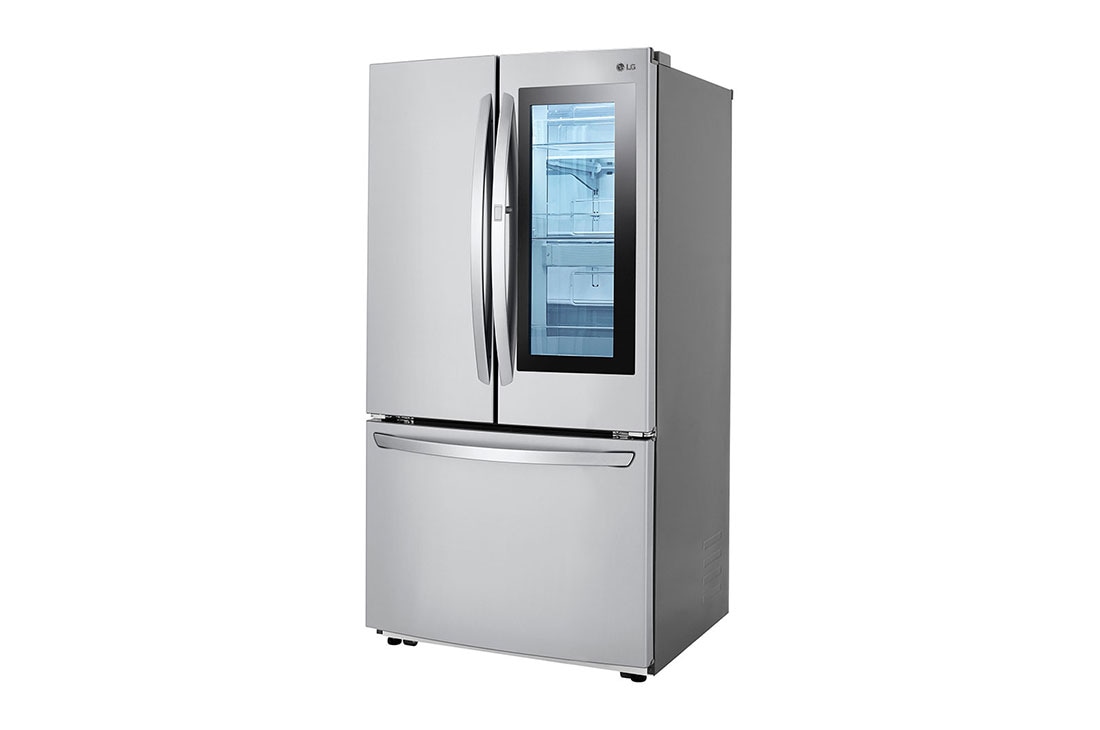

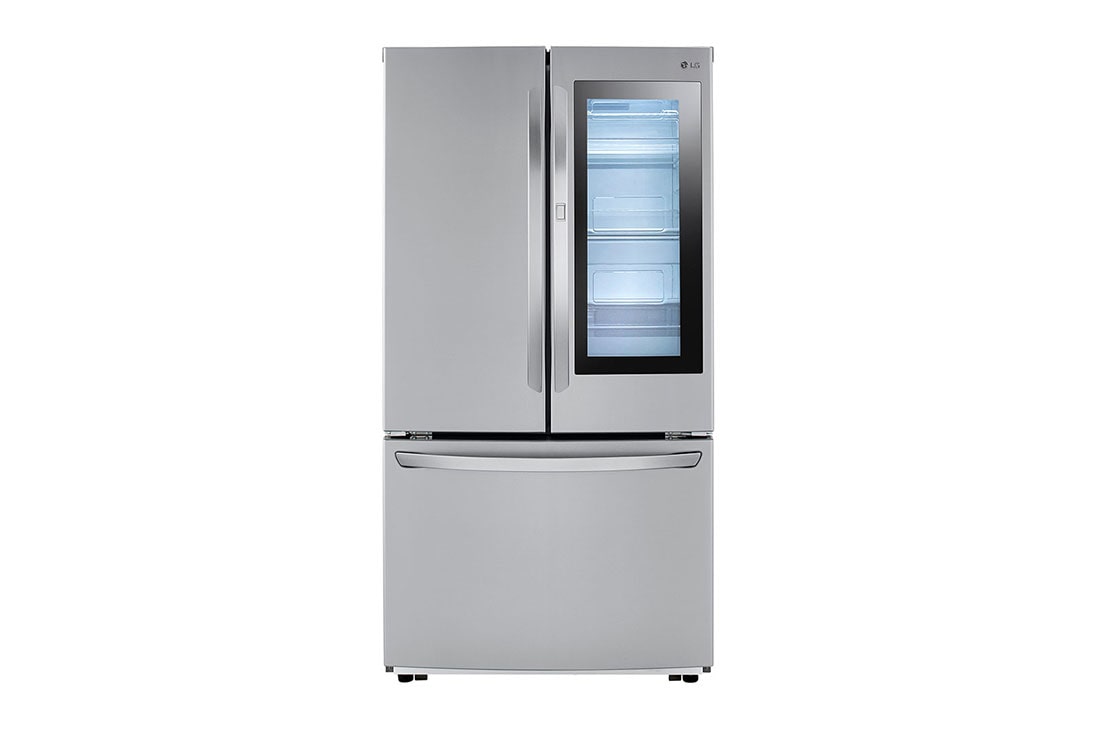

23 cu. ft. InstaView™ Door-in-Door® Counter-Depth Refrigerator
$ 2,499.99
Pause

Measure Twice, Order Once

Complete this guide to help ensure a successful delivery and installation.
VIEW GUIDE

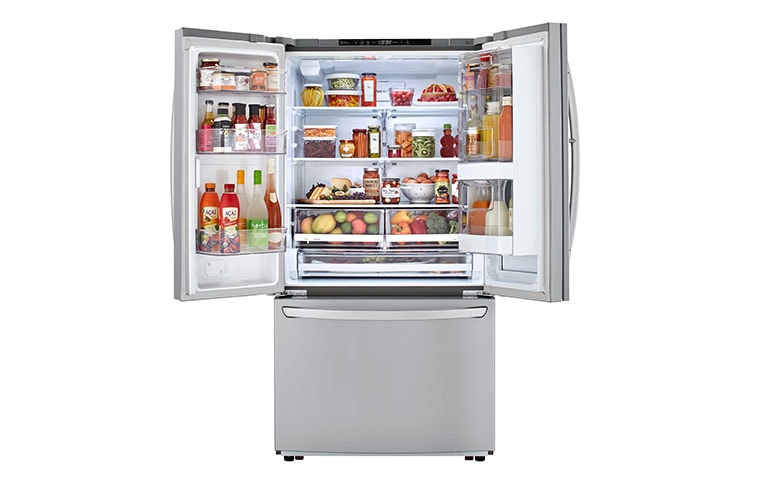

Space When You Need It

Get more space for groceries in a great feature-packed refrigerator. Nothing beats the convenience of having more food when you need it, and with a generous 23 cu. ft. of space, you'll have room and room to grow.

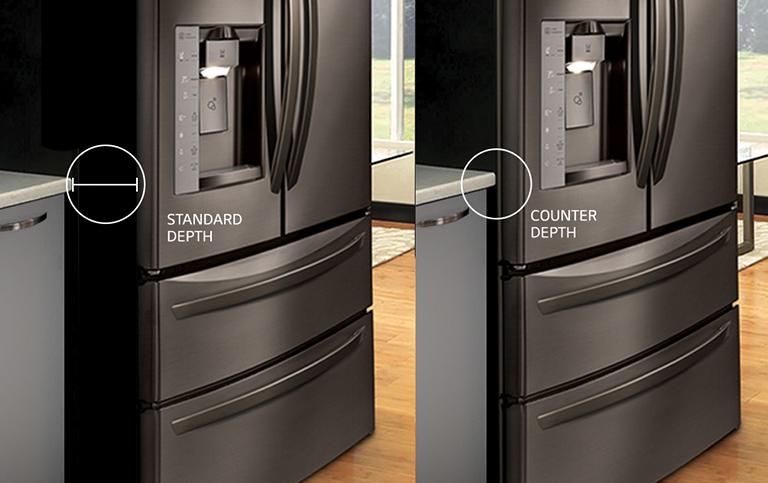

Sharp Design, Seamless Fit

Enjoy a built-in look with the counter depth feature on this LG refrigerator. Thanks to its slightly shallower depth, it can stand flush with your counter top for a sleek look.

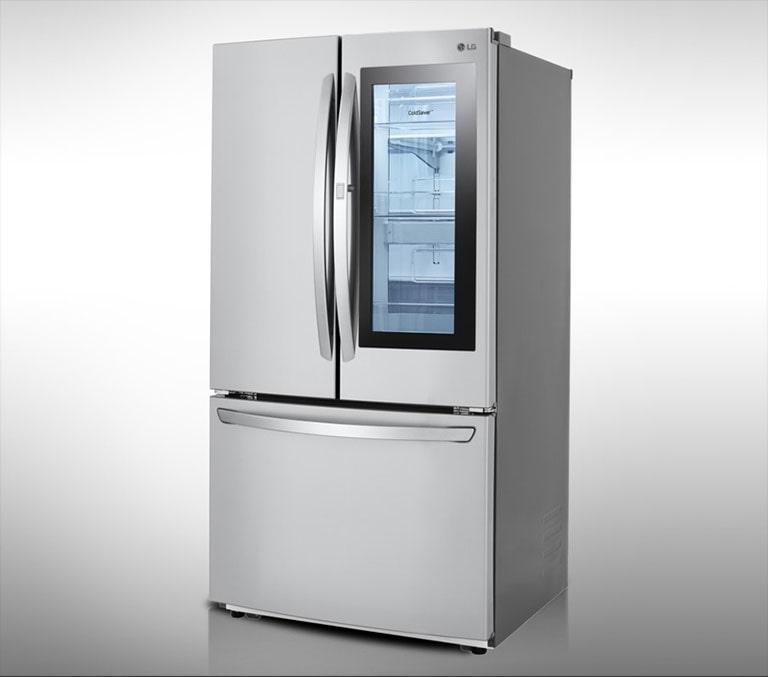

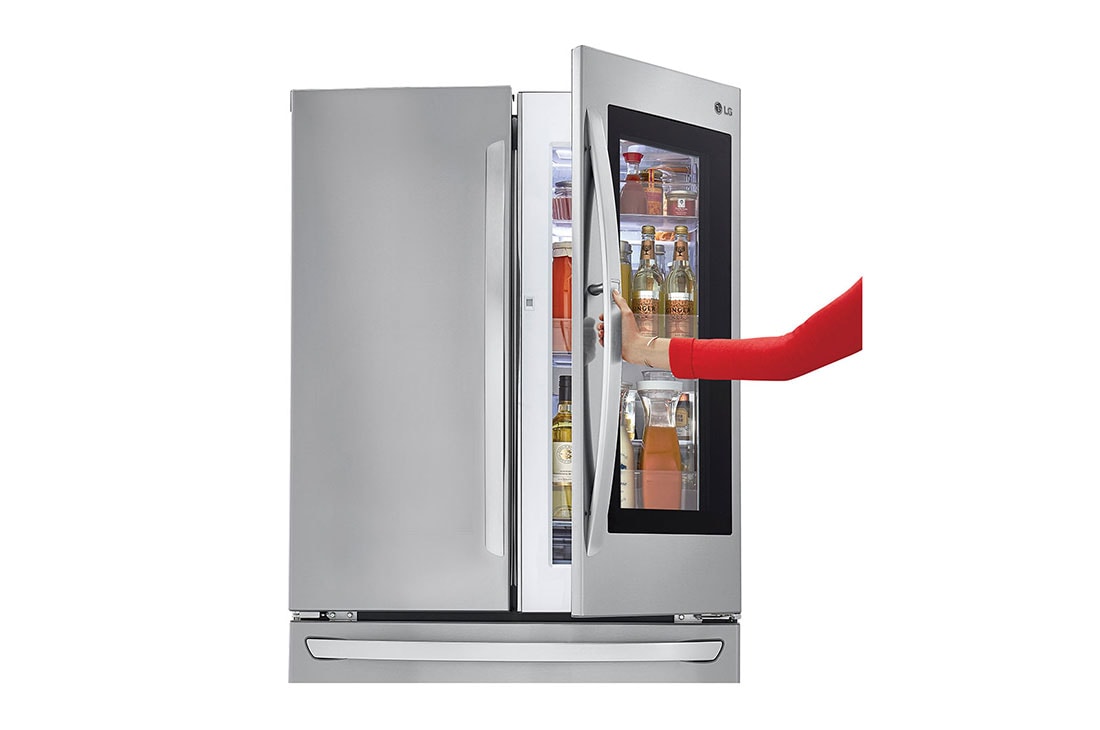

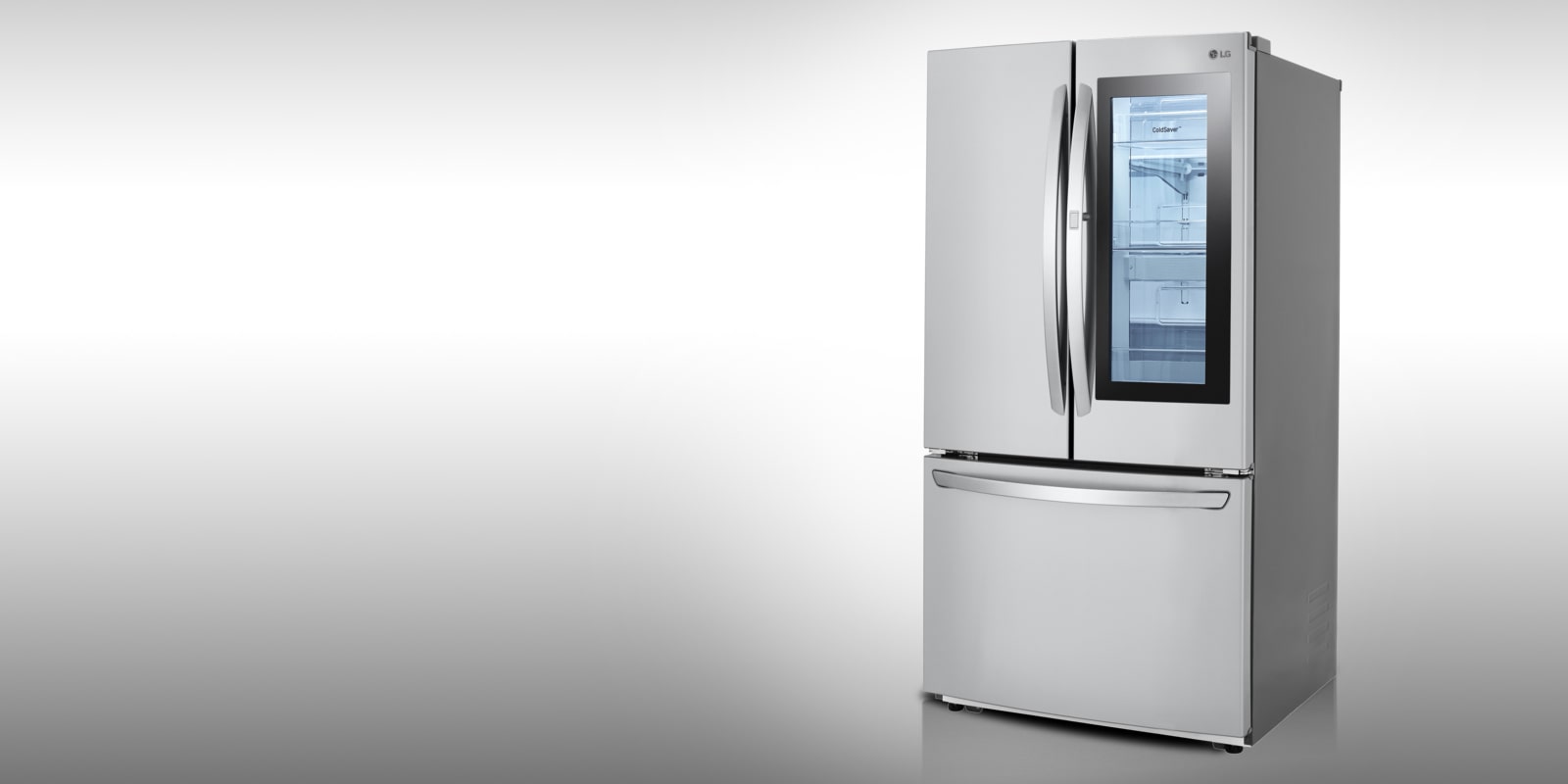

Raid the Refrigerator without Losing Your Cool

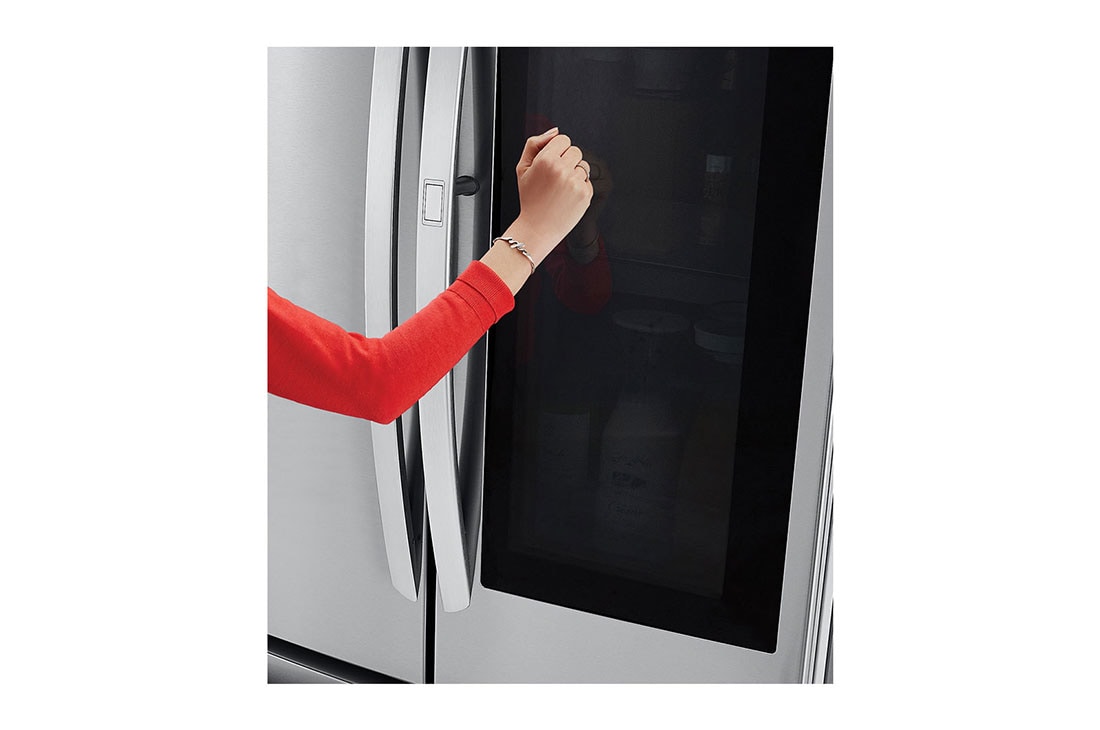

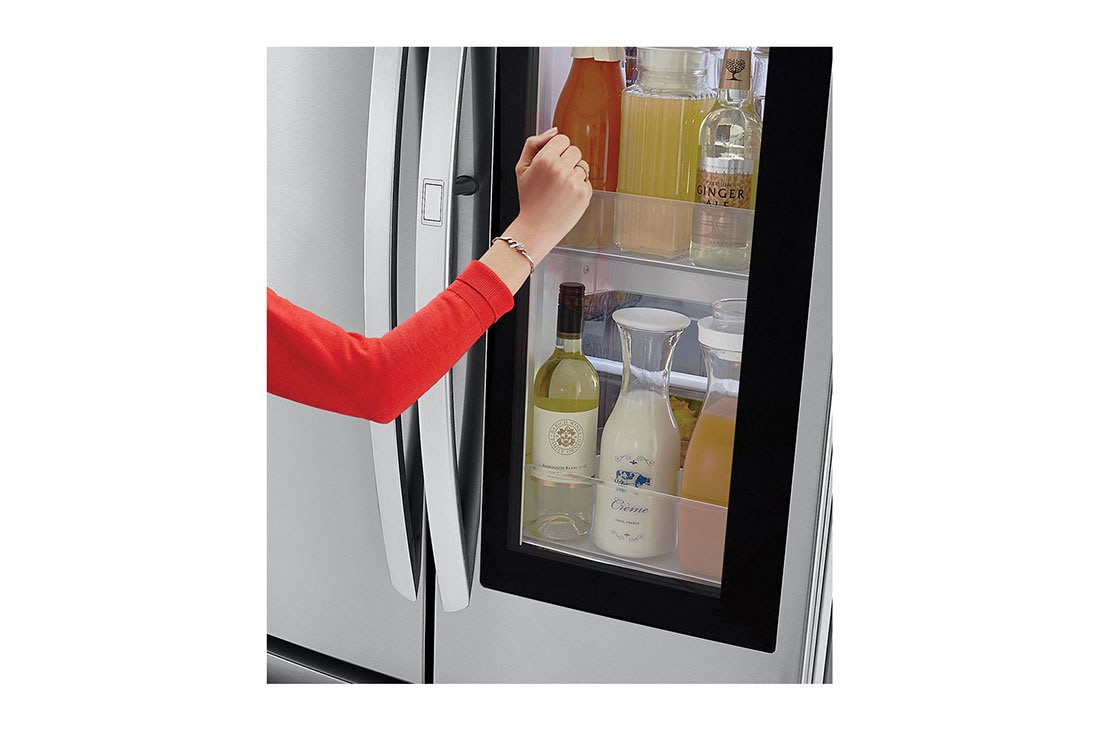

Bringing innovation and distinctive design together, LG’s new refrigerator with InstaView™ Door-in-Door® will enhance even most beautifully crafted kitchen. The sleek tinted glass panel illuminates with two quick knocks, allowing you to see inside the easy access compartment without ever opening the door to help keep food fresher longer.

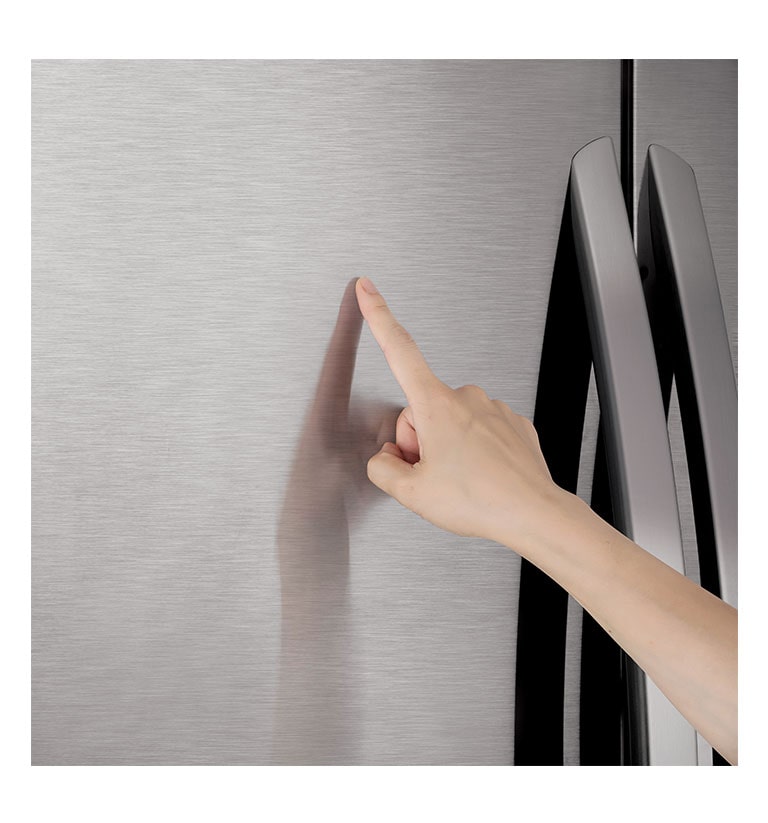

The Look You Love (Without the Fuss)

Now you can have all of the things you love about stainless, without the need for special cleaners or constant attention. LG’s PrintProof™ fingerprint and smudge resistant finish easily wipes clean with a soft, dry cloth for a distinctive kitchen that handles real-life in style.

Keeps produce fresh up to 2X Longer*

Located in the top of the fresh food section, the Door Cooling + vent extends the reach of LG’s Smart Cooling system. Blasts of cool air reach all areas of the refrigerator—including the door—to help maintain consistent temperatures from top to bottom. It helps keep all foods fresh and flavorful and keeps produce fresh up to 2X longer.*
*Than other LG models. Based on LG internal tests between LFXS30796D and LRFDS3006S and in combination with Linear Cooling and Smart Cooling technologies.

Fresher is better

Smart Cooling® system is designed to maintain superior conditions within the refrigerator. The Linear Compressor reacts quickly to temperature fluctuations and helps keep your food fresher, longer. Meanwhile, strategically-placed vents in every section surround your food with cool air no matter where you put it.

Qualifications

Download Energy Guide

SUMMARY

    • Series
    • LG
    • Type:
    • French Door
    • Door Type:
    • 3-Door
    • InstaView™ Door-in-Door®:
    • Yes

DIMENSIONS/CLEARANCES/WEIGHTS

    • Counter Depth
    • Yes

SUMMARY

    • Total Capacity (cu.ft.):
    • 22.60
    • Color:
    • PrintProof™ Stainless Steel

CAPACITY

    • Refrigerator (cu.ft.)
    • 15.30
    • Freezer (cu.ft.)
    • 7.30
    • Total Capacity (cu.ft.)
    • 22.60

ENERGY

    • Energy Consumption (kWh/Year)
    • 593
    • ENERGY STAR® Qualified
    • Yes

WATER & ICE SYSTEM

    • Daily Ice Production (lbs)
    • 2.5 lbs
    • IcePlus™ Production (lbs)
    • 2.7 lbs
    • Ice Storage Capacity (lbs)
    • 4.0 lbs
    • Ice System
    • Factory Installed Ice Maker
    • Water Filter
    • LT1000P

COOLING

    • Linear Compressor
    • Yes
    • Smart Cooling™ System:
    • Yes
    • Door Cooling+
    • Yes
    • Multi-Air Flow™ System
    • Yes
    • Temperature Sensors
    • 5
    • Evaporator
    • 1

SUMMARY

    • Display Type
    • Membrane/White LED

CONVENIENCE

    • Temperature Controls
    • Electronic/Digital
    • Auto Closing Door Hinge
    • Yes
    • LoDecibel™ Quiet Operation
    • Yes

REFRIGERATOR

    • No. of Shelves
    • 4 Split
    • Cantilevered Shelves
    • Yes
    • Shelf Construction
    • Spill Protector™ Tempered Glass
    • Crisper Bins
    • 2 Humidity Crisper
    • Glide N’ Serve™ Drawer
    • Yes
    • Refrigerator Light
    • Ceiling LED (Frameless)

REFRIGERATOR DOOR:

    • InstaView™ Door-in-Door®
    • Yes
    • No. of Bins
    • 7 Total (Including Door-in-Door®)
    • Door Bin Construction
    • 1 Piece (clear)

FREEZER

    • Door Type
    • Pull Drawer
    • Drawers
    • 2-Tier Organization
    • DuraBase™ Solid Drawer Base
    • Yes
    • Drawer Divider
    • Yes
    • Ice Bin / In-Door Ice
    • Icemaker & Ice bin in the freezer
    • Freezer Handle
    • SmartPull™ Handle

REFRIGERATOR THINQ® SMART FEATURES

    • SmartDiagnosis™
    • Yes

MATERIALS AND FINISHES

    • Contour Door
    • Yes
    • Hidden Hinges
    • Yes
    • Surface
    • Smooth
    • Fingerprint & Smudge Resistant Exterior
    • Yes
    • Handles
    • Matching Commercial Handles
    • All Available Colors
    • PrintProof™ Stainless Steel

DIMENSIONS/CLEARANCES/WEIGHTS

    • Depth with Handles
    • 31 1/4"
    • Depth without Handles
    • 28 3/4"
    • Depth without Door
    • 24 3/4"
    • Depth (Total with Door Open)
    • 43 1/2"
    • Height to Top of Case
    • 68 3/8"
    • Height to Top of Door Hinge
    • 69 3/4"
    • Width
    • 35 3/4"
    • Width (Door Open 90˚ with Handle)
    • 44 1/4"
    • Width (Door Open 90˚ without Handle)
    • 39 1/4"
    • Door Edge Clearance with Handle
    • 4 1/2"
    • Door Edge Clearance without Handle
    • 1 1/3"
    • Installation Clearance
    • Sides 1/8", Top 1", Back 2"
    • Weight (Unit/Carton)
    • 280 lbs/304 lbs
    • Carton Dimensions (WxHxD)
    • 38" x 73" x 37"

LIMITED WARRANTY & UPC

    • Parts & Labor
    • 1 Year
    • Sealed System (Parts & Labor)
    • 5 Years
    • Compressor (Parts & Labor)
    • 5 Years
    • Linear Compressor (Parts Only)
    • 6-10 Years
    • UPC
    • 048231804783

Specification Sheet

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.

Connect to a builder distributor in your area, and get the info you need to complete your next project.
Business Unit is required
Address Unit is required.
  • sales
  • install
  • service
Please retry to enter zip code.

There are no results. Please retry to enter zip code.

  • LG ExtendedCare Plan

    LG's ExtendedCare Plan protects your investment by offering extended service coverage provided by LG for commercial displays in the hospitality, healthcare, and digital signage markets. By offering this program, you will enjoy the added peace of mind that comes with knowing your products are protected.

  • Quick Swap (Advanced Exchange)

    Minimizes down time of device and quickly gets the device up and running. LG will provide a return box and prepaid return shipping label for customer to return the unit. Service call for Advanced Exchange must be made by 2pm CST.
    Next Business Day Exchange, 2nd Business Day Delivery or 3rd Business Day Delivery dependent on the product model and service option available.

  • White-Glove Quick Swap (Advanced Exchange)

    An LG authorized technician will meet you onsite. Technicians will remove, re-install and return product. Service calls for Advanced Exchange delivery must be made by 2pm CST.
    Next Business Day Exchange, 2nd Business Day Delivery or 3rd Business Day Delivery dependent on the product model and service option available.

    For more information, click here

Compare (0)

Compare (0)

Distinctive design meets advanced innovation in the LG InstaView™ Door-in-Door® Refrigerator. The perfect complement to any kitchen, it boasts a sleek, counter-depth look, non-dispensing design, tinted glass panel that illuminates with two quick knocks, plus cutting-edge features that keep your food fresher longer*.

More space meets more style with the Large Capacity, 23 cu. ft. LG InstaView™ Door-in-Door® Refrigerator. It not only offers space when you need it, this innovative French-door fridge is packed with features, including:

InstaView™ Door-in-Door®. See inside without letting all the cool air outside, thanks to a glass panel that illuminates with two knocks, giving you a glimpse inside the easy access compartment.

Sharp design, seamless fit. The slightly shallower counter depth design allows this refrigerator to stand flush with your counter top for a stunning, built-in look. It also boasts a non-dispensing design, the perfect solution if you want the InstaView™ Door-in-Door® feature, but without an external ice and water dispenser.

PrintProof™ Finish. Get all the benefits of a beautiful stainless look, minus the prints and smudges. LG’s fingerprint and smudge resistant finish easily wipes clean with a soft, dry cloth for a beautiful kitchen that handles real-life in style.

Fresh innovations. This LG InstaView™ refrigerator is packed with features like Smart Cooling® which reacts quickly to temperature fluctuations and helps keep your food fresher up to 2X longer*, as well as Door Cooling+, providing blasts of cool air to all areas of the fridge—including the door—plus a Multi-Air Flow System for superior humidity and temperature levels.

Smart features. LG SmartDiagnosis™ on your refrigerator helps the service center diagnose problems over the phone, helping you troubleshoot quickly. You'll also have the peace of mind of owning an ENERGY STAR® qualified LG refrigerator that exceeds federal energy standards to positively impact your energy bill, consumption, and the environment.

Learn more about the LG InstaView™ Door-in-Door® Refrigerator, as well as all of the innovative LG refrigerators and kitchen appliances designed to enhance your home.



*Than other LG models. Based on LG internal tests between LFXS30796D and LRFDS3006S and in combination with Linear Cooling and Smart Cooling technologies.
