KEY FEATURES

  • Innovative residential energy storage solution
  • Scalable design, versatile stacking, and a 10-year limited warranty
  • Prioritizes advanced battery tech, safety, and straightforward installation

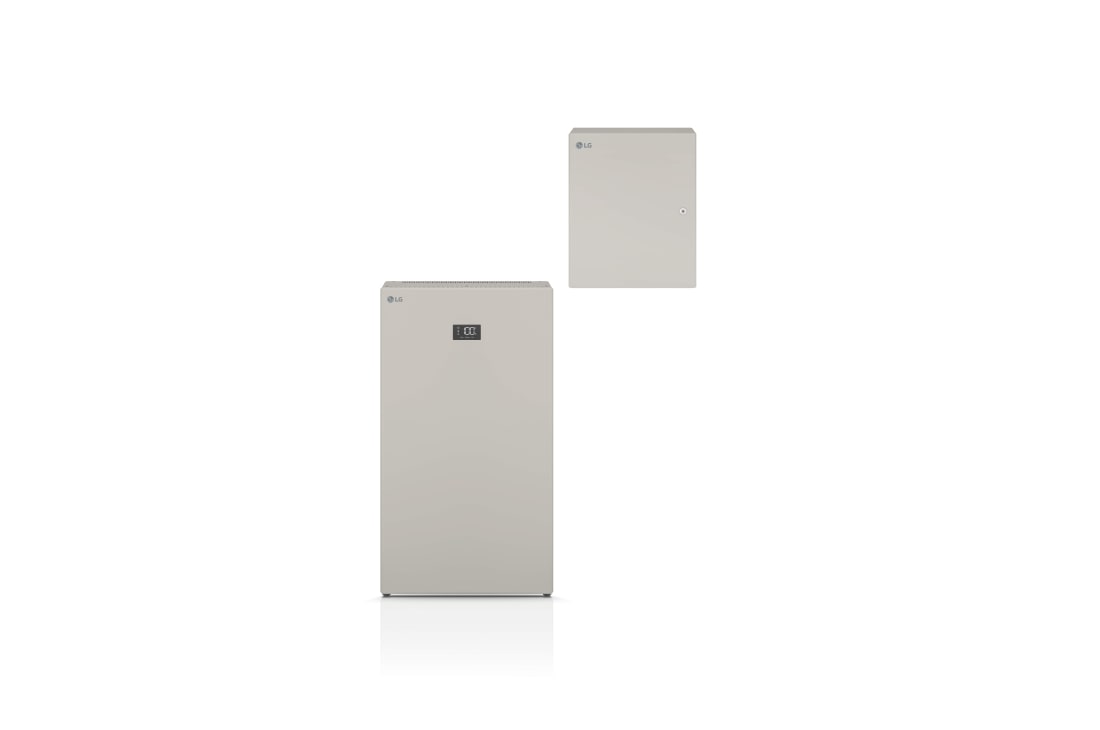

  • All-in-one system: Home 5 battery, Smart Energy Box, ThinQ Smart Monitoring, and EnerVu
  • Streamlined installation process for quick and easy deployment | Elevate installations with more power and increased energy capacity
  • Components seamlessly integrate, minimizing intricate setup procedures

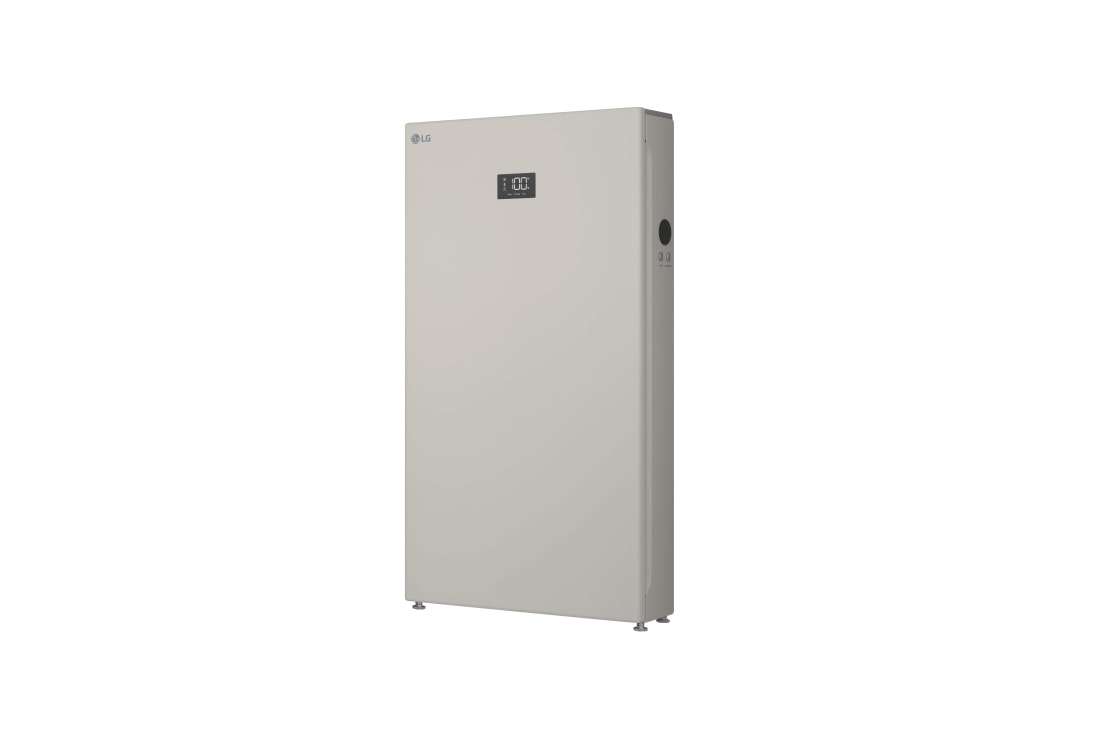

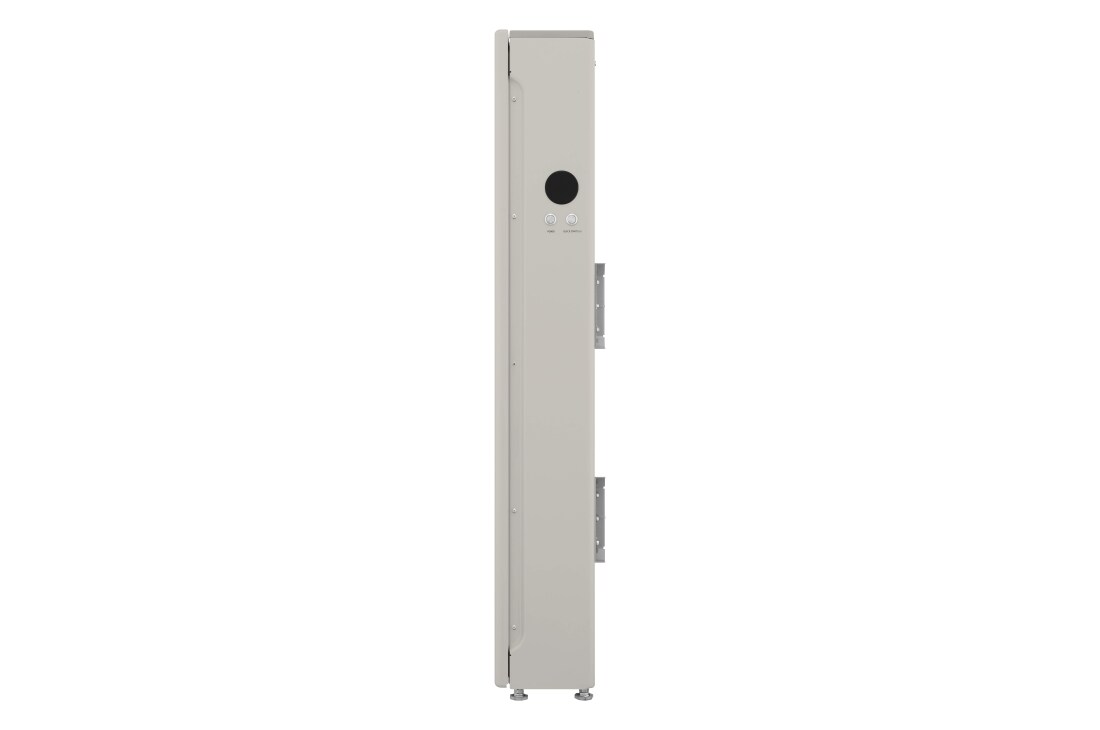

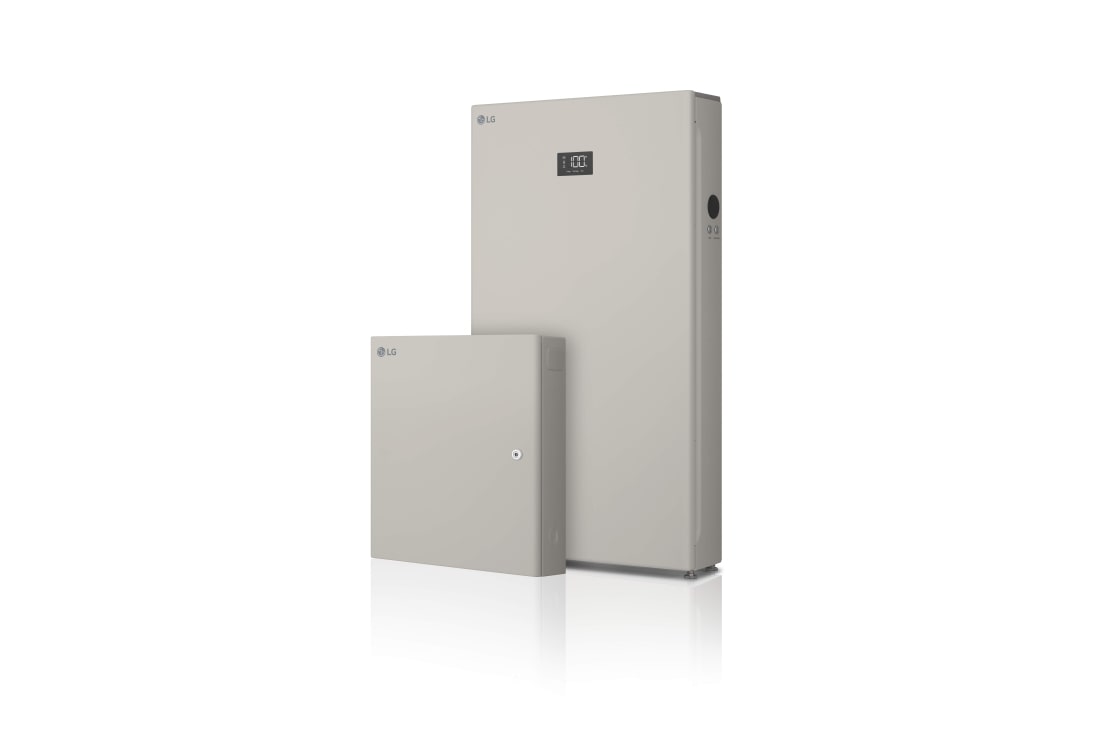

LG Home 5 Energy Storage System
$
Pause

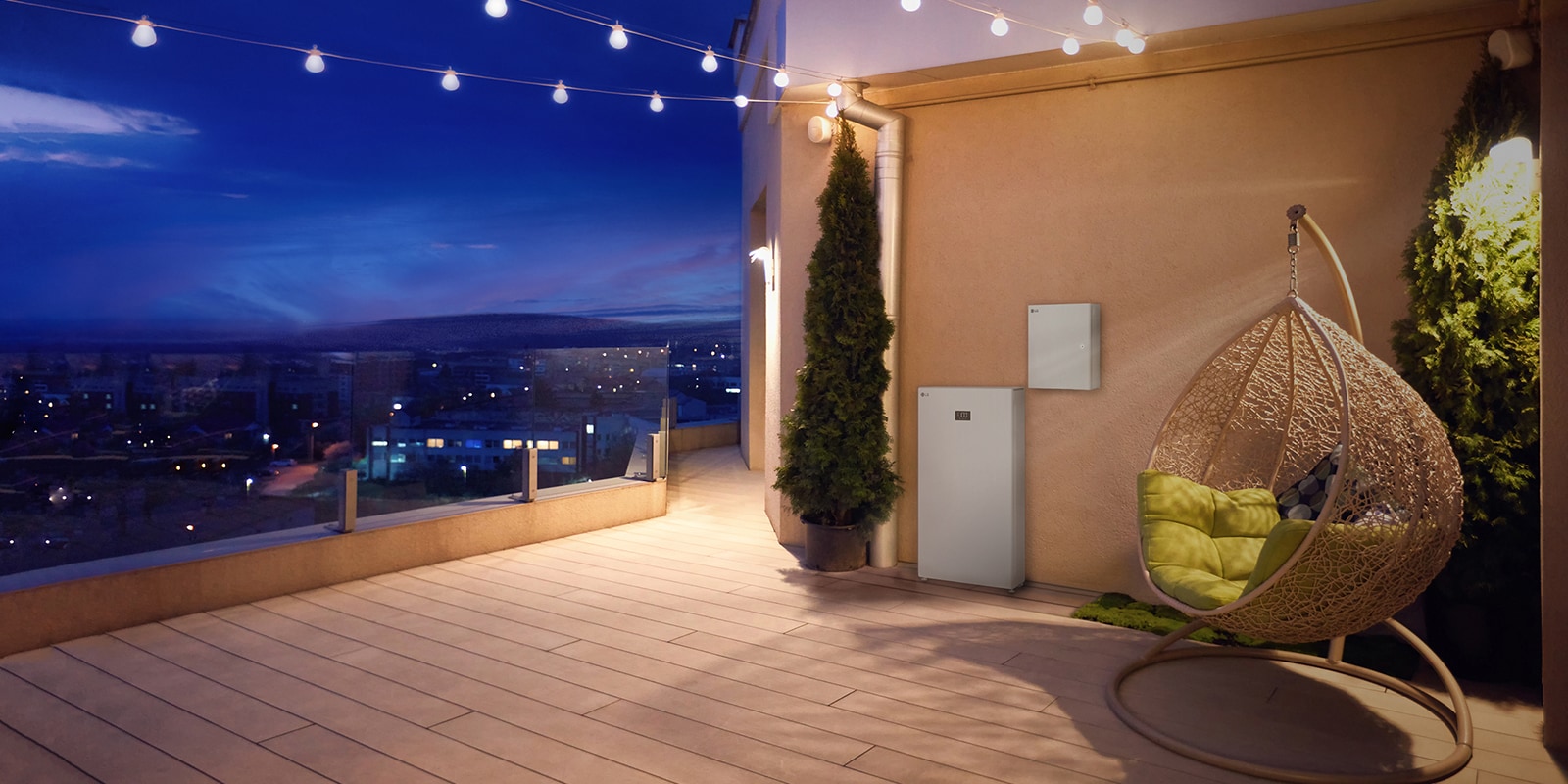

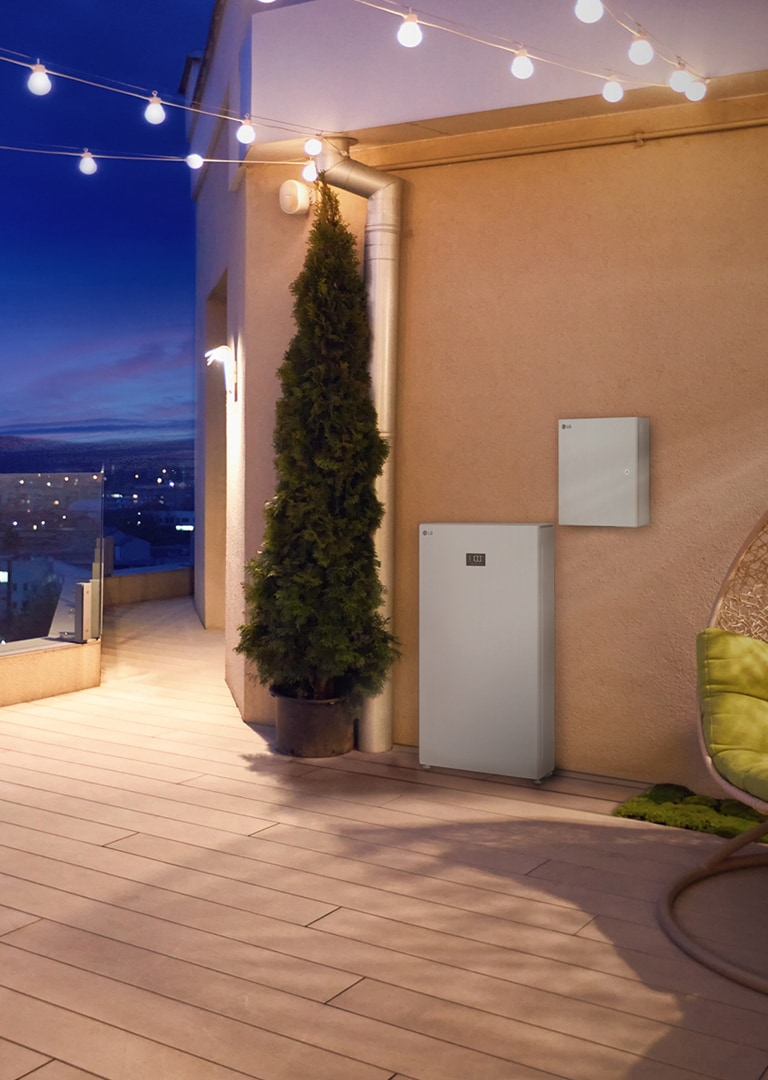

The power to enjoy life, uninterrupted

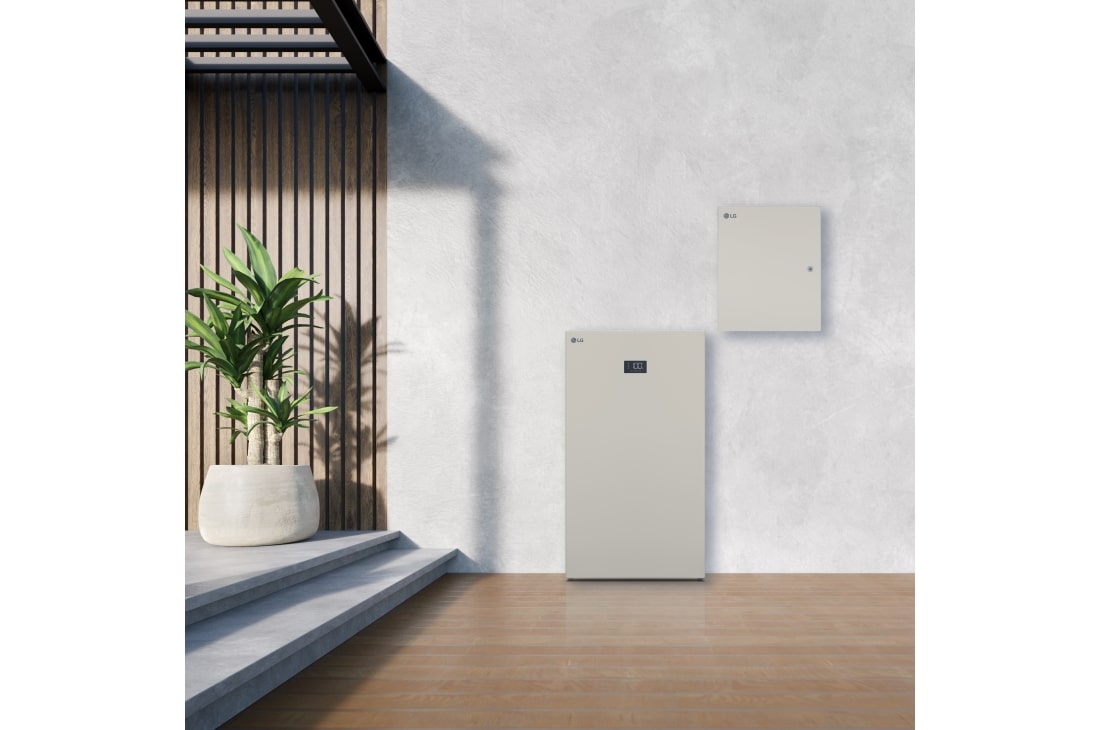

Life happens at home. Stay up and running with the all-in-one LG Electronics Home 5 Energy Storage System (ESS), built to store and provide usable energy from solar panels or AC-coupled power.

Homeowner benefits

Your home. Your way.

Stop

icon Energy cost saving opportunities By using stored power, you’ll maintain comfort, benefit the environment, and save money on electric utility bills.

icon Stay
powered up The Home 5 is a more renewable, reliable, and rewarding power hub that allows you to store energy for peak demand.

icon Achieve pure
independence Store energy for your home without relying on the grid. Fit your lifestyle by pairing with solar panels or AC power.

Eco-friendly operation

A brighter future starts at home

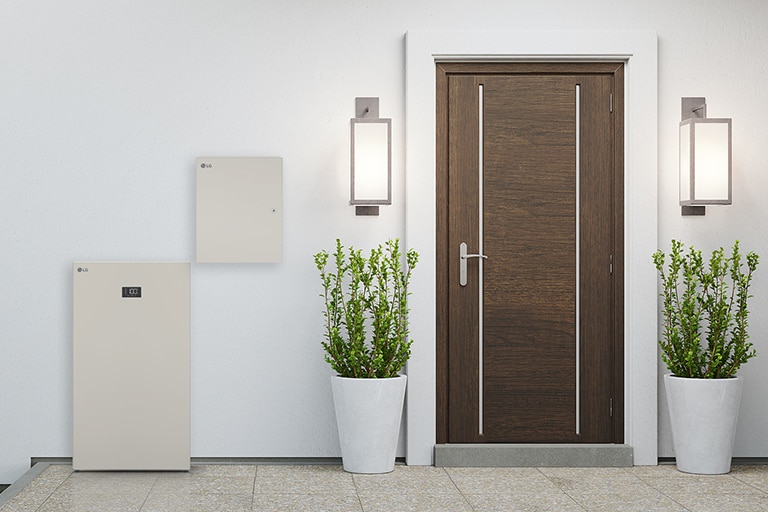

  • Choose LG for your backup
    power solution

    The LG Electronics Home 5 Energy Storage System runs quieter, cleaner, and requires less maintenance than alternative fuel-based energy storage systems—while still providing the peace of mind associated with backup power.

  • Operate sustainably for a greener future

    Power your home with renewable energy by storing energy generated from your solar panels. The Home 5 can power your LG Electronics appliances or LG heat pump-based HVAC system with this stored energy.

  • Reduce strain on your community’s power grid

    Promote grid stability by feeding stored energy back into the grid during peak demand, in areas where net metering is accessible.

Capabilities

The power hub of your home

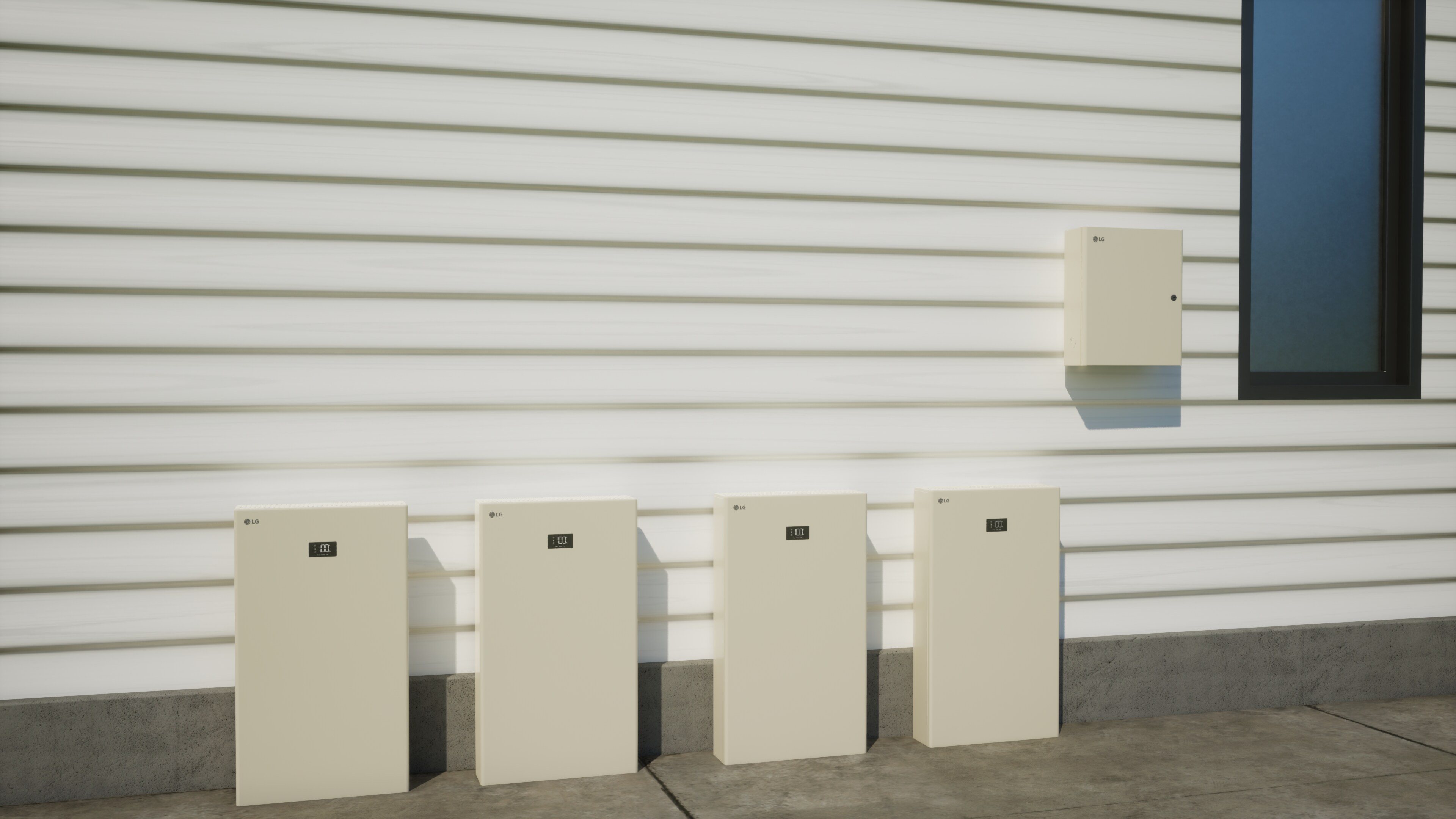

Store and provide renewable energy

The LG Electronics Home 5 Energy Storage System (ESS) can be paired with solar panels or AC-coupled to store and provide up to 14.4 kWh of usable energy. Need more power? Connect up to four units for up to 57.6 kWh of total storage.

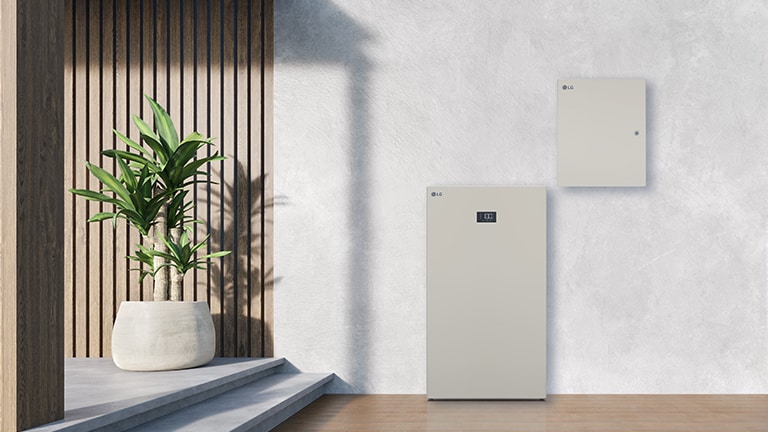

Get automatic switchover in an outage

With a built-in Power Management System in the Smart Energy Box, Home 5 can monitor your power usage, grid status, PV generation, consumer electricity plan, and even the weather for optimal charging/discharging. Plus, Home 5 can seamlessly switch on backup energy if your primary power source fails.
LG ThinQ®

Supercharge your smart home

Monitor and manage energy usage across your LG Electronics appliances and Home 5 with the ThinQ® app, an LG innovation that allows you control your smart home from anywhere. Track a laundry cycle, view ESS performance, and more—all from your mobile device.

Get to know Home 5

Explore our full resource library of videos and documents to learn more about the Home 5 Energy Storage System. Discover its true power, its ins and outs, and how the system offers pure independence while powering your home with clean energy.
LEARN MORE ABOUT HOME 5

Home 5 - General Specifications

    • Nominal Voltage (L-N/L-L)
    • 120/240 V Split Phase
    • Grid Frequency (Nominal)
    • 60 Hz
    • Rated AC Power (Discharging)
    • 5.0 kVA¹
    • Rated AC Power (Charging)
    • 5.0 kVA¹
    • Total Capacity
    • 15.8 kWh
    • Usable Capacity
    • 14.4 kWh²
    • Round Trip Efficiency
    • > 90% ³, ⁴
    • CEC Efficiency (PCS only)
    • 98%
    • Overvoltage Category
    • Category IV
    • Interface
    • LED Display

HOME 5 - GRID CONNECTION MODE

    • Nominal Voltage (L-N/L-L)
    • 120/240 V Split Phase
    • Grid Frequency (Nominal)
    • 60 Hz
    • Rated AC Power (Discharging)
    • 5.0 kVA¹
    • Rated AC Power (Charging)
    • 5.0 kVA¹
    • Rated AC Current (Discharging)
    • 20.84 A
    • Rated AC Current (Charging)
    • 20.84 A
    • Power Factor
    • - 0.8 ~ + 0.8

HOME 5 STACKING - SINGLE SE BOX

    • Battery Capacity (kWh)
    • 1 Home 5 Unit: 14.4, 2 Home 5 Units: 28.8, 3 Home 5 Units: 43.2, 4 Home 5 Units: 57.6
    • Max AC Power (kVA) 10 Sec
    • 1 Home 5 Unit: 5, 2 Home 5 Units: 10, 3 Home 5 Units: 15, 4 Home 5 Units: 20
    • Rated AC Power (kVA)
    • 1 Home 5 Unit: 9, 2 Home 5 Units: 18, 3 Home 5 Units: 27, 4 Home 5 Units: 36

HOME 5 - BACKUP MODE

    • Nominal AC Voltage
    • 120/240 V Split Phase
    • Nominal AC Frequency
    • 60 Hz
    • Max AC Power (Discharging)
    • 9.0 kVA (10s)
    • Rated AC Power (Discharging)
    • 5.0 kVA¹
    • Rated AC Power (Charging)
    • 5.0 kVA¹
    • Max AC Current (Discharging)
    • 37.5 A (10s)
    • Rated AC Current (Discharging)
    • 20.84 A
    • Rated AC Current (Charging)
    • 20.84 A

HOME 5 - BATTERY

    • Battery Package Types
    • Cylindrical Li-ion
    • Total Capacity
    • 15.8 kWh
    • Usable Capacity
    • 14.4 kWh²
    • Nominal DC Voltage
    • 406.56 V

HOME 5 - BATTERY MODULE

    • Battery Package Types
    • Cylindrical Li-ion
    • Module Nominal DC Voltage
    • 101.64 V
    • Module Capacity (Min)*
    • 36.9Ah (*Battery Capacity (Nominal) = 38.9Ah)
    • Module Size[W*H*D]
    • 600 x 212 x 190 [mm] (23.6 x 8.4 x 7.5 [in])
    • Module Weight (Max)
    • 26 kg / 57 lb

Compliance

    • Grid Code
    • Home 5 (IEEE1547, 1547.1, UL1741, UL1741SA, CA Rule21) / SE Box (CA Rule21, IEEE2030.5-2018/ Sunspec CSIP) UL1741SB, UL17141 CRD PCS
    • Safety
    • Home 5 (UL1741, C22.2 No.107.1-16, UL1642, UL1973, UL9540A) / (UL1741, C22.2 No.107.1-16)
    • Functional Safety
    • IEC60730-1 Annex H
    • System Safety
    • UL9540
    • Enclosure
    • NEMA Type 3R⁵
    • EMC
    • FCC Part15 Subpart B
    • Seismic
    • IEEE 693-2005, High

Environmental Specifications

    • Dimensions [W*H*D]
    • Home 5 (698 X 1260 X 205 [mm] (27.5 X 49.6 X 8.1 [in])) / SE Box (500 X 600 X 178 [mm] (19.7 X 23.6 X 7.0 [in]))
    • Weight
    • Home 5 (163 kg / 359 lb) / SE Box (25 kg / 55 lb)
    • Cooling
    • Home 5 (Fan (Forced Air Cooling)) / SE Box (Natural Convection)
    • Operating Temperature
    • Home 5 (-20 ~ 50˚C (-4 ~ 122˚F) @ Discharging -10 ~ 45˚C (14 ~ 113˚F) @ Charging) / SE Box (-20 ~ 50 ˚C (-4 ~ 122˚F))
    • Recommended Operating Temperature
    • Home 5 (0 ~ 35˚C (32 ~ 95˚F) @ Discharging 0 ~ 33˚C (32 ~ 91.4˚F) @ Charging) / SE Box (-20 ~ 50 ˚C (-4 ~ 122˚F))
    • Storage Temperature
    • -20 ~ 50˚C (-4 ~ 122˚F)
    • Ambient Humidity (RH)
    • 5 ~ 95% (non-condensing)
    • Altitude
    • < 3000 m (9843 ft)
    • Mounting Type
    • Floor Stand with Wall Support, and Wall Mount
    • Noise
    • < 47 dB
    • Warranty
    • 10 years (Battery: 70% @ 10 years)⁶

Disclaimer

    • Disclaimer
    • ¹ Adjustable, limited by the battery pack output capability such as charging/discharging power derating by the atmosphere temperature. ² Usable energy might be reduced for enhancing the battery lifetime and system stability. ³ Verified according to LG Electronics conditions. ⁴ AC to battery to AC with 4.32 kW charging and 2.88 kW discharging power at 25˚C ( 77 ˚F) under the beginning of life.
    • Disclaimer1
    • ⁵ Tested by NEMA 250 ⁶ 10-years Limited Warranty: Standard limited warranty period is five years parts/energy capacity for qualified products. Upon expiration of original manufacturer’s limited warranty, an extended limited warranty may apply (ten years parts/energy capacity) for qualified products registered with LG’s ThinQ® service and connected to internet. Full limited warranty terms are available at lgusa.com/ess ⁷ When protected by Class J fuses, LG, SE Box, is suitable for use in circuits capable of delivering not more than 22 kA symmetrical amperes. ⁸ LG SE Box is not suitable for use as service equipment in Canada.
