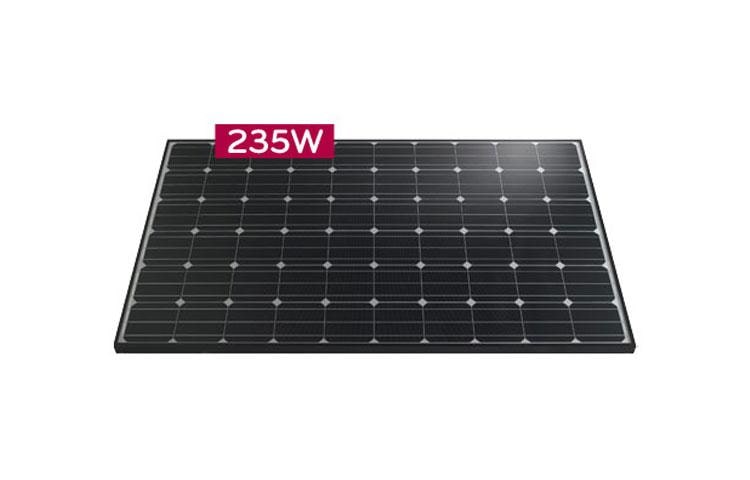

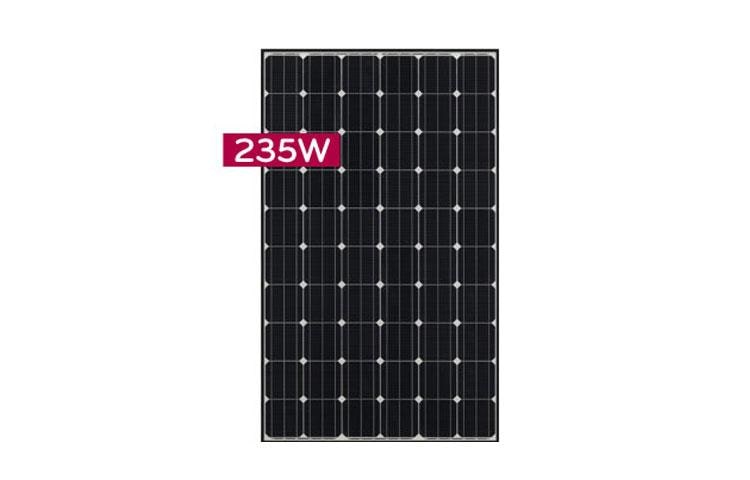

High Efficiency Monocrystalline Module Cells: 6 x 10 Module efficiency 14.6%

Mechanical Properties

    • Cells
    • 6 x 10
    • Cell vendor
    • LG
    • Cell type
    • Monocrystalline
    • Cell dimensions
    • 156 x 156 mm2 / 6 x 6 in2
    • # of busbar
    • 3
    • Dimensions (L x W x H)
    • 1632 x 986 x 42 mm / 64.25 x 38.82 x 1.65 in
    • Maximum load (Pa)
    • 113 psf (5400 Pa)
    • Weight
    • 19 kg / 41.89 lb

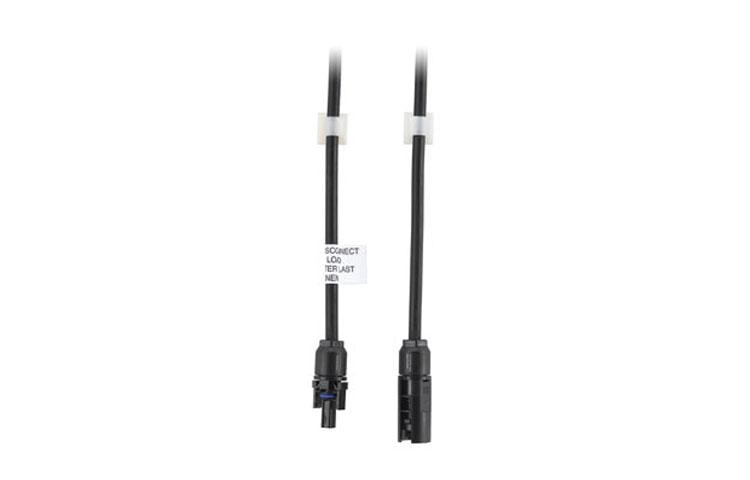

    • Connector type
    • Tyco connector IP 67

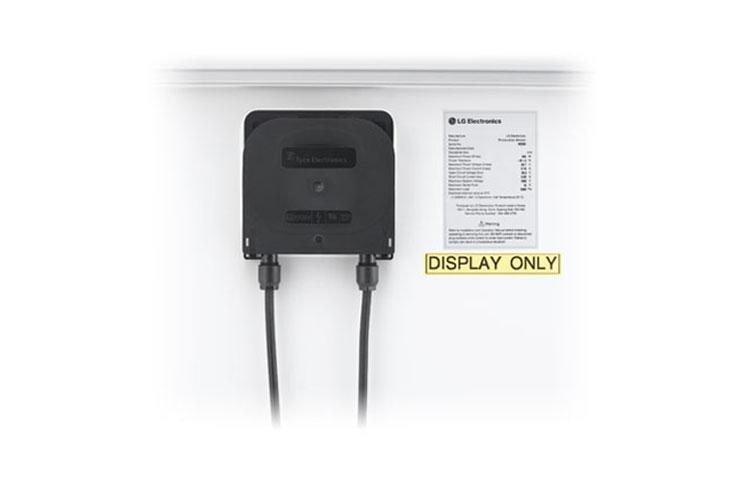

    • Junction box
    • IP 65 with 3 bypass diodes
    • Length of cables
    • 2 x 1000 mm / 2 x 39 in
    • *
    • NEC 2008 compliant

Certifications and Warranty

    • Certifications
    • IEC 61215 Ed.2, 61730, UL 1703, CEC Listed
    • Product warranty
    • 10 years
    • Output warranty of Pmin
    • 12-year : 90 %, 25-year : 80 %

Temperature Coefficients

    • NOCT
    • 43.8 ± 2°C
    • Pmpp
    • -0.493 %/K
    • Voc
    • -0.132 V/K, -0.355 %/K
    • Isc
    • 3.89 mA/K, 0.046 %/K

Electrical Properties (STC*)

    • Maximum power at STC (Pmax)
    • 235
    • MPP voltage (Vmpp)
    • 29.6
    • MPP current (Impp)
    • 7.94
    • Open circuit voltage (Voc)
    • 36.8
    • Short circuit current (Isc)
    • 8.49
    • Module efficiency (%)
    • 14.6
    • Operating temperature (°C)
    • -40 ~ +90
    • Maximum system voltage (V)
    • 600
    • Maximum series fuse rating (A)
    • 20
    • Power tolerance (%)
    • 0 ~ +3
    • *
    • STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.

Electrical Properties (NOCT*)

    • Maximum power (W)
    • 172.0
    • Maximum power voltage (V)
    • 26.68
    • Maximum power current (A)
    • 6.44
    • Open circuit voltage (Voc)
    • 34.03
    • Short circuit current (Isc)
    • 6.86
    • Efficiency reduction (from 1000 W/m2 to 200 W/m2)
    • < 4.5 %
    • *
    • NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s
