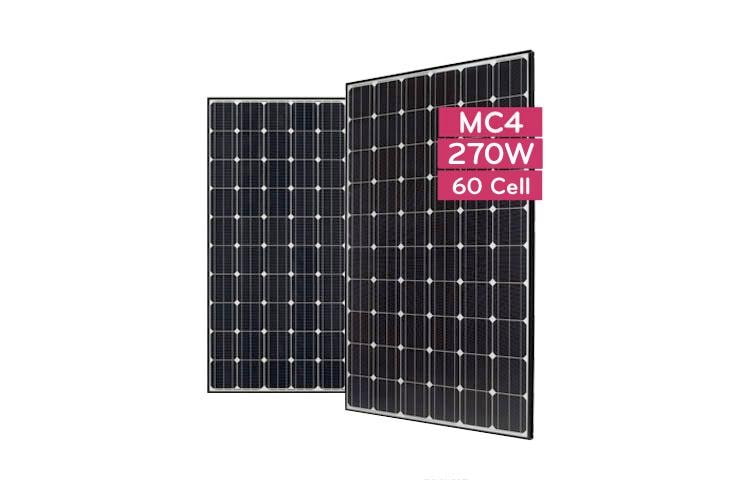

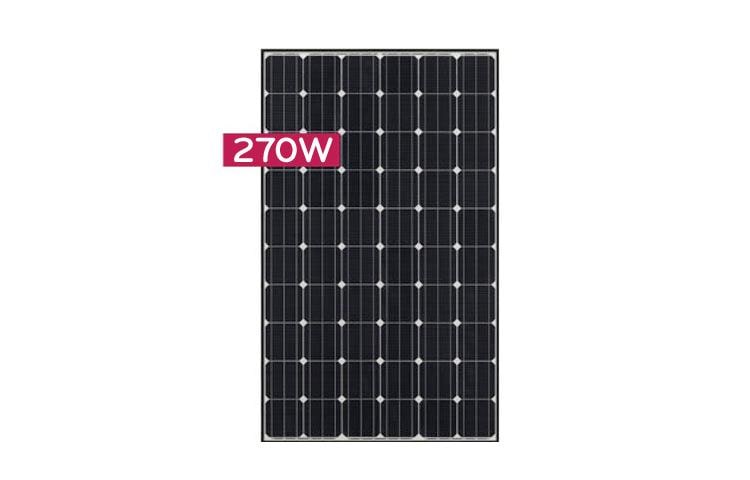

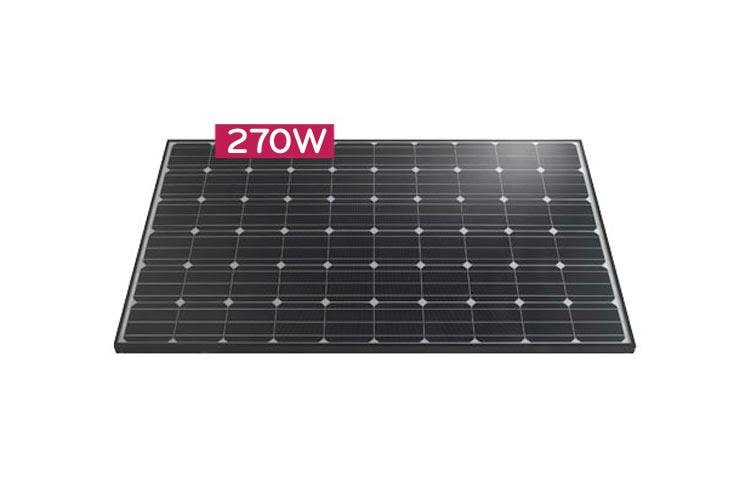

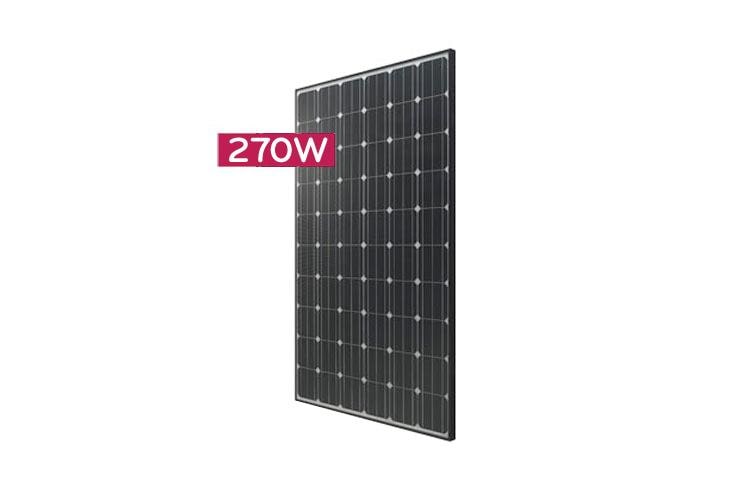

Discontinued LG270S1C-B3

High Efficiency Mono X Module Cells: 6 x 10 Module efficiency 16.5% Connector Type: MC4 connector IP67

LG High Efficiency Mono X Module Cells: 6 x 10 Module efficiency 16.5% Connector Type: MC4 connector IP67, LG270S1C-B3, thumbnail 1

LG High Efficiency Mono X Module Cells: 6 x 10 Module efficiency 16.5% Connector Type: MC4 connector IP67, LG270S1C-B3, thumbnail 2

LG High Efficiency Mono X Module Cells: 6 x 10 Module efficiency 16.5% Connector Type: MC4 connector IP67, LG270S1C-B3, thumbnail 3

LG High Efficiency Mono X Module Cells: 6 x 10 Module efficiency 16.5% Connector Type: MC4 connector IP67, LG270S1C-B3, thumbnail 4

LG High Efficiency Mono X Module Cells: 6 x 10 Module efficiency 16.5% Connector Type: MC4 connector IP67, LG270S1C-B3, thumbnail 5

/

Inquiry to Buy

Find a Dealer

Add to Wishlist

Add to Compare

KEY FEATURES Expand Key Features

Light and Robust
100% EL Test Completed
Convenient Installation

Discontinued LG270S1C-B3

High Efficiency Mono X Module Cells: 6 x 10 Module efficiency 16.5% Connector Type: MC4 connector IP67

LG High Efficiency Mono X Module Cells: 6 x 10 Module efficiency 16.5% Connector Type: MC4 connector IP67, LG270S1C-B3

+1

KEY FEATURES Expand Key Features

Light and Robust
100% EL Test Completed
Convenient Installation

Add to Wishlist

Add to Compare

Find a Dealer

Inquiry to Buy

High Efficiency Mono X Module Cells: 6 x 10 Module efficiency 16.5% Connector Type: MC4 connector IP67

Light and Robust

With a weight of just 16.8 kg, LG modules are proven to demonstrate outstanding durability against external pressure up to 5400 Pa.

Convenient Installation

LG modules are carefully designed to benefit installers by allowing quick and easy installations throughout the carrying, grounding, and connecting stages of modules.

100% EL Test Completed

All LG modules pass Electroluminescence inspection. This EL inspection detects cracks and other imperfections unseen by the naked eye.

The Extra 2% Power

To minimize losses due to mismatch, LG produces 3 groups of solar modules which are sorted by its current class. This enables MonoX® to maximize the system’s output by around 2% based over the theoretical calculation.

Reliable Warranties

LG stands by its products with the strength of a global corporation and sterling warranty policies. LG offers a 10 year product limited warranty and a 25 year limited linear output warranty.

Positive Power Tolerance

LG provides rigorous quality testing to solar modules to assure customers of the stated power outputs of all modules, with a positive nominal tolerance starting at 0%.

Print

Mechanical Properties

- Cells
- 6 x 10
- Cell vendor
- LG
- Cell type
- Monocrystalline
- Cell dimensions
- 156.5 x 156.5 mm / 6 x 6 in
- # of busbar
- 3
- Dimensions (L x W x H)
- 1640 x 1000 x 35 mm / 64.57 x 39.37 x 1.38 in
- Static snow load
- 5400 Pa / 113 psf
- Static wind load
- 2400 Pa / 50 psf
- Weight
- 16.8 ± 0.5 kg / 36.96 ± 1.1 lb
- Connector type
- MC4 connector IP 67
- Junction box
- IP 67 with 3 bypass diodes
- Length of cables
- 1000 mm / 39.37 in
- Glass
- High transmission tempered glass
- Frame
- Anodized aluminum

Certifications and Warranty

- Certifications
- IEC 61215, IEC 61730-1/-2, IEC 61701, Salt Mist Corrosion Test (IEC61701), DLG-Fokus Test "Ammonia Resistance", UL1703, ISO 9001
- Module Fire Performance (UL1703)
- Type 2
- Product warranty
- 10 years
- Output warranty of Pmax (measurement Tolerance ± 3%)
- Limited Linear Warranty *
- *
- 1) 1st year: 97%, 2) After 2nd year: 0.7%p annual degradation, 3) 80.2% for 25 years

Temperature Coefficients

- NOCT
- 45.0 ± 2 °C
- Pmpp
- -0.43 %/ºC
- Voc
- -0.31 %/°C
- Isc
- 0.04 %/°C

Electrical Properties (STC*)

- Maximum power at STC (Pmpp)
- 270
- MPP voltage (Vmpp)
- 31.5
- MPP current (Impp)
- 8.58
- Open circuit voltage (Voc)
- 38.5
- Short circuit current (Isc)
- 9.17
- Module efficiency (%)
- 16.5
- Operating temperature (°C)
- -40 ~ +90
- Maximum system voltage (V)
- 1000 (IEC), 600 (UL)
- Maximum series fuse rating (A)
- 15
- Power tolerance (%)
- 0 ~ +3
- *
- STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.

Electrical Properties (NOCT*)

- Maximum power at NOCT (Pmpp)
- 198
- MPP voltage (Vmpp)
- 29.0
- MPP current (Impp)
- 6.84
- Open circuit voltage (Voc)
- 35.7
- Short circuit current (Isc)
- 7.39
- Efficiency reduction (from 1000 W/m2 to 200 W/m2)
- < 4.5 %
- *
- NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s
