KEY FEATURES

  • Trusted Company
  • All-in-one Design
  • Max Performing AC Output
  • Monitoring Anywhere

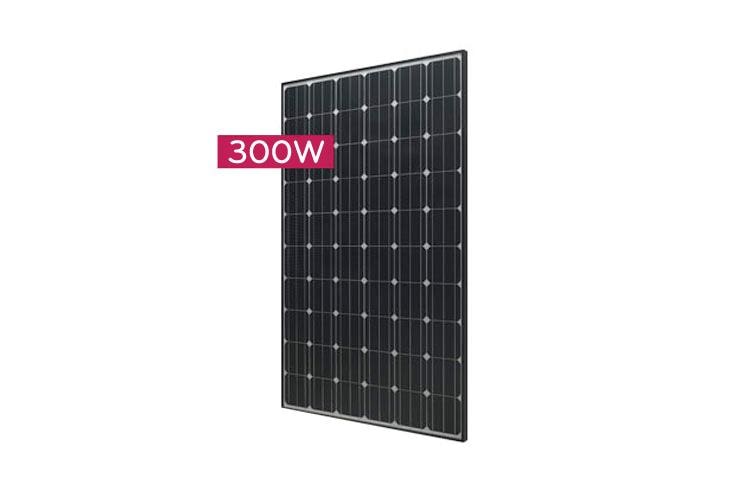

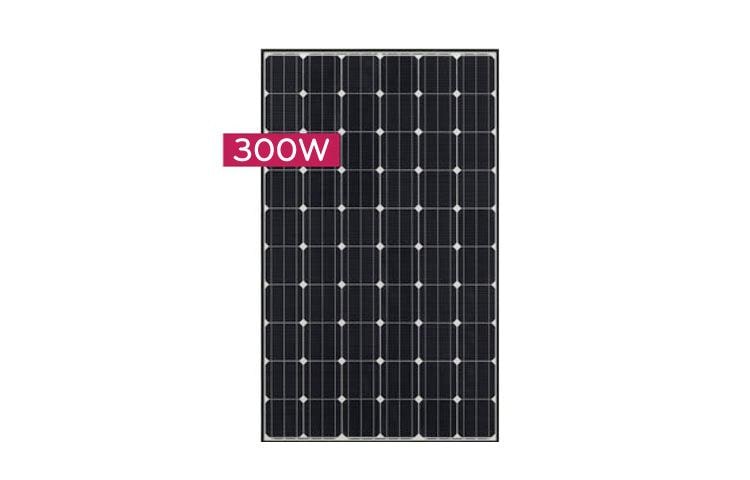

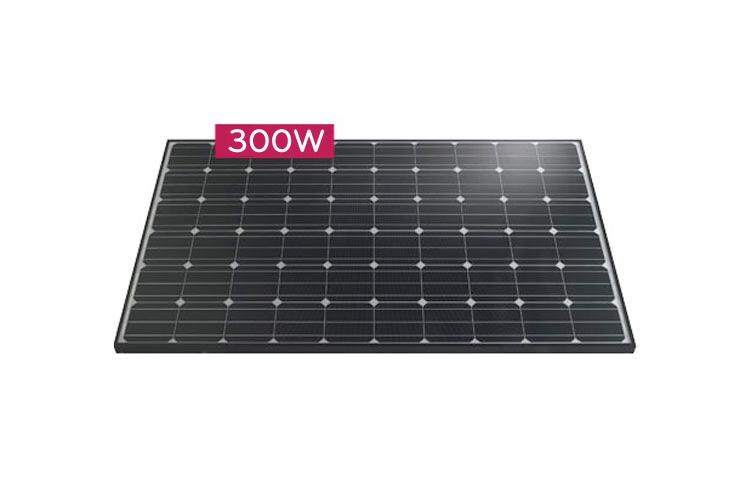

High Efficiency PerfectAC™ Module Cells: 6 x 10 Module efficiency 18.3%

Mechanical Properties

    • Cells
    • 6 x 10
    • Cell vendor
    • LG
    • Cell type
    • Monocrystalline
    • Cell dimensions
    • 156.5 x 156.5 mm / 6 x 6 in
    • # of busbar
    • 3
    • Dimensions (L x W x H)
    • 1640 x 1000 x 35 mm / 64.57 x 39.37 x 1.38 in
    • Weight
    • 18.0 ± 0.5 kg
    • Cooling
    • Natural Convection - No Fans
    • Maximum Static Load
    • 50 psf
    • Enclosure Environmental Rating
    • Outdoor - NEMA type 6
    • Operating Ambient Temperature
    • -40 ~ 65 °C (-40 ~ 145 °F)
    • Operating Temperature(Internal)
    • -40 ~ 90 °C (-40 ~ 194 °F)
    • Inverter Model (Utility Interactive)
    • LM305UE-G1
    • Glass
    • High transmission tempered glass
    • Frame
    • Anodized aluminum

Certifications and Warranty

    • Certifications
    • UL 1703, UL 1741, IEEE 1547, FCC Part 15 Class B, CAN/CSA-C22.2 NO. 107.1-01
    • Module Fire Performance (UL1703)
    • Type 2
    • Product warranty
    • 10 years
    • Output warranty of Pmax (measurement Tolerance ± 3%)
    • Linear warranty*
    • *
    • 1) 1st year: 98%, 2) After 2nd year: 0.7%p annual degradation, 3) 81.2% for 25 years

Temperature Coefficients

    • NOCT
    • 45 ± 2 °C
    • Pmpp
    • -0.41 %/°C
    • Voc
    • -0.29 %/°C
    • Isc
    • 0.04 %/°C

DC Electrical Properties

    • Power (STC*)
    • 300 W
    • Efficiency reduction (from 1000 W/m2 to 200 W/m2)
    • < 2.0%
    • Module efficiency (%)
    • 18.3
    • *
    • STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 | The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.

Inverter Electrical Properties

    • Rated Continuous Output Power (W) @240VAC
    • 305
    • Rated Continuous Output Power (W) @208VAC
    • 300
    • CEC Weighted Efficiency (%) @240VAC
    • 96.5
    • CEC Weighted Efficiency (%) @208VAC
    • 96.0
    • Rated Output Current (A) @240VAC
    • 1.27
    • Rated Output Current (A) @208VAC
    • 1.44
    • Nomianl Voltage Range (V) @240VAC
    • 211 ~ 264
    • Nomianl Voltage Range (V) @208VAC
    • 187 ~ 229
    • Nominal Frequency / Range (Hz)
    • 60.0 / 57.0~60.5
    • Power Factor
    • > 0.95
    • Max. Branch Circuit Over Current Protection (Aac)
    • 20

AC Electrical Properties

    • Number of Maximum AC Modules
    • 285W
    • AC Continous Output Power** @240VAC
    • 12ea
    • AC Continous Output Power** @208VAC
    • 11ea
    • **
    • Power(DC) x Weighted Efficiency(%); Figure above accounts for 5W power tolerance.

FEATURES

    • Communication
    • Broadband PLC
    • Monitoring
    • Web Based

Certification

Limited Warranty
