KEY FEATURES

  • Enhanced Performance Warranty
  • Roof Aesthetics
  • High Power Output

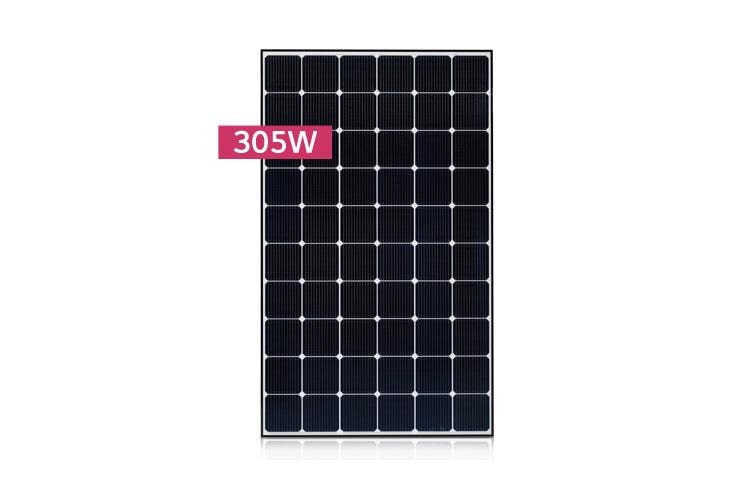

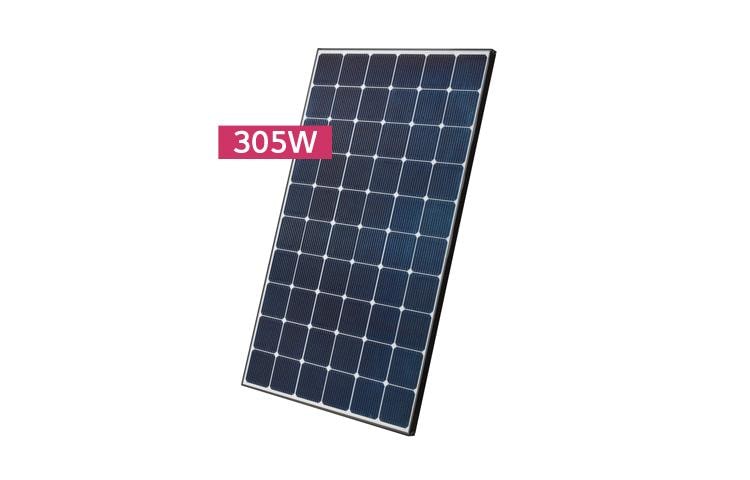

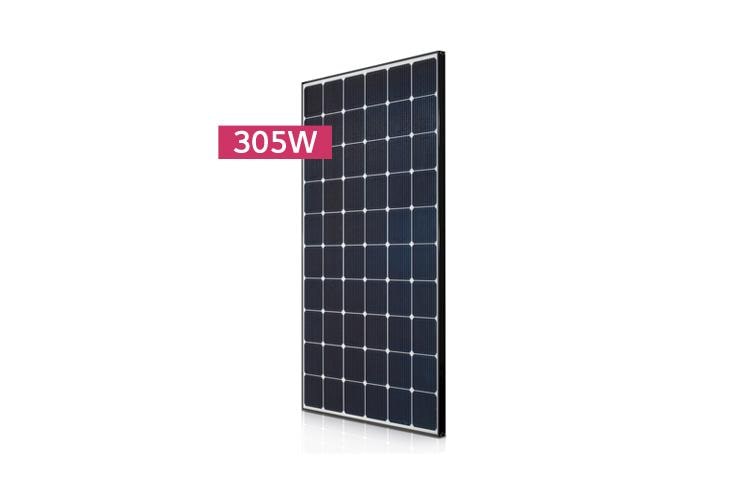

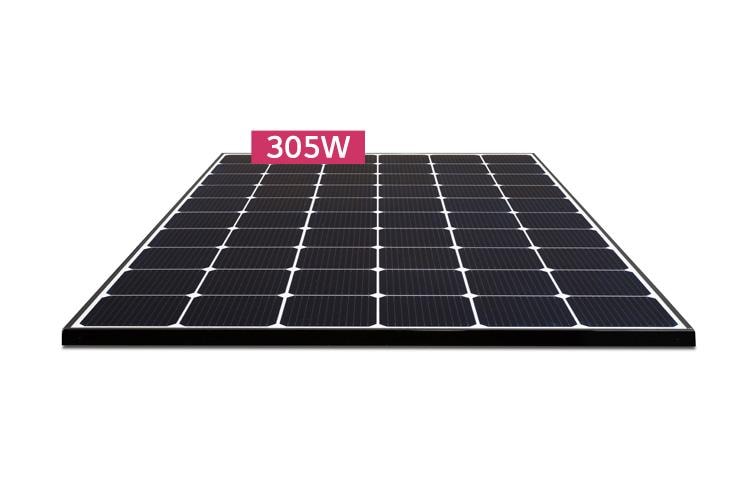

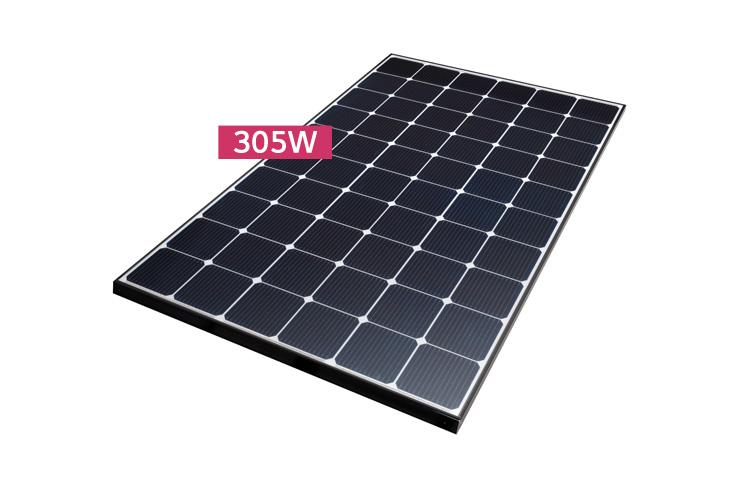

High Efficiency LG NeON® 2 Module Cells: 6 x 10 Module efficiency 18.6% Connector Type: MC4, MC4 Compatible, IP67
$

    Intertek-ETL

    Photovoltaic Modules

    VDE

    CE

  • Enhanced Performance Warranty

    LG offers a 25-year product warranty for LG NeON® R in additional to an enhanced performance warranty. After 25 years, LG NeON® R is guaranteed to produce at least 88.4％ of its initial power output.

  • High Power Output

    Compared with previous models, the LG NeON® 2 has been designed to significantly enhance its output efficiency, thereby making it efficient even in limited space.

  • Roof Aesthetics

    LG NeON® 2 has been designed with aesthetics in mind, using thinner wires that appear all black at a distance.

  • Outstanding Durability

    With its newly reinforced frame design, LG has extended the warranty of the LG NeON® 2 for an additional 3 years. Additionally, LG NeON® 2 can endure a front load up to 6000 Pa, and a rear load up to 5400 Pa.

  • Improved Performance on Sunny Days

    LG NeON 2 now performs better on sunny days, thanks to its improved temperature coefficient.

  • Double-Sided Cell Structure

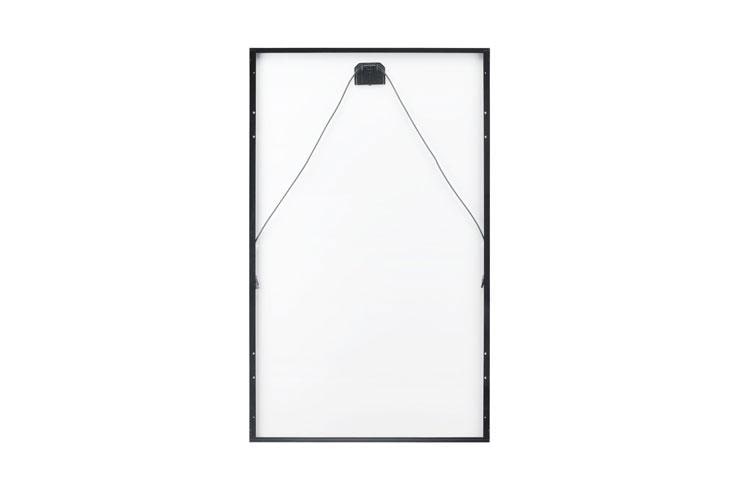

    The rear of the cell used in the LG NeON® 2 contributes to generation, just like the front; the light beam reflected from the rear of the module is reabsorbed to generate additional power.

CERTIFICATIONS & WARRANTY

    • Certifications
    • IEC 61215, IEC 61730-1/-2, UL 1703, ISO 9001, IEC 62716 (Ammonia Test), IEC 61701(Salt Mist Corrosion Test)
    • Module Fire Performance
    • Type 1 (UL 1703)(LGxxxN1C-G4.AUF)
    • Product Warranty
    • 12 years
    • Output Warranty of Pmax
    • Linear warranty*
    • *
    • 1) 1st year: 98%, 2) After 2nd year: 0.6% annual degradation, 3) 83.6% for 25 years
    • Fire Rating (for CANADA)
    • Class C (ULC/ORD C1703)

ELECTRICAL PROPERTIES(NOCT*)

    • Maximum Power(Pmax)
    • 223
    • MPP Voltage (Vmpp)
    • 29.7
    • MPP Current (Impp)
    • 7.49
    • Open Circuit Voltage (Voc)
    • 37.1
    • Short Circuit Current (Isc)
    • 8.01
    • *
    • NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s

Electrical Properties (STC*)

    • MPP Voltage (Vmpp)
    • 32.5
    • MPP Current (Impp)
    • 9.39
    • Open Circuit Voltage (Voc)
    • 40.1
    • Short Circuit Current (Isc)
    • 9.93
    • Module Efficiency (%)
    • 18.6
    • Operating Temperature (°C)
    • -40 ~ +90
    • Maximum System Voltage (V)
    • 1000
    • Maximum Series Fuse Rating (A)
    • 20
    • Power Tolerance (%)
    • 0 ~ +3
    • *
    • STC (Standard Test Condition): Irradiance 1000 W/m2, Module Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. / The typical change in module efficiency at 200 W/m2 in relation to 1000 W/m2 is -2.0%.

MECHANICAL PROPERTIES

    • Cells
    • 6 x 10
    • Cell vendor
    • LG
    • Cell Type
    • Monocrystalline / N-type
    • Cell Dimensions
    • 156.75 x 156.75 mm / 6 inches
    • # of Busbar
    • 12 (Multi Wire Busbar)
    • Dimensions (L x W x H)
    • 1640 x 1000 x 40 mm 64.57 x 39.37 x 1.57 inch
    • Front Load
    • 6000 Pa / 125 psf
    • Rear Load
    • 5400 Pa / 113 psf
    • Weight
    • 17.0 ± 0.5 kg / 37.48 ± 1.1 lbs

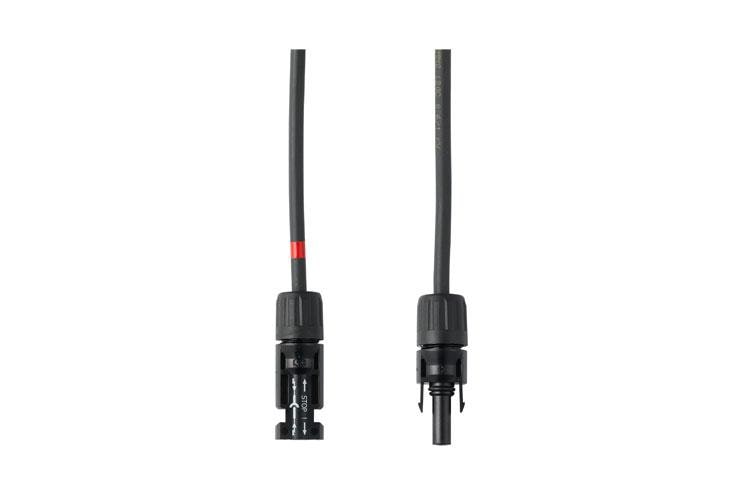

    • Connector Type
    • MC4, MC4 Compatible, IP67

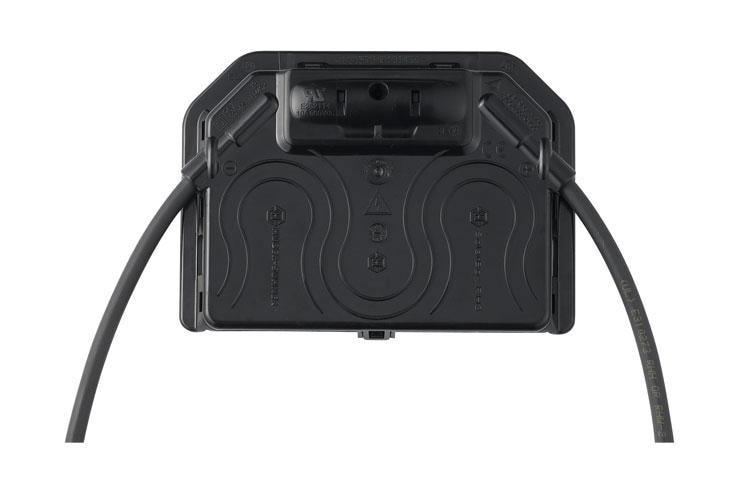

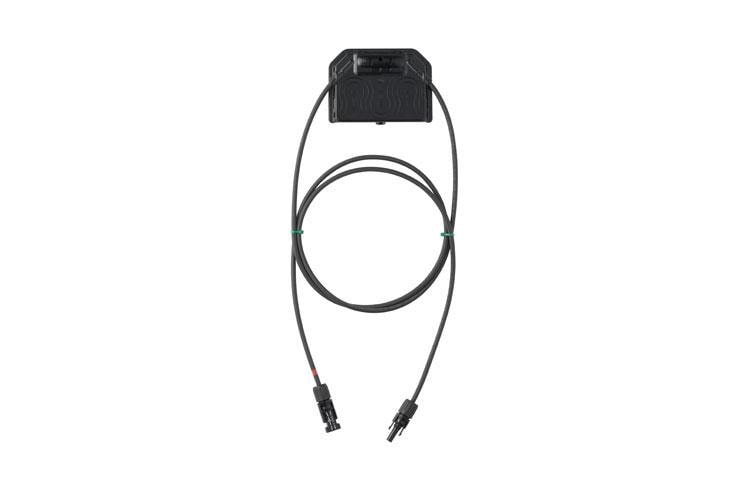

    • Junction Box
    • IP 67 with 3 bypass diodes
    • Length of Cables
    • 2 x 1000 mm / 2 x 39.37 in

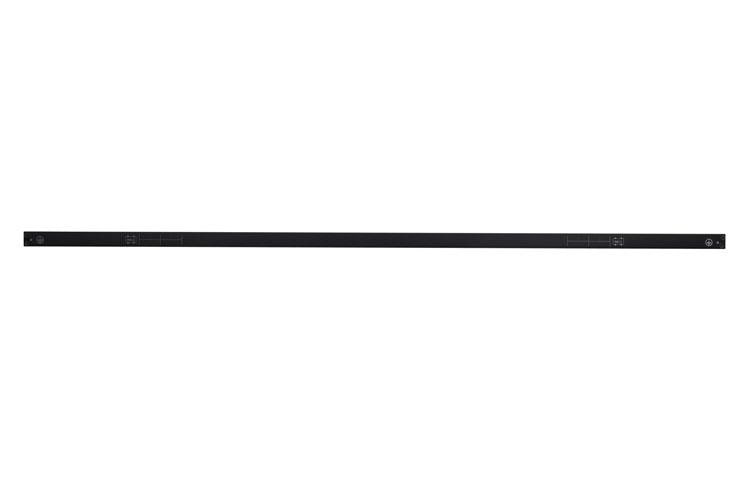

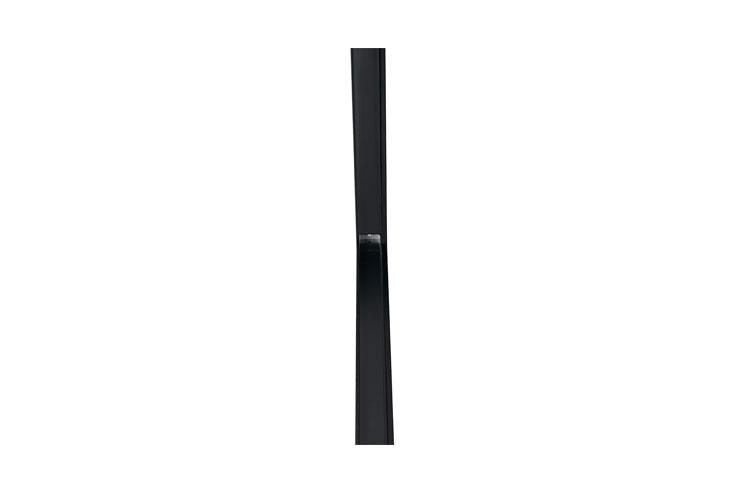

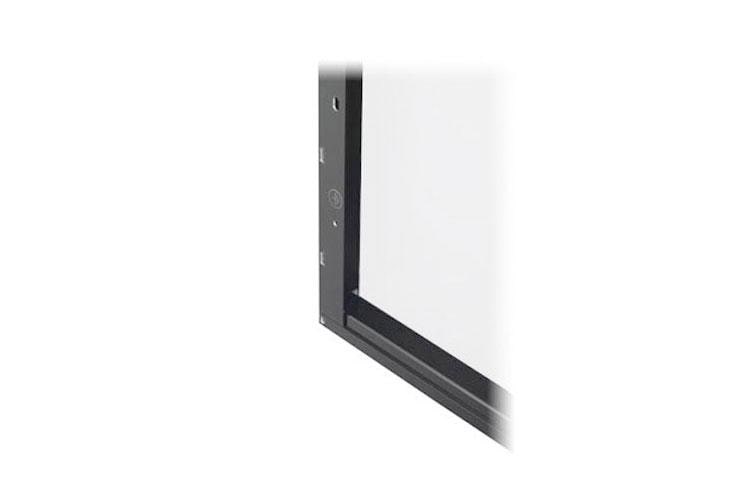

    • Frame
    • Anodized aluminum
    • Glass
    • Tempered Glass with AR Coating

Temperature Characteristics

    • NOCT
    • 46 ± 3 °C
    • Pmpp
    • -0.38 %/°C
    • Voc
    • -0.28 %/°C
    • Isc
    • 0.03 %/°C

Brochures

Certification

Installation Manual

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
