KEY FEATURES

  • Enhanced Performance Warranty
  • High Power Output
  • Improved Product Warranty

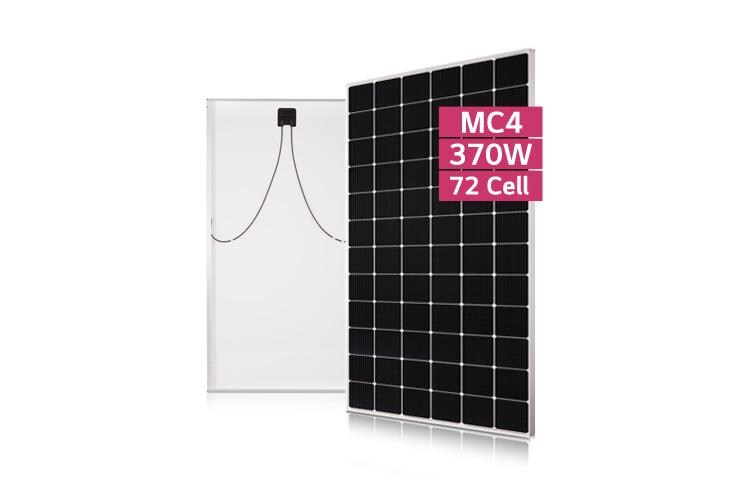

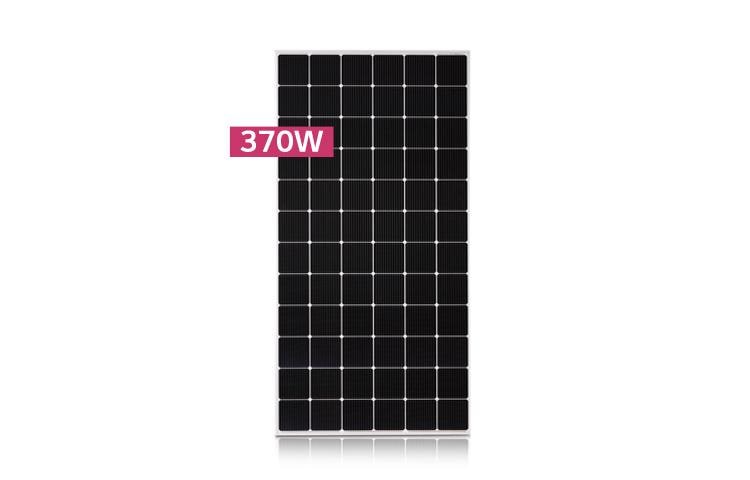

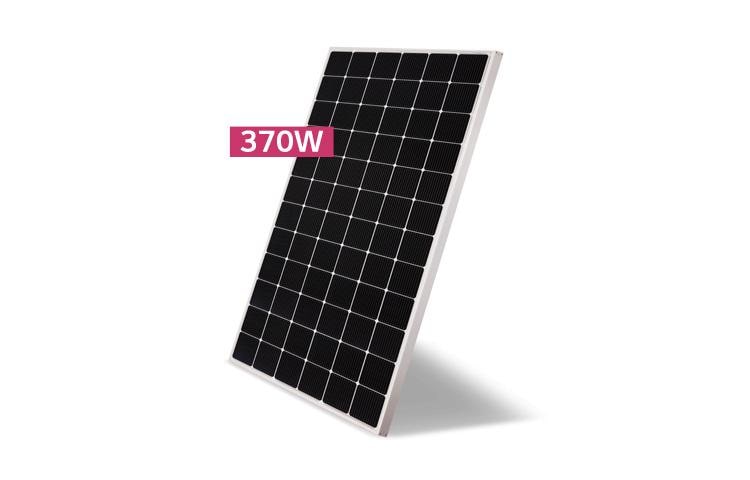

High Efficiency LG NeON®2 72cell Module Cells: 6 x 12 Module efficiency 18.9% Connector Type: MC4
$

    VDE

    Intertek-ETL

    CE

    Photovoltaic Modules

  • Enhanced Performance Warranty

    LG NeON® 2 72cell has an enhanced performance warranty. The annual degradation has fallen from 0.7/yr to 0.6/yr. Even after 25 years, the module guarantees 2.4％ more output than the previous LG NeON® modules.

  • High Power Output

    Compared with previous models, the LG NeON® 2 72cell has been designed to significantly enhance its output efficiency, thereby making it efficient even in limited space.

  • Improved Performance on Sunny Days

    LG NeON 2 72cell now performs better on sunny days, thanks to its improved temperature coefficient.

  • BOS (Balance Of System) Savings

    LG NeON® 2 72cell modules can reduce the total number of strings due to high module efficiency. The result is a more cost- effective and efficient solar power system.

  • Extended Product Warranty

    In addition to the enhanced performance warranty, LG Solar has extended the product warranty of the LG NeON® 2 72cell for an additional 3 years.

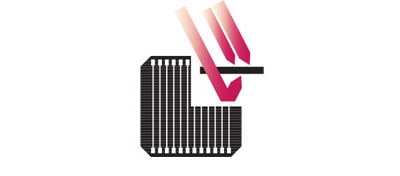

  • Double-Sided Cell Structure

    The rear of the cell used in the LG NeON® 2 72cell contributes to generation, just like the front; the light beam reflected from the rear of the module is reabsorbed to generate additional power.

CERTIFICATIONS & WARRANTY

    • Certifications
    • IEC 61215, IEC 61730-1/-2 UL1703 IEC 61701 (Salt corrosion test)* IEC 62716 (Ammonia corrosion test)*,ISO 9001
    • Module Fire Performance
    • Type 2
    • Fire Resistance Class
    • Class C
    • Product Warranty
    • 12 years
    • Output Warranty of Pmax
    • Linear warranty**
    • *
    • in progress
    • **
    • 1) 1st year: 98%, 2) After 2nd year: 0.6%p annual degradation, 3) 83.6% for 25 years

ELECTRICAL PROPERTIES(NOCT*)

    • Maximum Power(Pmax)
    • 273
    • MPP Voltage (Vmpp)
    • 36.3
    • MPP Current (Impp)
    • 7.52
    • Open Circuit Voltage (Voc)
    • 44.7
    • Short Circuit Current (Isc)
    • 8.03
    • *
    • NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s

Electrical Properties (STC*)

    • MPP Voltage (Vmpp)
    • 39.2
    • MPP Current (Impp)
    • 9.44
    • Open Circuit Voltage (Voc)
    • 48
    • Short Circuit Current (Isc)
    • 9.98
    • Module Efficiency (%)
    • 18.9
    • Operating Temperature (°C)
    • -40 ~ +90
    • Maximum System Voltage (V)
    • 1000
    • Maximum Series Fuse Rating (A)
    • 20
    • Power Tolerance (%)
    • 0 ~ +3
    • *
    • STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.

MECHANICAL PROPERTIES

    • Cells
    • 6 x 12
    • Cell vendor
    • LG
    • Cell Type
    • Monocrystalline / N-type
    • Cell Dimensions
    • 156.75 x 156.75 mm / 6 inches
    • # of Busbar
    • 12 (Multi Wire Busbar)
    • Dimensions (L x W x H)
    • 1960 x 1000 x 46 mm
    • Front Load
    • 5400 Pa
    • Rear Load
    • 2400 Pa
    • Weight
    • 20.3 ± 0.5 kg
    • Connector Type
    • MC4
    • Junction Box
    • IP 67 with 3 bypass diodes
    • Length of Cables
    • 1200 mm x 2 ea
    • Frame
    • Anodized aluminium
    • Glass
    • Tempered Glass with AR Coating

Temperature Characteristics

    • NOCT
    • 45 ± 3 °C
    • Pmpp
    • -0.38 %/°C
    • Voc
    • -0.28 %/°C
    • Isc
    • 0.03 %/°C
