KEY FEATURES

  • Enhanced Performance Warranty
  • High Power Output
  • Roof Aesthetics

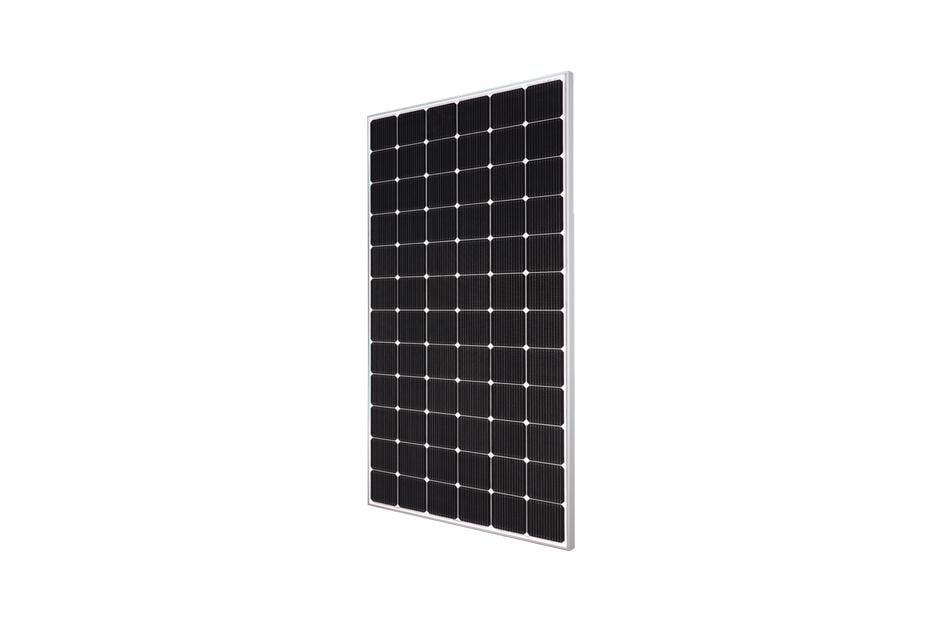

High Efficiency LG NeON® 2 72cell Module Cells: 6 x 12 Module efficiency 19.1% Connector Type: MC4
$

    VDE

    Photovoltaic Modules

    Intertek-ETL

    CE

  • Enhanced Performance Warranty

    LG NeON® 2 has an enhanced performance warranty. The annual degradation has fallen from -0.6％/yr to -0.5％/yr. Even after 25 years, the cell guarantees 2.4％ more output than the previous LG NeON® 2 modules.

  • High Power Output

    Compared with previous models, the LG NeON® 2 72 cell has been designed to significantly enhance its output efficiency, thereby making it efficient even in limited space.

  • Roof Aesthetics

    LG NeON® 2 has been designed with aesthetics in mind, using thinner wires that appear all black at a distance.

  • Outstanding Durability

    With its newly reinforced frame design, LG has extended the warranty of the NeON® 2 from 15 years to 25 years, including labor. In addition, LG NeON® 2 can endure a front load up to 5400 Pa, and a rear load up to 4300 Pa.

  • Improved Performance on Sunny Days

    LG NeON 2 now performs better on sunny days, thanks to its improved temperature coefficient.

  • Near Zero LID

    The n-type cells used in LG NeON® 2 have almost no boron. This leads to less LID (Light Induced Degradation) right after installation.

CERTIFICATIONS & WARRANTY

    • Certifications
    • IEC 61215, IEC 61730-1/-2, UL 1703, IEC 61701 (Salt mist corrosion t est), IEC 62716 (Ammonia corrosion test), ISO 9001
    • Module Fire Performance
    • Type 1
    • Product Warranty
    • 25 years
    • Output Warranty of Pmax
    • Linear warranty**
    • **
    • 1) 1 st year : 98%, 2) After 1st year : 0.5% annual degradation, 3) 25 years : 86%
    • Fire Rating (for CANADA)
    • Class C (ULC/ORD C1703)

ELECTRICAL PROPERTIES(NOCT*)

    • Maximum Power(Pmax)
    • 293
    • MPP Voltage (Vmpp)
    • 37.2
    • MPP Current (Impp)
    • 7.86
    • Open Circuit Voltage (Voc)
    • 46.0
    • Short Circuit Current (Isc)
    • 8.38
    • *
    • NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s

Electrical Properties (STC*)

    • MPP Voltage (Vmpp)
    • 40.2
    • MPP Current (Impp)
    • 9.83
    • Open Circuit Voltage (Voc)
    • 49.2
    • Short Circuit Current (Isc)
    • 10.43
    • Module Efficiency (%)
    • 19.1
    • Operating Temperature (°C)
    • -40 ~ +90
    • Maximum System Voltage (V)
    • 1500 (UL)
    • Maximum Series Fuse Rating (A)
    • 20
    • Power Tolerance (%)
    • 0 ~ +3
    • *
    • STC (Standard Test Condition): Irradiance 1,000 W/m², Ambient Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion. / The Typical change in module efficiency at 200W/m² in relation to 1000W/m2 is -2.0%.
    • Maximum Power (Pmax)
    • 395

MECHANICAL PROPERTIES

    • Cells
    • 6 x 12
    • Cell vendor
    • LG
    • Cell Type
    • Monocrystalline / N-type
    • Cell Dimensions
    • 161.7 x 161.7 mm / 6 inches
    • # of Busbar
    • 12 (Multi Wire Busbar)
    • Dimensions (L x W x H)
    • 2024 x 1024 x 40 mm / 79.69 x 40.31 x 1.57 inch
    • Front Load
    • 5400 Pa
    • Rear Load
    • 4300Pa
    • Weight
    • 21.7 kg
    • Connector Type
    • MC4
    • Junction Box
    • IP68 with 3 Bypass Diodes
    • Frame
    • Anodized aluminum
    • Glass
    • Tempered Glass with AR Coating
    • Cables
    • 1200 mm x 2 ea

Temperature Characteristics

    • NOCT
    • 45 ± 3 °C
    • Pmpp
    • -0.36%/°C
    • Voc
    • -0.26%/°C
    • Isc
    • 0.02 %/°C

Certification

Installation Manual

Limited Warranty

Specification Sheet

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.

Connect to a builder distributor in your area, and get the info you need to complete your next project.
Business Unit is required
Address Unit is required.
  • sales
  • install
  • service
Please retry to enter zip code.

There are no results. Please retry to enter zip code.

Compare (0)

Compare (0)
© Copyright 2024 ©LG Electronics USA, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Corp. All other trademarks are the property of their respective owners. Prices, promotions, and availability may vary by dealer. The information contained herein is subject to change without notice. All screen images are simulated.

LG Solar offers precision-manufactured and market-leading solar panels for businesses and homeowners who demand high performance, reliability and consistently strong energy yield -- all from a brand they can trust. By choosing LG’s long lasting, energy-efficient and sustainable solar panels, receive higher financial and environmental benefits for your business and other stakeholders.

High quality solar products are reliable, backed by great warranty programs and have longer life-cycles. For the latest solar panel models, LG is now providing 25-year product warranty. This shows LG’s confidence in developing highly-efficient, durable and outstanding products. Browse LG’s highly-efficient and reliable Solar Panels to get started.

LG's new module, NeON® 2, adopts Cello technology. Cello technology replaces 3 busbars with 12 thin wires to enhance power output and reliability. NeON® 2 demonstrates LG's efforts to increase customer's values beyond efficiency. It features enhanced 25-year warranty, durability, performance under real environment, and aesthetic design suitable for roofs. LG NeON® 2 has been exceeding the expectation of many as it has been recognized as the bestselling solar module in the market.

LG NeON® R on the other hand is very powerful 60-cell panel module that is equipped with the most advanced energy generation. Boasting a sleek, unique back-contact design, LG takes pride in producing aesthetically-pleasing and state-of-the-art solar products. Discover the ground-breaking features of LG NeON® R such as Enhanced Performance Warranty, High Power Output, High Durability, Aesthetic Roof and Improved Temperature Coefficient.
LG Solar Module has been offering superior solar products in the recent years. The trusted LG brand provides innovative products and has built a reputation on quality and reliability like no other brand.
