KEY FEATURES

  • 60 Cell (6 x 10) Solar Panel
  • 25 Year Enhanced Performance Warranty
  • Better Performance on a Sunny Day
  • Award-Winning Cello Technology™
  • Attractive All-Black Roof Aesthetic

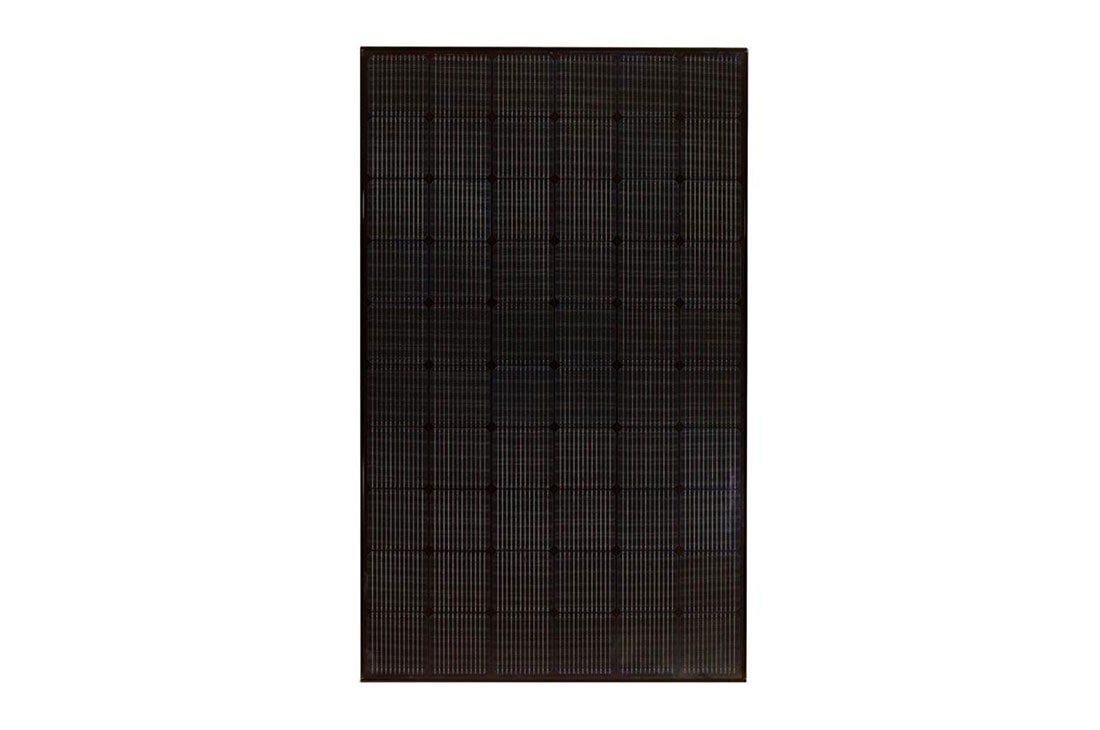

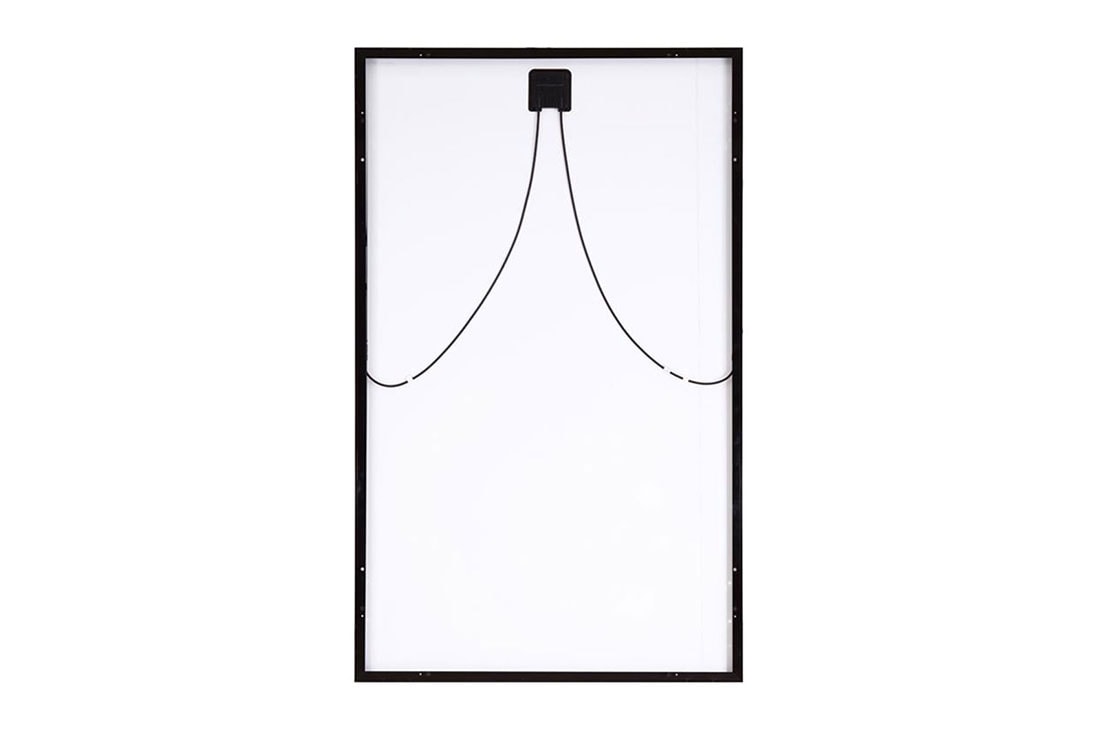

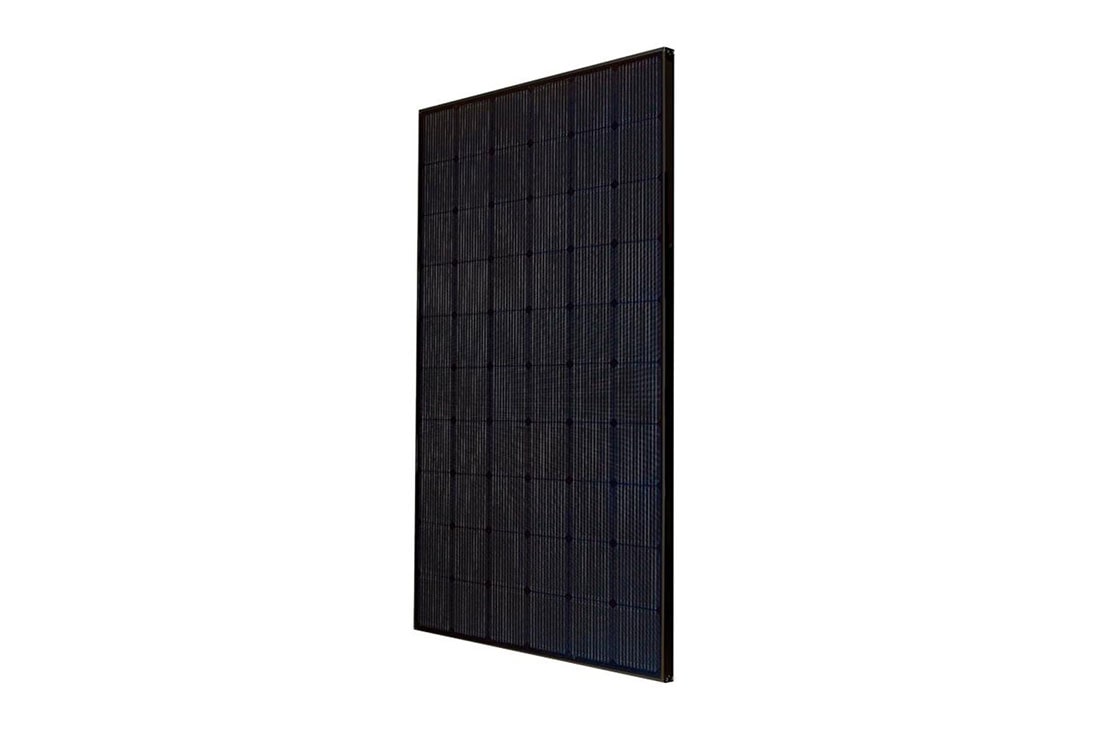

335W NeON® 2 Black Solar Panel for Home

General Data

    • Cell Properties (Material/Type)
    • Monocrystalline/N-type
    • Cell Maker
    • LG
    • Cell Configuration
    • 60 Cells (6 x 10)
    • Number of Busbars
    • 12EA
    • Module Dimensions (L x W x H)
    • 1,686mm x 1,016mm x 40 mm
    • Weight
    • 17.1kg
    • Glass (Material)
    • Tempered Glass with AR Coating
    • Backsheet (Color)
    • Black
    • Frame (Material)
    • Anodized Aluminium
    • Junction Box (Protection Degree)
    • IP 68 with 3 Bypass Diodes
    • Cables (Length)
    • 1,000mm x 2EA
    • Connector (Type/Maker)
    • MC 4/MC

Certifications and Warranty

    • Certifications
    • IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, UL 1703, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001
    • Salt Mist Corrosion Test
    • IEC 62701:2012 Severity 6
    • Ammonia Corrosion Test
    • IEC 62716:2013
    • Module Fire Performance
    • Type 2 (UL 1703)
    • Fire Rating
    • Class C (UL 790, ULC/ORD C 1703)
    • Solar Module Product Warranty
    • 25 Years
    • Solar Module Output Warranty
    • Linear Warranty*
    • *
    • Improved: 1st year 98%, from 2-24th year: 0.33%/year down, at 25th year: 90.08%

Temperature Characteristics

    • NMOT* [°C]
    • 42 ± 3
    • Pmax [%/°C]
    • -0.36
    • Voc [%/°C]
    • -0.26
    • Isc [%/°C]
    • 0.03
    • *
    • NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m², Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5.

Electrical Properties (NMOT)

    • Maximum Power (Pmax) [W]
    • 51
    • MPP Voltage (Vmpp) [V]
    • 32.4
    • MPP Current (Impp) [A]
    • 7.76
    • Open Circuit Voltage (Voc) [V]
    • 38.7
    • Short Circuit Current (Isc) [A]
    • 8.28

Electrical Properties (STC*)

    • Maximum Power (Pmax) [W]
    • 335
    • MPP Voltage (Vmpp) [V]
    • 34.5
    • MPP Current (Impp) [A]
    • 9.72
    • Open Circuit Voltage (Voc± 5%) [V]
    • 41.1
    • Short Circuit Current (Isc± 5%) [A]
    • 10.31
    • Module Efficiency [%]
    • 19.6
    • Bifaciality Coefficient of Power [%]
    • 10
    • Power Tolerance [%]
    • 0 ~ +3
    • *
    • STC (Standard Test Condition): Irradiance 1000 W/m², Cell temperature 25°C, AM 1.5, Measure Tolerance: ± 3%.

Operating Conditions

    • Operating Temperature [°C]
    • -40 ~+90
    • Maximum System Voltage [V]
    • 1,000 (UL), 1000 (IEC)
    • Maximum Series Fuse Rating [A]
    • 20
    • Mechanical Test Load (Front) [Pa/psf]
    • 5,400/113
    • Mechanical Test Load (Rear) [Pa/psf]
    • 4,000/84
    • *
    • Manufacturer Declaration according to IEC 61215:2005 Mechanical Test Loads 5,400 Pa/4,000 Pa based on IEC 61215-2:2016 (Test Load = Design Load x Safety Factor (1.5))

Packaging Configuration

    • Number of Modules per Pallet [EA]
    • 25
    • Number of Modules per 40ft HQ Container [EA]
    • 650
    • Packaging Box Dimensions (L x W x H) [mm]
    • 1,750 x 1,120 x 1,221
    • Packaging Box Gross Weight [kg]
    • 464

Certification

Limited Warranty

Specification Sheet
