KEY FEATURES

  • 60 Cell (6 x 10) Solar Panel
  • 25 Year Enhanced Performance Warranty
  • Better Performance on a Sunny Day
  • Award-Winning Cello Technology™
  • Attractive Roof Aesthetic

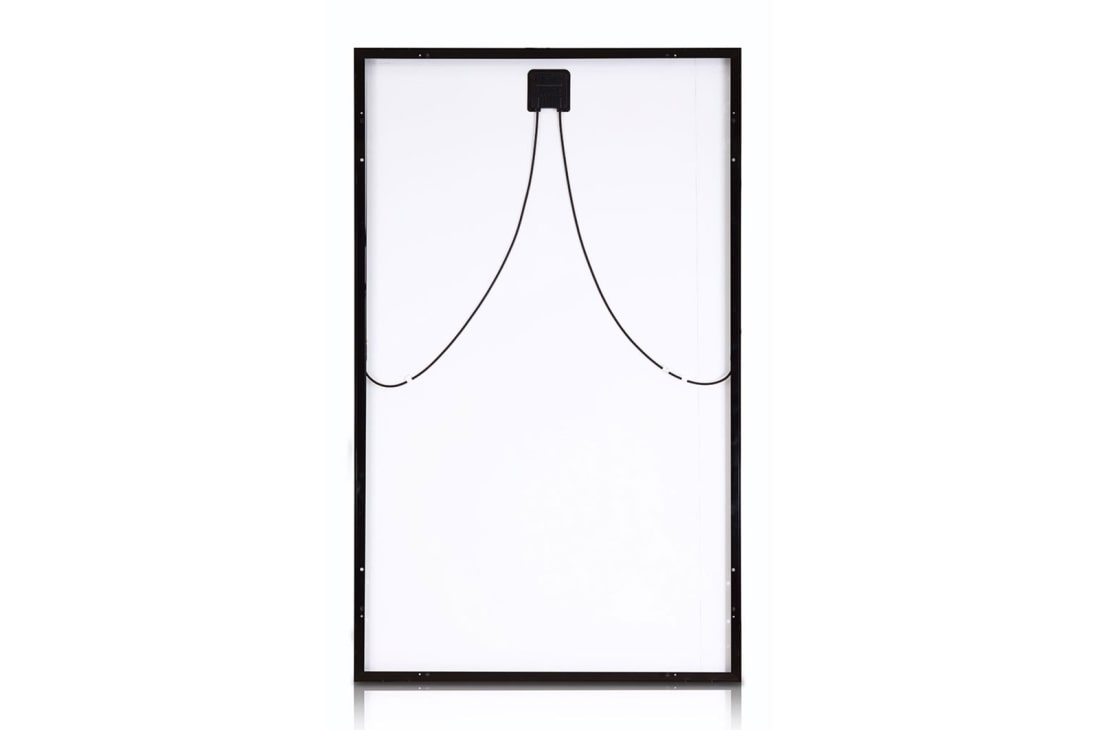

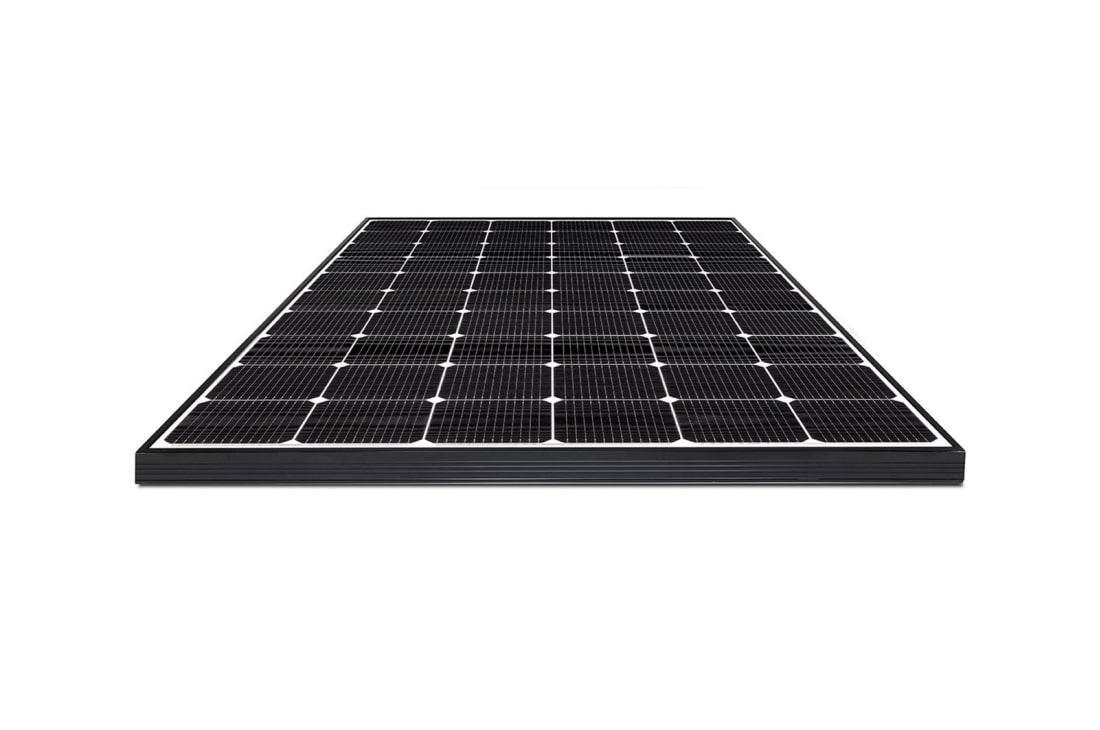

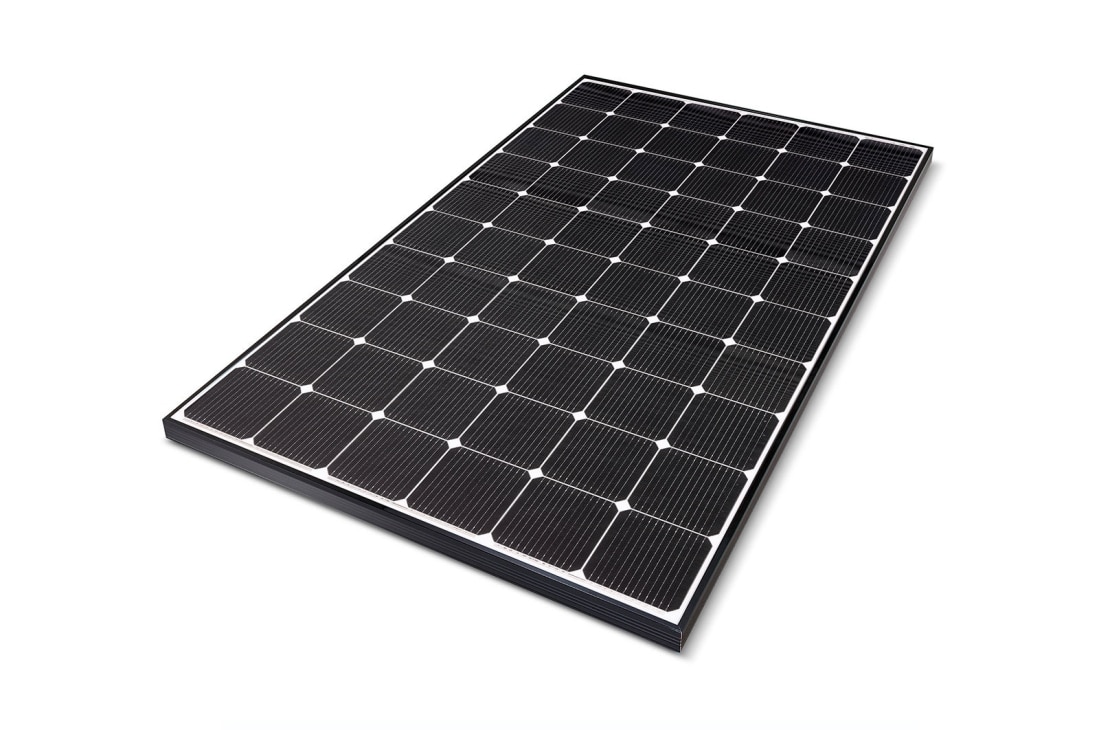

355W NeON® 2 Solar Panel for Home

General Data

    • Cell Properties (Material/Type)
    • Monocrystalline/N-type
    • Cell Maker
    • LG
    • Cell Configuration
    • 60 Cells (6 x 10)
    • Number of Busbars
    • 12EA
    • Module Dimensions (L x W x H)
    • 1700mm x 1,016mm x 40mm
    • Weight
    • 18kg
    • Glass (Material)
    • Tempered Glass with AR Coating
    • Backsheet (Color)
    • White
    • Frame (Material)
    • Anodized Aluminium
    • Junction Box (Protection Degree)
    • IP 68 with 3 Bypass Diodes
    • Cables (Length)
    • 1,000mm x 2EA
    • Connector (Type/Maker)
    • MC 4/MC

Certifications and Warranty

    • Certifications
    • EC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001
    • Salt Mist Corrosion Test
    • IEC 61701:2012 Severity 6
    • Ammonia Corrosion Test
    • IEC 62716:2013
    • Module Fire Performance
    • Type 1 (UL 1703)
    • Fire Rating
    • Class C (UL 790, ULC/ORD C 1703)
    • Solar Module Product Warranty
    • 25 Years
    • Solar Module Output Warranty
    • Linear Warranty*
    • *
    • Improved: 1st year 98%, from 2-24th year: 0.33%/year down, after 25th year: 90.08%

Temperature Characteristics

    • NMOT* [°C]
    • 42 ± 3
    • Pmax [%/°C]
    • -0.34
    • Voc [%/°C]
    • -0.26
    • Isc [%/°C]
    • 0.03
    • *
    • NMOT (Nominal Module Operating Temperature): Irradiance 800 W/m², Ambient temperature 20 °C, Wind speed 1 m/s, Spectrum AM 1.5.

Electrical Properties (NMOT)

    • Maximum Power (Pmax) [W]
    • 266
    • MPP Voltage (Vmpp) [V]
    • 32.6
    • MPP Current (Impp) [A]
    • 8.17
    • Open Circuit Voltage (Voc) [V]
    • 39.1
    • Short Circuit Current (Isc) [A]
    • 8.68

Electrical Properties (STC*)

    • Maximum Power (Pmax) [W]
    • 355
    • MPP Voltage (Vmpp) [V]
    • 34.7
    • MPP Current (Impp) [A]
    • 10.25
    • Open Circuit Voltage (Voc± 5%) [V]
    • 41.5
    • Short Circuit Current (Isc± 5%) [A]
    • 10.80
    • Module Efficiency [%]
    • 20.6
    • Bifaciality Coefficient of Power [%]
    • 10
    • Power Tolerance [%]
    • 0 ~ +3
    • *
    • STC (Standard Test Condition): Irradiance 1000 W/m², cell temperature 25 °C, AM 1.5, Measure Tolerance of Pmax: +/- 3%.

Operating Conditions

    • Operating Temperature [°C]
    • -40 ~+90
    • Maximum System Voltage [V]
    • 1,000
    • Maximum Series Fuse Rating [A]
    • 20
    • Mechanical Test Load (Front) [Pa/psf]
    • 5,400/113
    • Mechanical Test Load (Rear) [Pa/psf]
    • 4,000/84
    • *
    • Mechanical Test Load 5,400Pa/4,000Pa based on IEC 61215-2 : 2016, Test Load = Design Load x Safety Factor (1.5)

Packaging Configuration

    • Number of Modules per Pallet [EA]
    • 25
    • Number of Modules per 40ft HQ Container [EA]
    • 650
    • Packaging Box Dimensions (L x W x H) [mm]
    • 1,750 x 1,120 x 1,221
    • Packaging Box Gross Weight [kg]
    • 464

Limited Warranty

Specification Sheet

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.

Connect to a builder distributor in your area, and get the info you need to complete your next project.
Business Unit is required
Address Unit is required.
  • sales
  • install
  • service
Please retry to enter zip code.

There are no results. Please retry to enter zip code.

Compare (0)

Compare (0)
© Copyright 2024 ©LG Electronics USA, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Corp. All other trademarks are the property of their respective owners. Prices, promotions, and availability may vary by dealer. The information contained herein is subject to change without notice. All screen images are simulated.

LG Solar offers precision-manufactured and market-leading solar panels for businesses and homeowners who demand high performance, reliability and consistently strong energy yield -- all from a brand they can trust. By choosing LG’s long lasting, energy-efficient and sustainable solar panels, receive higher financial and environmental benefits for your business and other stakeholders.

High quality solar products are reliable, backed by great warranty programs and have longer life-cycles. For the latest solar panel models, LG is now providing 25-year product warranty. This shows LG’s confidence in developing highly-efficient, durable and outstanding products. Browse LG’s highly-efficient and reliable Solar Panels to get started.

LG's new module, NeON® 2, adopts Cello technology. Cello technology replaces 3 busbars with 12 thin wires to enhance power output and reliability. NeON® 2 demonstrates LG's efforts to increase customer's values beyond efficiency. It features enhanced 25-year warranty, durability, performance under real environment, and aesthetic design suitable for roofs. LG NeON® 2 has been exceeding the expectation of many as it has been recognized as the bestselling solar module in the market.

LG NeON® R on the other hand is very powerful 60-cell panel module that is equipped with the most advanced energy generation. Boasting a sleek, unique back-contact design, LG takes pride in producing aesthetically-pleasing and state-of-the-art solar products. Discover the ground-breaking features of LG NeON® R such as Enhanced Performance Warranty, High Power Output, High Durability, Aesthetic Roof and Improved Temperature Coefficient.
LG Solar Module has been offering superior solar products in the recent years. The trusted LG brand provides innovative products and has built a reputation on quality and reliability like no other brand.
