KEY FEATURES

  • Built-in LG Microinverter System
  • Top-level Output (DC 375W, AC 320W)
  • Conversion Efficiency 97% (based on CEC standards)
  • Sleek Modern Design
  • 25-Year All-Inclusive Product Warranty
  • Compatible with future LG HEMS Ecosystem

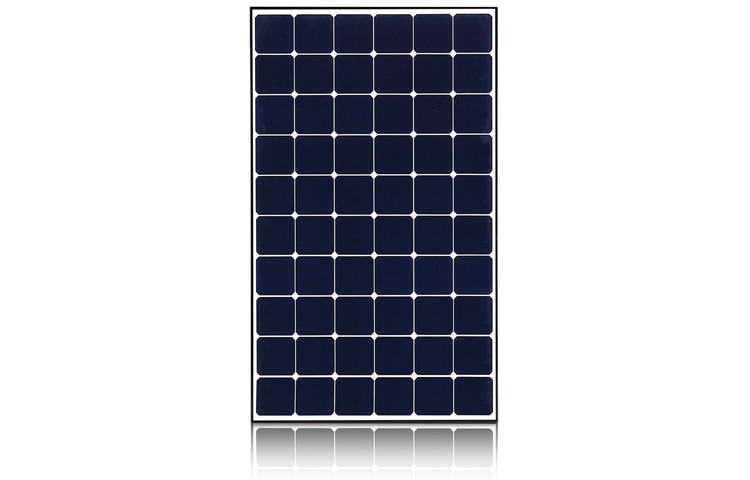

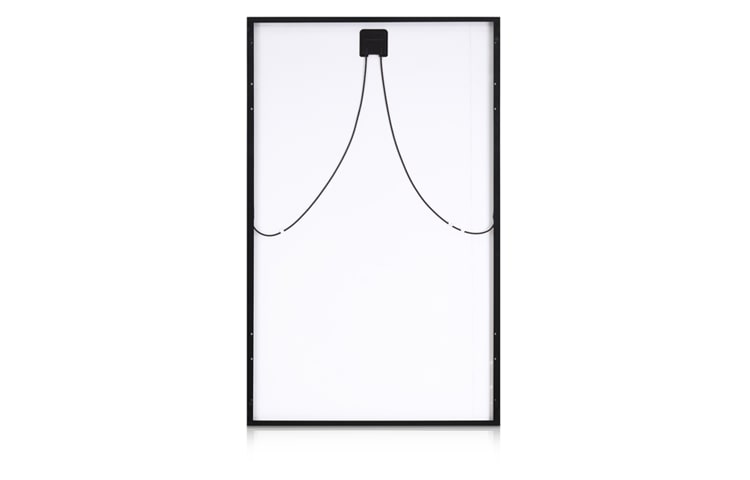

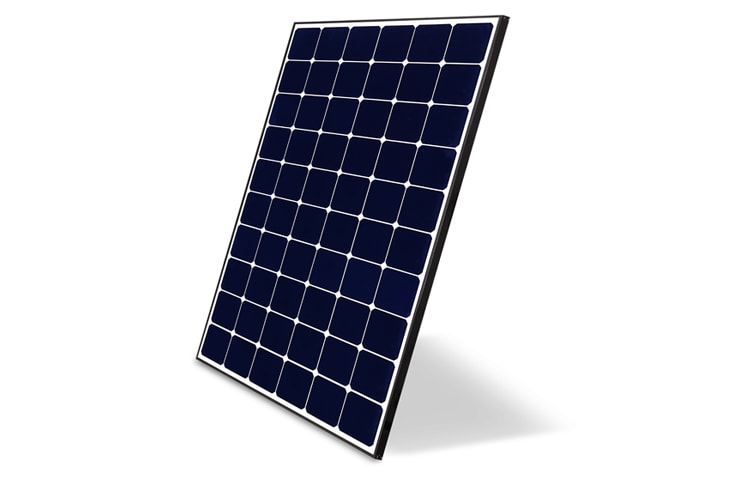

375W High Efficiency LG NeON® R ACe Solar Panel with Built-in Microinverter, 60 Cells(6 x 10), Module Efficiency: 21.7%

General Data

    • Cells
    • 6 x 10
    • Cell Vendor
    • LG
    • Cell Type
    • Monocrystalline/N-type
    • Cell Dimensions
    • 161.7 x 161.7 mm/6 inches
    • Number of Busbars
    • 30 EA (Multi Wire Busbar)
    • Dimensions (L x W x H)
    • 1,700 x 1,016 x 40 mm
    • Weight
    • 19.0 kg
    • Mechanical Test Load*
    • 5,400Pa (Front)/4,000Pa (Rear)
    • Cooling
    • Natural Convection - No Fans
    • Enclosure Environmental Rating
    • Outdoor - NEMA 250 type 6 (Micro Inverter)
    • Operating Ambient Temperature
    • -40 ~ +65°C (-40 ~+149°F )
    • Storage Temperature
    • -40 ~ +90°C (-40 ~+194°F )
    • Glass
    • High Transmission Tempered Glass
    • Frame
    • Anodized Aluminium
    • Inverter Model (Grid Support Utility Interactive)
    • LM320UE-A2
    • *Mechanical Test Load
    • 5,400pa/4,000pa based on IEC 61215 - 2:2016 (Test Load = Design Load x Safety Factor (x1.5))

Certifications and Warranty

    • Certifications
    • UL1741, UL1703, IEEE1547 | FCC Part 15 Class B*
    • Module Fire Performance
    • Type 1 (UL 1703)*
    • Solar Module Product Warranty
    • 25 Years
    • Micro Inverter Warranty
    • 25 Years
    • Output Warranty of Pmax (DC) (Measurement Tolerance 3%)
    • Linear Warranty**Please contact customer support for full warranty details.
    • *
    • *In Progress

DC Temperature Characteristics

    • NOCT*
    • 44 3 °C
    • Pmax
    • -0.3%/°C
    • Voc
    • -0.24%/°C
    • Isc
    • 0.037%/°C
    • *NOCT
    • (Nominal Operating Cell Temperature): Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s

DC ELECTRICAL PROPERTIES(STC*)

    • Maximum Power (Pmax)**
    • 375
    • Module Efficiency
    • 21.7
    • Power Tolerance (%)
    • 0 ~ +3
    • *STC (Standard Test Condition)
    • Irradiance 1000 W/m², Cell temperature 25°C, AM 1.5
    • **Measurement Tolerance of Pmax:
    • 3%

AC ELECTRICAL PROPERTIES

    • Max. Continuous Output Power (VA)
    • 320
    • Nominal Voltage / Range (V)
    • 240 / 211 ~ 264 ; 208 / 183 ~ 229
    • Nominal Output Current (A)
    • 1.33 ; 1.54
    • CEC Weighted Efficiency (%)
    • 97.0 ; 96.5
    • Cable Length (only cable length) (mm)
    • Cable 1 : 1,200 ; Cable 2 : 1,100
    • Number of Maximum AC Modules
    • 12 ; 10
    • Nominal Frequency / Range (Hz)
    • 60.0 / 59.3~60.5
    • Power Factor / Adjustable
    • 1/0.8leading…0.8lagging
    • Max. Branch Circuit Over Current Protection (A)
    • 20

Certification

Specification Sheet
