KEY FEATURES

  • 5.0 cu. ft. Mega Capacity
  • SmartThinQ® Technology
  • 6Motion™ Technology
  • SlamProof™ Lid
  • Direct Drive Motor 10-Year Limited Warranty

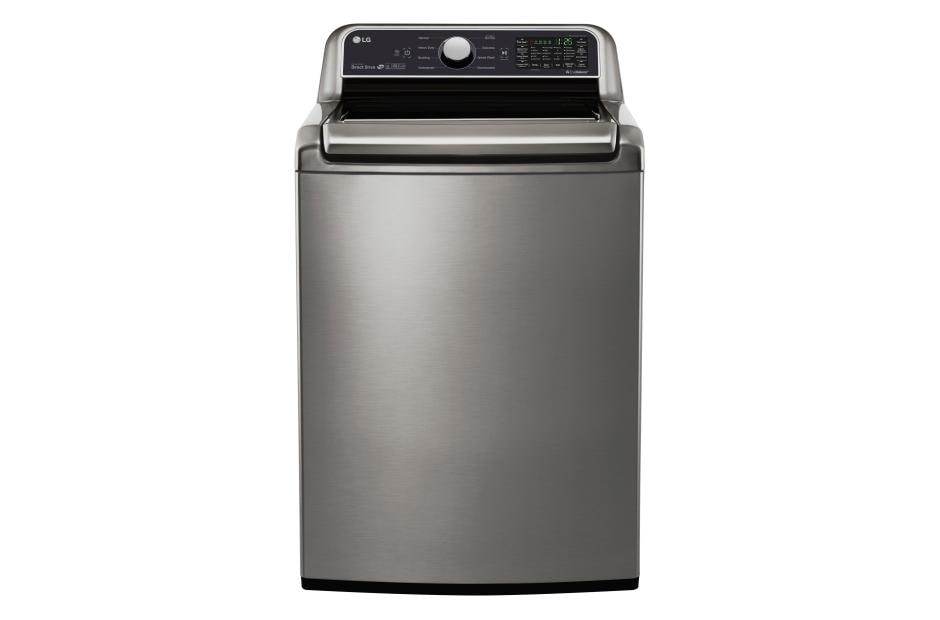

5.0 cu. ft. Large Smart wi-fi Enabled Top Load Washer
$ 949.99

Get it All Done In Less Time

Ultra-large capacity (5.0 cu.ft.) means you have the room to do more laundry in fewer loads.

Think you can’t do laundry on the go? Think Again.

Expand the limits of your laundry room with the LG SmartThinQ® app. Select a cycle, start or stop the wash and get notifications about when your laundry will be done, all from your smartphone. It even works with the Google Assistant and Amazon Alexa, so you can manage your laundry with simple voice commands.
Watch the Full Movie

A Smarter Way to Wash

6Motion™ Technology uses up to 6 different wash motions to provide a smart cleaning experience that is gentle on clothes and maximizes washing performance.

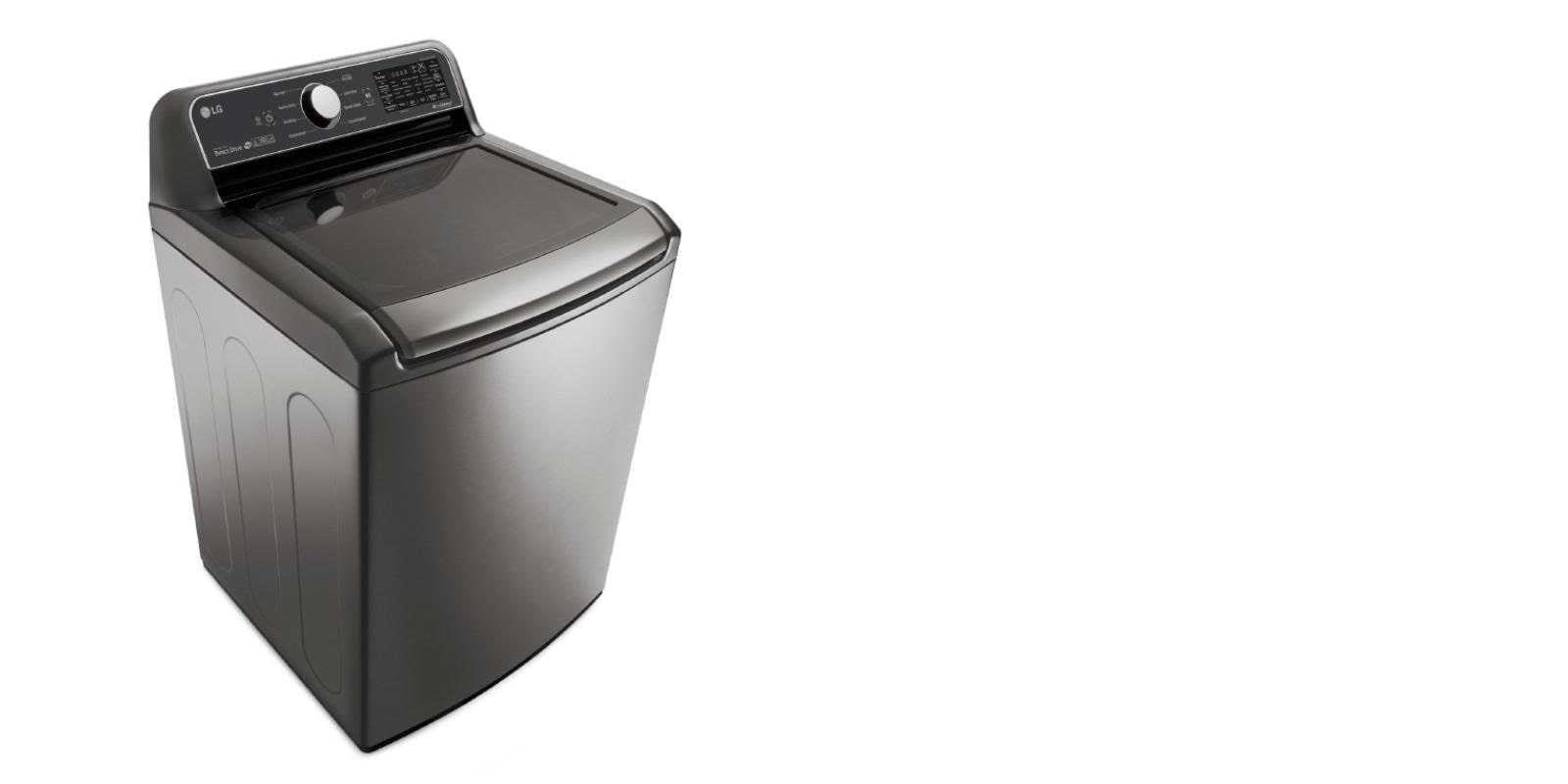

Clearly Quiet.

Our SlamProof™ glass lid allows you to watch your washer in action. And closing it is safe and quiet thanks to our smooth-operating hydraulic hinge.

Warranty / Certifications





Follow the tips below to make sure your LG product will fit in the space intended.
Download Measure First

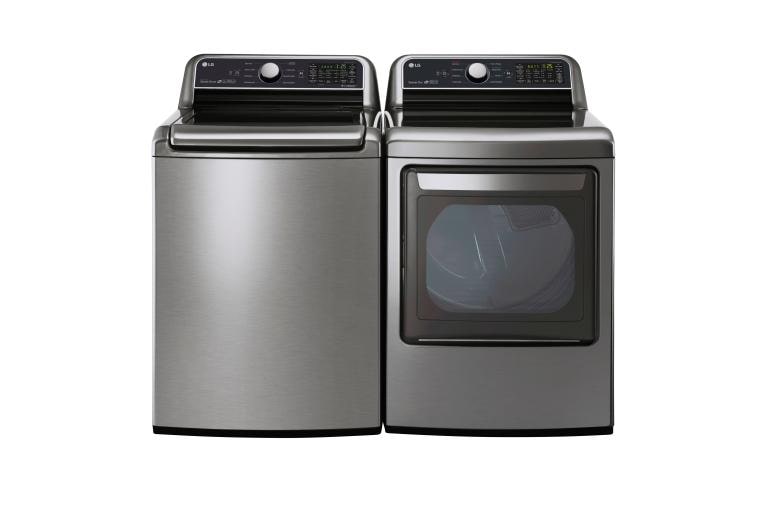

complete your system

See compatible products below:

Download Spec Sheet Download Energy Guide

APPEARANCE

    • Design Look
    • Rear Control
    • Dial-A-Cycle™
    • Yes
    • Intelligent Electronic Controls with Dual LED Display
    • Yes
    • Touch Buttons
    • Yes

CAPACITY

    • Capacity
    • 5.0 cu. ft.

CONVENIENCE FEATURES

    • 3-Tray Dispenser
    • Main Wash, Fabric Softener + Liquid Bleach
    • Add Garment Indicator
    • Yes
    • Auto Suds Removal
    • Yes
    • Child Lock
    • Yes
    • End of Cycle Signal
    • Yes
    • Forced Drain System
    • Yes
    • Leveling Legs
    • 4 Adjustable Legs
    • LoadSense
    • Yes
    • LoDecibel™ Quiet Operation
    • Yes
    • Status Indicator(s)
    • Yes
    • TrueBalance™ Anti-Vibration System
    • Yes

DIMENSIONS/CLEARANCES/WEIGHTS

    • Carton (WxHxD)
    • 29 1/2" x 47" x 31 1/4"
    • Product (WxHxD)
    • 27" x 44 1/2" x 28 3/8" (57 1/5" H with lid open)
    • Weight (Product/Carton)
    • 146 lbs / 168 lbs

FABRIC CARE FEATURES

    • ColdWash™ Option
    • Yes
    • SenseClean™ System
    • Yes
    • SmartRinse™ Jet Spray System
    • Yes

MATERIALS AND FINISHES

    • Available Colors
    • White (W), Graphite Steel (V)
    • Cabinet
    • PCM
    • Control Panel
    • Plastic
    • Diamond Glass Lid
    • Transparent Glass
    • NeveRust™ Stainless Steel Washplate
    • Yes
    • Top Cover
    • Painted

MOTOR AND AGITATOR

    • Axis
    • Vertical
    • Max RPM
    • 950
    • Motor Speed
    • Variable
    • Motor Type
    • Inverter Direct Drive Motor

POWER SOURCE

    • Ratings
    • CSA Listed

SMARTTHINQ® TECHNOLOGY

    • SmartDiagnosis™
    • Yes
    • WiFi Connectivity
    • Yes

SUMMARY

    • Design Style
    • Top Loader
    • SmartThinQ®
    • Yes
    • Wi-Fi Enabled
    • Yes

WARRANTY/UPC

    • UPC
    • 048231024549

WASH PROGRAMS

    • No. of Soil Levels
    • 3
    • Spin Speeds
    • Extra High (950 max.), High, Medium, Low, No Spin
    • No. of Wash/Rinse Temps
    • 4 (Hot, Warm, Cold, Tap Cold (All Rinses)
    • No. of Water Levels
    • Automatically adjusts to the size of load
    • No. of Programs
    • 8
    • Wash Programs
    • Pre Wash+Normal, Cotton/Normal, Bulky/Bedding, Heavy Duty, Speed Wash, Delicates, Waterproof, Downloaded
    • No. of Options
    • 14
    • Options
    • Soak, Extra Rinse, Fabric Softener, Delay Wash (up to 19 hours), Child Lock, Custom Program PGM Save, Signal, Rinse+Spin, Spin Only, ColdWash™, StainCare™, Water Plus, Add Garment
