LG TV Signage with Essential Function
*All images in this web page are for illustrative purposes only and may differ from the actual product.
*'LG Conventional' refers to LG UT640S series.
*SoC : System On Chip.
**GUI : Graphical User Interface.

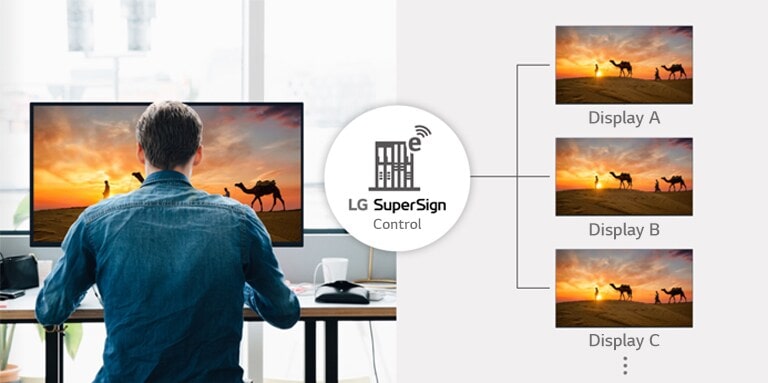

Versatile Content Management with LG SuperSign CMS
*LG SuperSign Control needs to be purchased separately.
*Initial setting from display is required for Crestron Connected® compatibility.
**Network based control.
*Using an HDMI cable connection (HDMI cable is optional).
Real-Time Promotion & Content Sharing
Easy Menu Setup for Vertical Needs
REAL-TIME LG ConnectedCare SERVICE
Gallery
All Spec
INFO
-
Category
Smart TV Signage
DESIGN
-
Tool Name
UP8000
-
Stand Type
2 Pole
-
Front Color
Ashed Blue
DISPLAY
-
Size (Inch)
43
-
Resolution
4K Ultra HD (3,840 x 2,160)
-
Brightness (Typ.)
300 nit
VIDEO
-
AI Picture Pro
-
-
HDR_HDR 10 Pro
YES
-
HDR_HLG (Hybrid Log Gamma)
YES
-
Game Optimizer
-
AUDIO (SOUND)
-
Speaker (Audio Output)
20W
-
AI Sound
-
-
AI Acoustic Tuning
-
-
LG Sound Sync
YES
BROADCASTING SYSTEM
-
Digital
DVB-T2/C
-
Analog (NTSC / SECAM / PAL)
PAL
-
Teletext (Auto Teletext)
YES
STANDARD
-
Safety
CB, CU TR
-
EMC
CE
-
Others
-
HOSPITALITY SOLUTION
-
Pro:Centric Smart
-
-
webRTC (Real Time Communication)
-
-
Pro:Centric Cloud
-
-
Pro:Centric Direct
-
-
Pro:Centric V
-
-
Pro:Centric Server
-
-
Quick Menu (Customizable Portal)
-
-
Pro:Idiom (DRM)
-
-
Pro:Idiom Media (DRM)
-
-
Other DRM
-
SMART FUNCTION
-
webOS version
webOS 6.0
-
Web Browser
YES
-
Magic Remote Compatibility
-
-
Multi-View
-
-
AOD
-
-
Mood Display
YES
-
Gallery Mode
-
-
Home Office
-
-
Wi-Fi
YES
-
Bluetooth
YES
-
Soft AP
YES
-
Screen Share
YES
-
DIAL
YES
-
Bluetooth Audio Playback
YES
-
HDMI-ARC
YES (HDMI2)
-
Voice Recognition (Standalone/Solution)
-
-
IoT
-
HOSPITALITY FEATURE
-
EzManager
-
-
USB Cloning
YES
-
Enterprise Mode
-
-
Wake on RF
-
-
WOL
YES
-
SNMP
YES
-
Diagnostics
YES (Self Diagnostics(USB))
-
HTNG-CEC (Version)
YES
-
Simplink(HDMI-CEC) (Version)
YES (1.4)
-
IR Out
YES (RS-232C, HDMI)
-
Multi IR Code
YES
-
Hotel Mode / PDM / Installer Menu
YES
-
Welcome Video
-
-
Welcome Screen (Splash Image)
YES
-
Insert Image
YES
-
One Channel Map
YES
-
External Speaker Out / Line Out
YES (Ext. Speaker Out)
-
USB Auto playback / playback+
-
-
Instant ON
-
-
V-Lan Tag
-
-
Mobile Remote
-
-
Port Block
YES
-
Lock mode
YES (Limited)
-
RJP (Remote Jack Pack) Compatibility
YES
-
External Power Out
-
-
Full Touch Screen
-
-
b-LAN
-
-
Conformal Coating
-
-
Energy Saving mode
YES
VERTICAL FUNCTION (HOSPITAL)
-
Pillow Speaker
-
-
Healthcare Headphone Mode
-
-
Protection Cover (Glass)
-
VERTICAL FUNCTION (CORPORATE/RETAIL)
-
Vertical Setup
YES
-
Fail Over
YES
-
Play Via URL
YES
-
NTP Server Setting
YES
-
CISCO Certi. Compatibility
YES
-
Crestron Certi. Compatibility
YES
-
DPM (Digital Power Management)
YES
-
Time scheduler
YES
-
RTC (Real Time Clock)
YES
-
NTP sync timer
YES
-
BEACON
YES
-
Video Tag
-
-
Embedded CM (Contents Manager)
YES
-
Embedded GM (Group Manager)
YES
SUPERSIGN SW COMPATIBILITY
-
Control / Control Plus
YES
-
CMS(Premium)
YES
-
Simple Editor
YES
-
LG Connected Care
YES
CONNECTIVITIES
-
HDMI In
YES (3ea)
-
USB (Ver.)
YES (1ea / 2.0)
-
RF In
YES (1ea)
-
AV In
YES
-
Component in (Y,Pb,Pr-Video)
-
-
RGB In (D-sub 15pin) - PC
-
-
Digital Audio Out (Optical)
YES
-
PC Audio Input
-
-
External Speaker Out(3.5mm Phone jack)
YES
-
Audio Line Out(3.5mm Phone jack)
-
-
Headphone Out
YES
-
CI Slot
-
-
RJ45 (Usage Purpose)
YES (LAN)
-
RS-232C (D-Sub 9pin / Phone jack)
YES (Phone jack)
-
TV link Configuration (Phone jack type)
-
-
LG SVC only (Phone jack type)
YES
-
MPI Port (RJ12 jack)
-
-
ECI (RJ12 jack)
-
-
Pillow Speaker interface (6pin)
-
-
Expansion slot (60pin)
-
-
DC Adapter In
-
-
PoC (Power over Coax)
-
-
EXT. IR In
-
MECHANICAL
-
VESA Compatible
200 x 200 mm
-
Kensington Lock
YES
-
Credenza/Security Screw Hole
-
-
Lock Down Plate (for easy installing)
-
DIMENSIONS/WEIGHT
-
Dimension with Stand (W x H x D)
967 x 622 x 216 mm
-
Dimension without Stand (W x H x D)
967 x 564 x 57.1 mm
-
Dimension in Shipping (W x H x D)
1055 x 660 x 142 mm
-
Bezel Width (L/R/U/B, On Bezel)
12.8/12.8/12.8/19.9 mm
-
Bezel Width (L/R/U/B, Off Bezel)
6.9/6.9/6.9/18.4 mm
-
Weight with Stand
8.9 kg
-
Weight without Stand
8.8 kg
-
Weight in Shipping
11.0 kg
STANDARD (EU_OLD LABEL(~`21.3))
-
ErP Class
-
-
On Power Consumption
-
-
Luminance Ratio (%)
-
-
Average Annual Consumption(kWh)
-
STANDARD (EU_NEW LABEL(`21.3~))
-
SDR Grade
-
-
SDR On mode
-
-
HDR Grade
-
-
HDR On mode
-
ACCESSORIES
-
Remote type
S-con
-
Power Cable
YES (1.5M, Straight Type)
POWER SPEC.
-
Power Consumption(Max)
119.6W
-
Power Consumption(Typ)
97.2W
-
Power Supply (Voltage, Hz)
AC 100~240V 50/60Hz
-
Standby Power Consumption
Under 0.5W
-
