LG TV Signage with Essential Function

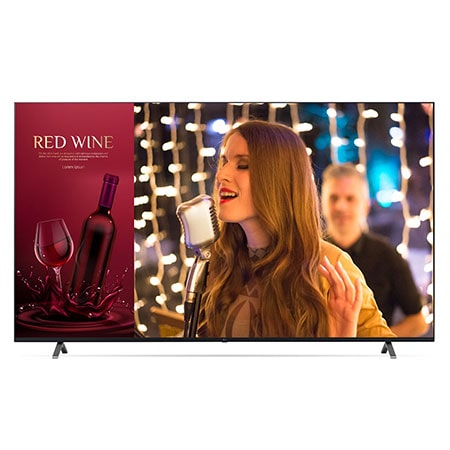

LG 86UR640S Essential Function

*All images in this web page are for illustrative purposes only.

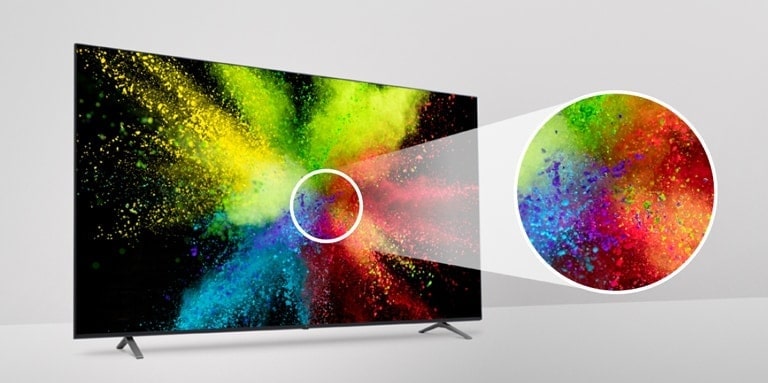

LG 86UR640S Ultra HD Resolution

Superb Picture Quality with Ultra HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic.

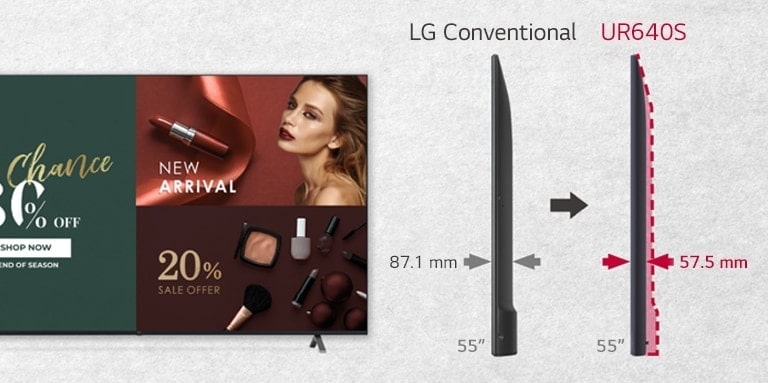

LG 86UR640S Slim Depth

Improved Design with Slim Depth

This series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ahsed blue color improves the décor of the space where the product is installed.

* 'LG Conventional' refers to LG UT640S series.

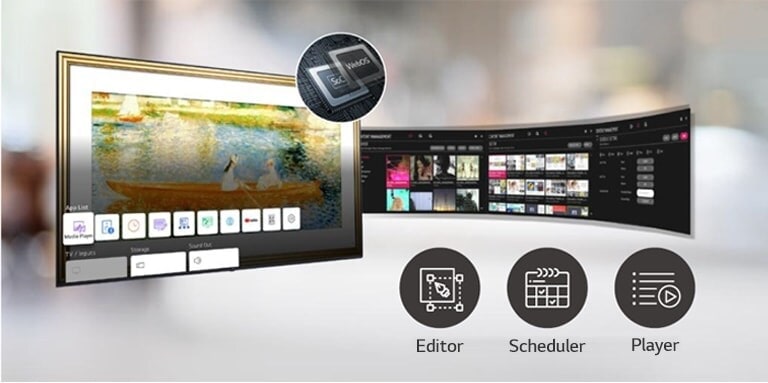

LG 86UR640S webOS 6.0

High-Performance with LG webOS 6.0

LG webOS 6.0, upgraded in SoC* and web engine, is available on UR640S series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**

*SoC : System On Chip.
**GUI : Graphical User Interface.

LG 86UR640S Embedded Content

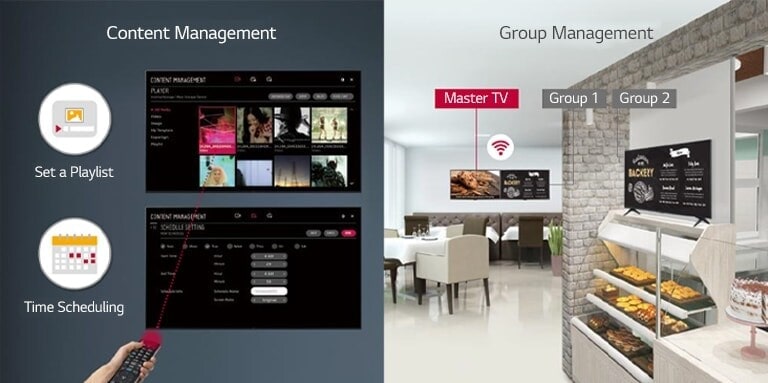

Embedded Content & Group Management

The embedded Content and Group Management System allows you to edit and play content, schedule playlists and groups, and control signage via remote control, mouse and mobile phone without the use of separate PC or software. This makes content management easy and user-friendly.

Versatile Content Management with LG SuperSign CMS

LG SuperSign CMS is integrated management program supporting creation and management of digital media and content deployment, optimized for LG signage. With its simple and intuitive menus and layout options, it enhances efficiency for content creation and editing, scheduling and distribution, improving user experience. In addition, it supports multiple displays and accounts, is able to be linked to external databases, and allows server access from mobile devices.

LG 86UR640S SuperSign CMS

* LG SuperSign CMS is sold separately.

LG 86UR640S Quick

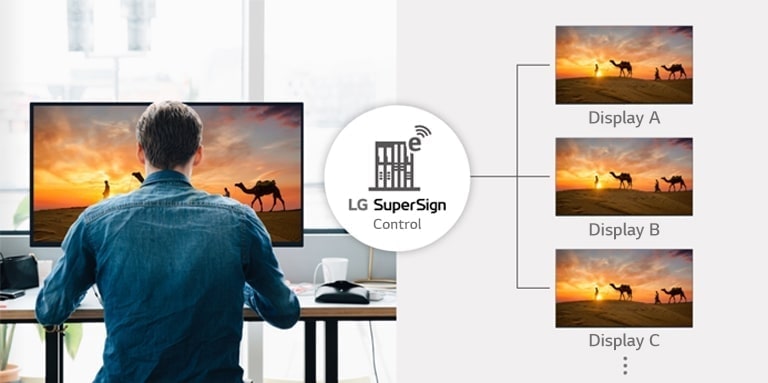

Quick & Easy Signage Control with LG Supersign Control

SuperSign Control is the basic control software, and it can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.

*LG SuperSign Control needs to be purchased separately.

LG 86UR640S Display Power Management Support

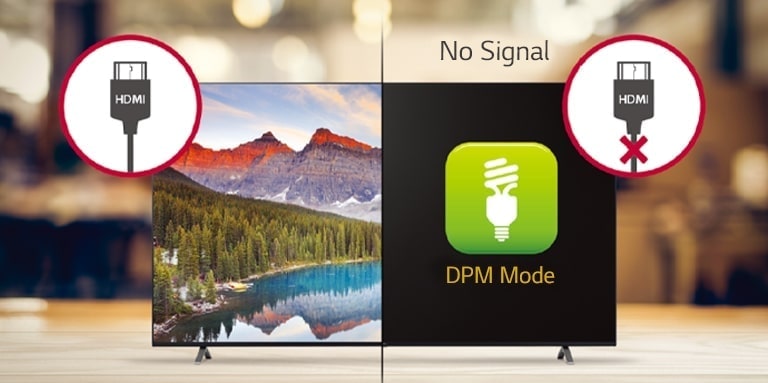

Display Power Management Support

Display Power Management (DPM) can be configured to be On only when there is a TV signal present to manage power more efficiently.

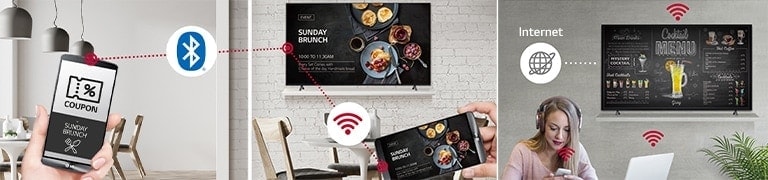

LG 86UR640S Wireless Access Point

Real-Time Promotion

With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.

Content Sharing

Content Mirroring among devices is available on a same Wi-Fi network.

Wireless Access Point

UR640S series operates as a virtual router which can be an wireless access point for mobile devices.

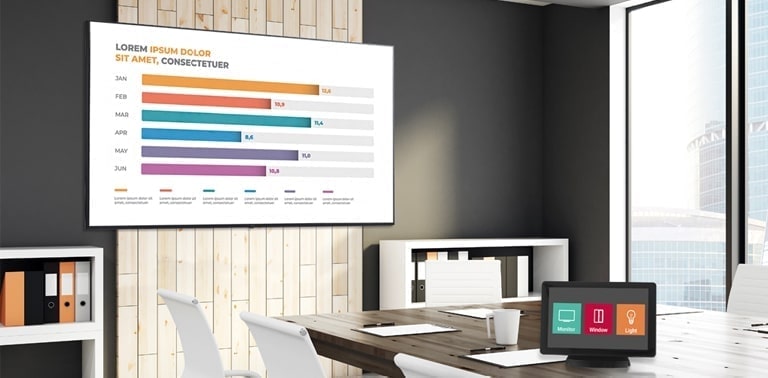

LG 86UR640S Compatible with AV Control Systems

Compatible with AV Control Systems

The UR640S series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

*Initial setting from display is required for Crestron Connected® compatibility.
**Network based control.

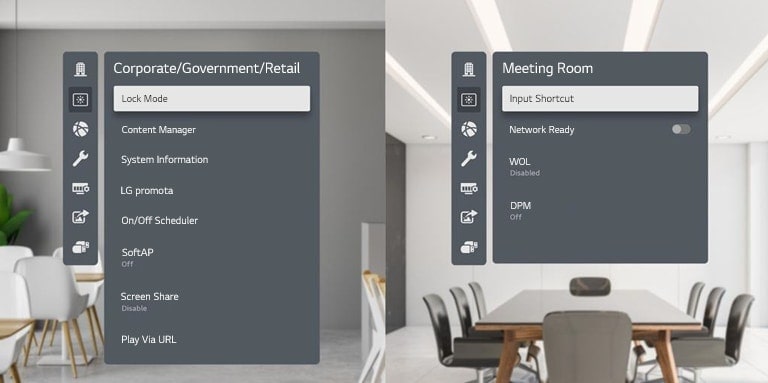

Easy Menu Setup forVertical Needs

UR640S series increases users' convenience by organizing frequently used menus* by industry.

This consist of images displaying the 3-step instructions on installing LG One:Quick Share USB Dongle and sharing the personal screen. The first image pairs the USB Dongle and the LG signage. The second image describes a person holding the USB dongle, attempting to connect it to the PC. The last image consists of people having a meeting by connecting an USB dongle device to a laptop, then sharing the screen through the UL3J on the wall.

*Pre-set Support Vertical : Corporate / Government / Retail, Meeting room

Real-Time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

LG 86UR640S ConnectedCare Service

*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

All Spec

INFO

  • Category

    Smart TV Signage

DESIGN

  • Tool Name

    UP8000

  • Stand Type

    2 Pole

  • Front Color

    Ashed Blue

DISPLAY

  • Size (Inch)

    86

  • Resolution

    4K Ultra HD (3,840 x 2,160)

  • Brightness (Typ.)

    330 nit

VIDEO

  • AI Picture Pro

    -

  • HDR_HDR 10 Pro

    YES

  • HDR_HLG (Hybrid Log Gamma)

    YES

  • Game Optimizer

    -

AUDIO (SOUND)

  • Speaker (Audio Output)

    20W

  • AI Sound

    -

  • AI Acoustic Tuning

    -

  • LG Sound Sync

    YES

BROADCASTING SYSTEM

  • Digital

    DVB-T2/C

  • Analog (NTSC / SECAM / PAL)

    PAL

  • Teletext (Auto Teletext)

    YES

STANDARD

  • Safety

    CB, CU TR

  • EMC

    CE

  • Others

    -

HOSPITALITY SOLUTION

  • Pro:Centric Smart

    -

  • webRTC (Real Time Communication)

    -

  • Pro:Centric Cloud

    -

  • Pro:Centric Direct

    -

  • Pro:Centric V

    -

  • Pro:Centric Server

    -

  • Quick Menu (Customizable Portal)

    -

  • Pro:Idiom (DRM)

    -

  • Pro:Idiom Media (DRM)

    -

  • Other DRM

    -

SMART FUNCTION

  • webOS version

    webOS 6.0

  • Web Browser

    YES

  • Magic Remote Compatibility

    -

  • Multi-View

    -

  • AOD

    -

  • Mood Display

    YES

  • Gallery Mode

    -

  • Home Office

    -

  • Wi-Fi

    YES

  • Bluetooth

    YES

  • Soft AP

    YES

  • Screen Share

    YES

  • DIAL

    YES

  • Bluetooth Audio Playback

    YES

  • HDMI-ARC

    YES (HDMI2)

  • Voice Recognition (Standalone/Solution)

    -

  • IoT

    -

HOSPITALITY FEATURE

  • EzManager

    -

  • USB Cloning

    YES

  • Enterprise Mode

    -

  • Wake on RF

    -

  • WOL

    YES

  • SNMP

    YES

  • Diagnostics

    YES (Self Diagnostics(USB))

  • HTNG-CEC (Version)

    YES

  • Simplink(HDMI-CEC) (Version)

    YES (1.4)

  • IR Out

    YES (RS-232C, HDMI)

  • Multi IR Code

    YES

  • Hotel Mode / PDM / Installer Menu

    YES

  • Welcome Video

    -

  • Welcome Screen (Splash Image)

    YES

  • Insert Image

    YES

  • One Channel Map

    YES

  • External Speaker Out / Line Out

    YES (Ext. Speaker Out)

  • USB Auto playback / playback+

    -

  • Instant ON

    -

  • V-Lan Tag

    -

  • Mobile Remote

    -

  • Port Block

    YES

  • Lock mode

    YES (Limited)

  • RJP (Remote Jack Pack) Compatibility

    YES

  • External Power Out

    -

  • Full Touch Screen

    -

  • b-LAN

    -

  • Conformal Coating

    -

  • Energy Saving mode

    YES

VERTICAL FUNCTION (HOSPITAL)

  • Pillow Speaker

    -

  • Healthcare Headphone Mode

    -

  • Protection Cover (Glass)

    -

VERTICAL FUNCTION (CORPORATE/RETAIL)

  • Vertical Setup

    YES

  • Fail Over

    YES

  • Play Via URL

    YES

  • NTP Server Setting

    YES

  • CISCO Certi. Compatibility

    YES

  • Crestron Certi. Compatibility

    YES

  • DPM (Digital Power Management)

    YES

  • Time scheduler

    YES

  • RTC (Real Time Clock)

    YES

  • NTP sync timer

    YES

  • BEACON

    YES

  • Video Tag

    -

  • Embedded CM (Contents Manager)

    YES

  • Embedded GM (Group Manager)

    YES

SUPERSIGN SW COMPATIBILITY

  • Control / Control Plus

    YES

  • CMS(Premium)

    YES

  • Simple Editor

    YES

  • LG Connected Care

    YES

CONNECTIVITIES

  • HDMI In

    YES (3ea)

  • USB (Ver.)

    YES (1ea / 2.0)

  • RF In

    YES (1ea)

  • AV In

    YES

  • Component in (Y,Pb,Pr-Video)

    -

  • RGB In (D-sub 15pin) - PC

    -

  • Digital Audio Out (Optical)

    YES

  • PC Audio Input

    -

  • External Speaker Out(3.5mm Phone jack)

    YES

  • Audio Line Out(3.5mm Phone jack)

    -

  • Headphone Out

    YES

  • CI Slot

    -

  • RJ45 (Usage Purpose)

    YES (LAN)

  • RS-232C (D-Sub 9pin / Phone jack)

    YES (Phone jack)

  • TV link Configuration (Phone jack type)

    -

  • LG SVC only (Phone jack type)

    YES

  • MPI Port (RJ12 jack)

    -

  • ECI (RJ12 jack)

    -

  • Pillow Speaker interface (6pin)

    -

  • Expansion slot (60pin)

    -

  • DC Adapter In

    -

  • PoC (Power over Coax)

    -

  • EXT. IR In

    -

MECHANICAL

  • VESA Compatible

    600 x 400 mm

  • Kensington Lock

    YES

  • Credenza/Security Screw Hole

    -

  • Lock Down Plate (for easy installing)

    -

DIMENSIONS/WEIGHT

  • Dimension with Stand (W x H x D)

    1927 x 1167 x 362 mm

  • Dimension without Stand (W x H x D)

    1927 x 1104 x 59.9 mm

  • Dimension in Shipping (W x H x D)

    2115 x 1215 x 228 mm

  • Bezel Width (L/R/U/B, On Bezel)

    15.9/15.9/15.9/19.9 mm

  • Bezel Width (L/R/U/B, Off Bezel)

    6.9/6.9/6.9/18.4 mm

  • Weight with Stand

    45.9 kg

  • Weight without Stand

    45.2 kg

  • Weight in Shipping

    58.4 kg

STANDARD (EU_OLD LABEL(~`21.3))

  • ErP Class

    -

  • On Power Consumption

    -

  • Luminance Ratio (%)

    -

  • Average Annual Consumption(kWh)

    -

STANDARD (EU_NEW LABEL(`21.3~))

  • SDR Grade

    -

  • SDR On mode

    -

  • HDR Grade

    -

  • HDR On mode

    -

ACCESSORIES

  • Remote type

    S-con

  • Power Cable

    - (Attached)

POWER SPEC.

  • Power Consumption(Max)

    339W

  • Power Consumption(Typ)

    313W

  • Power Supply (Voltage, Hz)

    AC 100~240V 50/60Hz

  • Standby Power Consumption

    Under 0.5W
