Removing the mobile phone from the Dual Screen

  1. Unfold the Dual Screen completely and hold it firmly with both hands as shown in the figure.



"To remove the phone from the Dual Screen case, unfold the case completely and hold it firmly with both hands. "

  1. Press the
    Charger/USB cable port
    part of the Dual Screen with your finger while simultaneously pushing the back of the phone with your other finger to pull the edge of the phone out of the Dual Screen.



Press [1] of the case with your finger while simultaneously pressing the back of the phone with your other finger to pull the edge of the phone out of the case.

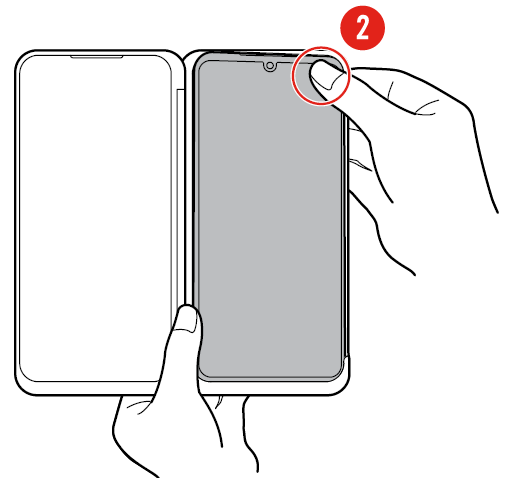

  1. Pull the
    Charger/USB cable port
    part of the phone out of the Dual Screen following the same directions from the previous step.



Press [1] of the phone with your finger to engage the edge of the phone with that of the case.

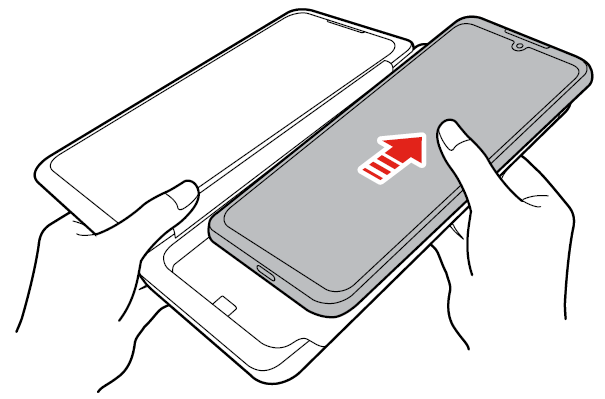

  1. Hold the Dual Screen with both hands and slide the phone in the direction of the arrow to remove it. Be careful not to twist the phone left or right or push it up at an excessive angle.



"While holding the case with both hands, slide the phone in the direction of the arrow to remove it without turning or twisting the phone at an acute angle. "

WARNING!

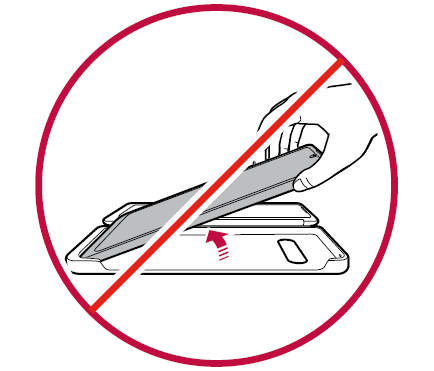

Do not lift the phone from the Dual Screen at an acute angle as shown below.


NOTES

  • If you pull the phone from the Dual Screen at an acute angle or with excessive force when removing the phone, you may damage the Communication/Power terminal on the bottom of the Dual Screen or the USB data communication and charger port on the phone. Be sure to push up the phone in the direction of the arrow as shown in the figure when removing it.
  • Be careful not to drop the Dual Screen or the mobile phone while inserting or removing the phone.
  • Some of the Dual Screen parts are made of tempered glass. Dropping the Dual Screen on a hard surface or subjecting it to a strong impact may cause the tempered glass to crack or wear, damaging the Dual Screen or causing injury. If this happens, stop using the Dual Screen immediately and visit your nearest LG Authorized Service Center for repair.
  • Make sure that your phone is fully inserted into the Dual Screen before use.
  • When you insert or pull out your mobile phone from the product, be cautious not to use excessive force. Doing so may damage the product.
  • In the following situations, the product’s folder may not close completely or the product may not operate properly due to the contact failure of the communication/power terminal.

- If you attach a protective film, protective glass, or other accessories on the product or the screen of your mobile phone

- If you attach a protective film or thick stickers on the product’s connection area or the rear side of your mobile phone

- If you insert sheets of paper or cards between the product and your mobile phone

  • If you use the wireless charging or NFC function while your mobile phone is inserted into the product, charging may not work properly.
  • When the phone is mounted on the Dual Screen, it cannot be connected to a TV with an HDMI cable. When the phone is unmounted from the Dual Screen, it can be connected to a TV with an HDMI cable.
