DISCONTINUED
LHB336

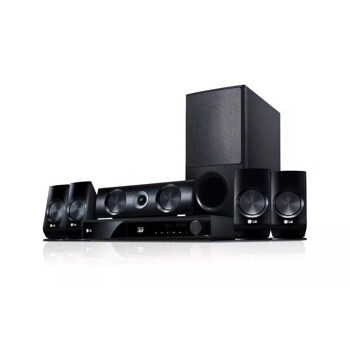

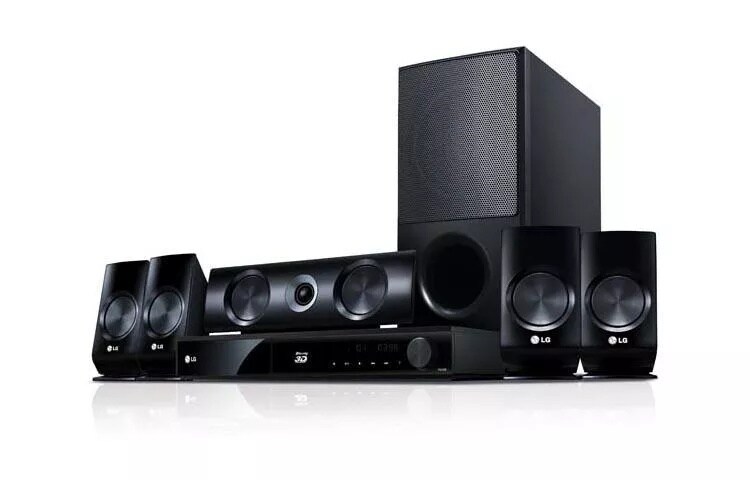

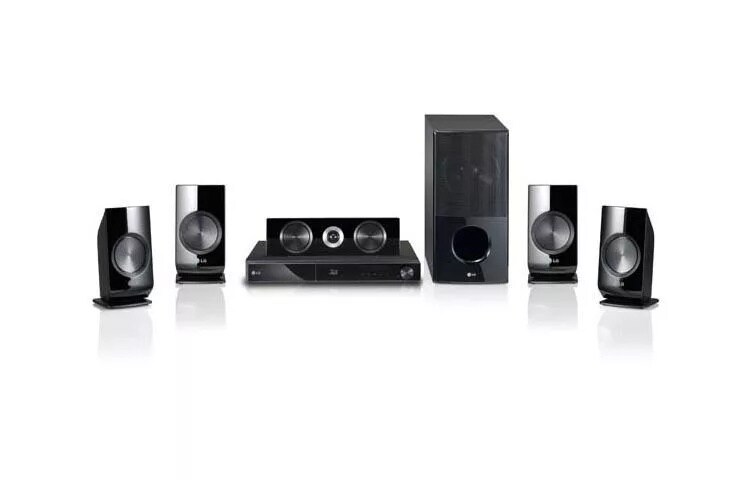

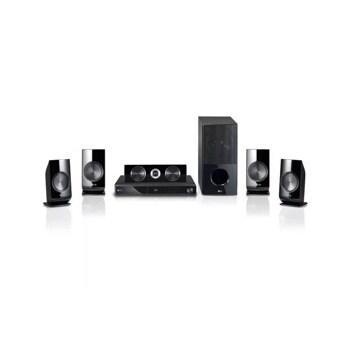

3D-Capable Blu-ray Disc™ Home Theater System with Smart TV
Key Features
All Specs
- Smart TV Access
- 3D Blu-ray Disc™ & Blu-ray Disc™ 1080p Playback
- DLNA Certified
- 1080p Up-scaling
Compare
Features and Specs
See All Specs
All Specs
AMPLIFIER / SPEAKER
Output Power - Front
180W x 2 (4Ω, Peak)
Output Power - Center
180W (4Ω, Peak)
Output Power - Rear
180W x 2 (4Ω, Peak)
Output Power - Subwoofer
200W (4Ω, Peak)
Center Speaker Type
Satellite
Front Speaker Types
Satellite
Rear Speaker Types
Satellite
Subwoofer Speaker Type
Passive
POWER
Power Requirements
AC 120 V, 60Hz
Power Consumption
150W
FRONT AUDIO / VIDEO INPUTS & OUTPUTS
USB 2.0 In
1
Portable Audio In
1
iPod/iPhone Dock
1
SUMMARY
Disc Playback Capability
Blu-ray Disc™, BD-R/RE, DVD-Video, DVD±R, DVD-RW, DVD+RW, Audio CD, CD-R/RW
Blu-ray Support
Yes
Full HD 1080p resolution
Yes
Upscale Standard DVDs
Yes
No. of HDMI Ports
2 (1 In / 1 Out)
Disc Capacity
1
Video Content Formats
MPEG4 AVC, HP@L4.1, MPEG2, HP@ML, SMPTE VC1, AP@L3, AVCHD
Surround Sound
5.1 Channel
Total Output Power
1100W (4Ω, Peak)
Video, Pictures and Music via USB 2.0
Yes
SimpLink™ connectivity
Yes
Limited Waranty
1 Year Parts/90 Days Labor
Home Link Playable Content Format
DivX®/DivX HD, MPEG2 TS/PS, MPEG1 SS, XVID, MKV, AVI, WMA, MP3, AC3, AAC, JPEG
CONVENIENCE FEATURES
Sleep
Yes
Screen Saver
Yes
Parental Lock
Yes
Repeat
Yes
A-B Repeat
Yes
Speaker/Woofer Level Trim
Yes
Speaker Distance (Channel Delay)
Yes
Mute
Yes
A/V Sync Delay (Audio Delay)
Yes
Quick Loading
Yes
Scan (fwd/rev)
Yes
Skip (fwd/rev)
Yes
Slow (fwd/rev)
Yes
Test Tone
Yes
SIZE & WEIGHT
Main Unit Dimensions (WxHxD)
17.1" x 2.3" x 11.1"
Rear Speaker Dimensions (WxHxD)
3.7" x 7.2" x 3.3"
Center Speaker Weight
2.67 lbs
Front Speaker Dimensions (WxHxD)
3.7" x 7.2" x 3.3"
Subwoofer Dimensions (WxHxD)
7.5" x 15.2" x 14.1"
Center Speaker Dimensions (WxHxD)
12.9" x 3.9" x 3.0"
Shipping Dimensions (WxHxD)
23.8” x 15.0” x 17.1”
Main Unit Weight
8.27 lbs
Front Speakers Weight
1.34 lbs each
Rear Speakers Weight
1.34 lbs each
Subwoofer Weight
11.0 lbs
Shipping Weight
35.3 lbs
REAR AUDIO / VIDEO INPUTS & OUTPUTS
AM Antenna Input
1
Digital Audio In (Optical)
2
LAN Port (RJ-45)
1
Speaker Output/Type
5/Push-type
Component Video Out
1
FM Antenna Input
1
Composite Video Out
1
HDMI™ Out
1
Subwoofer Output/Type
1/Push-type
VIDEO CAPABILITIES
Digital/Analog Conversion
162MHz/12bit
NTSC Hz
60Hz
Deep Color (HDMI™)
Yes
x.v.Color (HDMI™)
Yes
Composite Output
480i
HDMI™ Output
480p/720p/1080i(24/60)
TUNER
AM/FM Tuner
Yes
AM Tuner Range (10kHz)
522 ~ 1620kHz
Radio Tuner Presets
50
FM Tuning Range (50kHz / 100kHz)
87.5 ~ 108.0 MHz
SPECIAL FEATURES
Netflix® Instant Streaming Ready
Yes
YouTube™
Yes
Vudu™ (Streaming)
Yes
Blu-ray BonusView
Yes
Blu-ray BD-Live™
Yes
Home Link (DLNA® Client)
Yes
NetCast™ Entertainment Access
Yes
Roxio® CinemaNow
Yes
Pandora® Internet Radio
Yes
Picasa™ Web Albums
Yes
AccuWeather®
Yes
MusicID®
Yes
Wireless LAN
Ready (Adapter required, sold separately)
ARC
Yes
INCLUDED ACCESSORIES
Remote Control
1
A/V Cable
1
AM Antenna
1
Color-coded Speaker Cables
5
FM Antenna
1
Nero MediaHome 4 Essentials Software CD
1
User Manual
1
Remote Control Batteries
2 (Size AAA)
AUDIO CAPABILITIES
Dolby® Digital
Yes
Dolby® Digital Plus
Yes
DTS™
Yes
DTS-HD Master Audio™ Essential
Yes
LPCM
Yes
Sound Modes (DSP)
9 Modes
Digital/Analog Conversion
192KHz/24bit
Signal/Noise Ratio
100+ dB
Dolby® TrueHD
Yes
